General characteristics
| Working height | 820 - 940 mm |
| Maximal table load | 900 kg |
| Max. load per meter | 300 kg/m |
| width of rolls | 350 mm |
| diameter of rolls | 60 x 2 mm |
| axis diameter | 15 mm |
| max. gauge length | 2550 mm |
| roll gapping | 250 mm |
Dimensions and weight
| Length | 3000 mm |

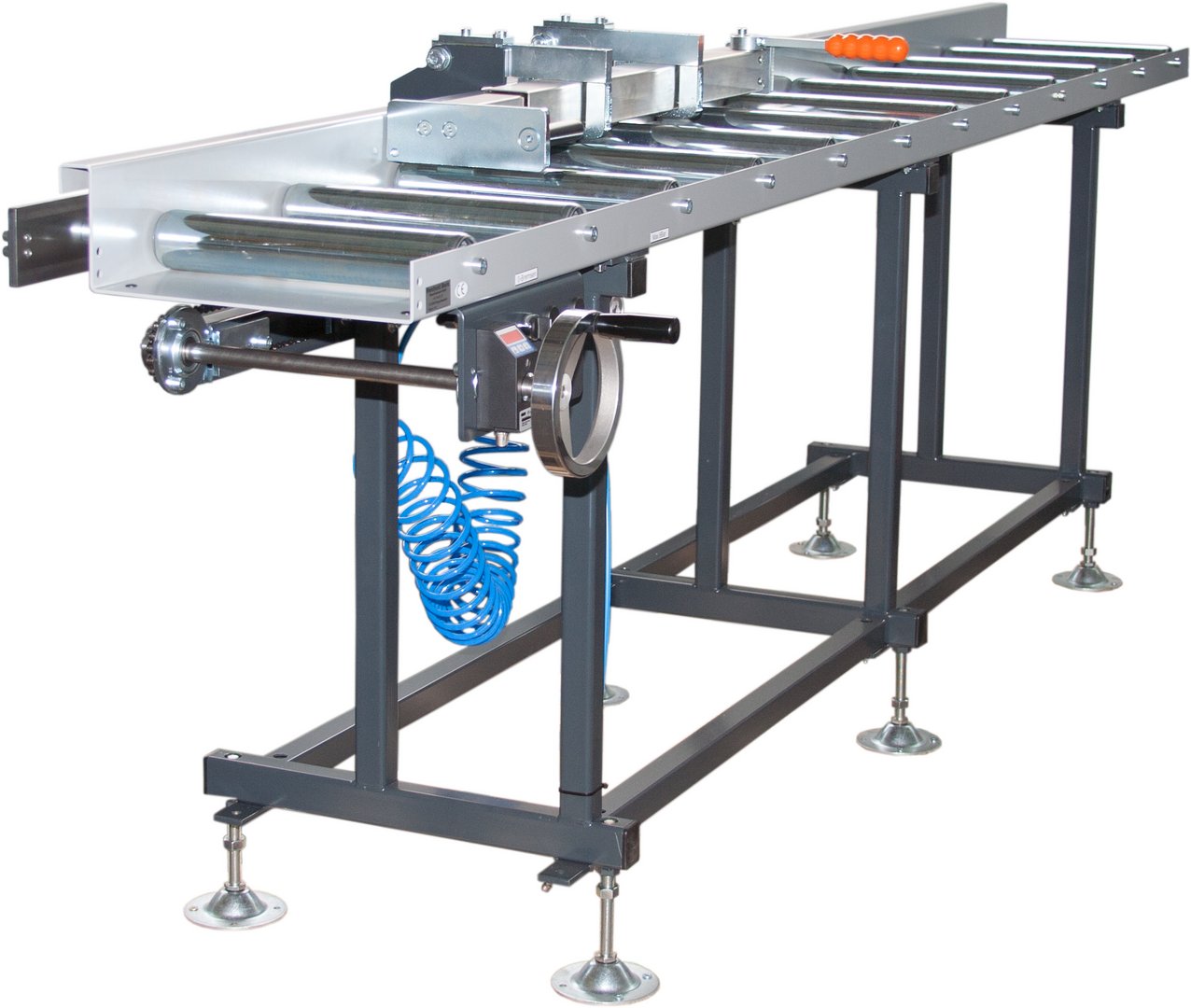

Description
digital readout
adjustment by handwheel
pneum. brake
material depth stop with 12 times ball bearings on generous large dimensioned guiding profile
Further lengths:
| 2 meter | € 3.515,- |
| 4 meter | € 4.945,- |
Options:
| Measuring systm with 1/10 mm readout Z 58 with magnetic polring and sensorhead |
SZ 09 | € 844,- |
| material depth stop arm sprung and adjustabel up to the mechanical zero (man. dischargeable by eccentric lever |
SZ 05 | € 505,- |
| pneum. arm retraction (10 mm discharge stroke) of sprung material depth stop (SZ 05) |
SZ 07 | € 422,- |
| cover plate between the carrier rollers, galvanized per running meter | SZ 06 | € 117,- |
Further lengths and roll widths on reques.
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
