Motor operated 3-roll plate bending machine HESSE by ISITAN IRM 2050 x 140
| Model | IRM 2050 x 140 |
| Brand | HESSE by ISITAN |
| Condition | new |
| Bending length | 2050 mm |
| Upper roll diameter | 140 mm |
| Origin | Türkiye |
General characteristics
| Bending length | 2050 mm |
| Max. bending capacity - mild steel | 4 |
| Upper roll diameter | 140 mm |
| Motor power | 2.2 kW |
Dimensions and weight
| Length | 3200 mm |
| Width | 750 mm |
| Height | 1000 mm |
| Weight | 1650 kg |
Description
3 reels
asymmetrical roller arrangement - with pre-bending
2 driven rollers by means of a brake motor
manual Back Roll
upper roller can be swiveled forward
forward / reverse run
conical rounding by inclining the rear rollers
movable control panel
Options:
hardened Rolls € 1.800,-
Motorised Back Roll (Power Rear Roll) € 1.200,-
Digital Read-Out € 1.200,-

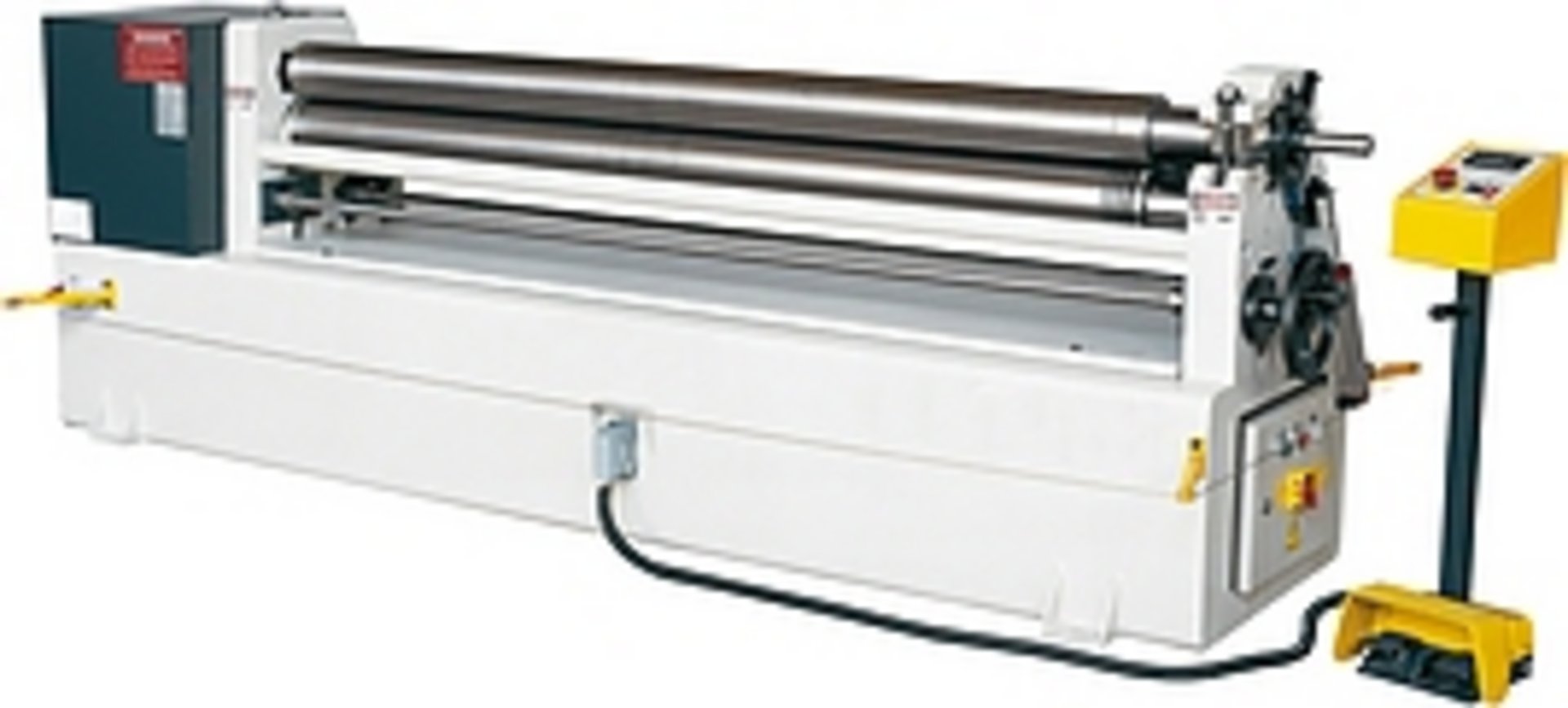

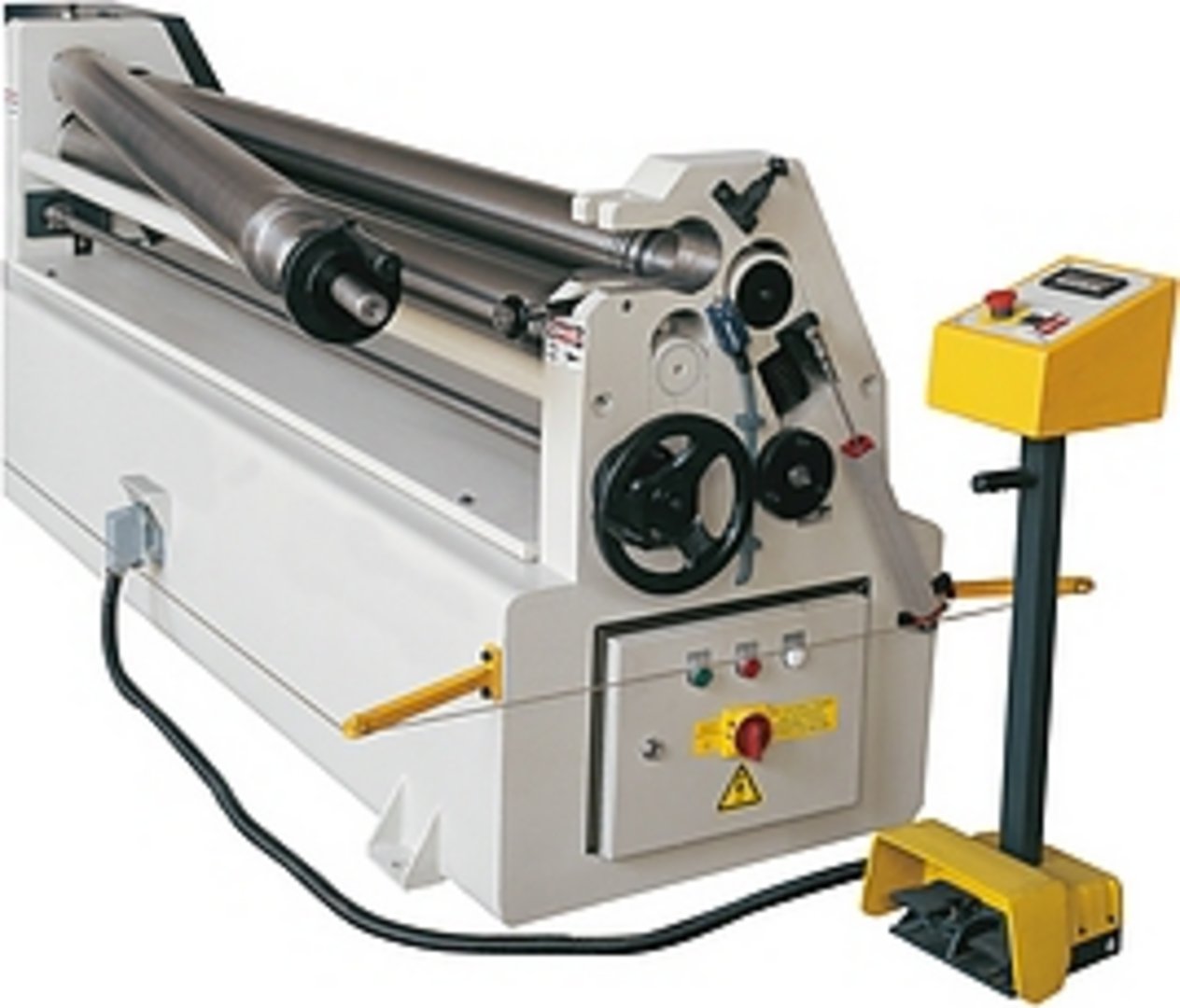

(sample photo)
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
