General characteristics
| Bending length | 2035 mm |
| Sheet thickness (420 N/mm²) | 3.5 mm |
| Antrieb | Hydraulic |
| Max. bending angle | 135 ° |
Dimensions and weight
| Length | 3000 mm |
| Width | 1100 mm |
| Height | 1750 mm |
| Weight | 2200 kg |
Description

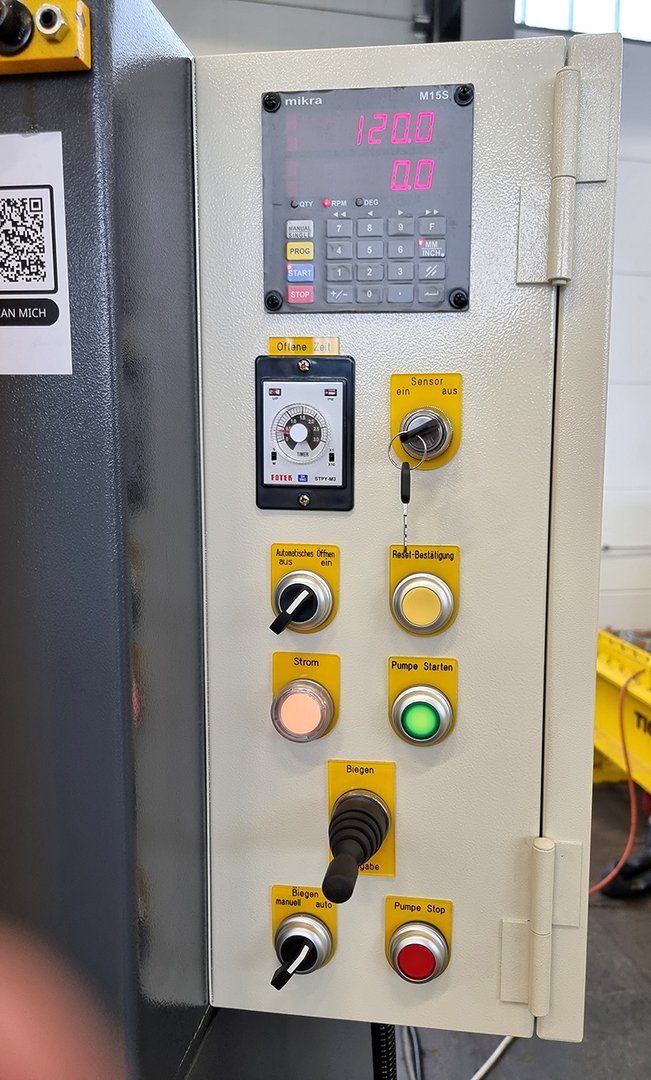

NC control for bending angle

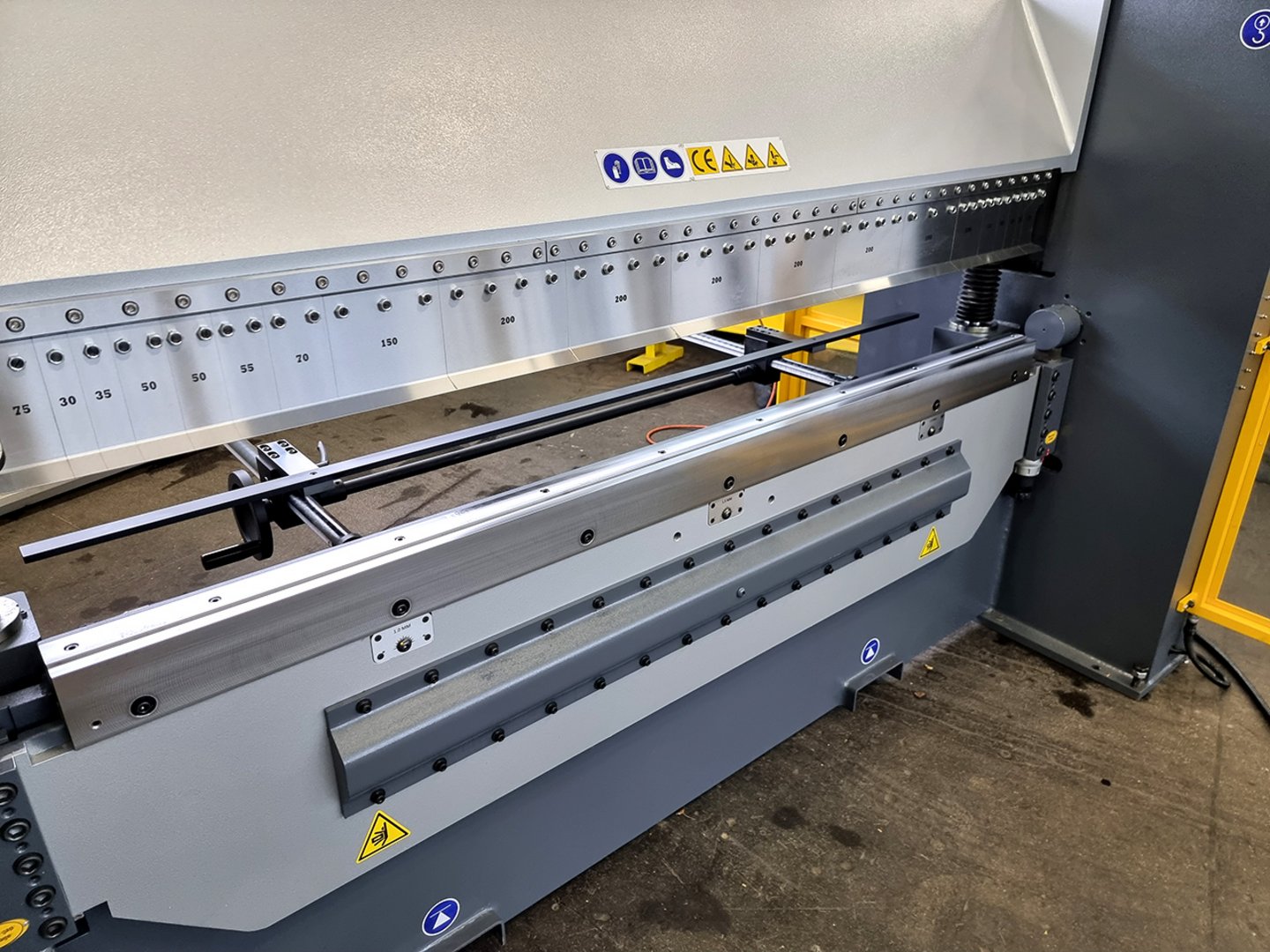

manual back gauge 600 mm

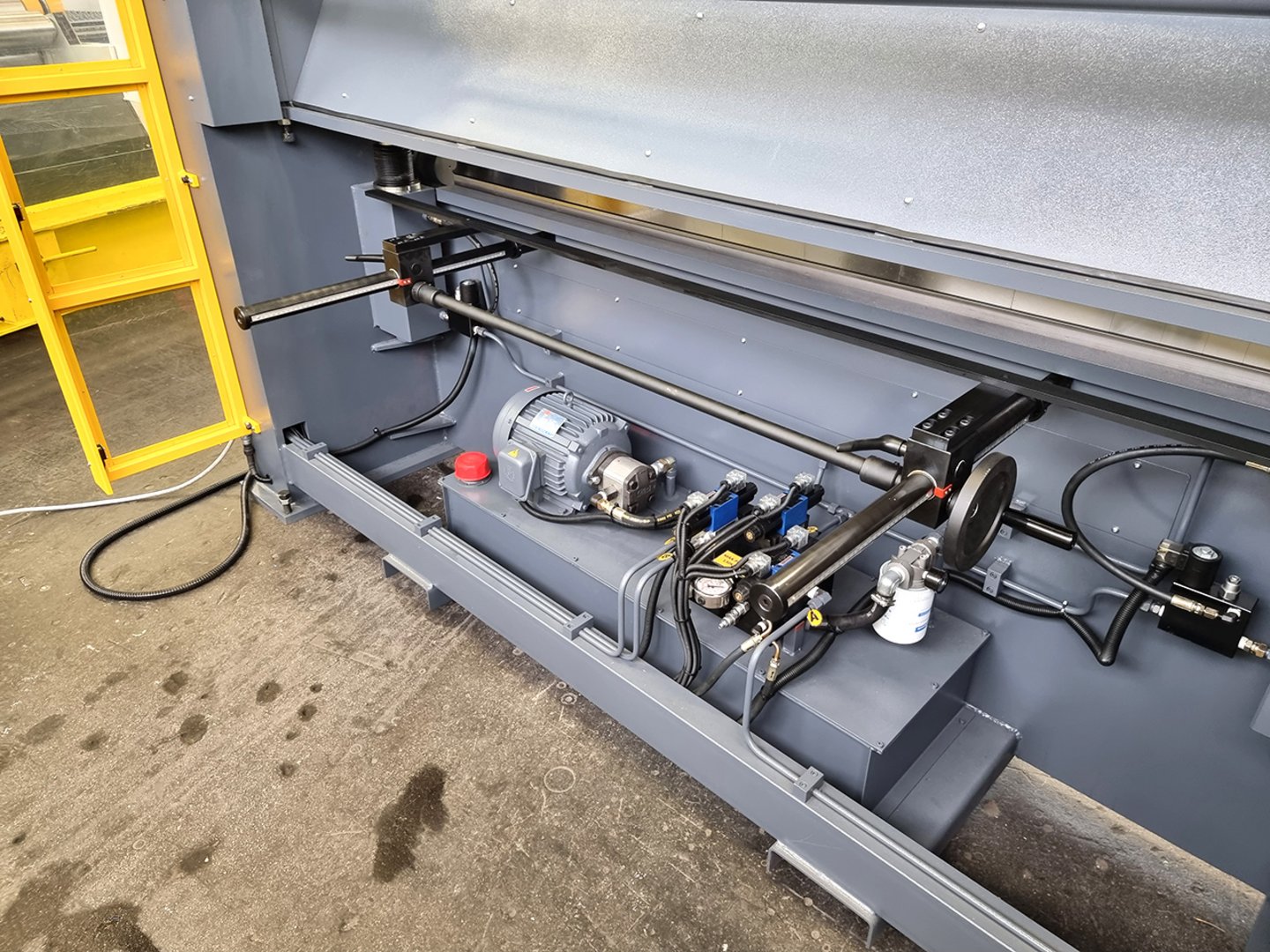

hydraulic driven
vertical movement of upper beam

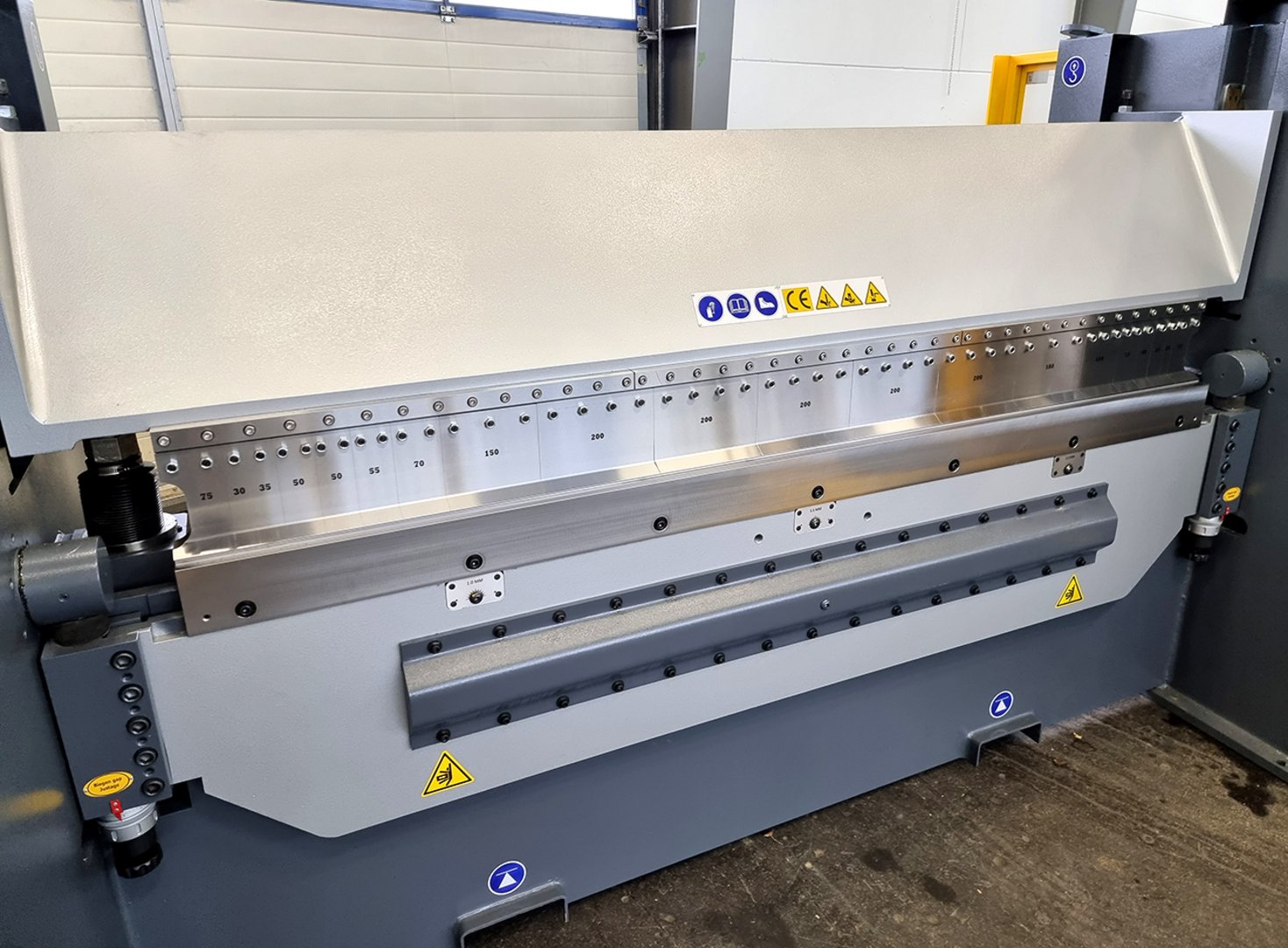

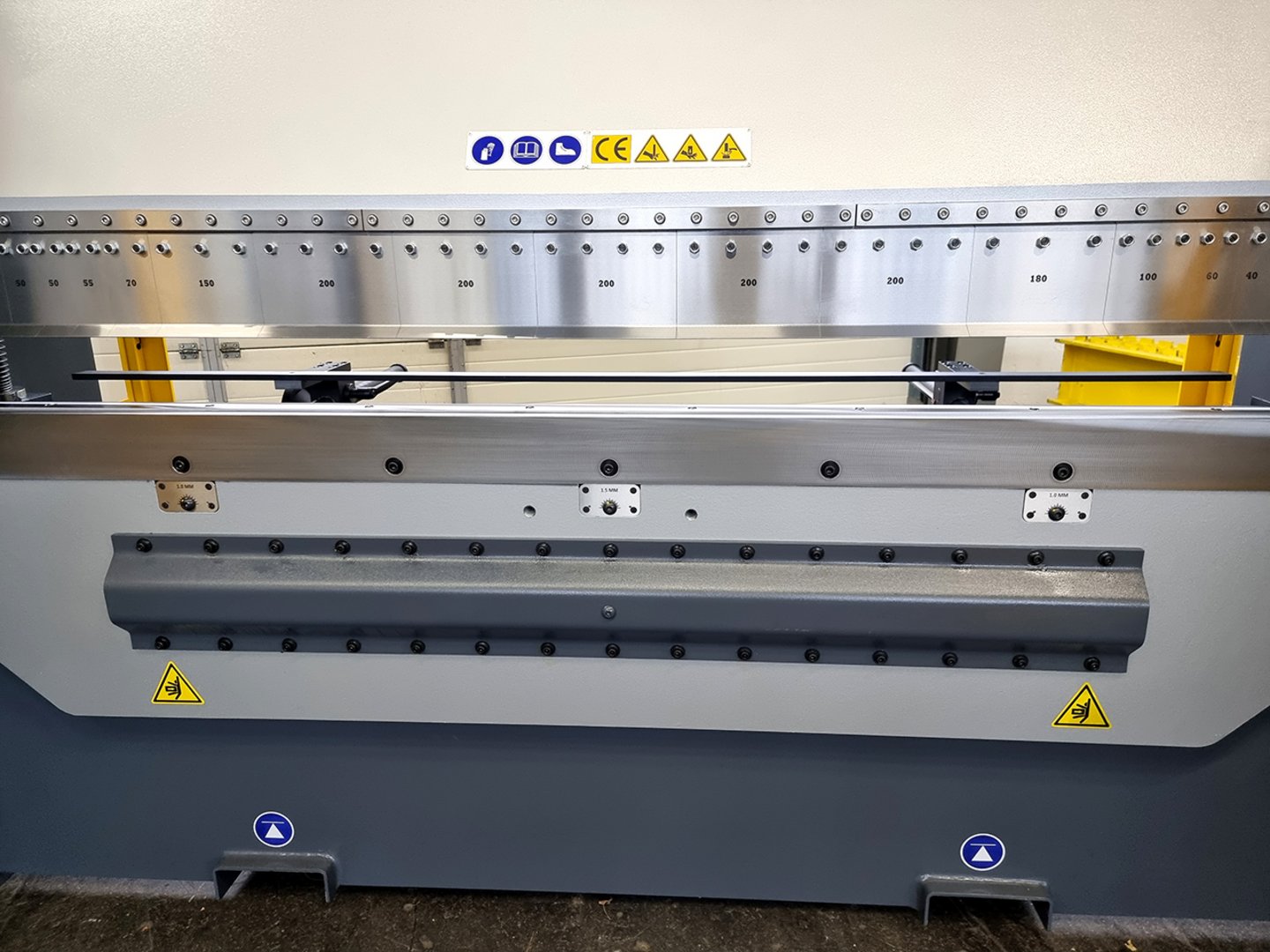

segmented blade
segmented goose neck rail 30°, 110 mm with quick tool change system
one piece flat bottom bar 30 mm
according to CE rules
Further information
Brochures
Product video

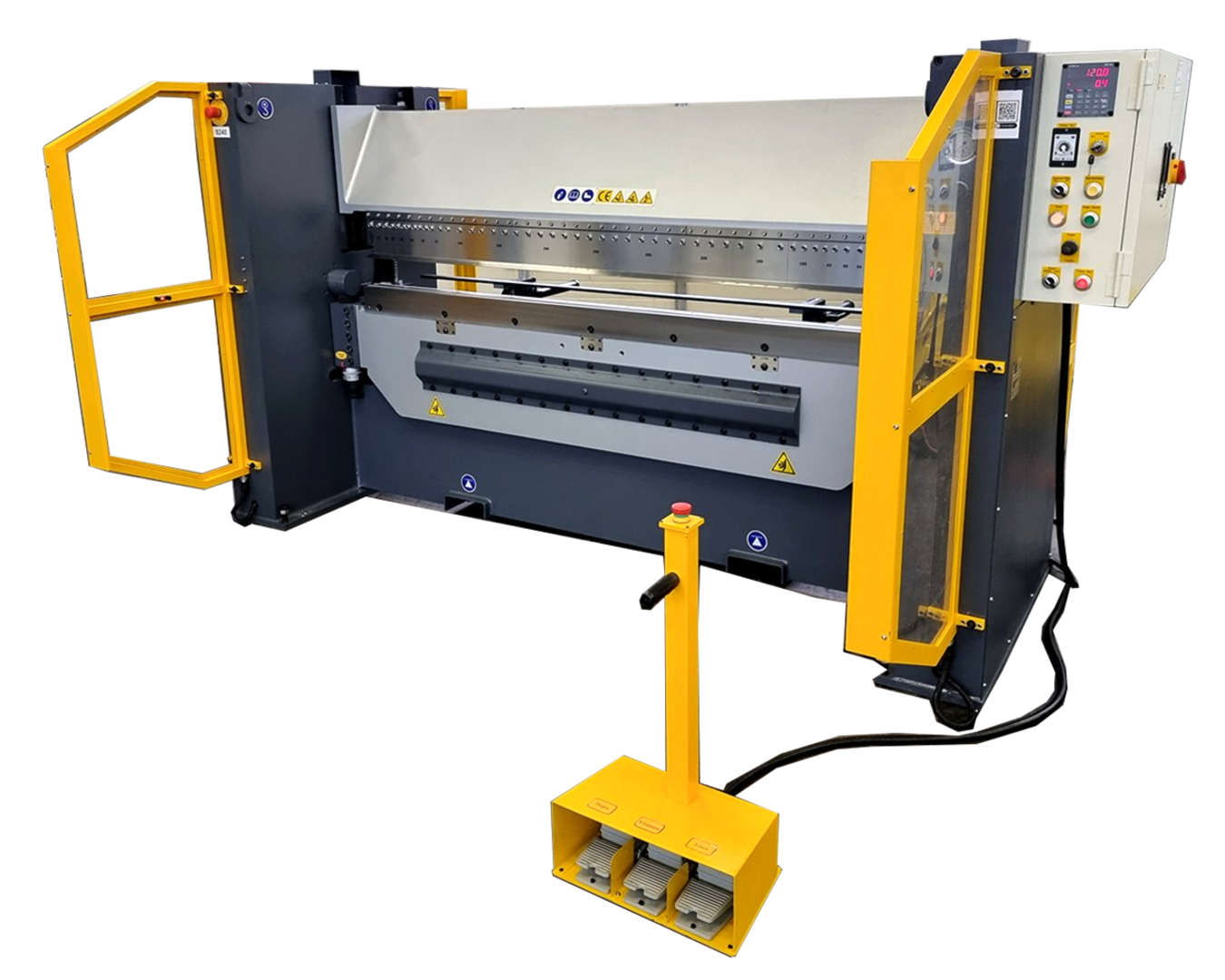

Hydraulic folding machine V-AMH 2035
