General characteristics
| Saw frame | Pivot frame |
| Band dimensions | 3010x27x0,9 mm |
| Band speed | 35/70 m/min |
| Band speed continous | 20-100 m/min |
| Cutting capacity 0° round | 260 mm |
| Cutting capacity 0° square | 240 mm |
| Cutting capacity 0° flat | 330x120 mm |
| Cutting capacity 45° | rund 200 mm, quadrat 190 mm, rechteck 200 x 130 mm |
| Cutting capacity 60° | rund 120 mm, quadrat 115 mm, rechteck 120 x 100 mm |
| Min. rest piece length | 220 mm |
| Working height | 835 mm |
| Motor | 1.5 kW |
Dimensions and weight
| Length | 2800 mm |
| Width | 2050 mm |
| Height | 1900 mm |
| Weight | 1090 kg |
Description
demo machine / mint condition
net price (price for new machine € 20.490,00)

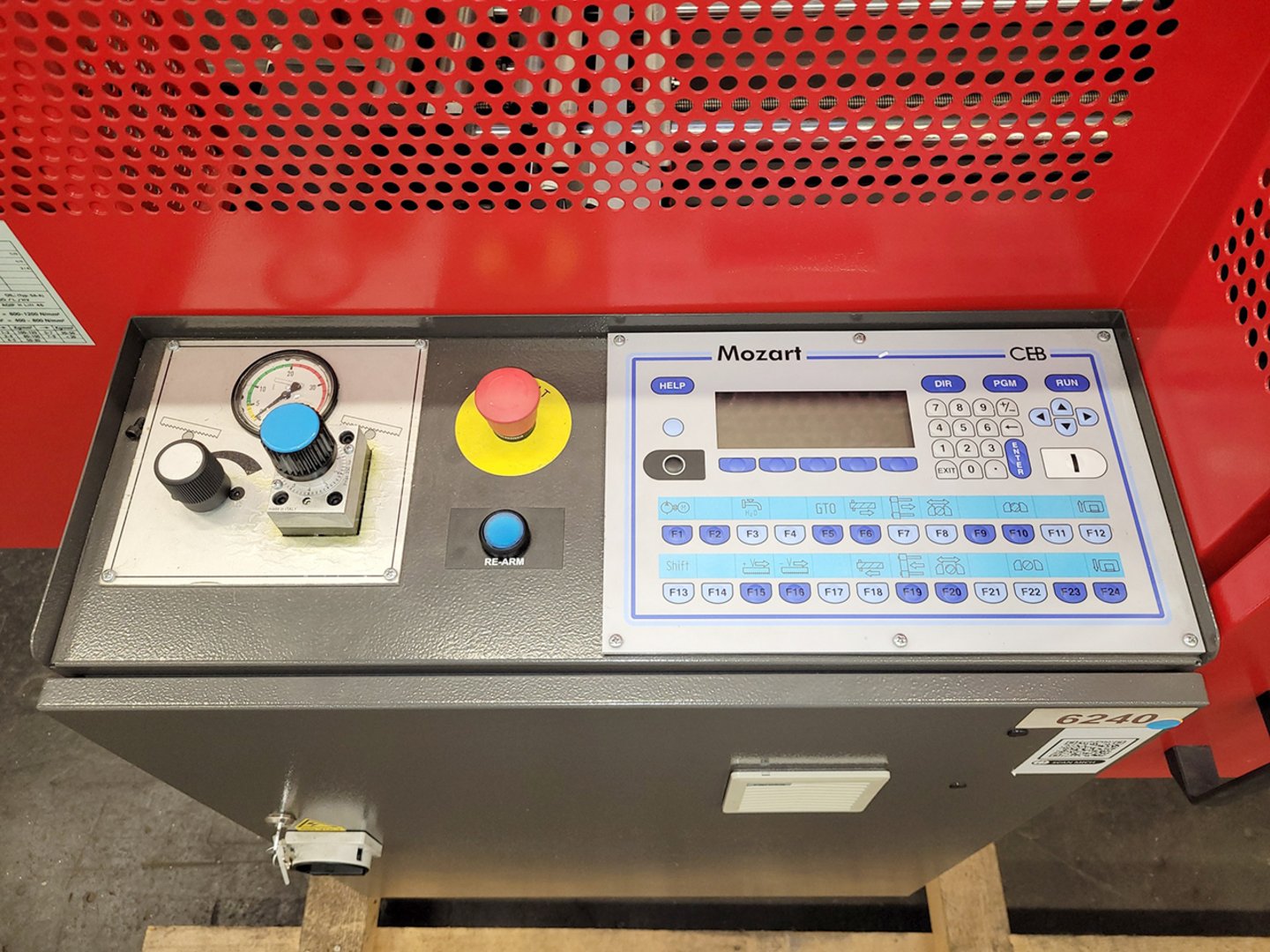

material feed and number of pieces by CNC (99 programms)
automatic cutting cycle clamping, saw blade and cutting fluid on, cutting operation, saw blade and cutting fluid off, fast return stroke, declamp
automatic feed 600 mm/stroke
variable cutting pressure
variable cutting speed
coolant equipment
automatic saw blade breakage detection

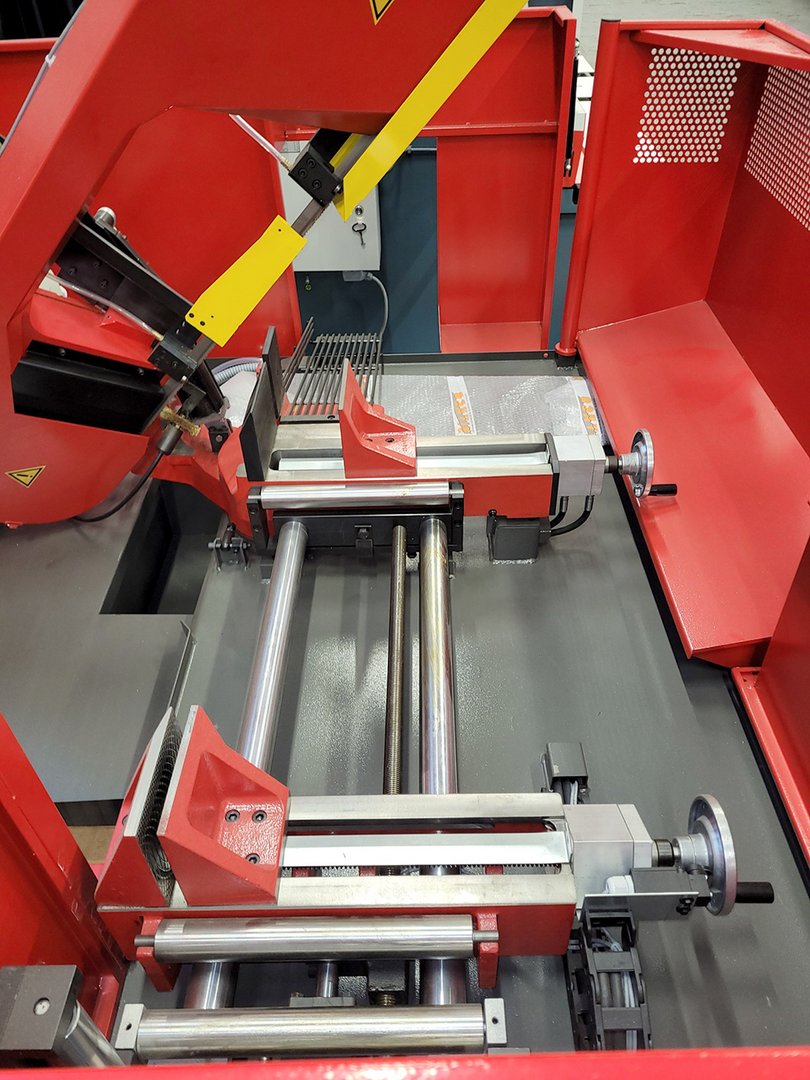

hydraulic vices for material clamping while cutting and for feeder unit
user manual in GERMAN or ENGLISH
Options:
Roller tables and band saw blades on request
