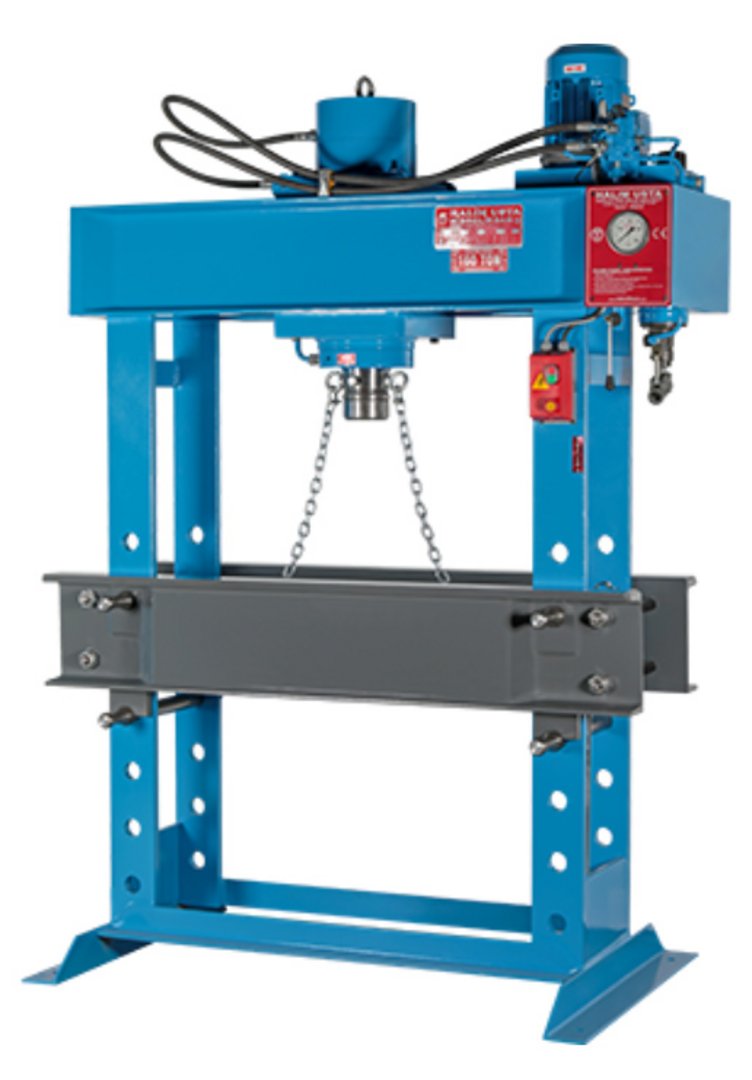

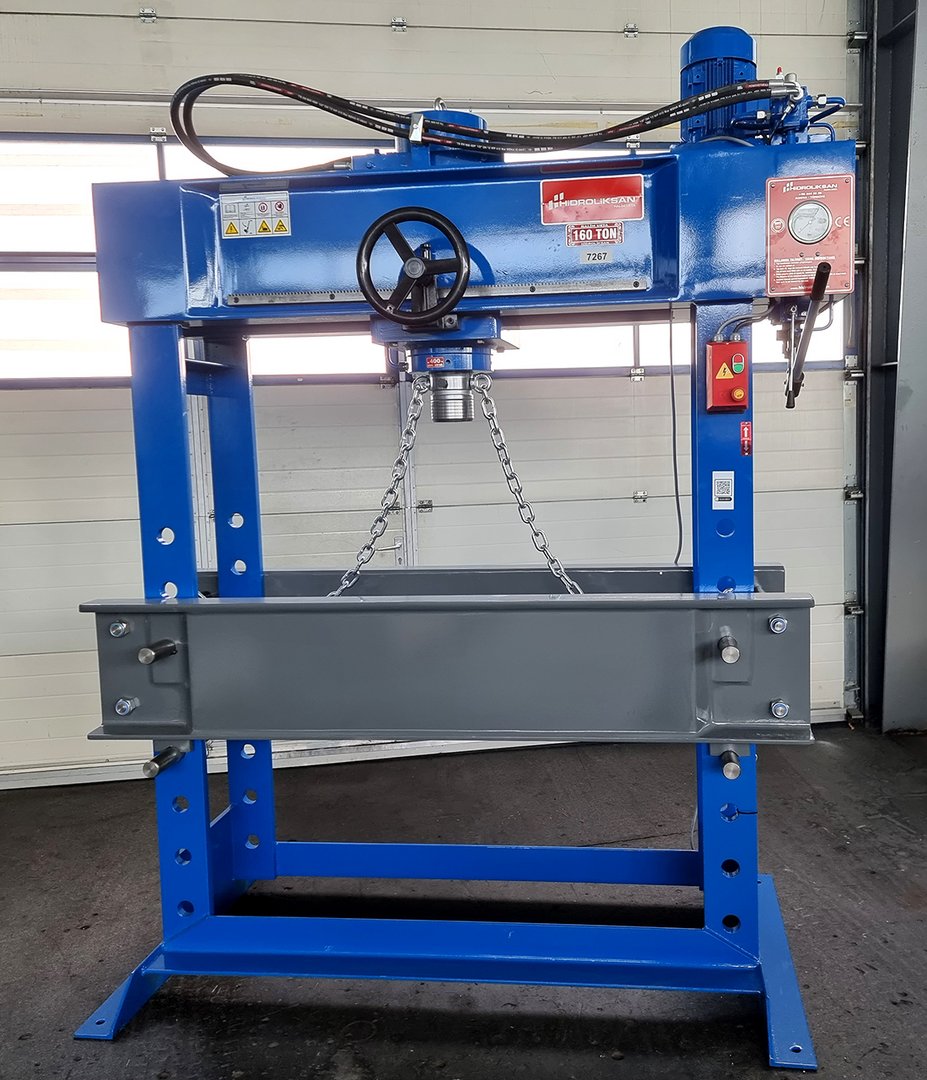

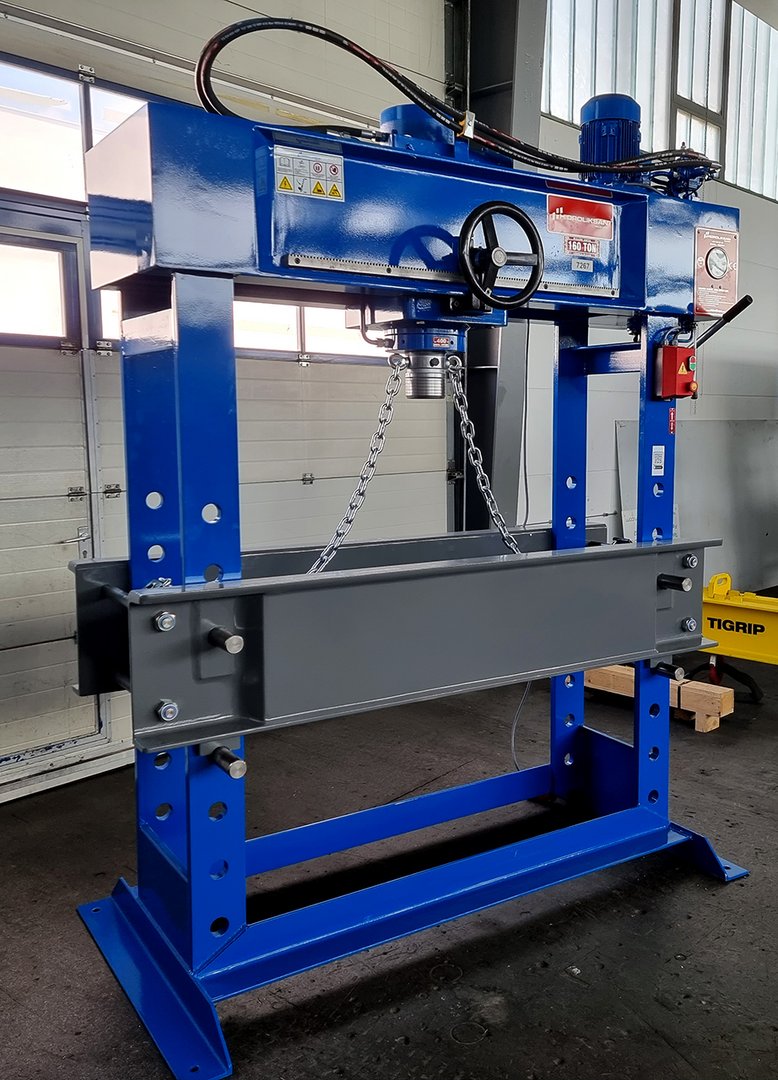

Hydraulic workshop press HIDROLIKSAN HD 160
| Model | HD 160 |
| Brand | HIDROLIKSAN |
| Condition | new |
| pressing capacity | 160 to |
| Distance between columns | 1450 mm |
| Origin | Türkiye |
General characteristics
| pressing capacity | 160 to |
| Cylinder fix or moveable | horizontal moveable |
| Stroke | 400 mm |
| Daylight | 900 mm |
| Distance between columns | 1450 mm |
| Working speed | 7,4 / 11,8 mm/s |
| Retraction speed | 9.8 mm/s |
| Table | 1450 x 450 mm |
| Motor power | 5 kW |
Dimensions and weight
| Length | 1640 mm |
| Width | 1000 mm |
| Height | 2550 mm |
| Weight | 1300 kg |
Description
with horizontally sliding cylinder
motorhydraulic with additional hand pump
Height adjustable table

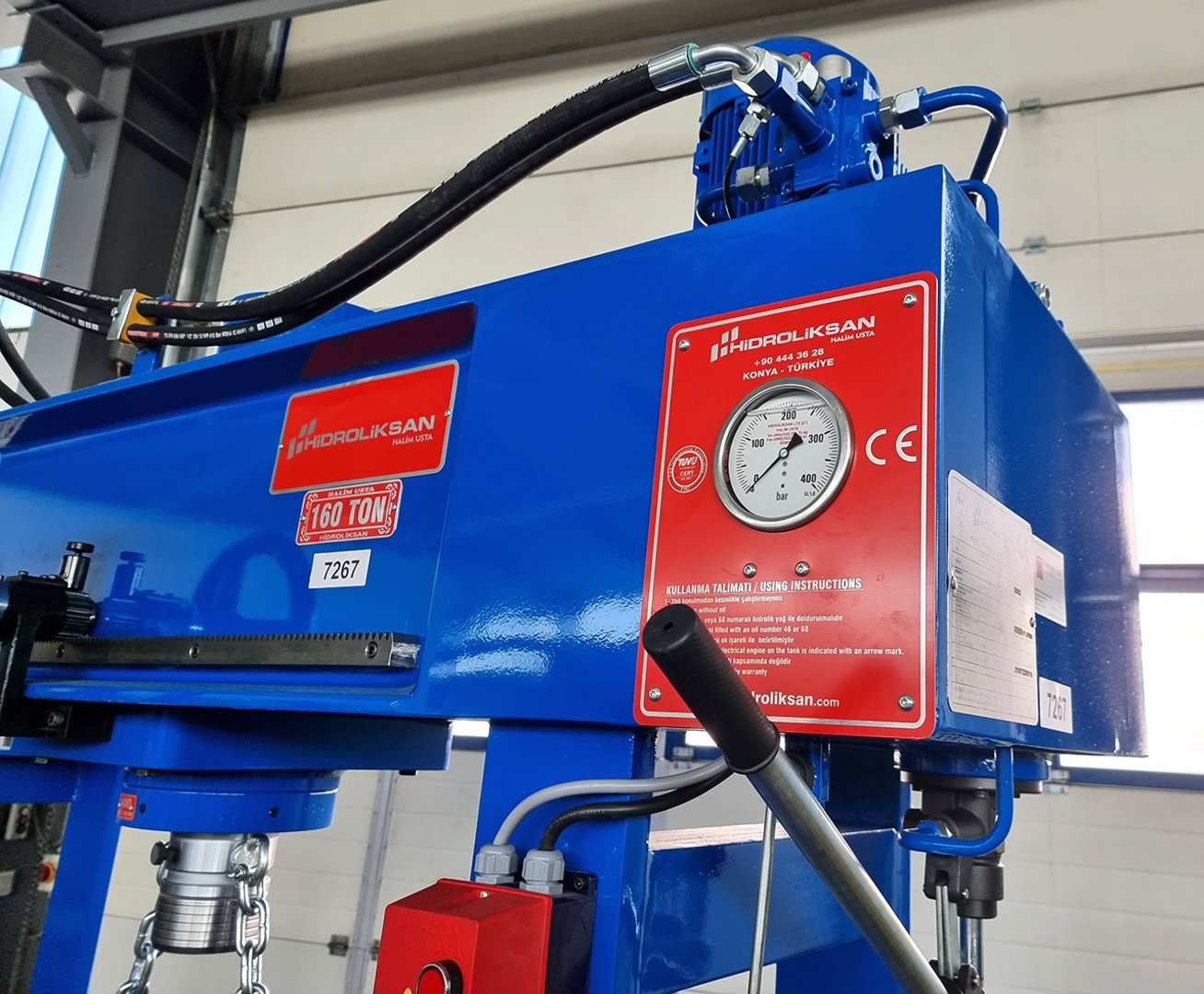

Oil Pressure Gauge
Incl. optional equipment:

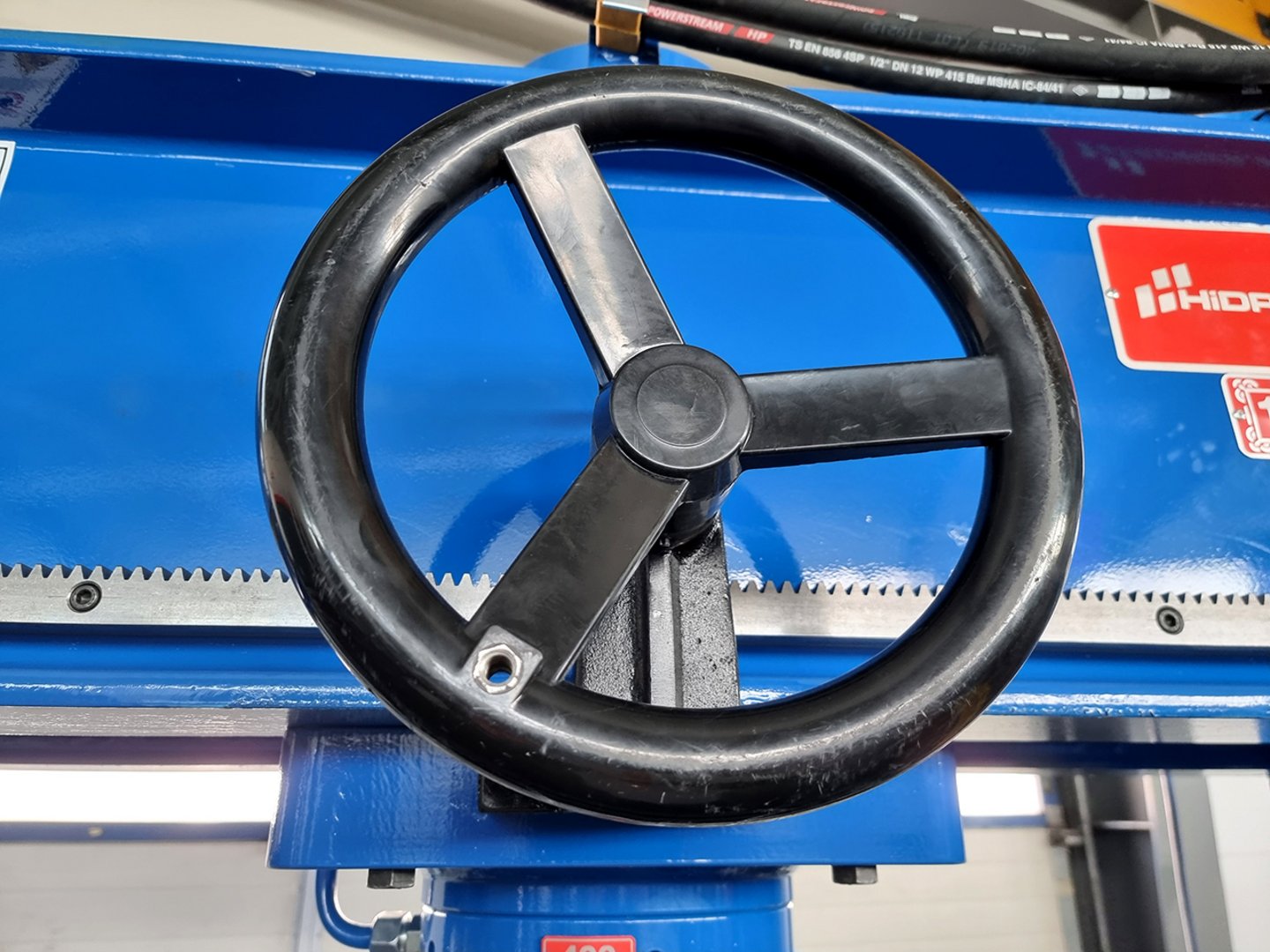

handwheel with locking pin for cylinder adjustment
