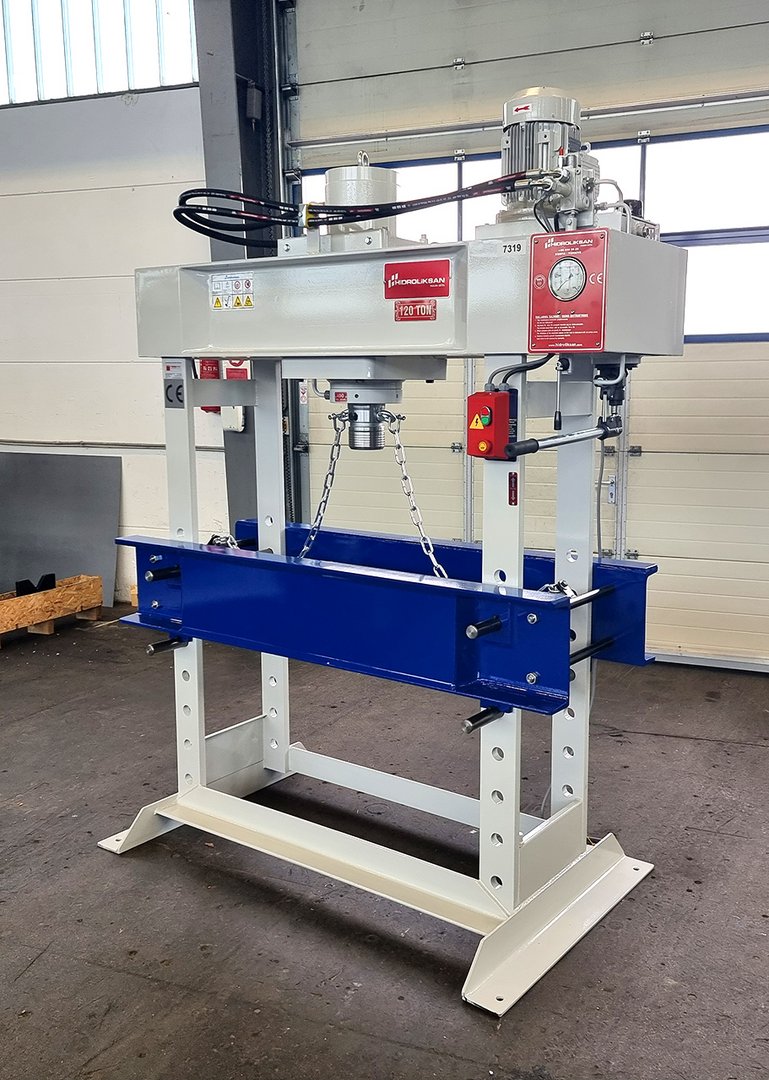

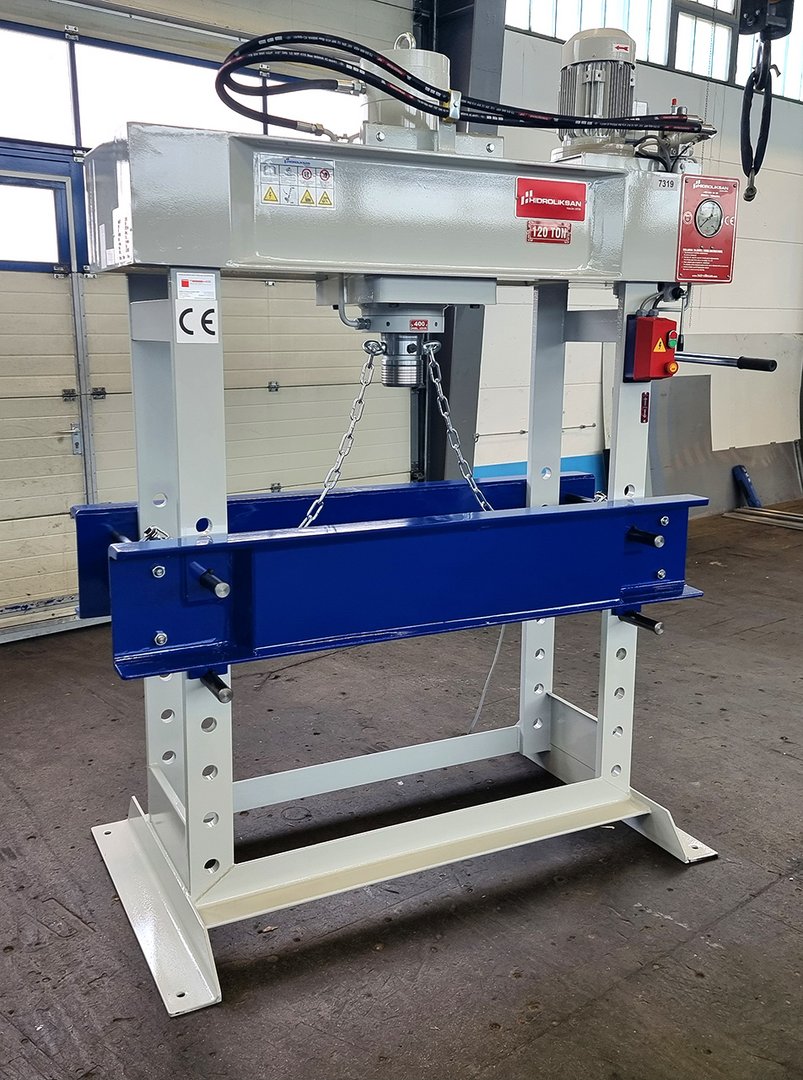

Hydraulic workshop press HIDROLIKSAN HD 120
| Model | HD 120 |
| Brand | HIDROLIKSAN |
| Condition | new |
| Year of manufacture | 2024 |
| pressing capacity | 120 to |
| Distance between columns | 1200 mm |
| Stock number | 7319 |
| Origin | Türkiye |
General characteristics
| pressing capacity | 120 to |
| Cylinder fix or moveable | horizontal moveable |
| Stroke | 400 mm |
| Daylight | 900 mm |
| Distance between columns | 1200 mm |
| Working speed | 5,8 / 9,5 mm/s |
| Retraction speed | 9.5 mm/s |
| Table | 1200 x 400 mm |
| Motor power | 4 kW |
Dimensions and weight
| Length | 1900 mm |
| Width | 1000 mm |
| Height | 2450 mm |
| Weight | 1250 kg |
Description
with horizontally sliding cylinder
motorhydraulic with additional hand pump
Height adjustable table
Oil Pressure Gauge

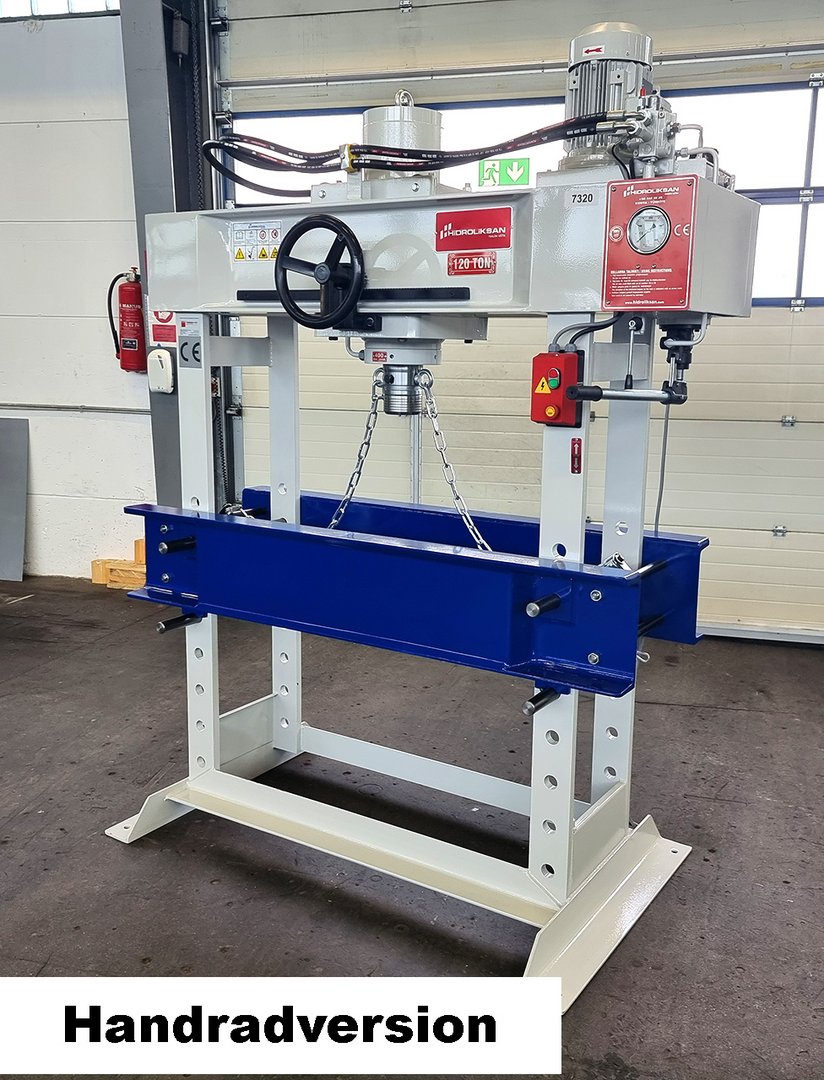

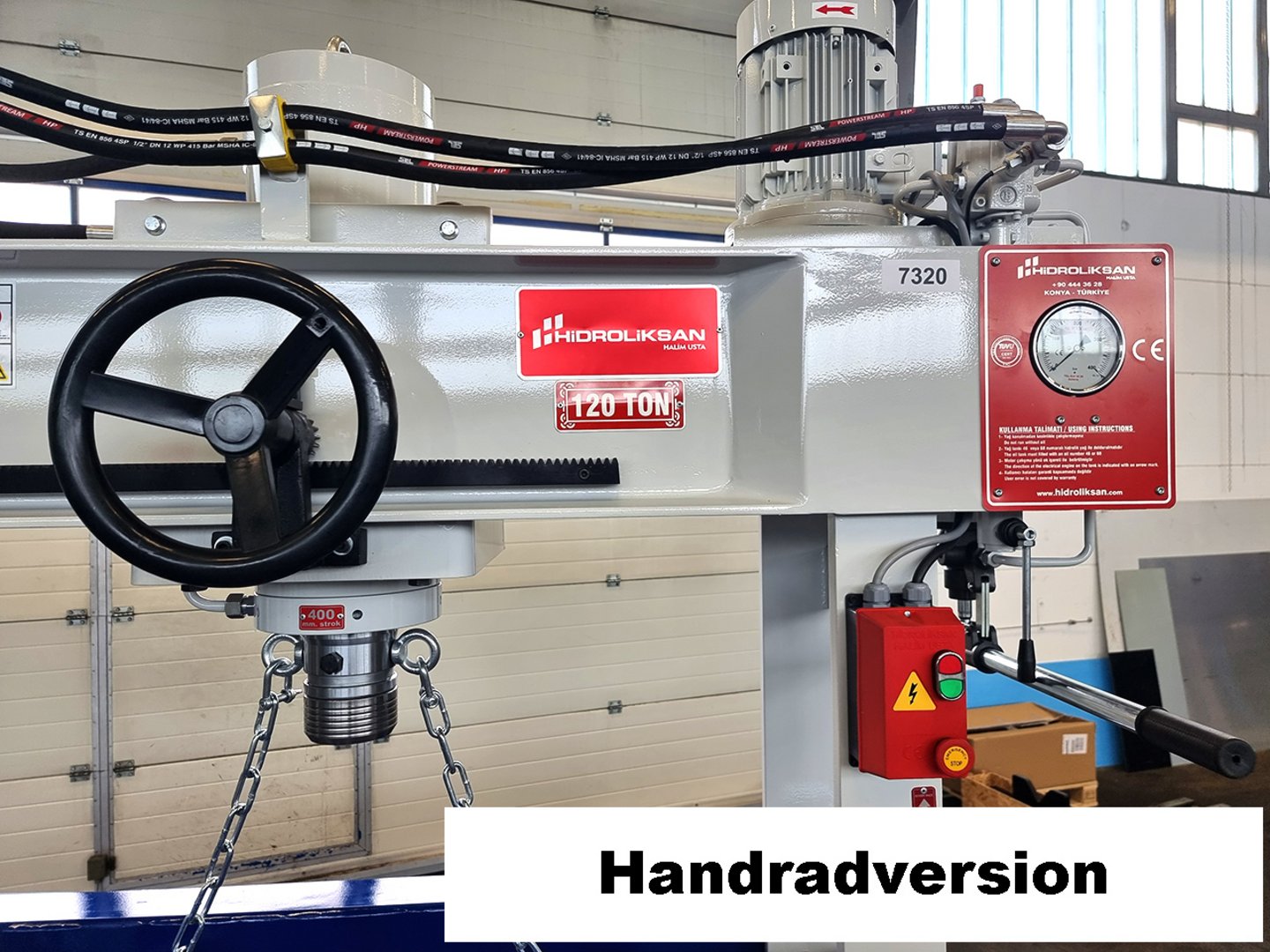

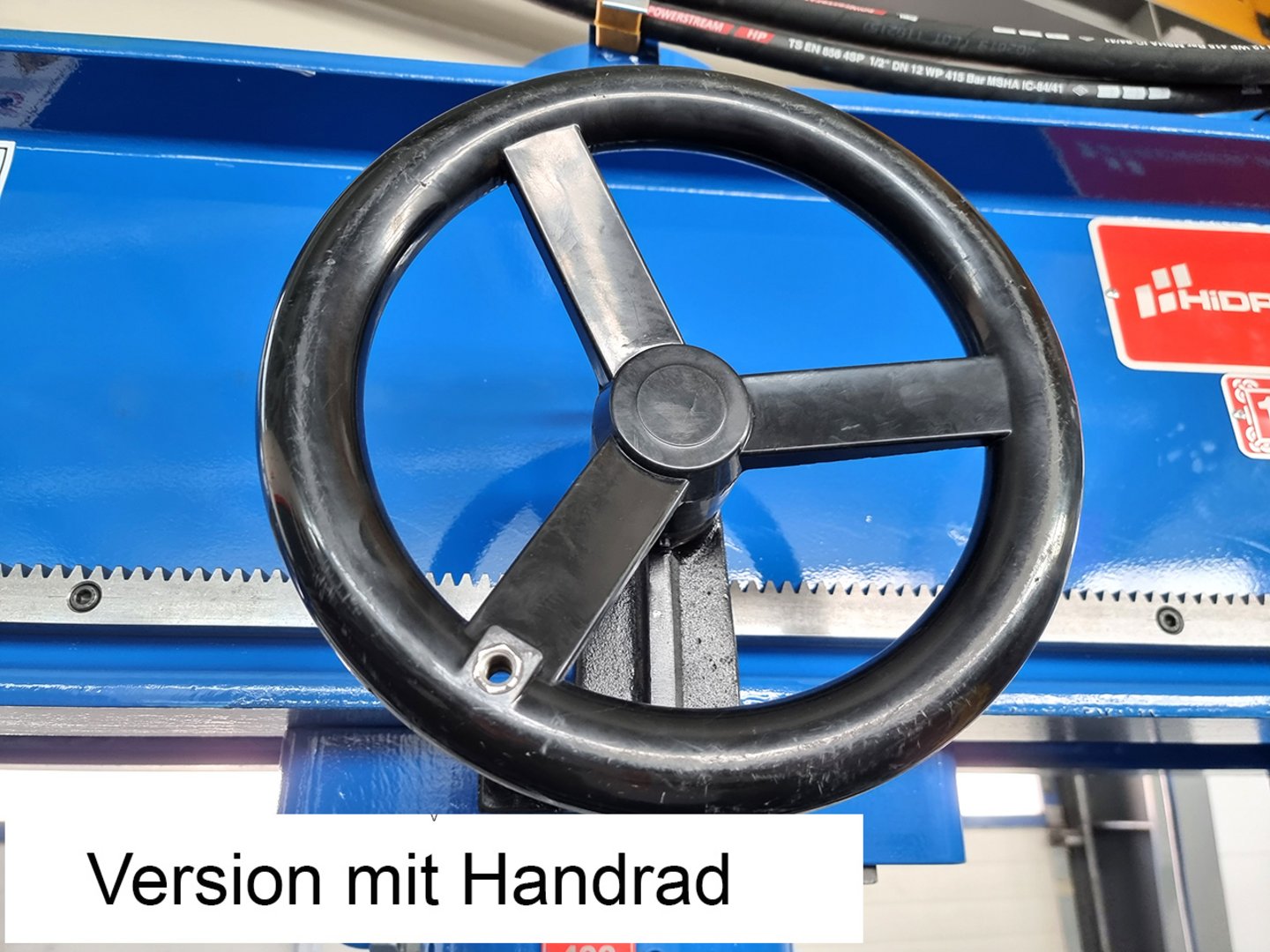

Version with handwheel and locking pin cylinder adjustment € 9.520,--
(stock no.: 7320)
Option:
1 pair of V-block € 540,--
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
