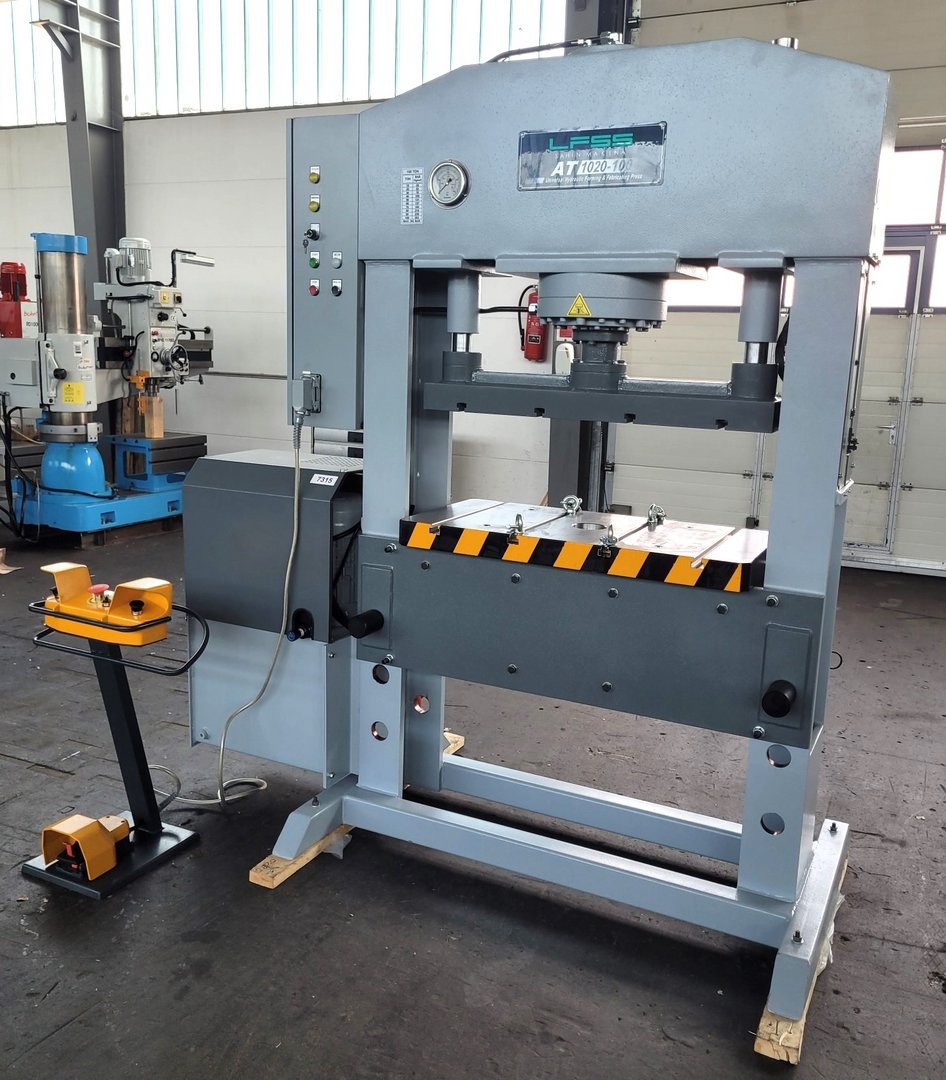

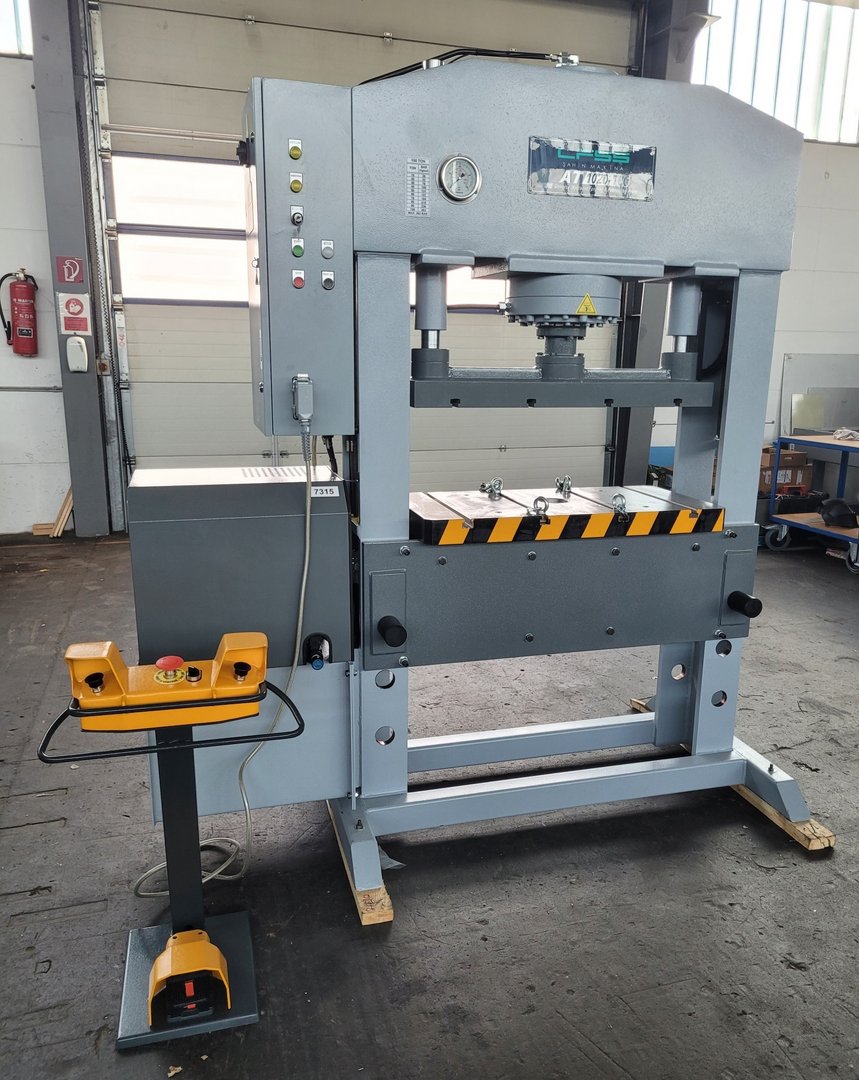

Hydraulic workshop press HESSE by LFSS AT 1020/100
| Model | AT 1020/100 |
| Brand | HESSE by LFSS |
| Condition | new |
| Year of manufacture | 2024 |
| pressing capacity | 100 to |
| Distance between columns | 1020 mm |
| Stock number | 7315 |
| Origin | Türkiye |
General characteristics
| pressing capacity | 100 to |
| Cylinder fix or moveable | fix |
| Stroke | 300 mm |
| Daylight | 680 mm |
| Distance between columns | 1020 mm |
| Rapid speed | 8 mm/s |
| Working speed | 5 mm/s |
| Retraction speed | 10 mm/s |
| Table | 500x1020 mm |
| Hole in table | 100 mm |
| Hole distance | 190 mm |
Dimensions and weight
| Length | 2110 mm |
| Width | 1000 mm |
| Height | 2350 mm |
| Weight | 1985 kg |
Description
2 guidings

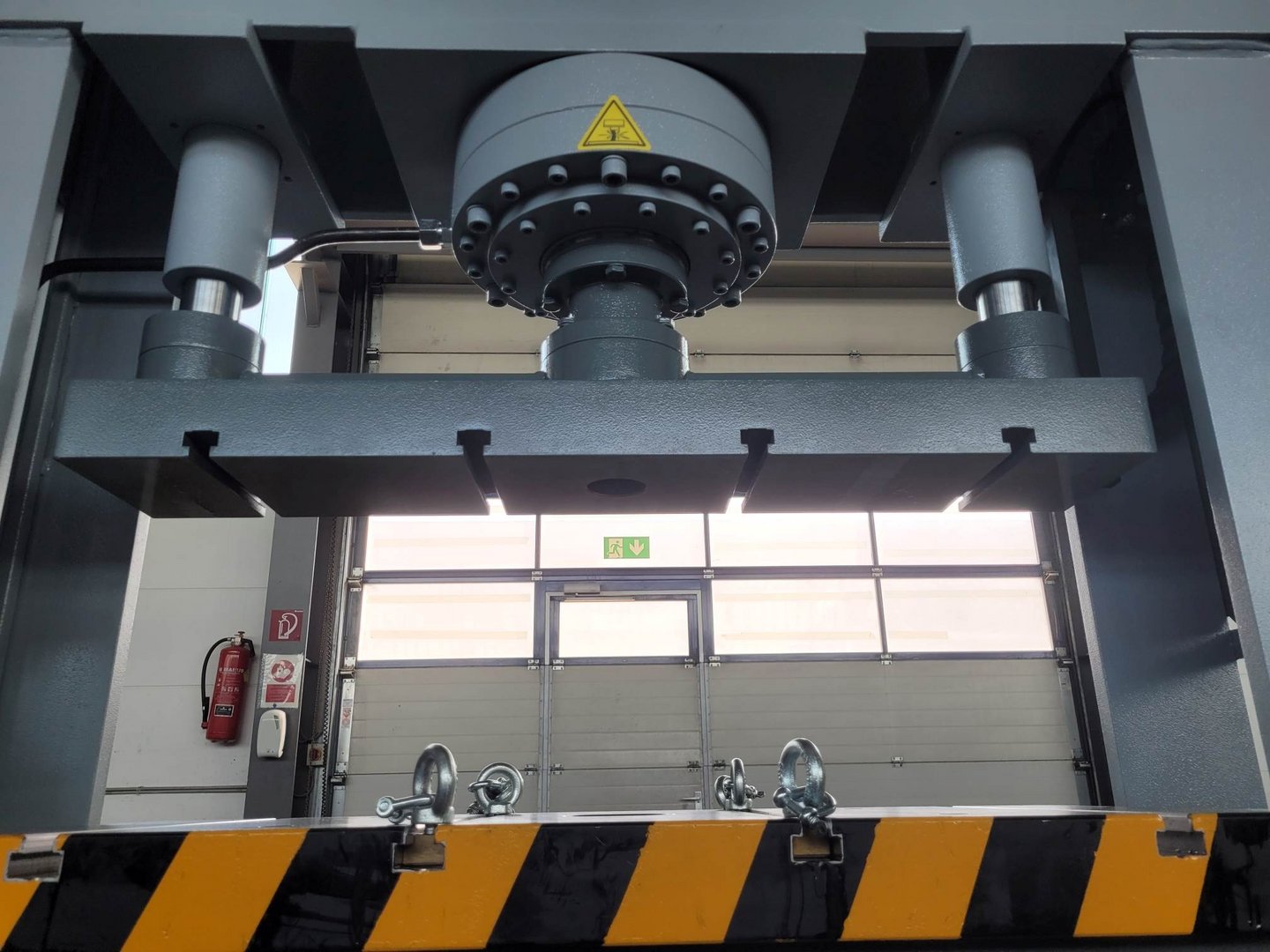

upper plate with T-slots

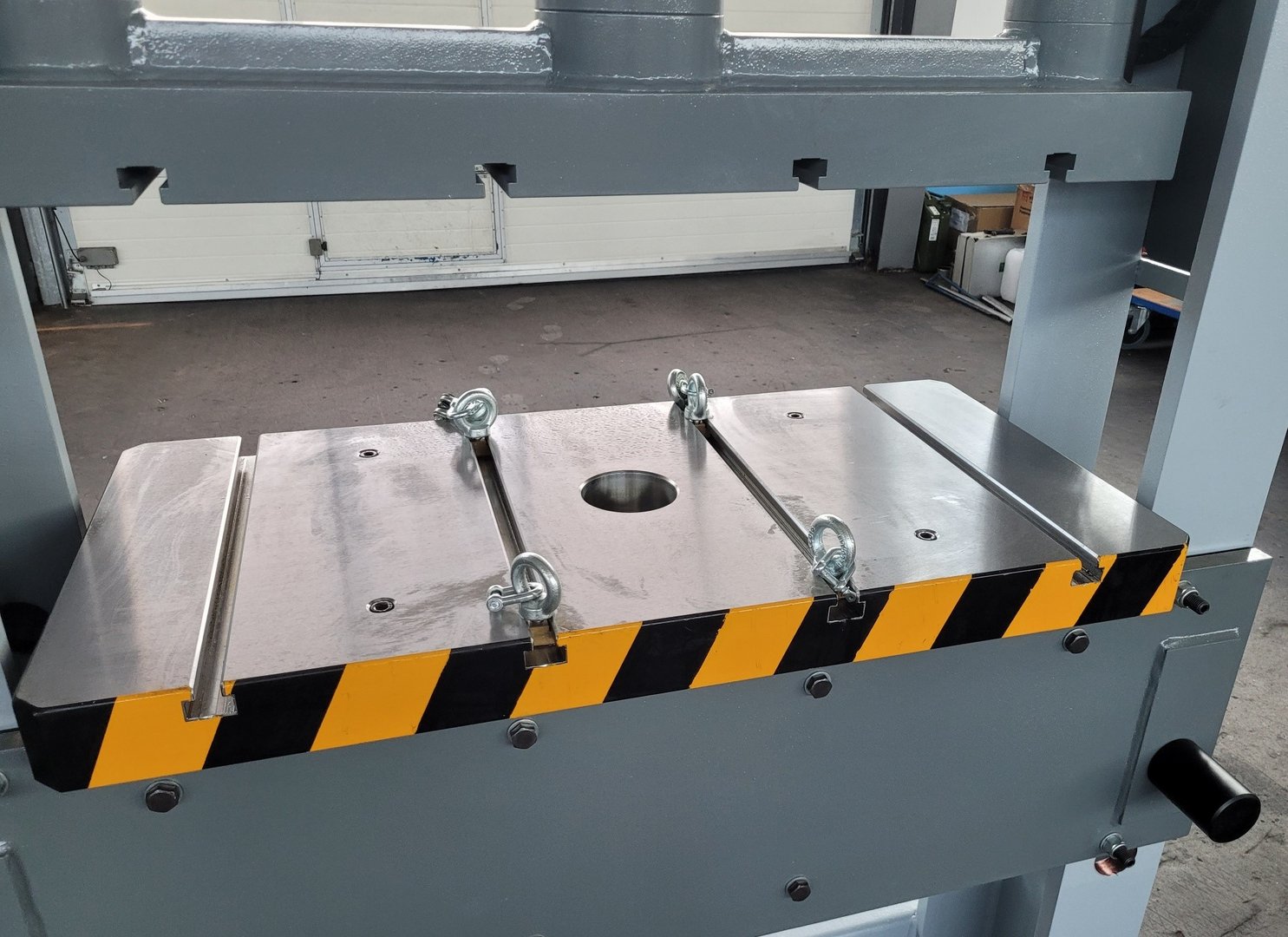

table plate with T-Slots

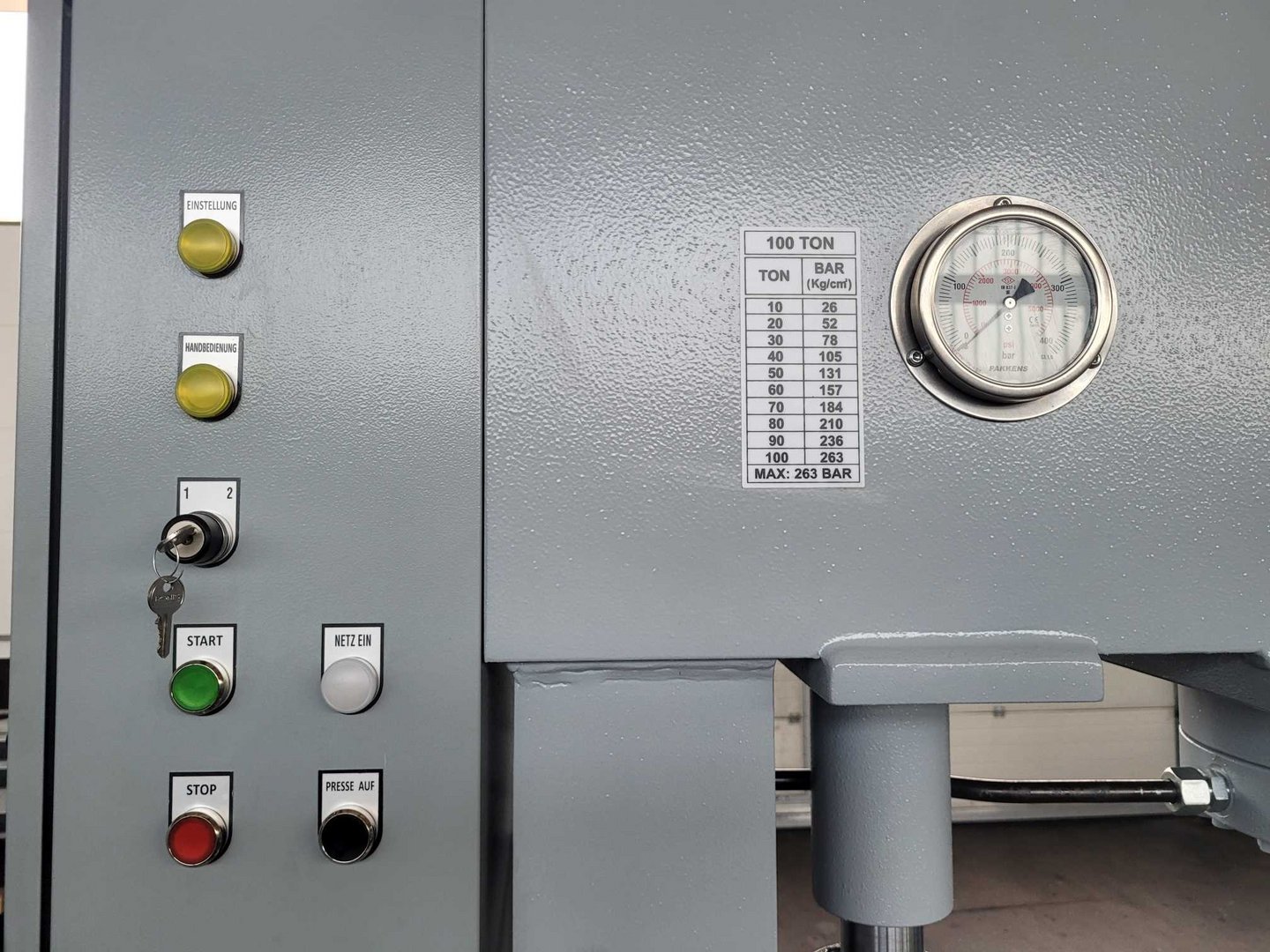

manometer
rapid down move with automtic change to working speed
piston stops in every position
2 hand control and foot pedal
table height adjustable
according to CE regulations
user manual in GERMAN and ENGLISH
