General characteristics
| Working area | 2000 x 1000 mm |
| Table height | 850 mm |
| load capacity | 8000 kg |
| Hole diameter | 28 mm mm |
Dimensions and weight
| Weight | 712 kg |
Description
- Fully milled table top 25 mm in S355J2+N with high degree of accuracy (+/- 0.05 mm) and rounded edges and holes
- Hard chrome-plated table surface Cr75
The main advantage of our tables compared to conventional systems is with the hard chrome plating Cr75, that this process achieves a much deeper penetration into the base material of up to 0.07 mm and the hardness of the surface reaches up to HV750. This also ensures optimum and lasting anti-spatter adhesion on the surface, which is one of the most efficient on the market.
- Exact dimensional and fitting accuracy of the tools with 28 mm perforation (compatible with comparable premium suppliers)

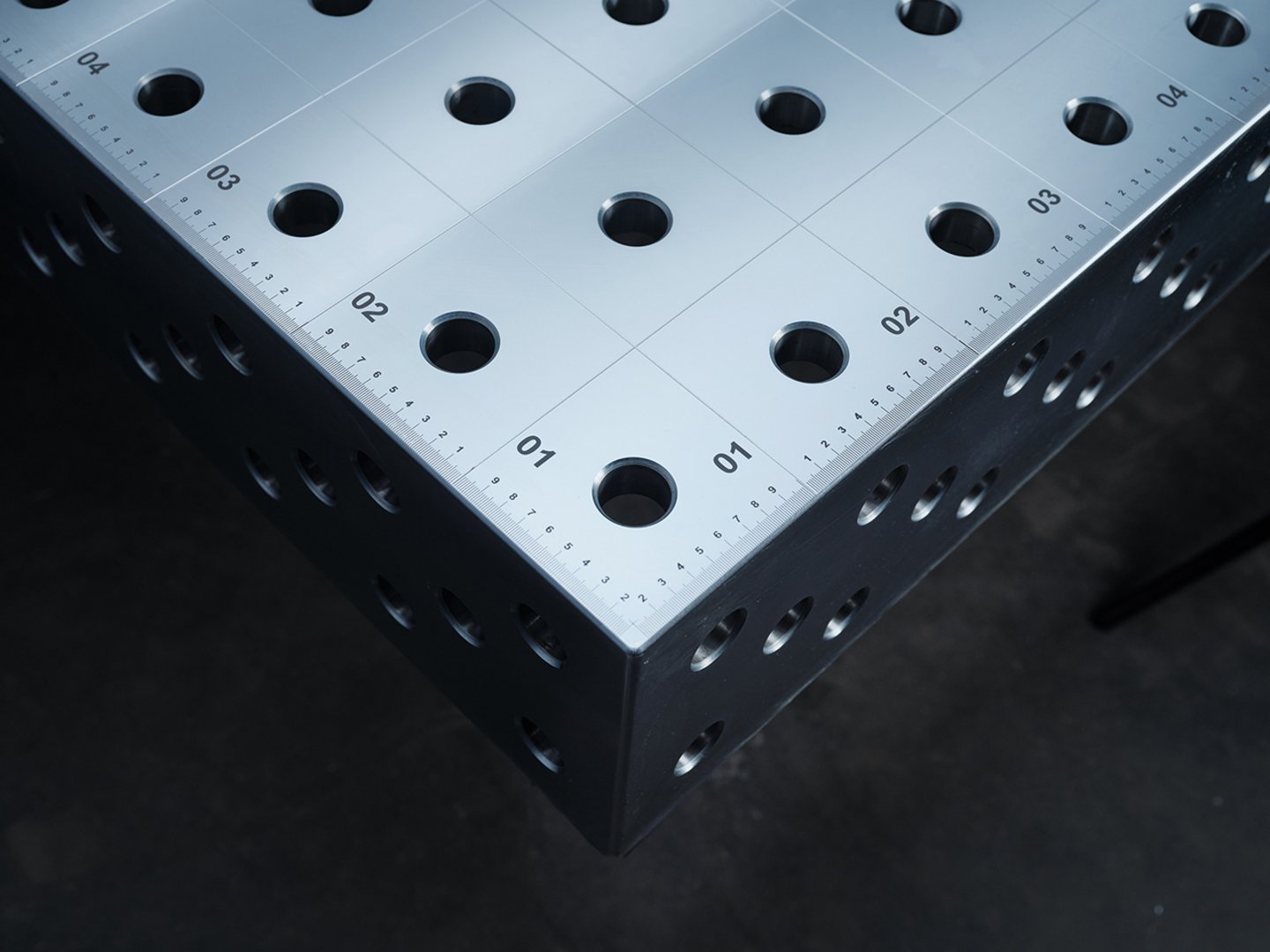

- Grid lines 100 x 100 mm

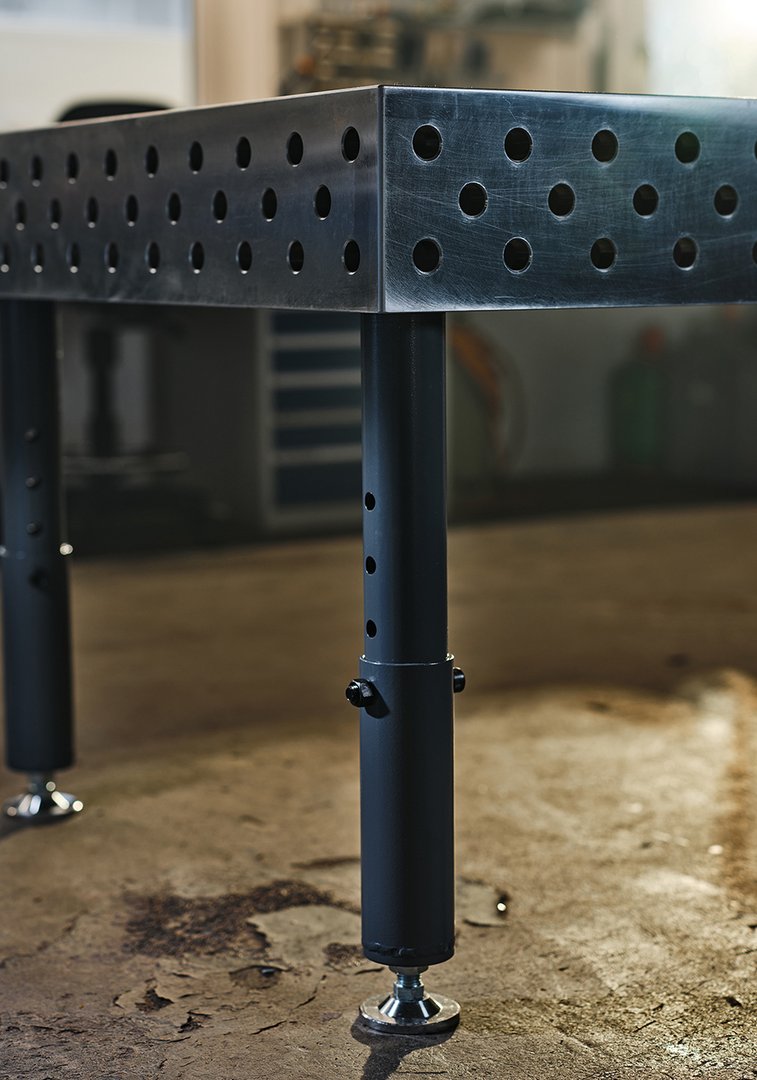

- 4 solid table feet with load capacity 2 ton/feet and levelling option

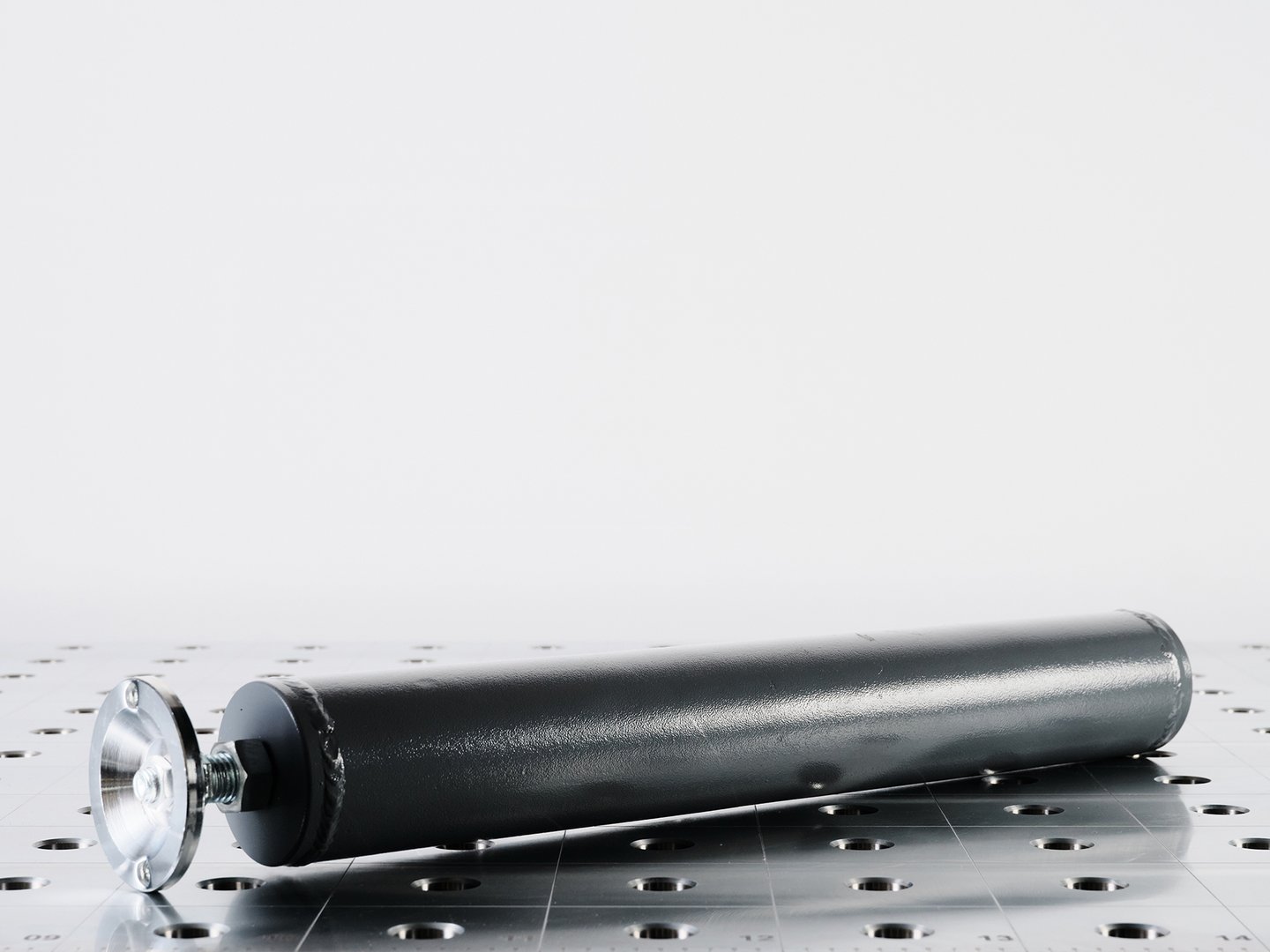

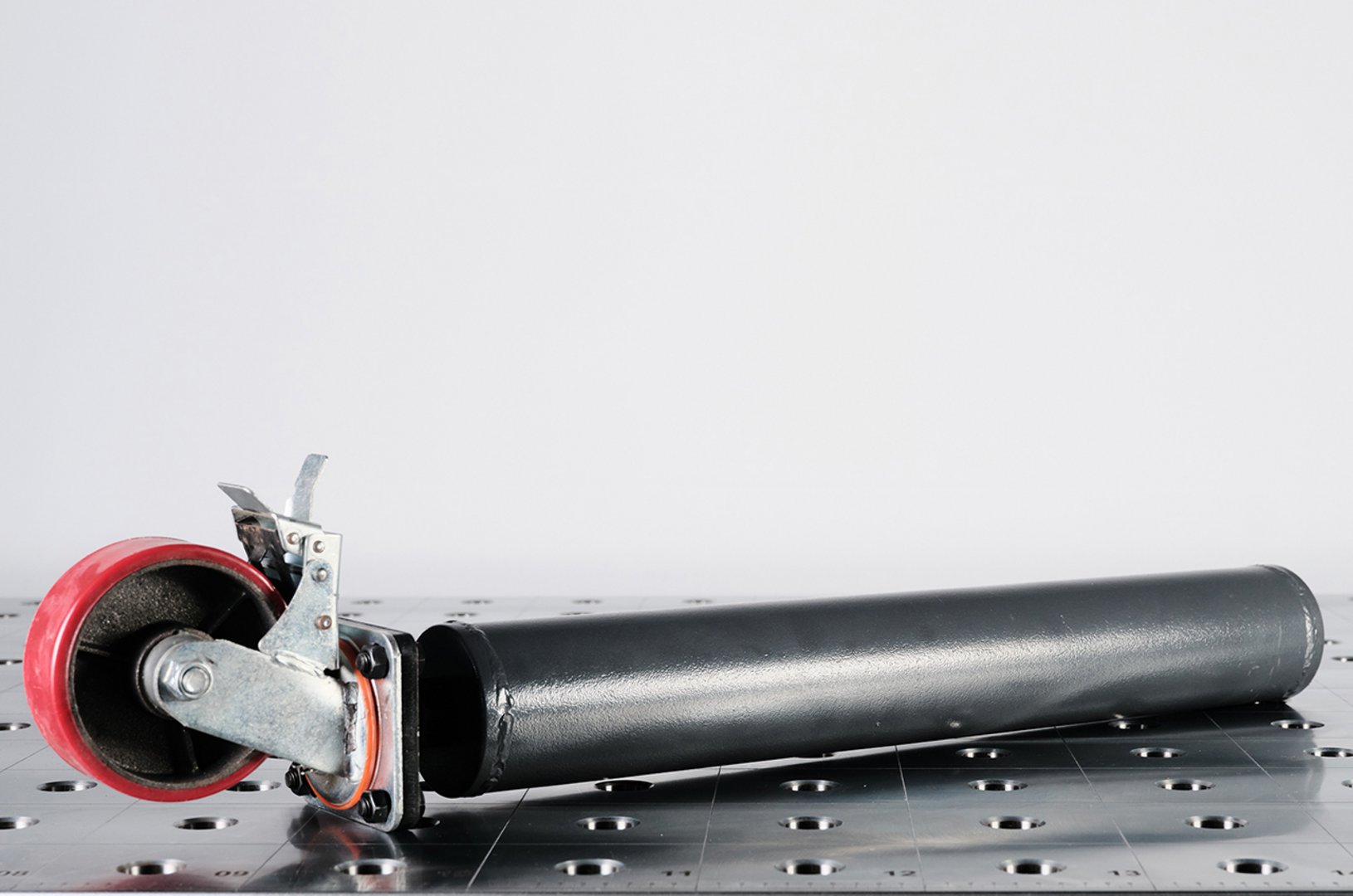

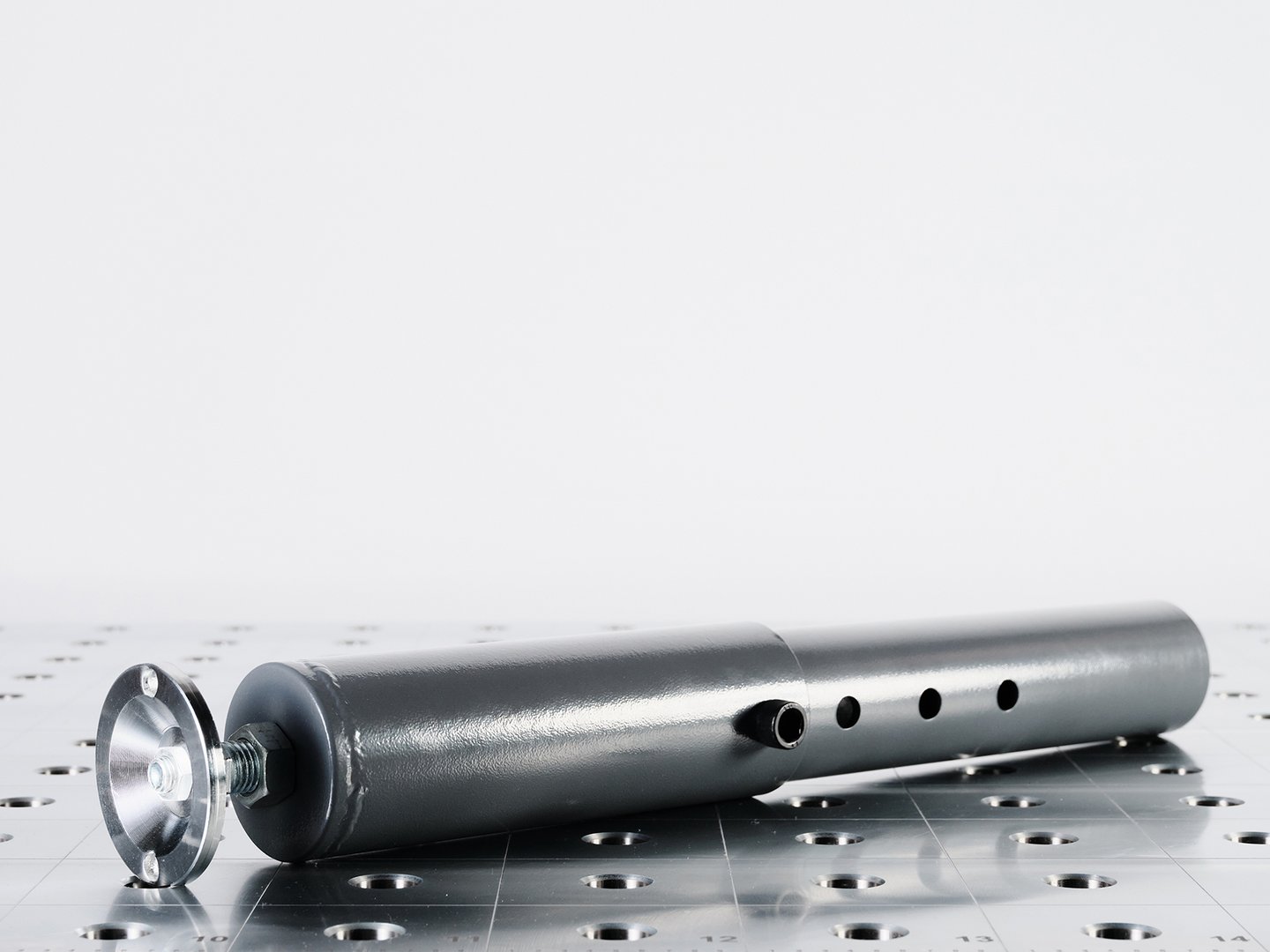

- Different foot variants available (standard, height-adjustable and with castors)
- Load capacity 8 to
- All-round 200 mm high side cheeks with diagonal perforation
- 2-sided millimetre scaling
- Substructure with stiffeners
Further information
Product video
3D Welding table HIS28V32010
