General characteristics
| Working area | 1500 x 1000 mm |
| Table height | 850 mm |
| Hole diameter | 28 mm mm |
Dimensions and weight
| Weight | 344 kg |
Description

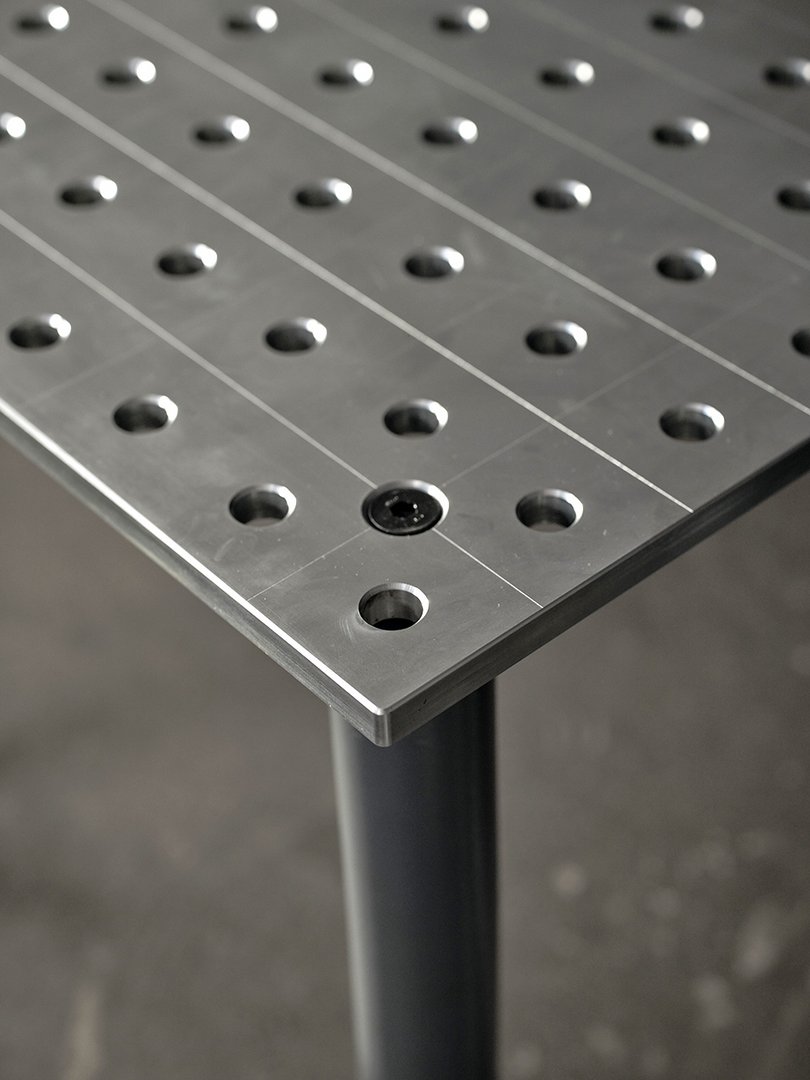

- Fully milled table top 25 mm in S355J2+N with high degree of accuracy (+/- 0.05 mm) and rounded edges and holes
- Hard chrome-plated table surface Cr75
The main advantage of our tables compared to conventional systems is with the hard chrome plating Cr75, that this process achieves a much deeper penetration into the base material of up to 0.07 mm and the hardness of the surface reaches up to HV750. This also ensures optimum and lasting anti-spatter adhesion on the surface, which is one of the most efficient on the market.
- Exact dimensional and fitting accuracy of the tools with 28 mm perforation (compatible with comparable premium suppliers)
- Grid lines 100 x 100 mm
- 4 solid table feet with levelling option

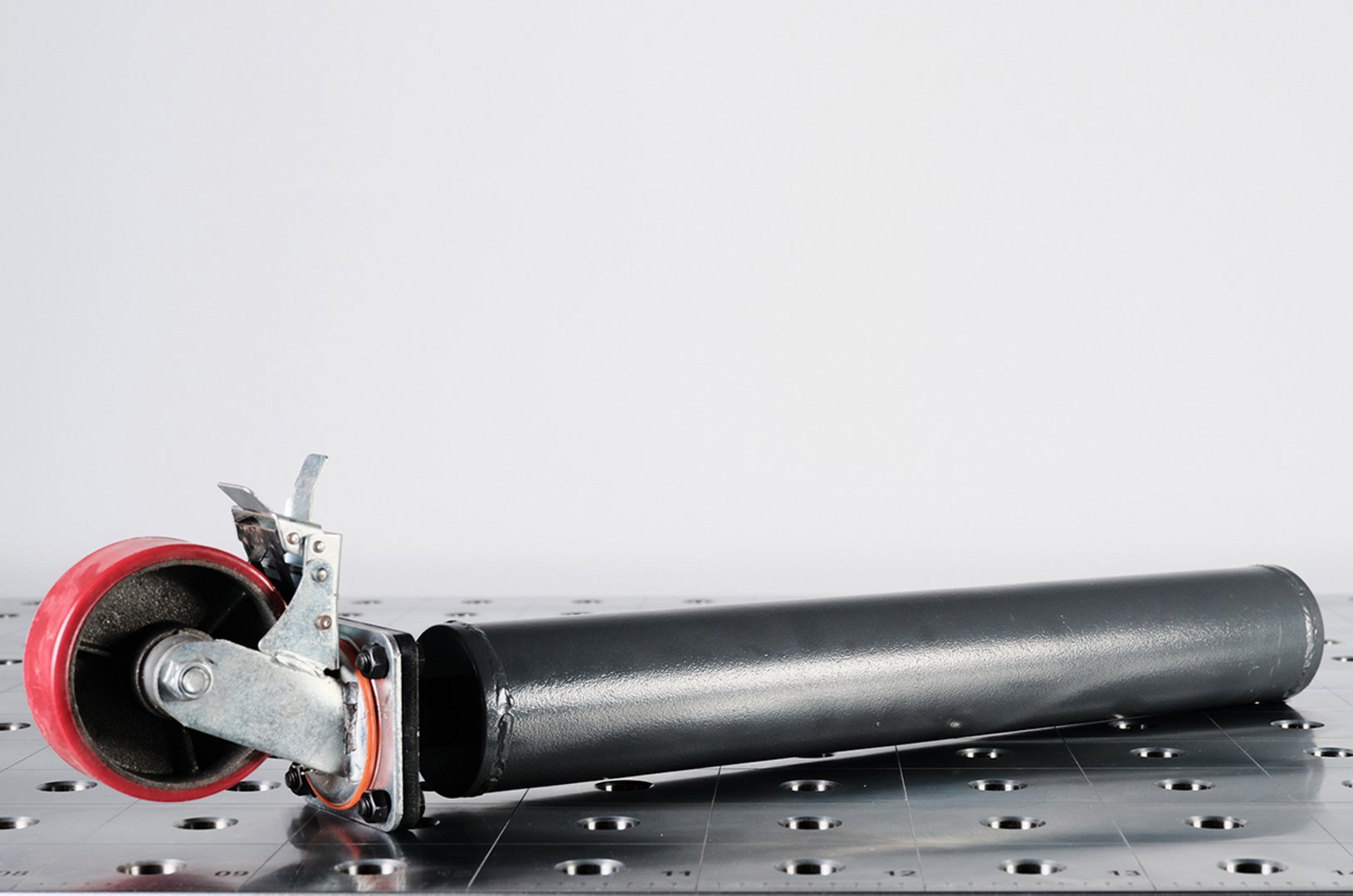

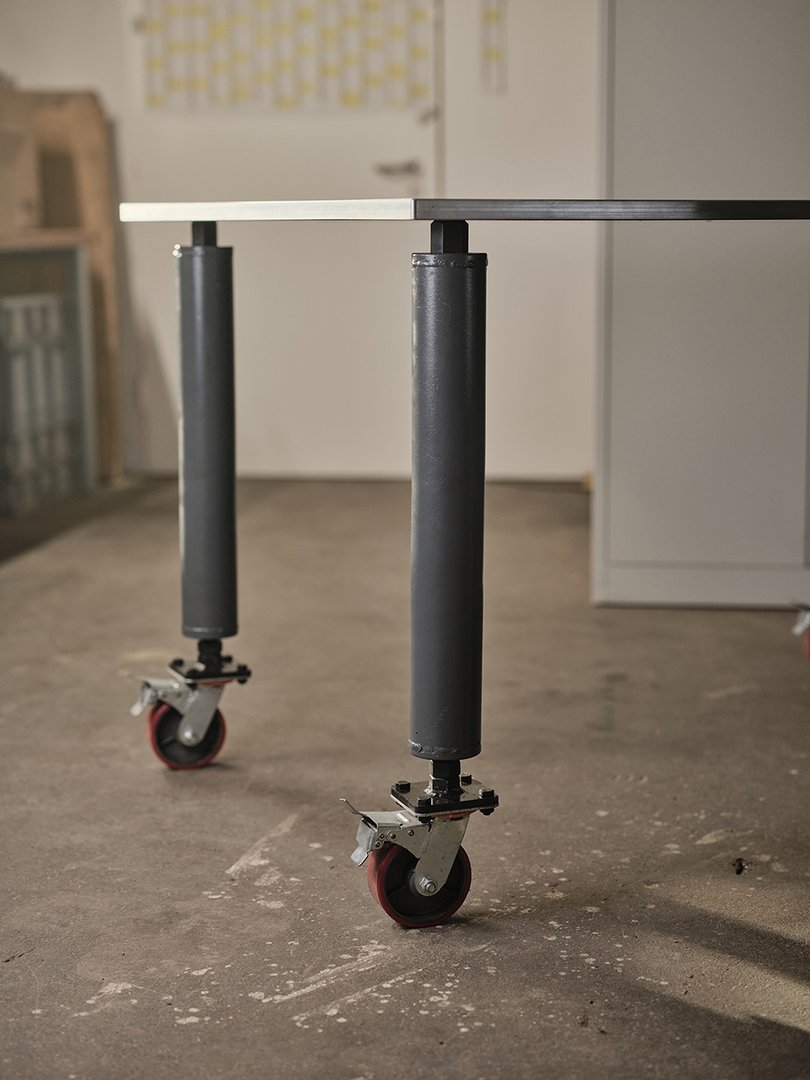

- Different foot variants available (standard, height-adjustable and with castors)
- Load capacity 500 kg/m²
Further information
Product video

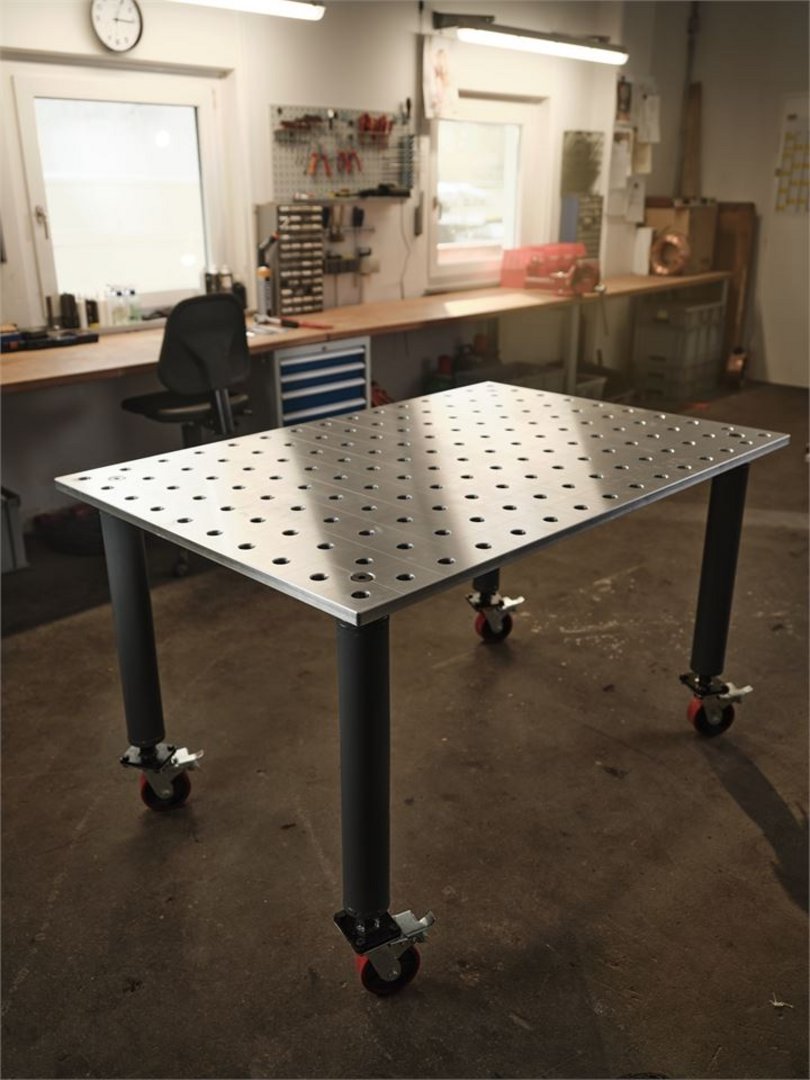

2D Welding table HIS28V21510
