General characteristics
| Flexion modulus | 19 cm³ |
| Standard steel tube | 38 x 1,5 mm |
| Furniture tube | 38 x 1,5 mm |
| FE35 (for hydraulic tubes) | 35 x 3 mm |
| Stainless steel AISI304-318 | 30 x 2 mm |
| Stainless steel AISI308 (food industry) | 35 x 1,5 mm |
| Brass soft | 42 x 1,5 mm |
| Hard copper and aluminium | 42 x 1,5 mm |
| Soft copper | 50 x 2 mm |
| Conduit tube (TAZ) | 50 x 2 mm |
| Mepla, Gebereit and similar | 50 x 4 mm |
| Roundbar solid (S275JO) | 20 mm |
| Squarebar solid (S275JO) | 10 x 25 mm |
| Flatsteel solid (S275JO) | 25 x 20 (stehend), 25 x 16 (stehend) mm |
| Max. bending radius | 180 mm |
| Min. bending radius | 36 mm |
| Min. tube Ø | 10 mm |
| Max. bending speed | 2 r/min |
| Motor | 0.9 kW |
Dimensions and weight
| Length | 245 mm |
| Width | 300 mm |
| Height | 320 mm |
| Weight | 23 kg |
Description
demo machine - mint condition
digital adjustment of the bending angle from 0 - 180 °
single phase motor 220V / 900W
electric engine brake
indicator light for indicating overload

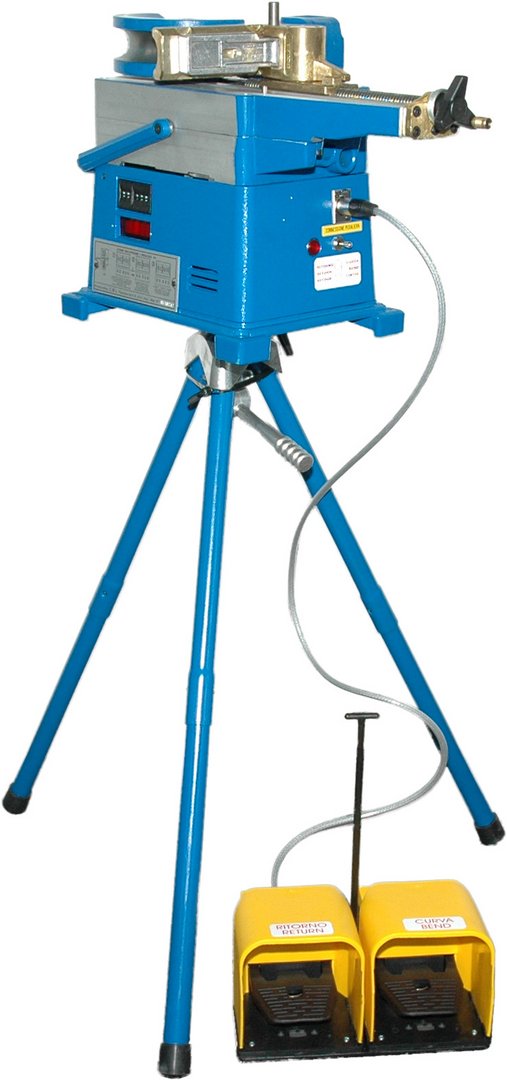

basement made of cast iron, suitable for mounting a tripod (tripod not included)
90° bend in 6 seconds
foot pedal
without tools
Optional equipment:
tripod € 330,-
Further information
Brochures
Product video
Tube bending machine without mandrel Medibender MD 070
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
