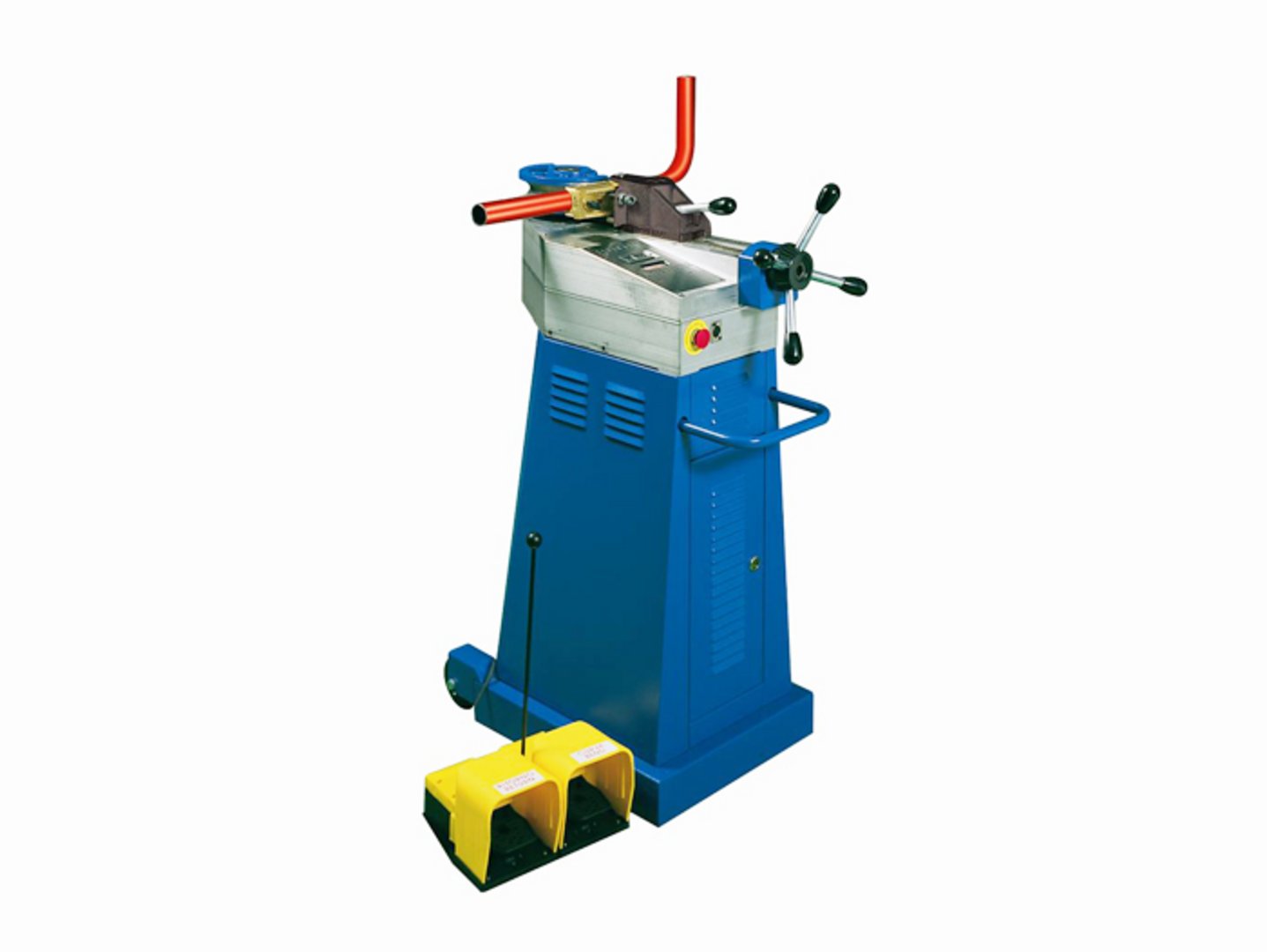

Tube bending machine without mandrel ERCOLINA Superbender SB 48T
| Model | Superbender SB 48T |
| Brand | ERCOLINA |
| Condition | new |
| Standard steel tube | 48 x 3,5 mm |
| Max. bending radius | 300 mm |
| Origin | Italy |
General characteristics
| Flexion modulus | 6 cm³ |
| Standard steel tube | 48 x 3,5 mm |
| Gas tube | 1"1/2 x 3.68 mm |
| Furniture tube | 54 x 1,5 mm |
| FE35 (for hydraulic tubes) | 50 x 4 mm |
| Stainless steel AISI304-318 | 50 x 3 mm |
| Stainless steel AISI308 (food industry) | 40 x 2,5 mm |
| Brass soft | 60 x 3 mm |
| Hard copper and aluminium | 64 x 2 mm |
| Soft copper | 64 x 2 mm |
| Conduit tube (TAZ) | 60 x 2 mm |
| Mepla, Gebereit and similar | 50 x 4 mm |
| Roundbar solid (S275JO) | 32 mm |
| Squarebar solid (S275JO) | 30 x 30 mm |
| Flatsteel solid (S275JO) | 8 x 48 mm |
| Square profile (S275JO) | 20 x 40 x 3 bzw. 40 x 40 x 3 mm |
| T-profile (S275JO) | 40 x 40 x 5 mm |
| U-profile (S275JO) | 32 x 16 x 5 mm |
| Max. bending radius | 300 mm |
| Min. bending radius | 10 mm |
| Min. tube Ø | 10 mm |
| Max. bending speed | 4 r/min |
| Motor | 1.5 kW |
Dimensions and weight
| Length | 570 mm |
| Width | 410 mm |
| Height | 1000 mm |
| Weight | 110 kg |
Description
3 phase
digital display of bend
material spring back compensation
quick-change tooling system
2 hexagonal tool holders
accurate counterbending die positioning
portable with base wheels
footswitch
users manual
alternatively also available as folowing model (price on request):
SB 48M (single phase, 2 r/min)
Model with TCPlus control on request
|
machine-kit with tools (prices on request): |
|||
|
|
maschine |
tube |
radius |
|
SB 48M K2D |
SB 48M |
Gas inch |
2 x Ø |
|
SB 48T K2D |
SB 48T |
Gas inch |
2 x Ø |
|
|
|||
|
Ø 1/2" (21,3 mm), R46 |
|||
|
Ø 3/4" (26,9 mm), R56 |
|||
|
Ø 1" (33,7 mm), R67 |
|||
|
Ø 1" 1/4 (42,25 mm), R90 |
|||
| Ø 1" 1/2 (48,25 mm), R100 | |||
|
|
maschine |
tube |
radius |
|
SB 48M K3D |
SB 48M |
Gas inch |
3 x Ø |
|
SB 48T K3D |
SB 48T |
Gas inch |
3 x Ø |
|
|
|||
|
Ø 1/2" (21,3 mm), R67 |
|||
|
Ø 3/4" (26,9 mm), R82 |
|||
|
Ø 1" (33,7 mm), R112 |
|||
|
Ø 1" 1/4 (42,25 mm), R130 |
|||
| Ø 1" 1/2 (48,25 mm), R150 | |||
