General characteristics
| Flexion modulus | 170 cm³ |
| Standard steel tube | 150 x 9 mm |
| Gas tube | 6" x 7,11 mm |
| Furniture tube | 150 x 9 mm |
| FE35 (for hydraulic tubes) | 168,3 x 8,5 mm |
| Stainless steel AISI304-318 | 141,3 x 6,55 mm |
| Stainless steel AISI308 (food industry) | 141,3 x 6,55 mm |
| Brass soft | 168,3 x 9 mm |
| Hard copper and aluminium | 168,3 x 9 mm |
| Soft copper | 168,3 x 9 mm |
| Conduit tube (TAZ) | 141,3 x 8 mm |
| Mepla, Gebereit and similar | 150 x 6 mm |
| Roundbar solid (S275JO) | 110 mm |
| Squarebar solid (S275JO) | 90 x 90 mm |
| Flatsteel solid (S275JO) | 120 x 60 mm |
| Square profile (S275JO) | 140 x 70 x 12 bzw. 140 x 140 x 6 mm |
| T-profile (S275JO) | 120 x 120 x 10 mm |
| U-profile (S275JO) | 120 x 120 x 8 mm |
| Max. bending radius | 800 mm |
| Min. bending radius | 100 mm |
| Min. tube Ø | 10 mm |
| Max. bending speed | 1 r/min |
| Motor | 15 kW |
Dimensions and weight
| Length | 1000 mm |
| Width | 1900 mm |
| Height | 1475 mm |
| Weight | 2700 kg |
Description
TCPlus Control with 7“ Touchscreen
Programmable bending speed for each individual bend
Possibility to bend left and right
Users manaul
Further information
Product video

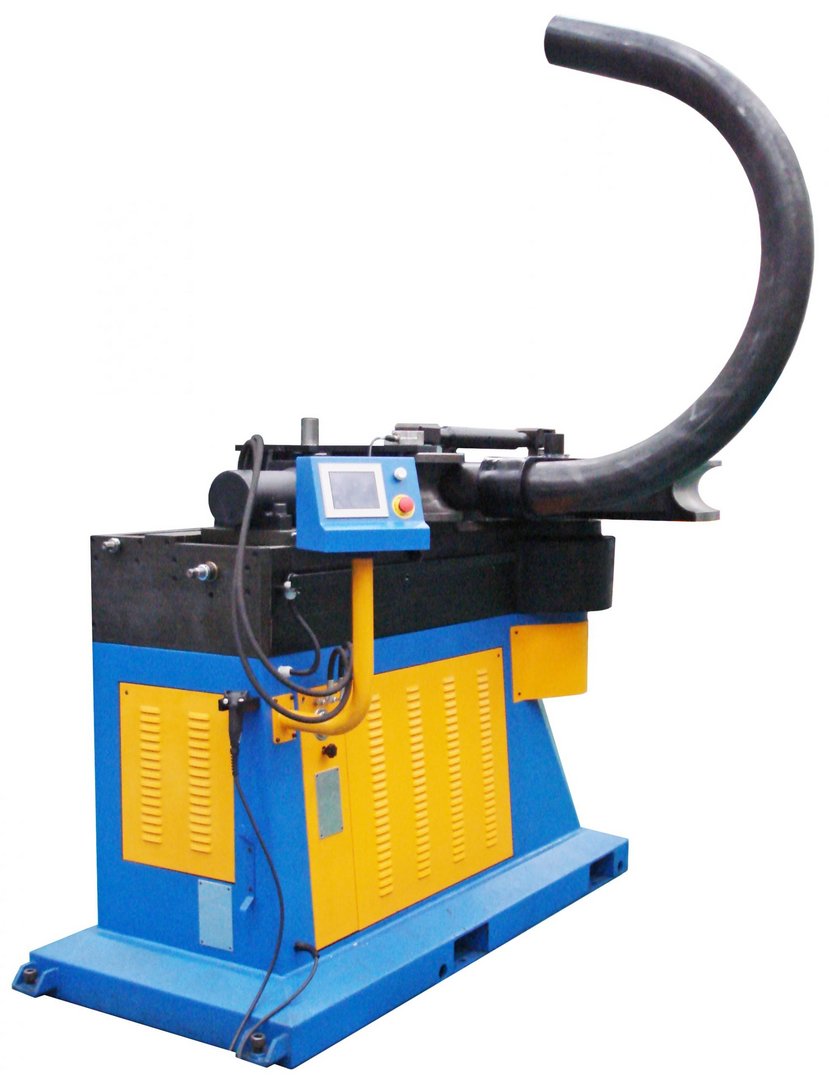

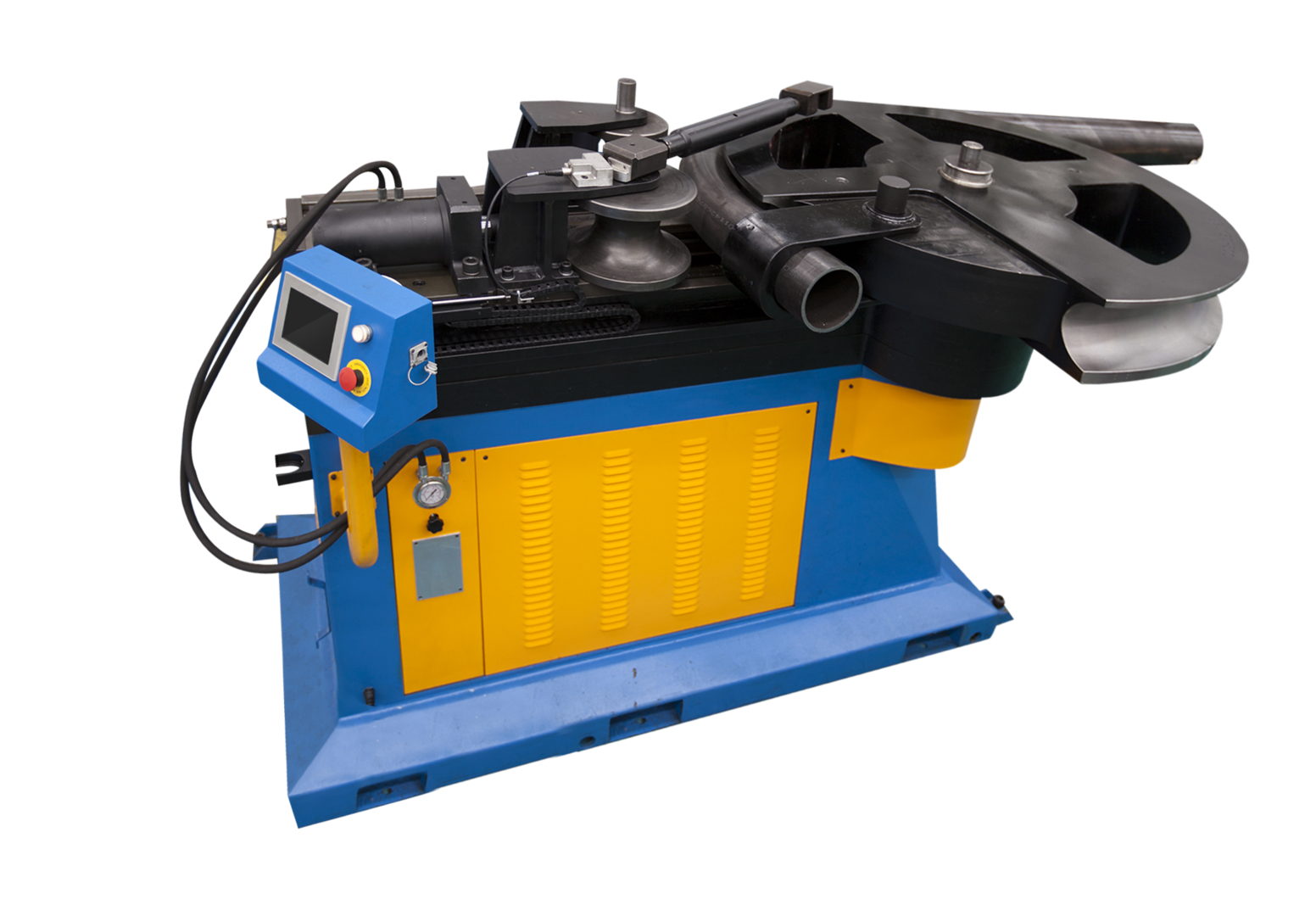

Tube bending machine without mandrel Topbender TB 180 PT
