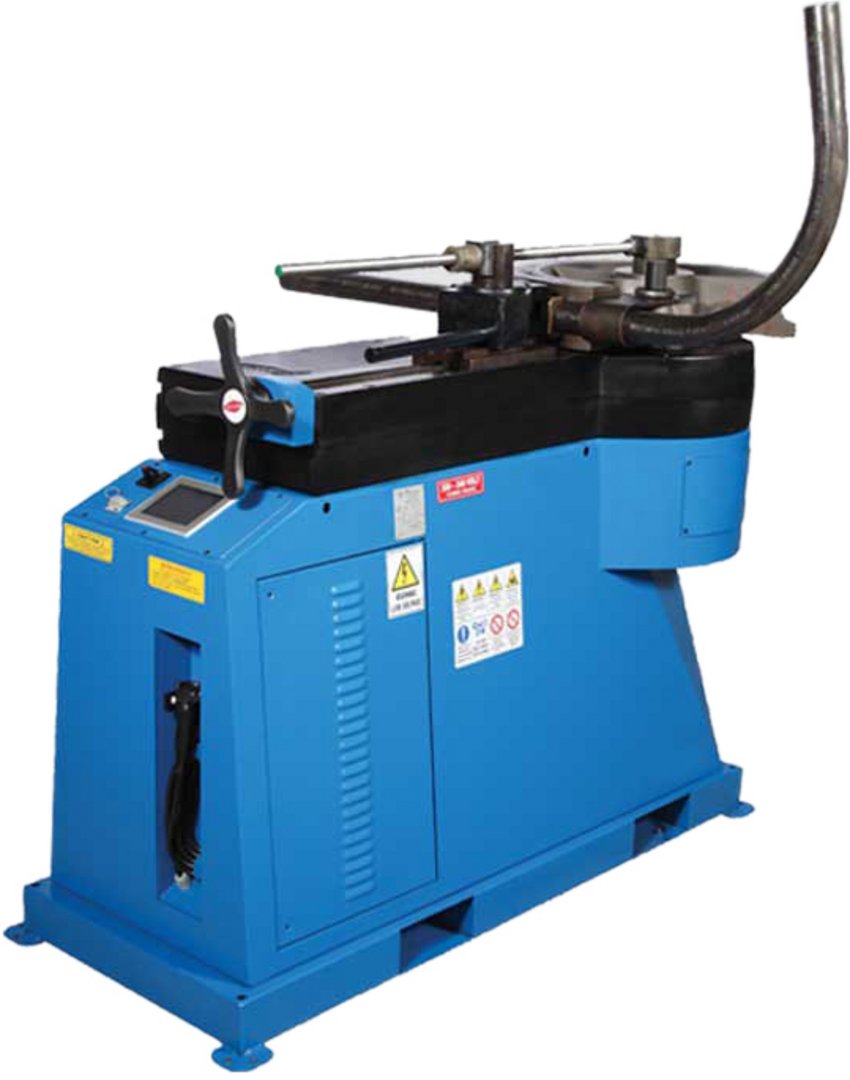

Tube bending machine without mandrel ERCOLINA Topbender TB 130 PT
| Model | Topbender TB 130 PT |
| Brand | ERCOLINA |
| Condition | new |
| Standard steel tube | 127 x 7,1 mm |
| Max. bending radius | 700 mm |
| Origin | Italy |
General characteristics
| Flexion modulus | 80 cm³ |
| Standard steel tube | 127 x 7,1 mm |
| Gas tube | 4" x 8,56 mm |
| Furniture tube | 127 x 7,1 mm |
| FE35 (for hydraulic tubes) | 100 x 11 mm |
| Stainless steel AISI304-318 | 114,3 x 5,6 mm |
| Stainless steel AISI308 (food industry) | 114,3 x 5,6 mm |
| Brass soft | 139,7 x 8,8 mm |
| Hard copper and aluminium | 139,7 x 8,8 mm |
| Soft copper | 139,7 x 8,8 mm |
| Conduit tube (TAZ) | 120 x 9 mm |
| Mepla, Gebereit and similar | 120 x 6.5 mm |
| Roundbar solid (S275JO) | 90 mm |
| Squarebar solid (S275JO) | 75 x 75 mm |
| Flatsteel solid (S275JO) | 100 x 50 mm |
| Square profile (S275JO) | 120 x 60 x 9 bzw. 90 x 90 x 10 mm |
| T-profile (S275JO) | 100 x 100 x 10 mm |
| U-profile (S275JO) | 100 x 100 x 10 mm |
| Max. bending radius | 700 mm |
| Min. bending radius | 36 mm |
| Min. tube Ø | 10 mm |
| Max. bending speed | 0 - 0,75 r/min |
| Motor | 3.5 kW |
Dimensions and weight
| Length | 850 mm |
| Width | 1200 mm |
| Height | 850 mm |
| Weight | 720 kg |
Description
digital read out for bending angle
4 hexagonal tool holders (40, 50 80 and 110 mm)
Possibility to bend left and right
Users manaul
Further information
Brochures
Product video
Tube bending machine without mandrel Topbender TB 130 PT
