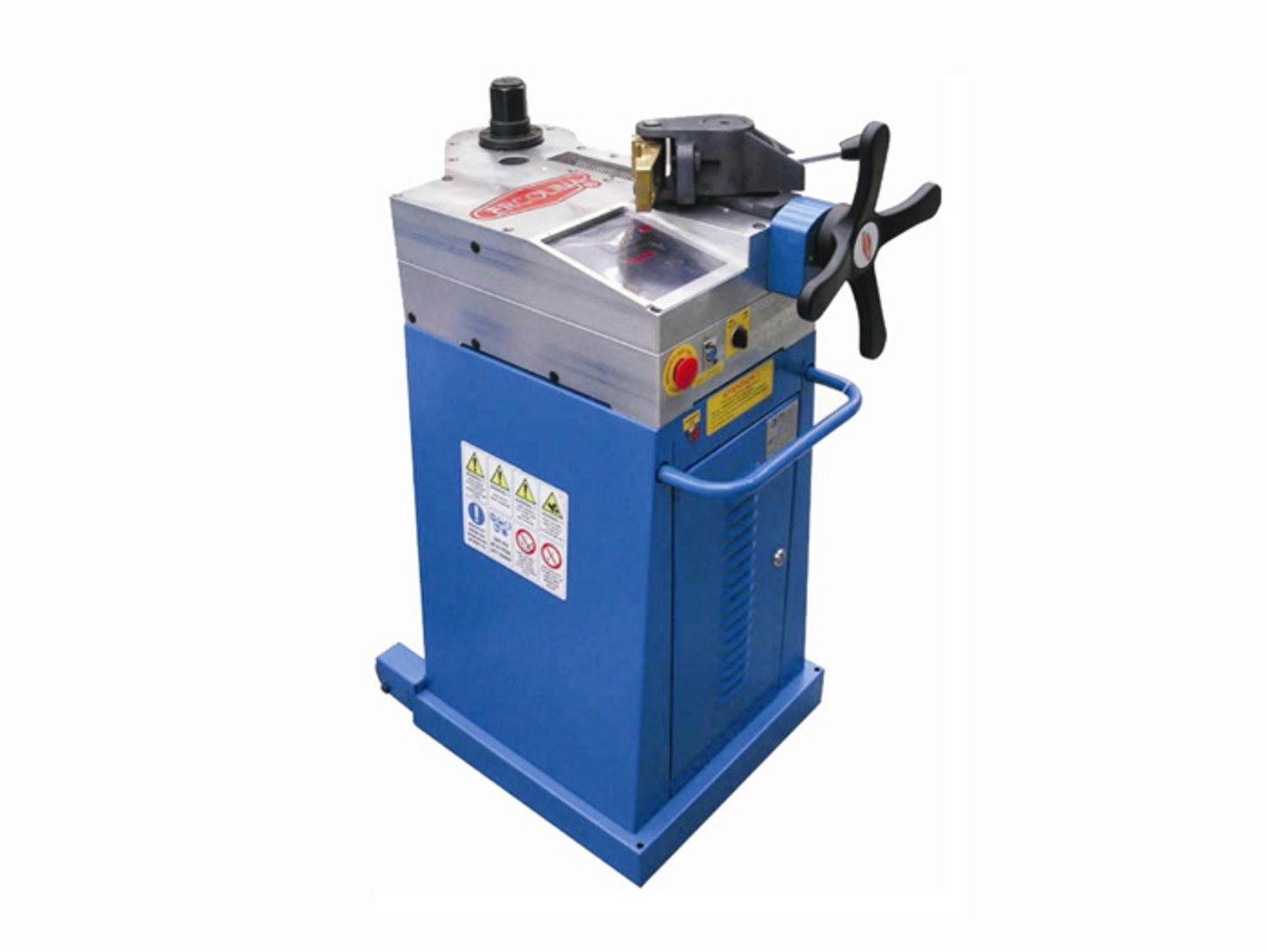

Tube bending machine without mandrel ERCOLINA Topbender TB 050 T
| Model | Topbender TB 050 T |
| Brand | ERCOLINA |
| Condition | new |
| Standard steel tube | 60 x 3 mm |
| Max. bending radius | 300 mm |
| Origin | Italy |
General characteristics
| Flexion modulus | 10.5 cm³ |
| Standard steel tube | 60 x 3 mm |
| Gas tube | 2"Gas x 4 mm |
| Furniture tube | 60 x 4 mm |
| FE35 (for hydraulic tubes) | 64 x 4 mm |
| Stainless steel AISI304-318 | 64 x 3 mm |
| Stainless steel AISI308 (food industry) | 60 x 4 mm |
| Brass soft | 60 x 4 mm |
| Hard copper and aluminium | 64 x 4 mm |
| Soft copper | 64 x 4 mm |
| Conduit tube (TAZ) | 60 x 4 mm |
| Mepla, Gebereit and similar | 50 x 4 mm |
| Roundbar solid (S275JO) | 35 mm |
| Squarebar solid (S275JO) | 30 x 30 mm |
| Flatsteel solid (S275JO) | 10 x 60 mm |
| Square profile (S275JO) | 25 x 50 x 3 bzw. 50 x 50 x 3 mm |
| T-profile (S275JO) | 50 x 50 x 6 mm |
| U-profile (S275JO) | 40 x 20 x 6 mm |
| Max. bending radius | 300 mm |
| Min. bending radius | 10 mm |
| Min. tube Ø | 10 mm |
| Max. bending speed | 1,25 / 2,60 r/min |
| Motor | 1.5 kW |
Dimensions and weight
| Length | 595 mm |
| Width | 363 mm |
| Height | 900 mm |
| Weight | 130 kg |
Description
digital read out for bending angle
manual clamping
material spring back compensation
digital read out and zero setting for clamping point
2 speeds
overload protection
mobile by rolls and handle
tools not included
Further information
Brochures
Product video
Tube bending machine without mandrel Topbender TB 050 T
