General characteristics
| Flexion modulus | 6 cm³ |
| Round tube | Ø 60 x 2 mm |
| Standard steel tube | 50 x 3,31 mm |
| Gas tube | Ø 1”1/4 x 80 mm |
| Stainless steel | Ø 50 x 2 mm |
| Hard copper and aluminium | Ø 64 x 2 mm |
| Square tube | 40 x 40 x 4 mm |
| Rect. tube easy way | 25 x 50 x 6 mm |
| Rect. tube hard way | 50 x 25 x 2,7 mm |
| Square tube | Ø 40 x 40 x 3 mm |
| Rect. tube | Ø 50 x 25 x 3 mm bzw. Ø 25 x 50 x 6 mm |
| Max. outer diameter | 64 mm |
| Max. bending radius | 200 mm |
| Min. bending radius | 20 mm |
| Max. bending angle | 210 ° |
| Speed | 1,25 / 2,5 |
| Motor | 3.5 kW |
| Hydraulic oil capacity | 50 l |
Dimensions and weight
| Length | 4000 mm |
| Width | 950 mm |
| Height | 1250 mm |
| Weight | 430 kg |
Description
With mandrel 3 m length
Can be used with or withoud mandrel
Two bending speeds
Programmable bend sequencing and mandrel retraction
Independent clamp and pressure die adjustment
Micrometer wiper die adjustment
Auxiliary system for stabilizing the hydraulic slide pressure
Quick tool change system
With pneumatic material clamping and DRO system for linear and rotational positioning
alternatively:
model with mandrel 6 m length price on request
Further information
Product video

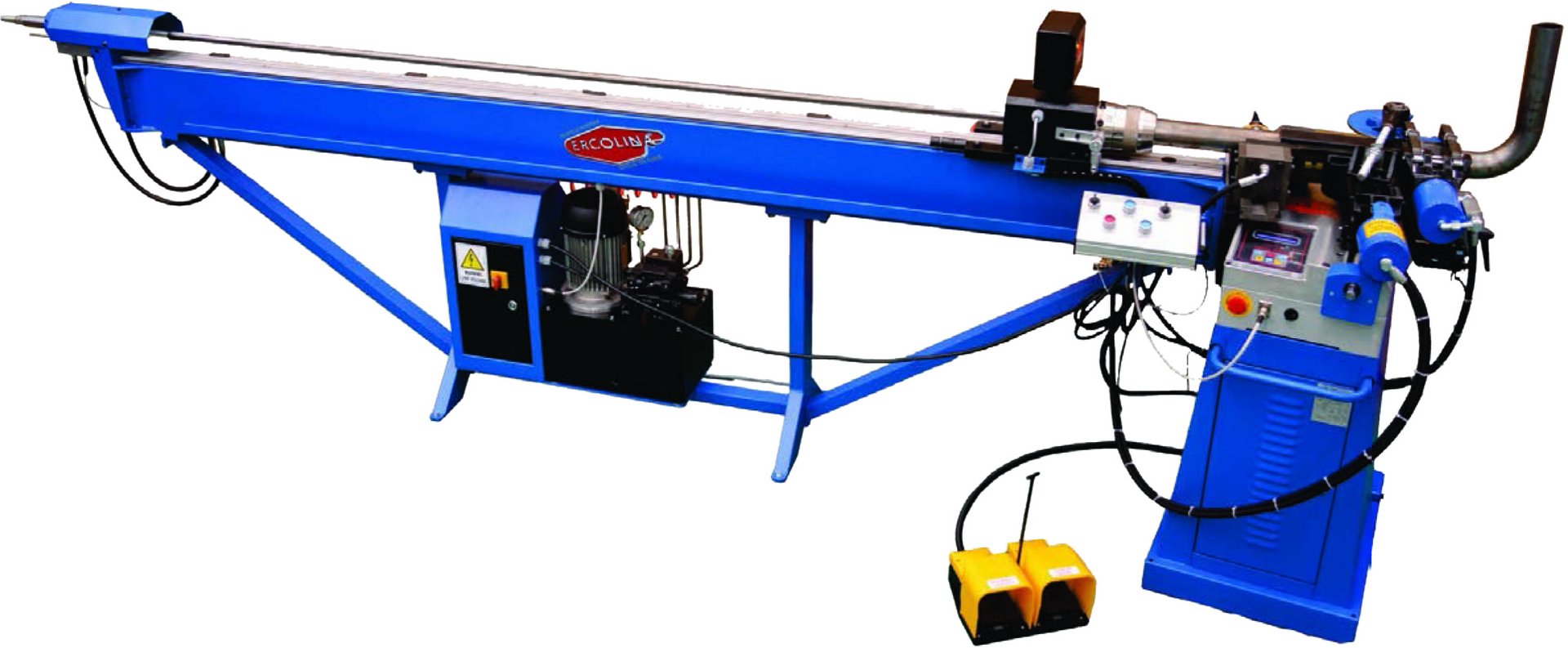

Tube bending machine with mandrel Topbender TB 050 PT A3/H48
