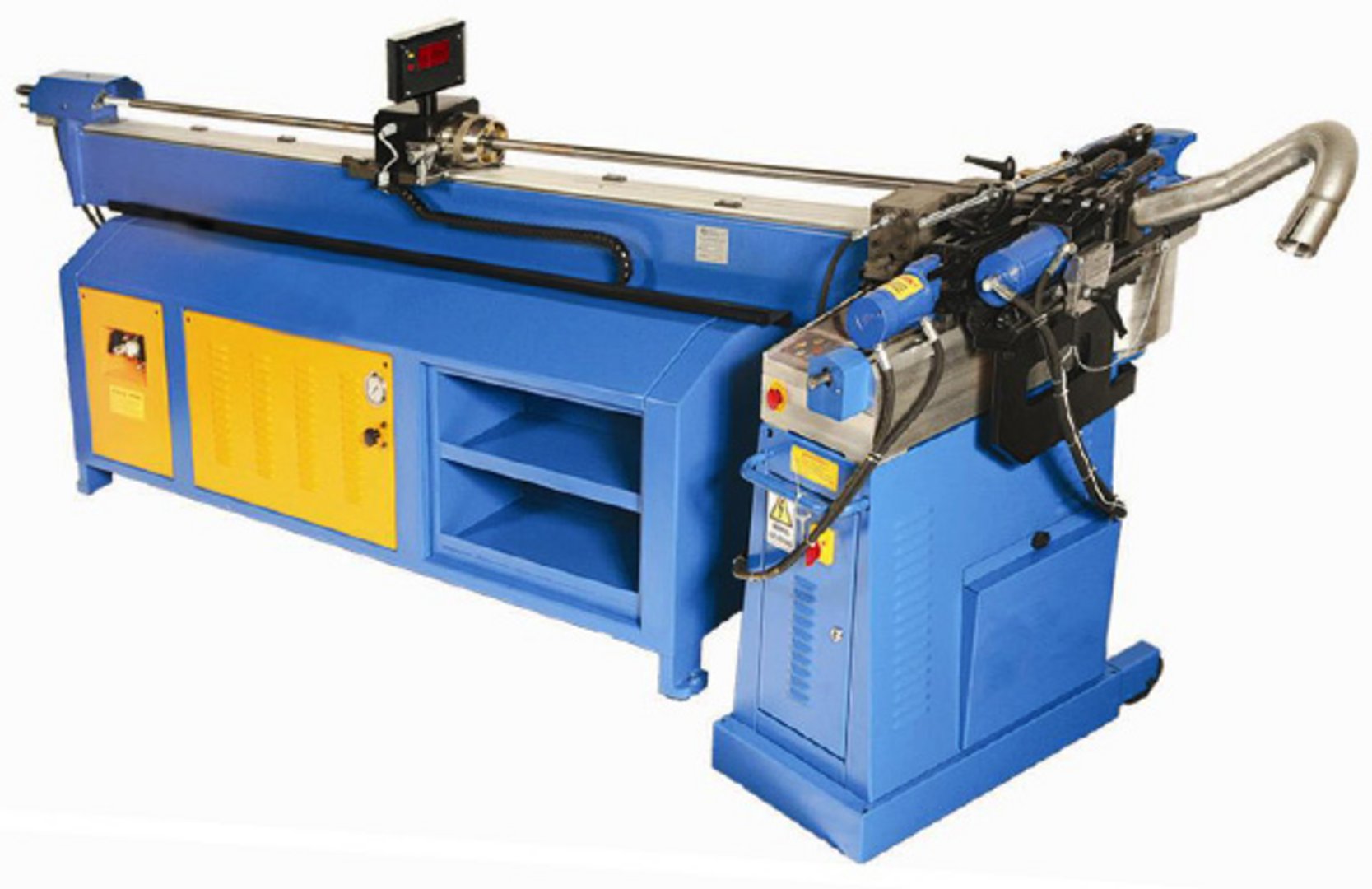

Tube bending machine with mandrel ERCOLINA Megabender MG 030 PT A3/H76
| Model | Megabender MG 030 PT A3/H76 |
| Brand | ERCOLINA |
| Condition | new |
| Standard steel tube | 64 x 3,3 mm |
| Max. bending radius | 200 mm |
| Origin | Italy |
General characteristics
| Flexion modulus | 10 cm³ |
| Round tube | 64 x 3 mm |
| Standard steel tube | 64 x 3,3 mm |
| Gas tube | 2" x 40 mm |
| Stainless steel | 60 x 2 mm |
| Hard copper and aluminium | 64 x 4 mm |
| Square tube | 60 x 60 x 2 mm |
| Rect. tube easy way | 40 x 60 x 4 bzw. Ø 60 x 40 x 3 mm |
| Rect. tube hard way | 60 x 40 x 3 mm |
| Square tube | 60 x 60 x 4 mm |
| Max. outer diameter | 64 mm |
| Max. bending radius | 200 mm |
| Min. bending radius | 20 mm |
| Max. bending angle | 210 ° |
| Motor | 4.2 kW |
| Hydraulic oil capacity | 50 l |
Dimensions and weight
| Length | 4000 mm |
| Width | 950 mm |
| Height | 1250 mm |
| Weight | 850 kg |
Description
with mandrel 3 m length
FST closure system (Patented) with auxiliary system for stabilizing the hydraulic pressure of the slide
Programmable C-axis bending
Positioning of the 2-axis manual spindle carriage (Y1=Feed and B=Rotation) with high resolution encoder and standard adjustable mechanical stops
Multifunction control keyboard integrated in the machine body with microprocessor control with multifunctional menu
30 programs of 9 bends each can be memorized
Screen for digital display for carriage feed (Y1 Axis) and rotation (B Axis)
External pressure gauges for easy setting of the system and closing pressure
Variable bending speed up to 4 rpm (Inverter versions)
Pneumatic chuck
alternatively:
model with mandrel length 1,5 / 4 / 6 mm
