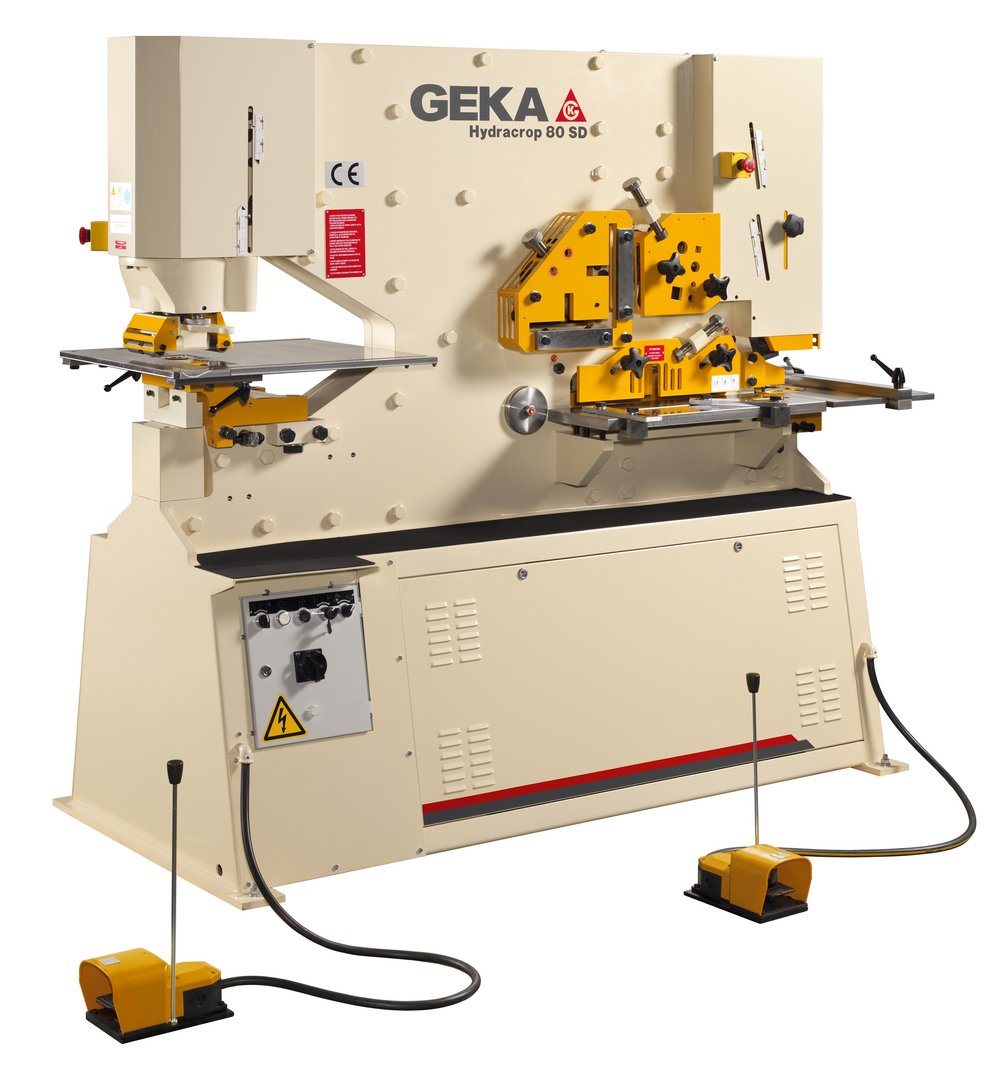

Steelworker GEKA HYD 80 SD
| Model | HYD 80 SD |
| Brand | GEKA |
| Condition | new |
| Punching power | 80 ton |
| Max. diameter at sheet thickness (mild steel) | 40/14 bzw. 24/24 mm |
| Origin | Spain |
General characteristics
| Punching power | 80 ton |
| Throat depth | 500 mm |
| Number of stations | 5 |
| Max. diameter at sheet thickness (mild steel) | 40/14 bzw. 24/24 mm |
| Stroke | 70 mm |
| Strokes | 40 1/min |
| Flat steel | 450x15 / 300x20 mm |
| Angle steel | 130x130x13 mm |
| Round / square steel | 45 mm |
| Notcher | 12x52x90 mm |
| Motor | 9 kW |
Dimensions and weight
| Length | 2310 mm |
| Width | 1200 mm |
| Height | 2050 mm |
| Weight | 2400 kg |
Description
2 foot pedals for independent work at 2 stations
hydr. drive
flat bar shear
angle bar shear with minimum deformation by diagonal moving of the blade
round and square bar shear
rectangular notching unit
punching unit up to diam. 40 mm
fast hydraulic, centring device
oilfilling
table at the punching station with gauge
table at the notching unit with gauge
table at the flat bar shear
user manual in GERMAN and ENGLISH
Option:
Kit € 930,00
length stop 1000 mm with contact switch, for angle, flat or bar station
magnetic machine lamp
10 set round punches and dies: 8, 10, 12, 14, 16, 18, 20, 22, 24 and 26 mm
