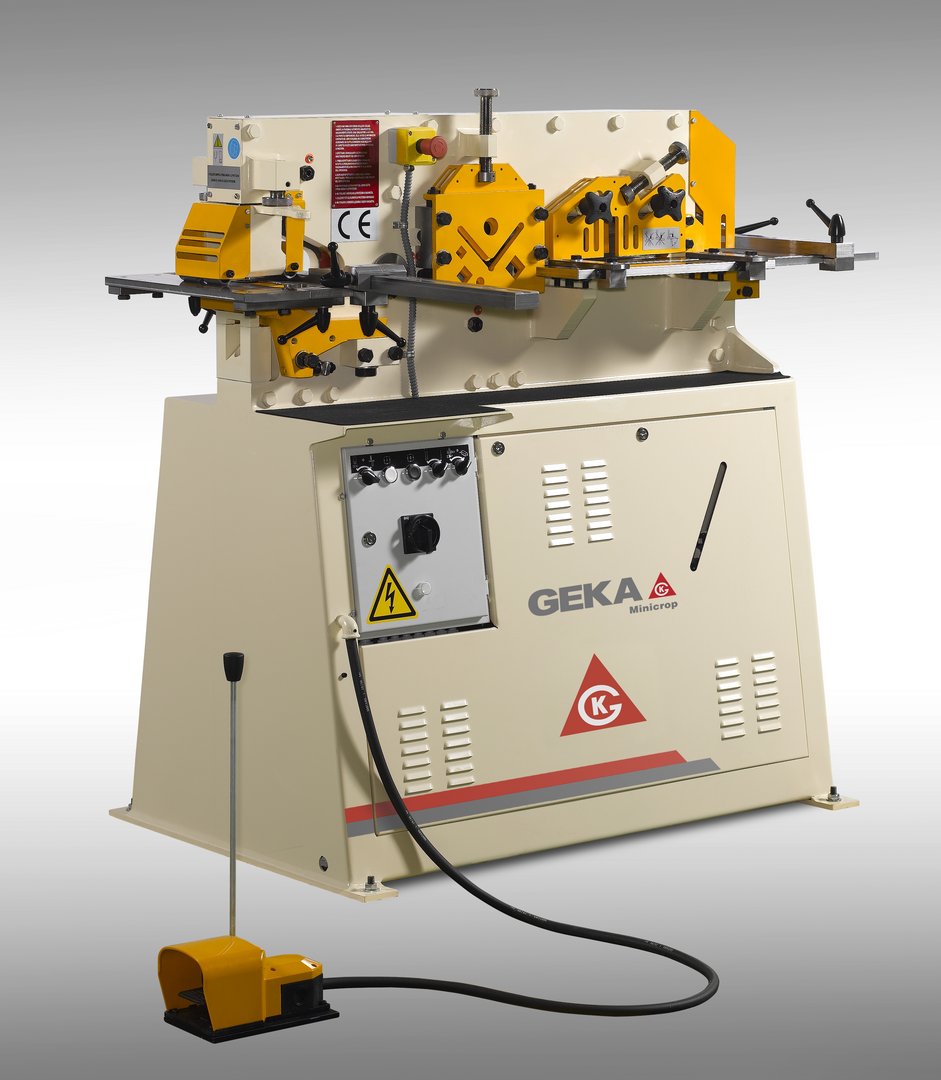

Steelworker GEKA Minicrop
| Model | Minicrop |
| Brand | GEKA |
| Condition | new |
| Punching power | 45 ton |
| Max. diameter at sheet thickness (mild steel) | 27 x 12 mm |
| Origin | Spain |
General characteristics
| Punching power | 45 ton |
| Throat depth | 175 mm |
| Number of stations | 4 |
| Max. diameter at sheet thickness (mild steel) | 27 x 12 mm |
| Stroke | 15 mm |
| Strokes | 16 1/min |
| Flat steel | 300x10 / 200x13 mm |
| Angle steel | 80x80x8 mm |
| Notcher | 7 mm |
| Motor | 2.2 kW |
Dimensions and weight
| Length | 1360 mm |
| Width | 1100 mm |
| Height | 1500 mm |
| Weight | 800 kg |
Description
4 working stations
foot pedal
hydraulically driven
oil filled
table at punching and notching station with gauge
user manual in GERMAN and ENGLISH
