General characteristics
| Punching power | 36 ton |
| Throat depth | 170 mm |
| Number of stations | 3 |
| Max. diameter at sheet thickness (mild steel) | 27x10 mm |
| Stroke | 15 mm |
| Strokes | 24 1/min |
| Flat steel | 350x6 mm |
| Angle steel | 80x8 mm |
| Motor | 2.2 kW |
Dimensions and weight
| Length | 1100 mm |
| Width | 800 mm |
| Height | 1400 mm |
| Weight | 485 kg |

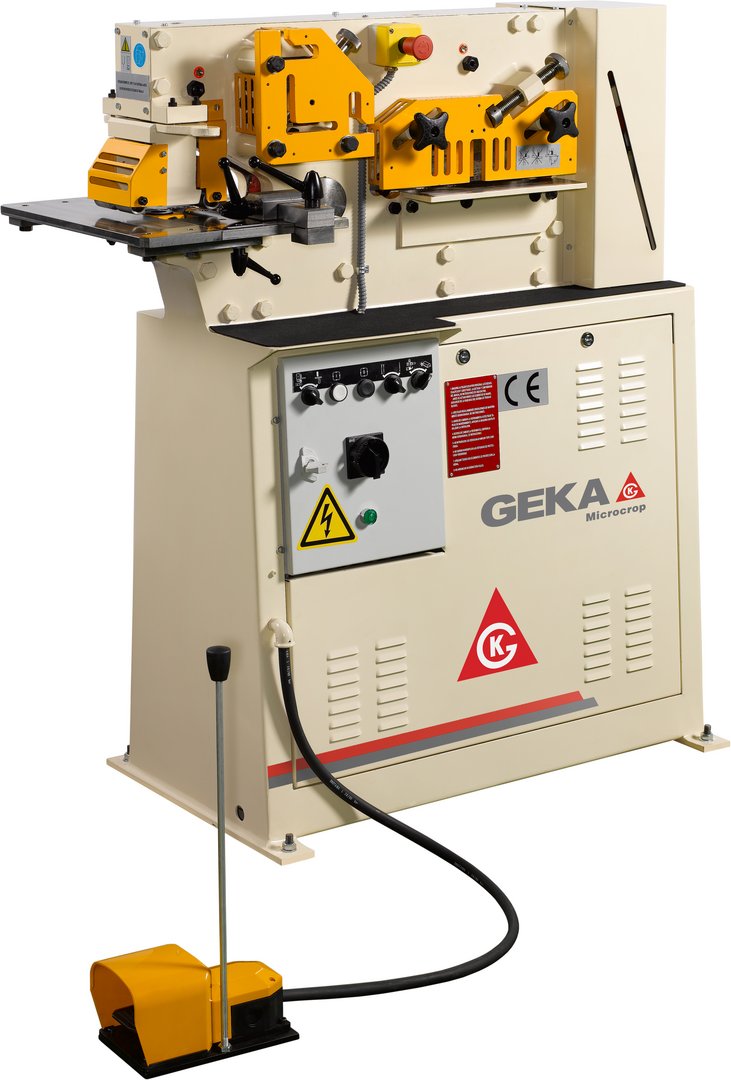

Description
3 working stations
foot pedal
hydraulically driven
oil filled
table at punching station
with gauge
user manual in GERMAN and ENGLISH
| FLAT STEEL SHEAR | ||
| flat steel | mm | 200 x 13 |
| with small deform. | mm | 350 x 6 |
| blade lenght | mm | 356 |
| round bars | mm | 30 |
| square bars | mm | 25 |
| working hight | mm | 980 |
&nbs
| ANGLE IRON SHEAR | ||
| L profiles 90° | mm | 80 x 80 x 8 |
| L profiles 45° | mm | 50 x 50 x 6 |
| round bars (optional) | mm | 35 |
| square bars (optional) | mm | 30 |
&nbs
| NOTCHING STATION (optional) | ||
| sheet | mm | 8 |
| L profiles | mm | 60 |
| notching depths | mm | 53 |
| PUNCHING STATION | ||
| max. punching cap. | to | 36 |
| max. sheet diam. | mm | 27 x 10 |
| gap | mm | 170 |
| stroke | mm | 28 |
| working height | mm | 980 |
