General characteristics
| Punching power | 60 ton |
| Throat depth | 250 mm |
| Number of stations | 5 |
| Max. diameter at sheet thickness (mild steel) | 40 x 11 mm |
| Strokes | 32 1/min |
| Flat steel | 350 x 15 mm |
| Angle steel | 120 x 10 mm |
| Round / square steel | 45 / 40 mm |
| Notcher | 10 mm |
| Bending unit | max. 150x10 mm |
| Motor | 5.5 kW |
Dimensions and weight
| Length | 1850 mm |
| Width | 1300 mm |
| Height | 2100 mm |
| Weight | 1390 kg |
Description
with bending station
5 working stations
flat steel shear with device to reduce deformation
angle iron shear with round- and squarebars opening
triangle notcher
punching station

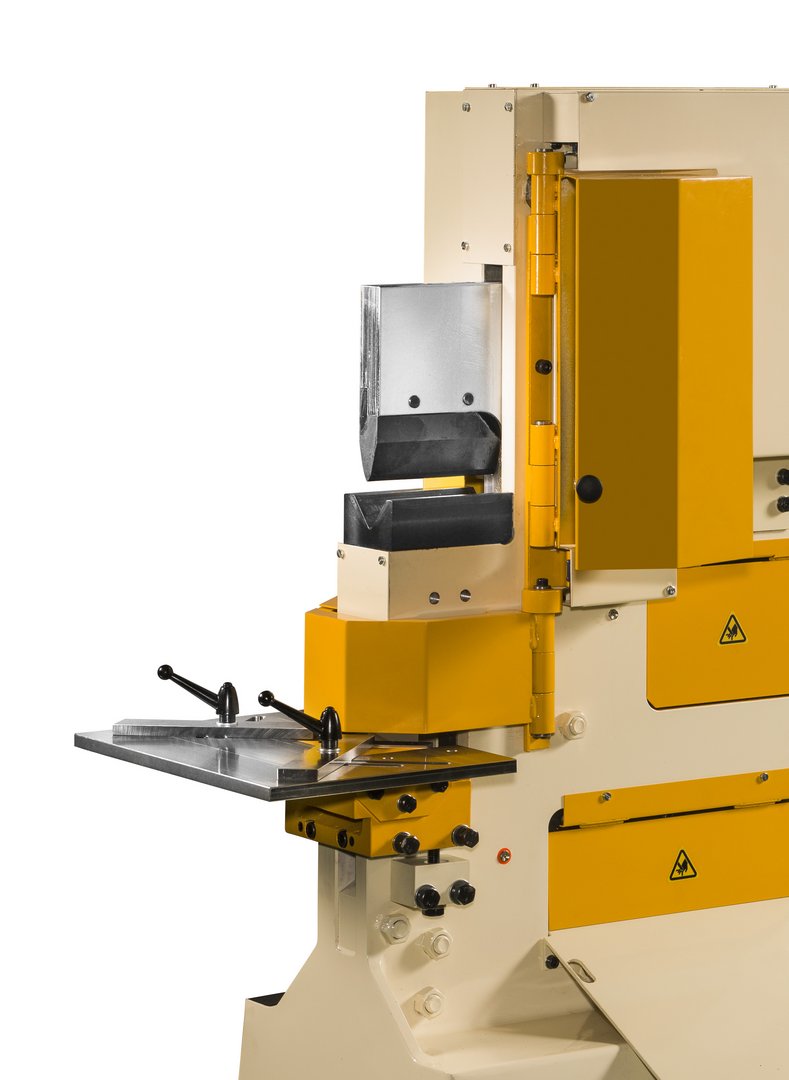

press brake device for flat steel
table at flat steel station
table at notching station
length stop 1000 mm with contact switch, for angle, flat or bar station
hydraulic drive
2 foot release
user manual in GERMAN and ENGLISH
We have more than 700 references!
Further information
Brochures
Product video

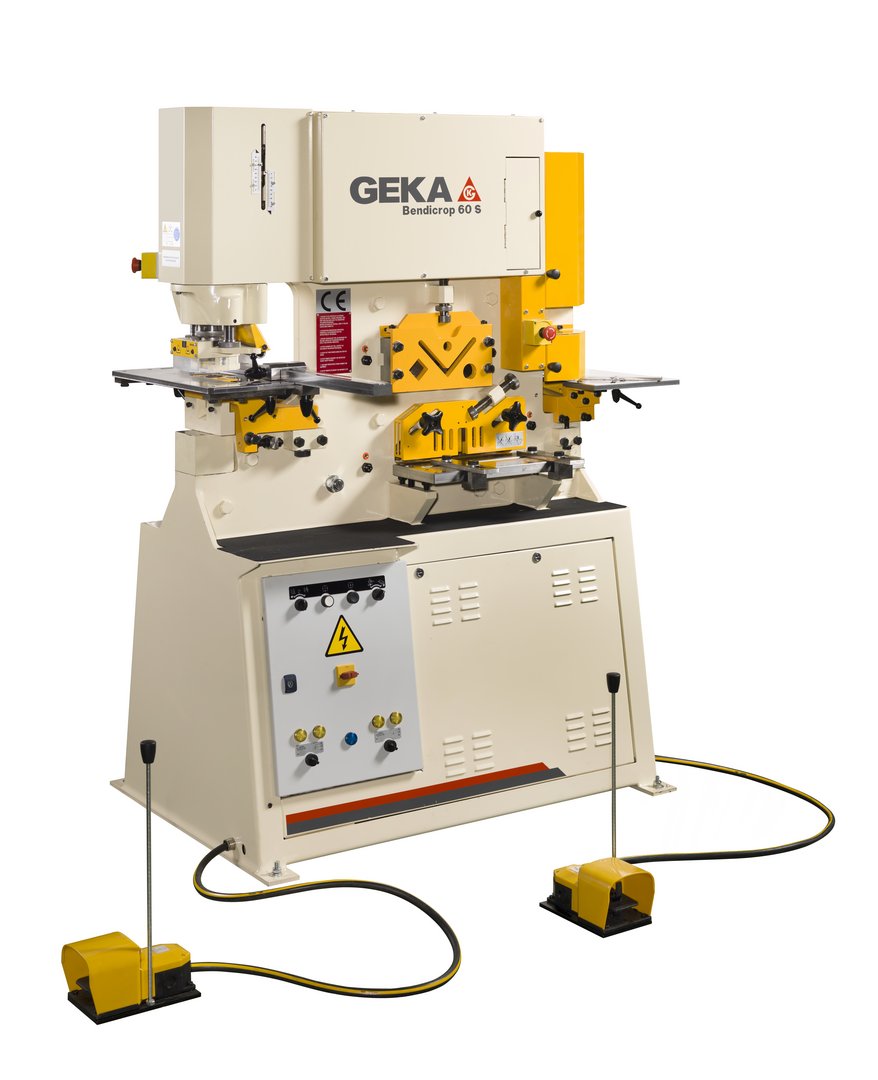

hydraulic steelworker Bendicrop 60 S
