General characteristics
| Max. sheet width | 1250 mm |
| Max. thickness - mild steel | 1.25 mm |
| Max. thickness / pair of blades (mildsteel) | 1,25 mm bei 1 Messerpaar; 1 mm bei 2 Messerpaaren; 0,8 mm bei 3 Messerpaaren |
| Number of blade pairs | 2 Stk. |
| Motor | 0.37 kW |
| Speed | 36 m/min |
| Shaft diameter | 70 |
Dimensions and weight
| Length | 1900 mm |
| Width | 1600 mm |
| Height | 1000 mm |
| Weight | 350 kg |
Description
demo machine / mint condition - fixprice

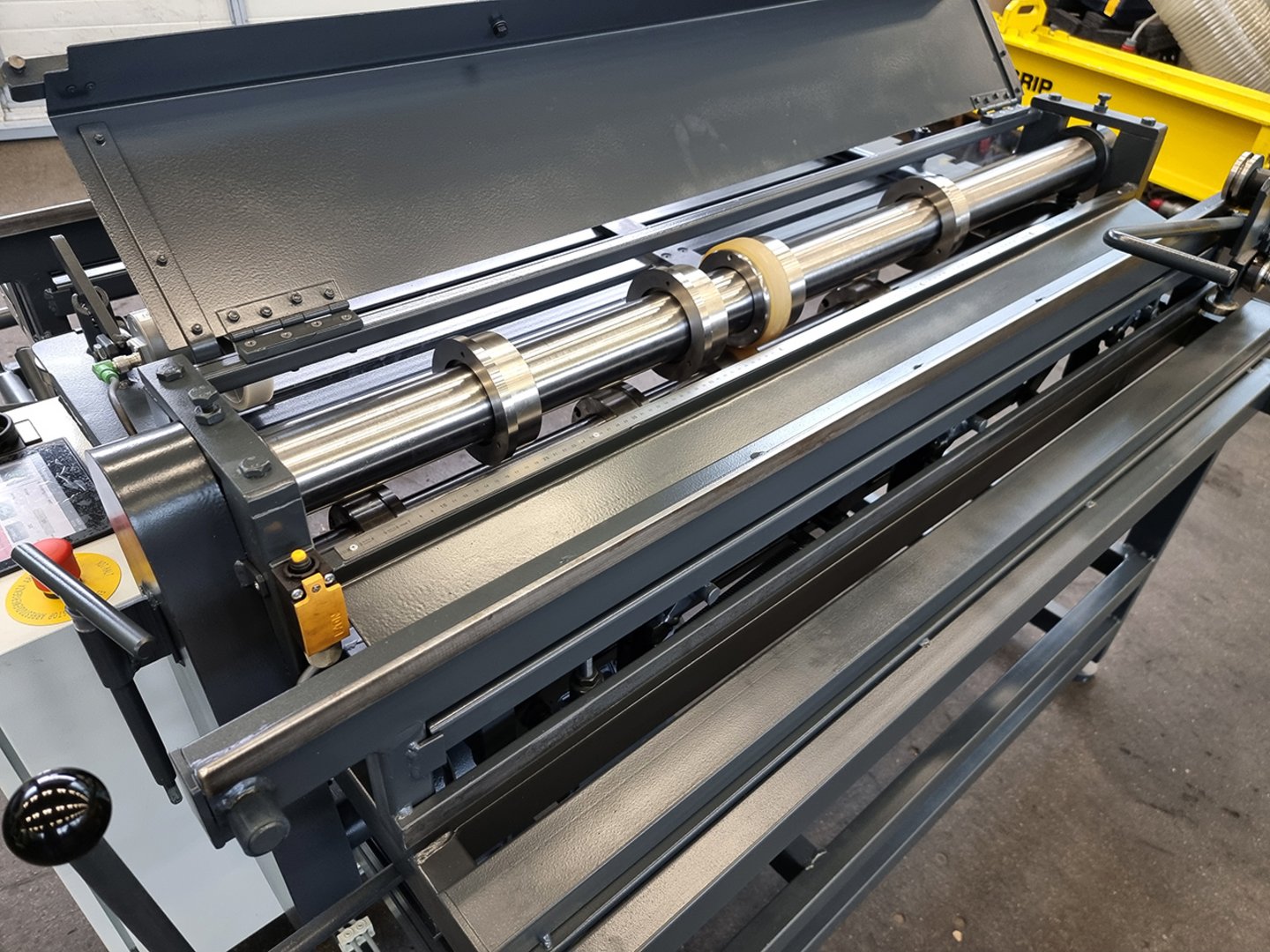

3 pairs of blades

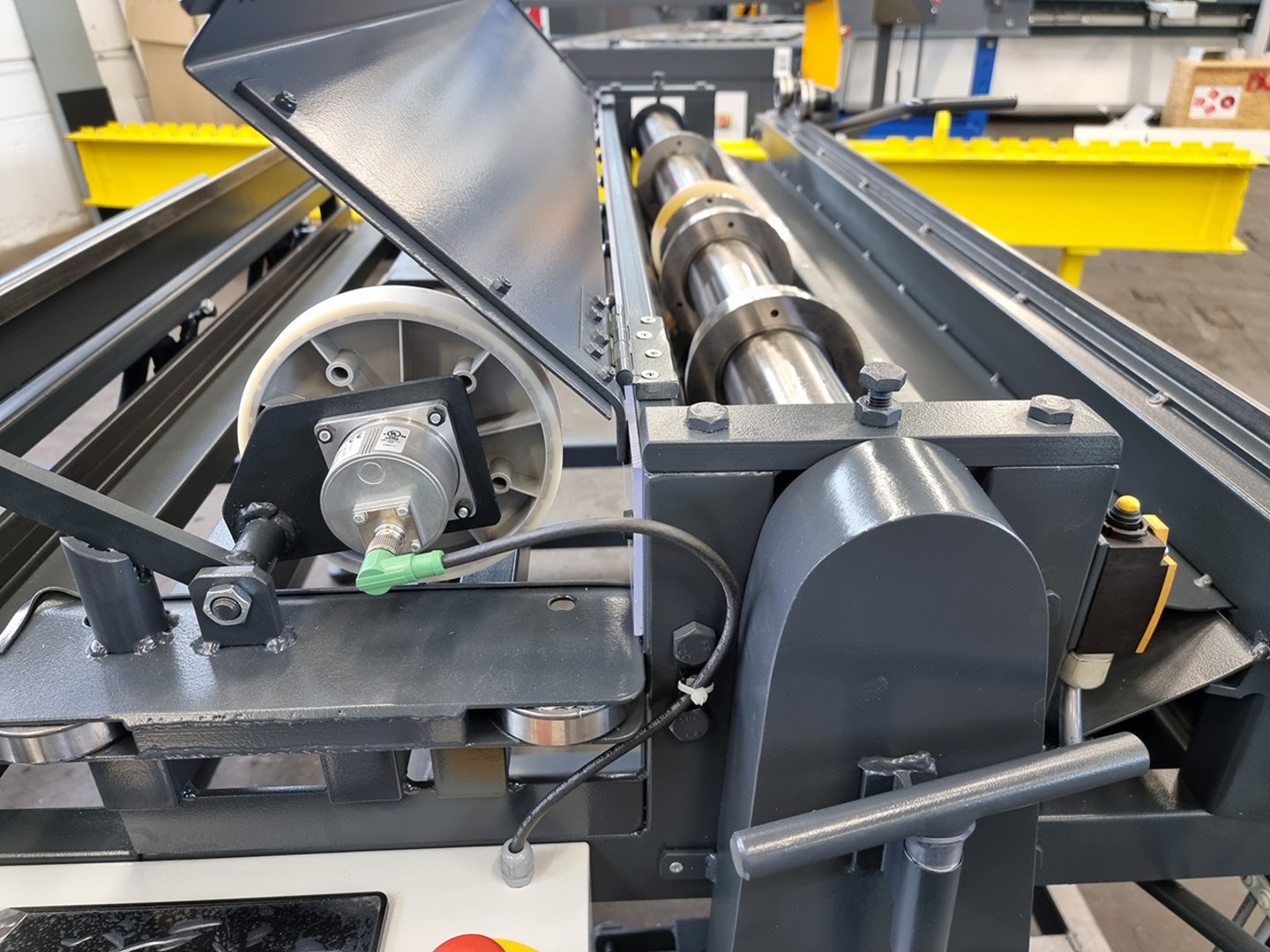

Length measuring by wheel

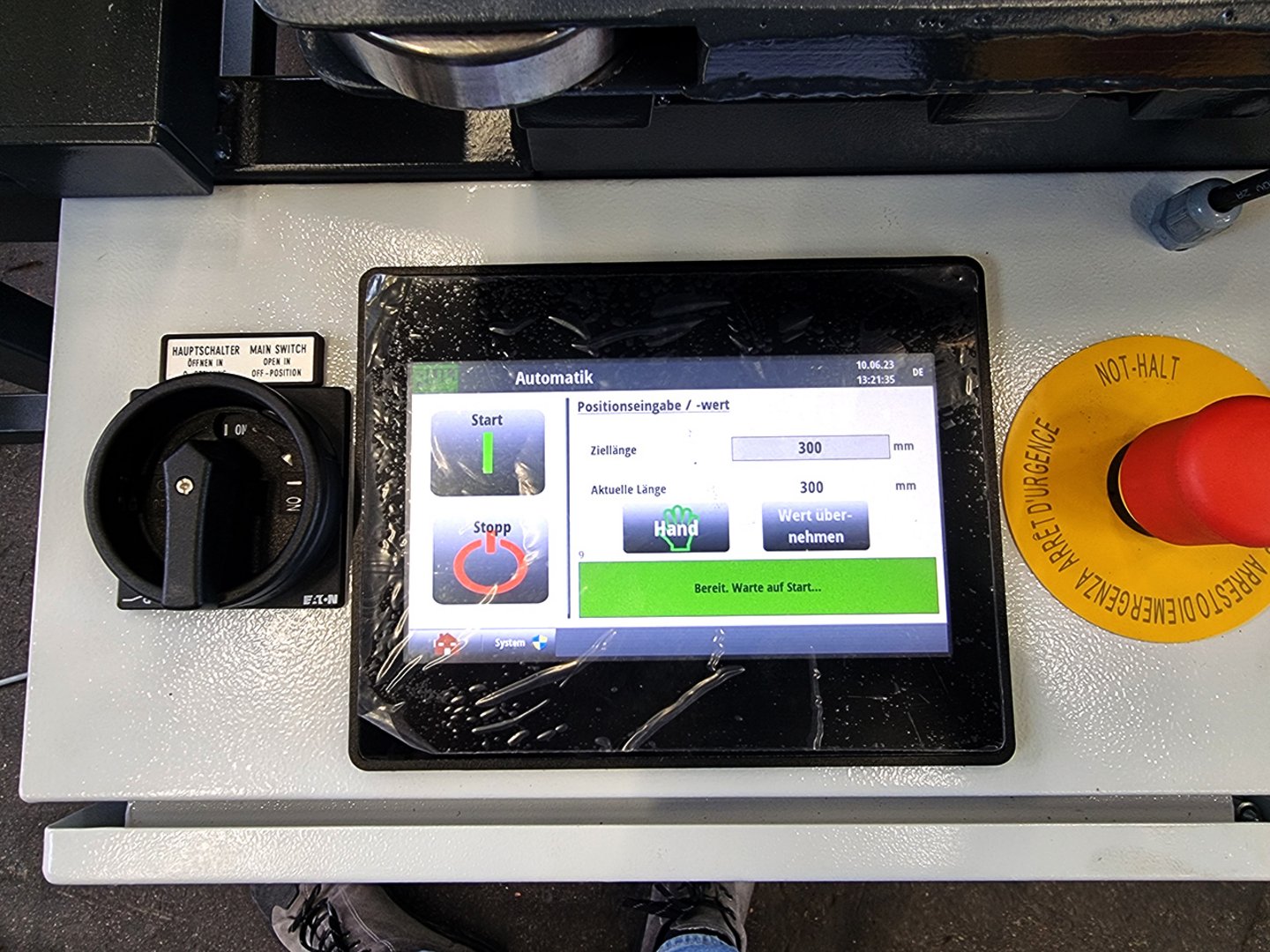

Digital preselection of one position
Brake motor
Rubber feeding rolls

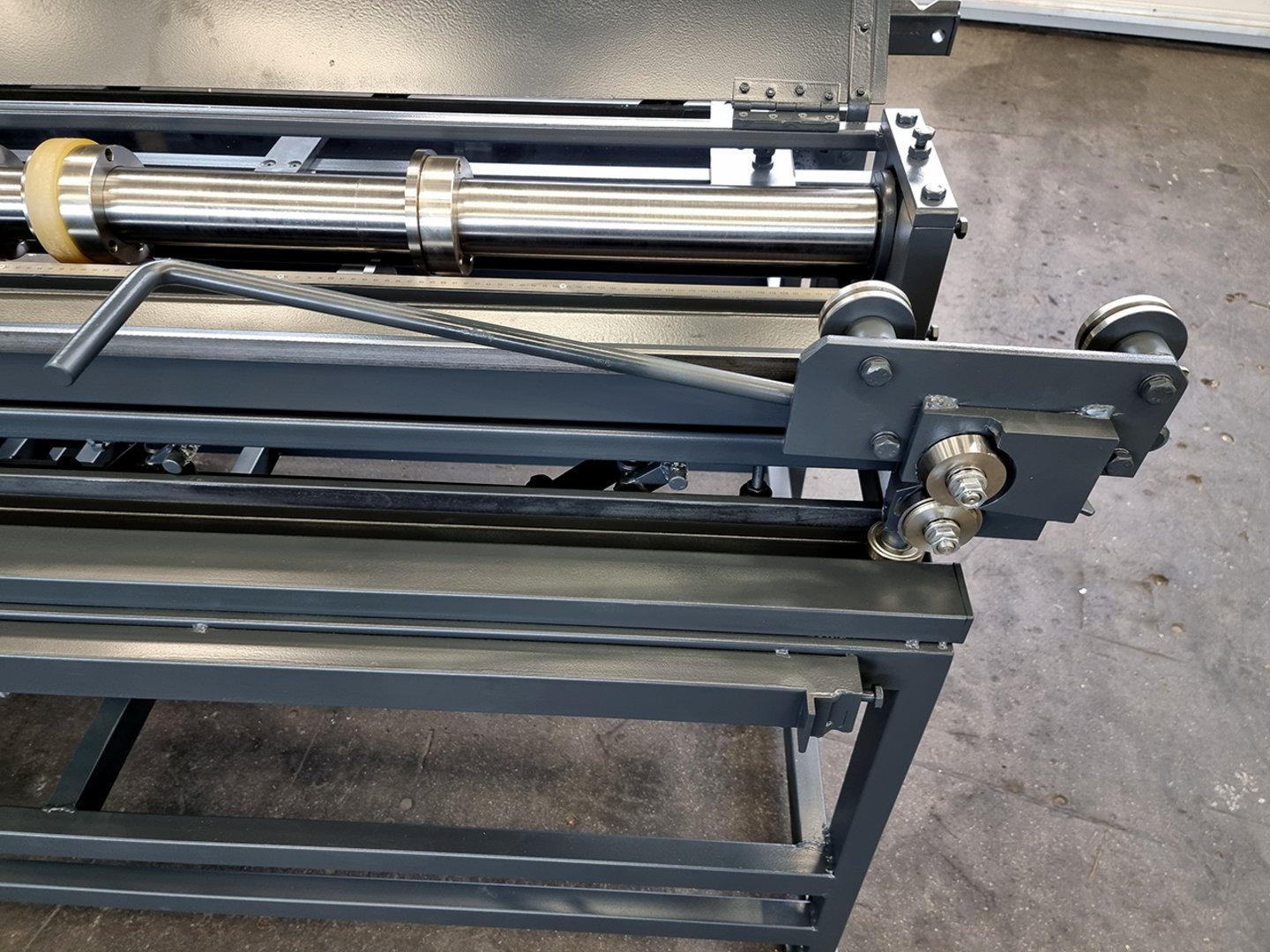

Manual crosscutting equipment in front and behind blade shaft
with 1 cutting slide which alternaingly can be used on front and backside
User manual in GERMAN
Options:
| Additional pair of blades | € | 540,- |
| Decoiler | € | 3.480,- |
Further information
Product video
Slitting line HESSE 1250 / 1,25
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
