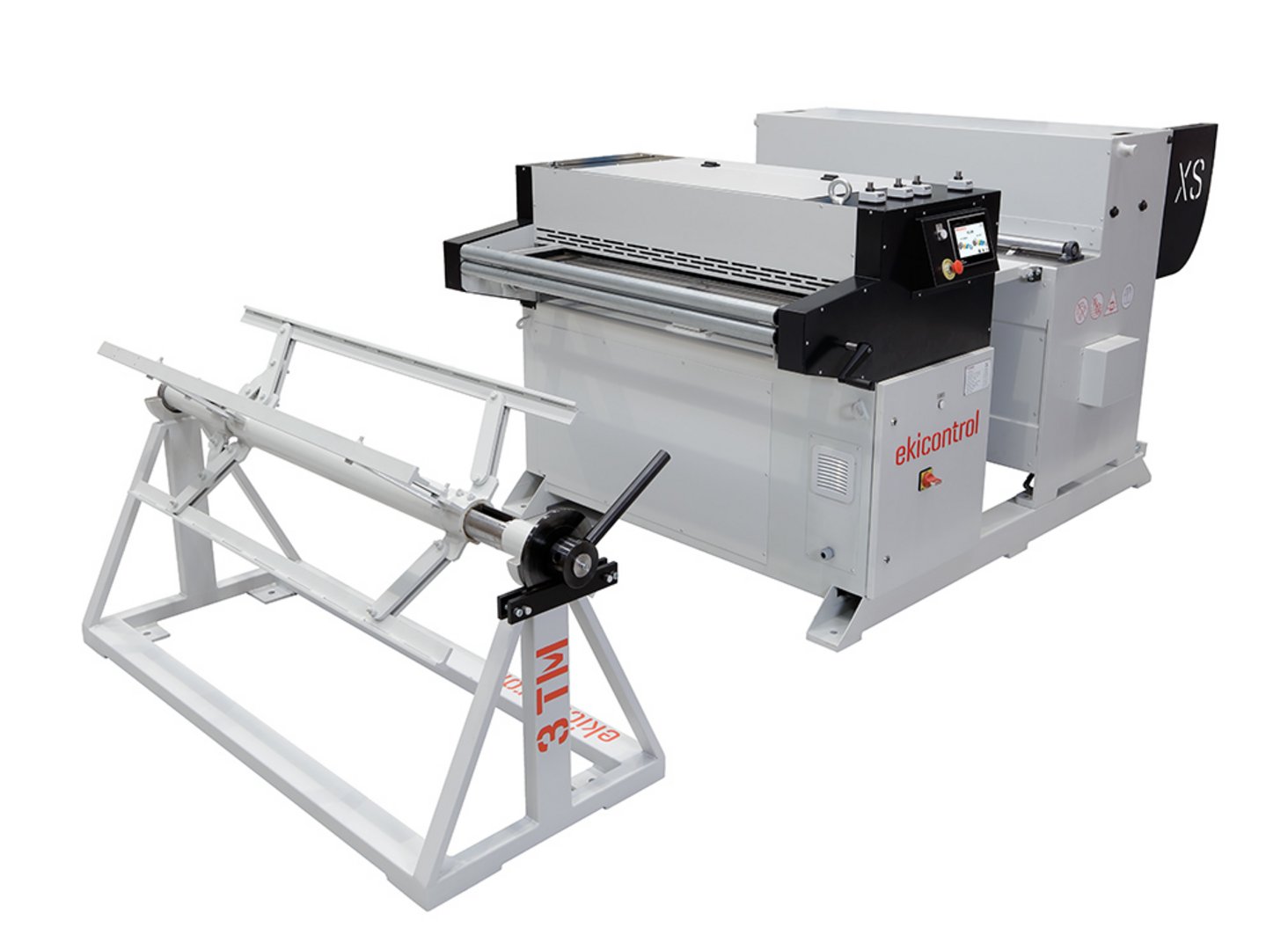

Slitting and cut-to-length line EKICONTROL XS LINE 1250
| Model | XS LINE 1250 |
| Brand | EKICONTROL |
| Condition | new |
| Origin | Spain |
General characteristics
Dimensions and weight
Description
Standard equipment
• Entry guide
• 2 Feeding rolls
• 5 Straightening rolls
• Cut-to-length shears
• Encoder
• Touch screen control
• Servomotor
• Slitting shaft with 2 sets of quickly adjustable circular blades, to a maximum of 6 blades
Options
- Film plastic device
- Different types of uncoilers
- Stacking systems
- Recoiler
| Maximum Width: | Material to be processed: | Thickness: | Number of simultaneous slitting cuts: | Production speed: | Coil loading capacity: | Number of straightening rolls: | Straightening ServoMotor: | Shears Power: | Dimensions: |
| 1250 | Steel 420 Nw/mm2 | 1`25 mm | 2 | from 0 zu 120 Meter pro Minute |
|
2 + 5 | 15 kW | 3 kW | 2100 x 1700 x 1450 mm 2500 kg |
| 1`00 mm | 4 | ||||||||
| 0`50 mm | 6 | ||||||||
| Steel 700 Nw/mm2 | 0`75 mm | 2 | |||||||
| 0`50 mm | 4 | ||||||||
| Aluminium 200 Nw/mm2 | 2`50 mm | ||||||||
| 2 | |||||||||
| 1`50 mm | |||||||||
| 1`00 mm | 6 |
If you are interested, please send us your enquiry with the following details:
- Coil weight
- Coil width
- Coil inner and outer diameter
- type of material
- Material thickness
- Number of slitting lines (only for slitting and cut-to-length lines)
- Material to be processed in tonnes per year
Further information
Brochures
Product video
Slitting and cut-to-length line XS LINE 1250
