General characteristics
| Punching power | 110 ton |
| Max. diameter at sheet thickness (mild steel) | 4-30 mm |
Dimensions and weight

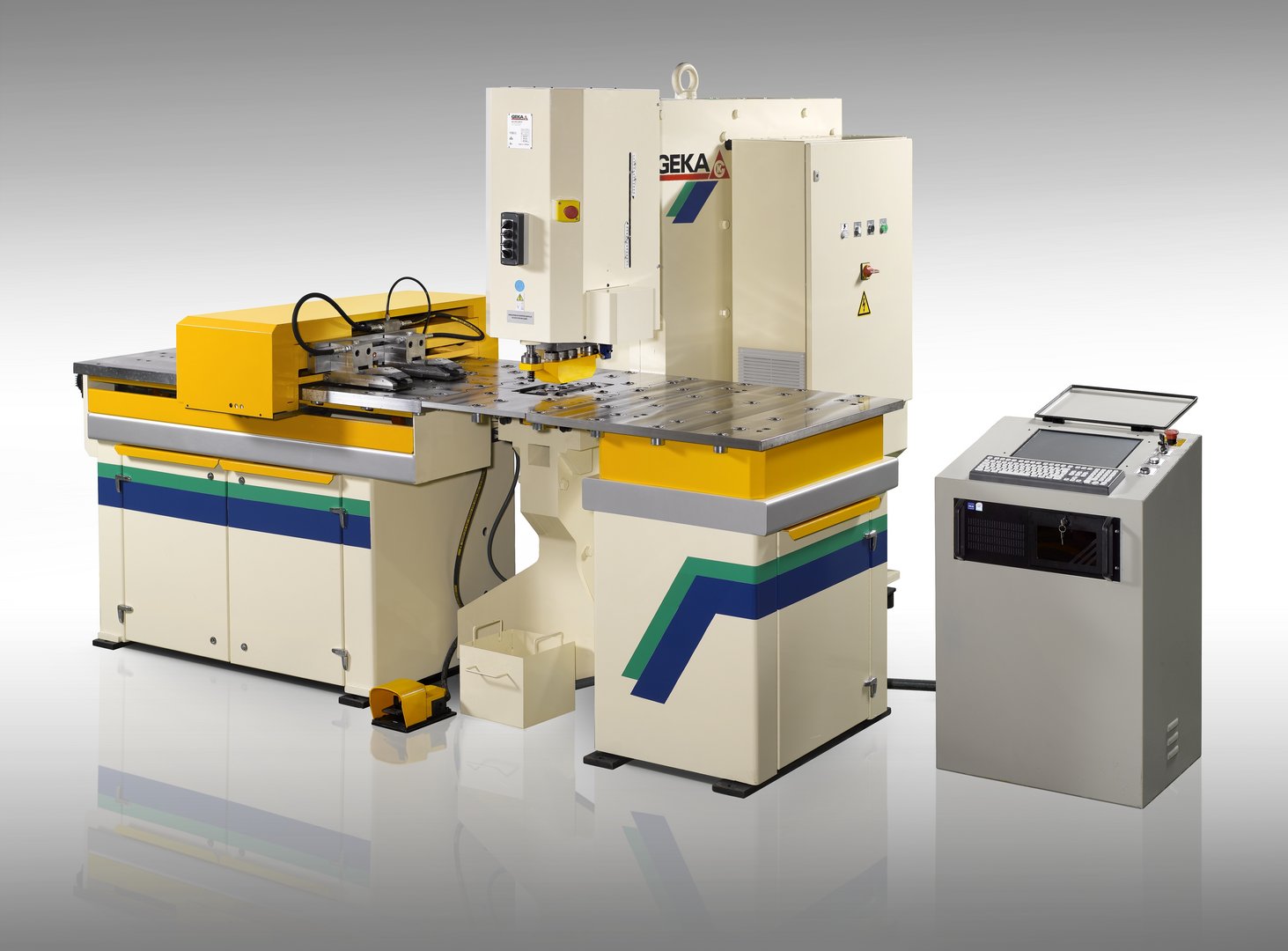

Description
punching unit with hydraulic stripper
hydraulic material clamps
X- und Y- axis on ballscrews, each with servo motor
CNC control Omron
Flash memory
Touchscreen
Optional equipment:

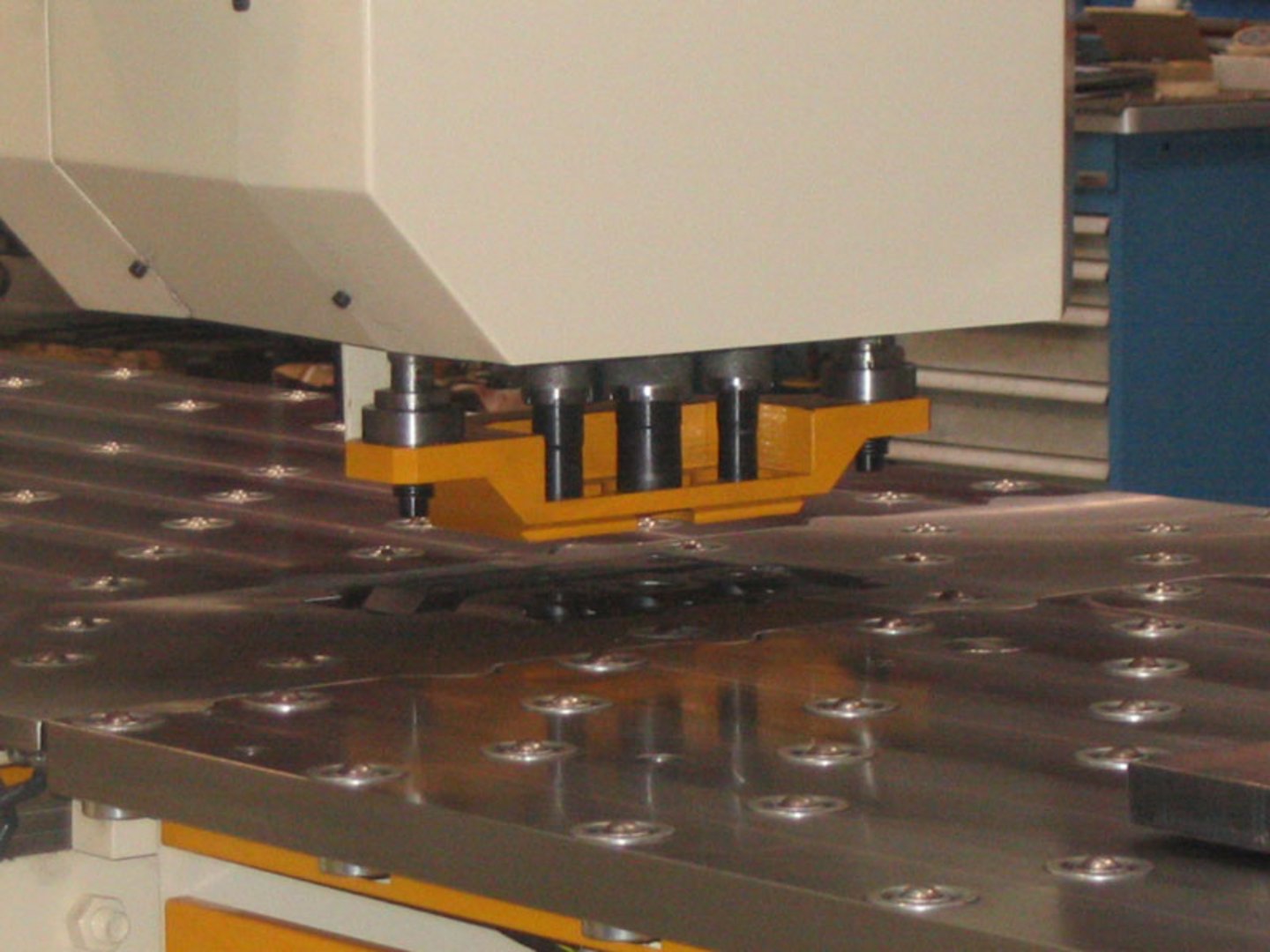

triple punching unit:
| 31/31/31 mm | € | 4.500,- |
central punch:
100 % of punching force
max. Dm. 31 mm
max. thickness 20 mm
max. Dm./thickness 31/20 mm
lateral punches
75 % of punching force
max. Dm. 31 mm
max. thickness 20 mm
max. Dm./thickness 31/18 mm
triple punching unit:
| 31/40/31 mm | € | 5.100,- |
central punch:
100 % of punching force
max. Dm. 40 mm
max. thickness 20 mm
max. Dm./thickness 40/20 mm
lateral punches
60 % of punching force
max. Dm. 31 mm
max. thickness 20 mm
max. Dm./thickness: 31/15 mm

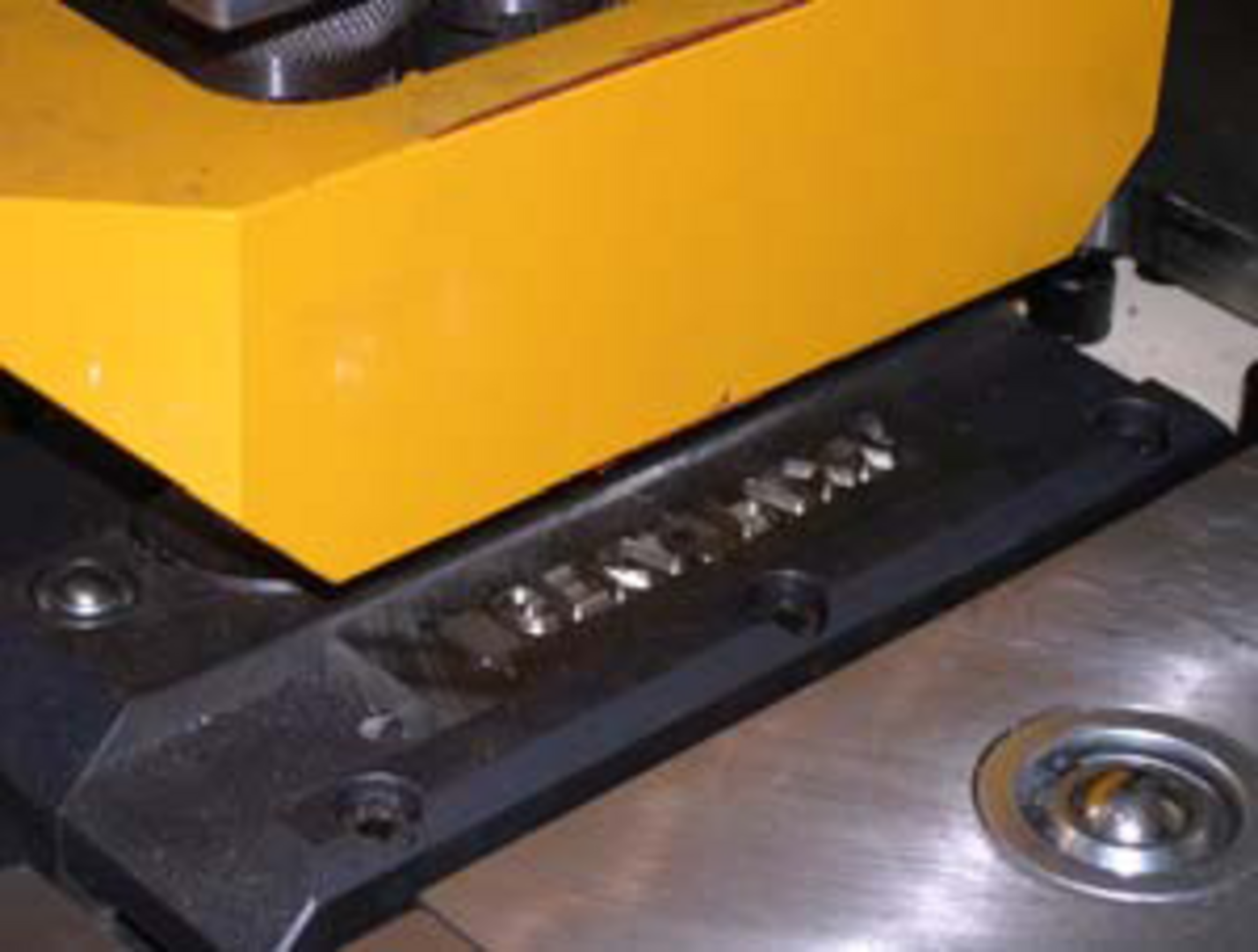

triple punching unit with
marking station:
punching capacity as above
max. thickness 20 mm
marking force 700 kN
max. 10 characters, interchangeable
dimensions of characters 10 x 7 mm
| Model 31/31/31 | € | 9.300,- |
| Model 31/40/31 | € | 9.900,- |

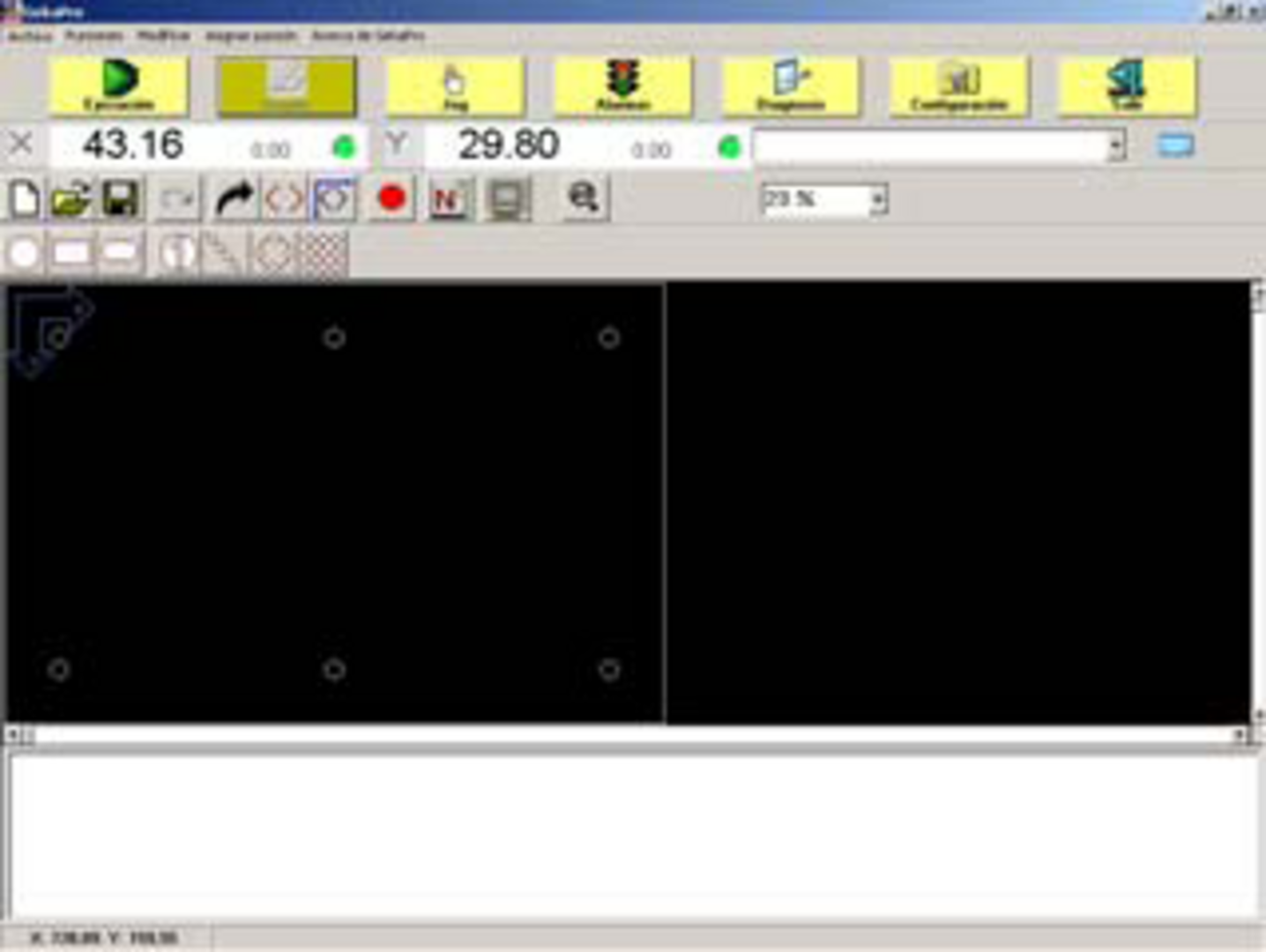

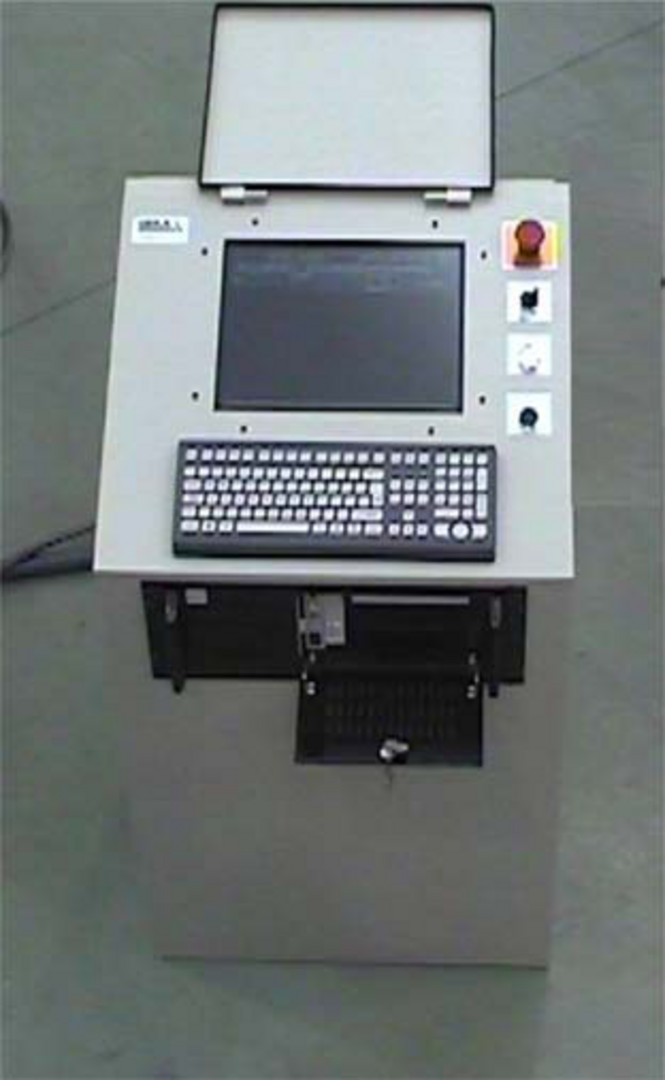

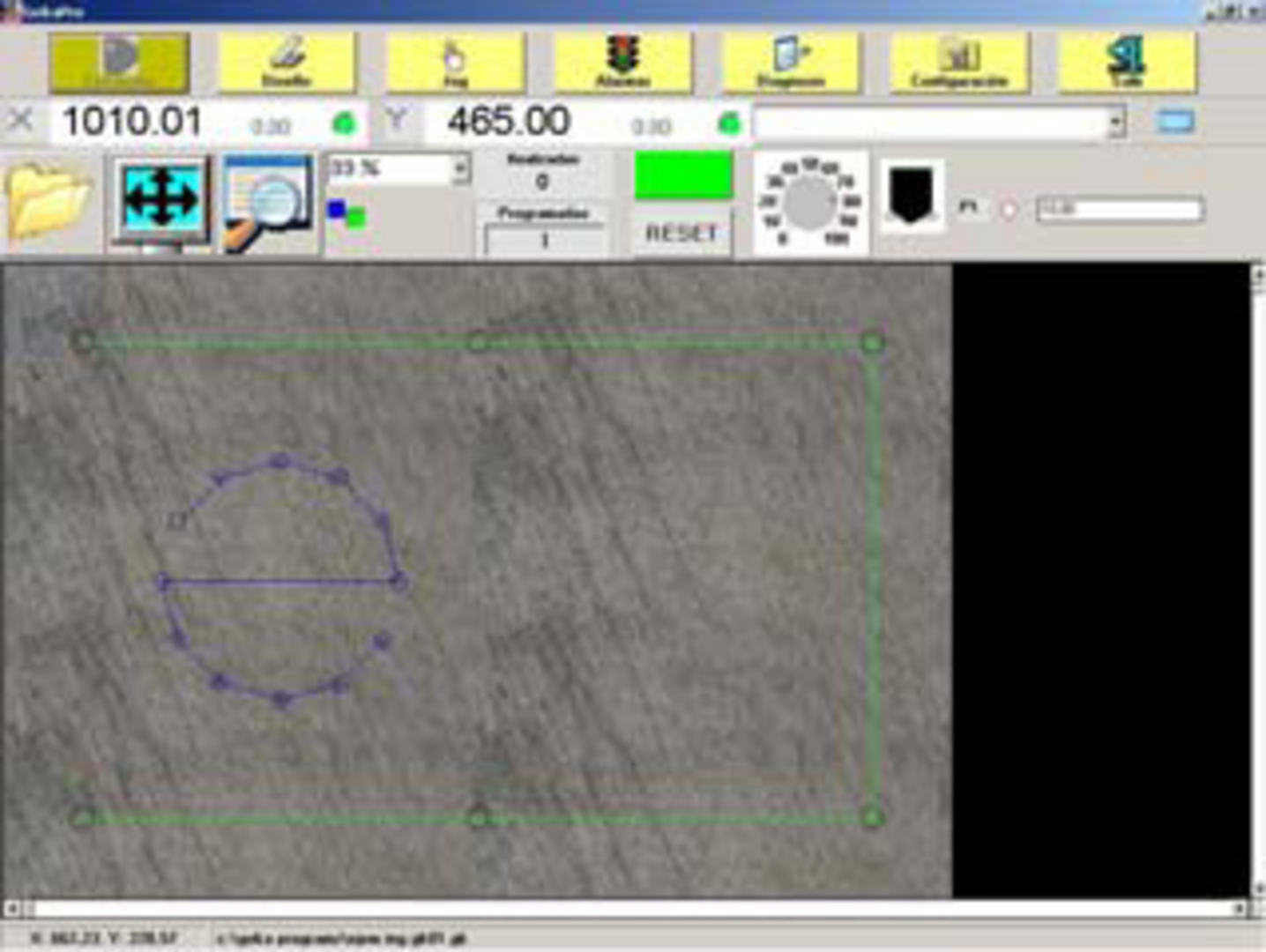

| CNC control GEKA ProPC | € | 5.300,- |
bigger display
dxf Import
visualstion of product
drilling unit up to 40 mm on request All capacities based on steel 450 N/²
| max. length of sheet "X" axis: | 1000 mm |
| max. width of sheet "Y" axis: | 500 mm |
| Max. hole diameter: | 40 mm |
| diameter/thickness: | 40/20 or 28/28 mm |
| max. traverse speed per axis: | 24 m/min |
| max. combined traverse speed: | 34 m/min |
| positioning tolerance: | 0,2 mm |
| repeatability: | 0,1 mm |
Further information
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
