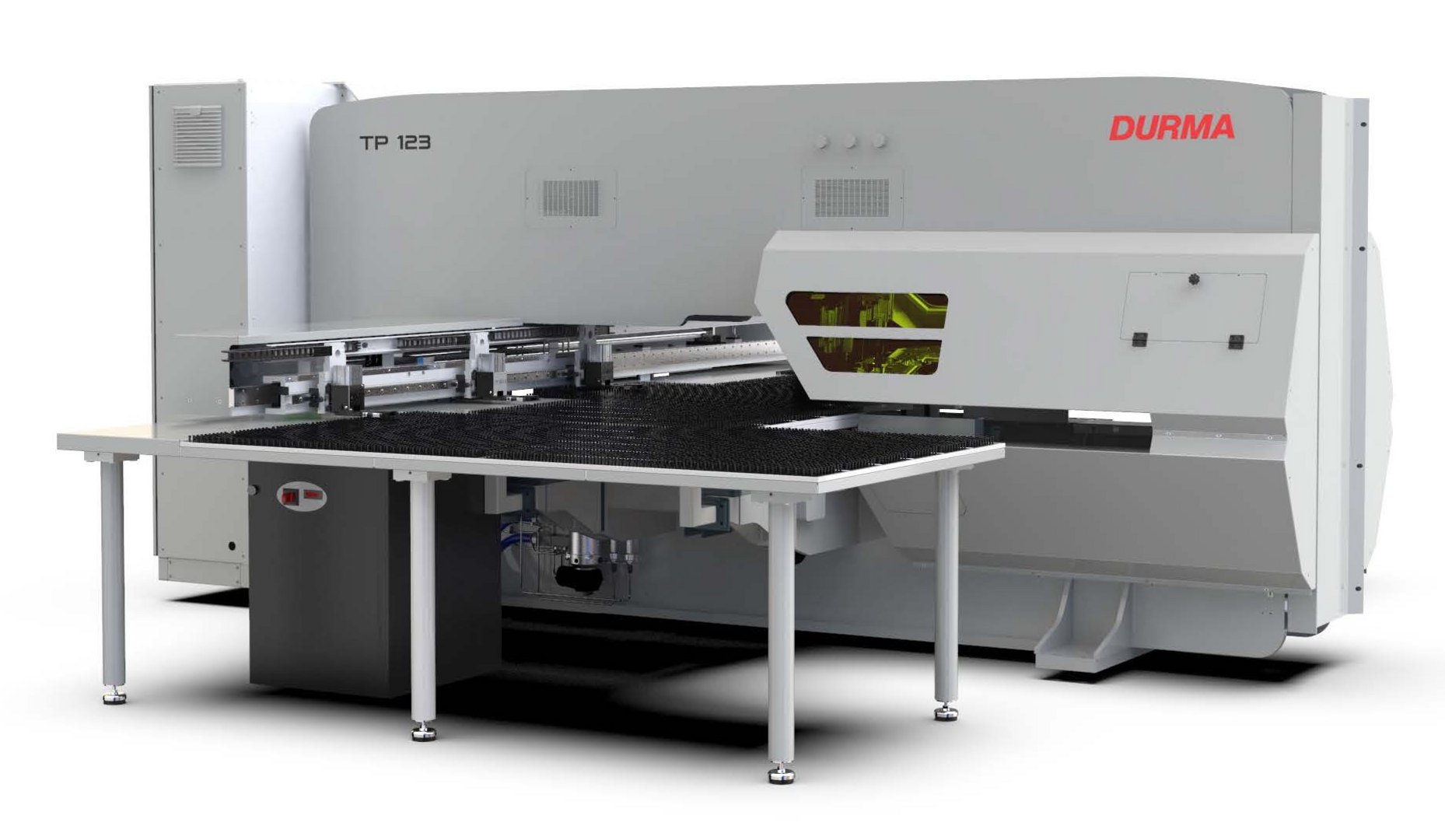

CNC punching and nibbling machine HESSE by DURMA TP123
| Model | TP123 |
| Brand | HESSE by DURMA |
| Condition | new |
| Punching power | 30 ton |
| Working area | 2500x1250 mm |
| Origin | Türkiye |
General characteristics
| Punching power | 30 ton |
| Working area | 2500x1250 mm |
| X-axis movement (+repositioning) | 2500 mm |
| Y-axis movement | 1250 mm |
| speed of X-axis | 116 m/Min |
| speed of Y-axis | 80 m/min |
| speed combined X+Y | 140 m/min |
| Stroke | 40 mm |
| Max. strokes (in 1 mm steps, 1 mm thickness) | 1200 1/min |
| Max. strokes (in 25 mm steps, 1 mm thickness) | 425 1/min |
| Max. strokes at marking | 3200 1/min |
| Max. cutting thickness with fix tool station steel | 6 mm |
| max. cutting thickness with fix tool station stainless steel | 3 mm |
| Max. cutting thickness with index tool station steel | 3 mm |
| Max. cutting thickness with index tool station stainless steel | 1.5 mm |
| Number of stations | 27 |
| Turret rotation speed | 22 rpm |
| Autoindex-rotation speed | 150 rpm |
| Max. work piece weight | 120 kg |
| Table height | 940 mm |
| Air pressure | 6 bar |
| Max. punching diameter (D-station) | 88.9 mm |
| Motor power | 15 kW |
Dimensions and weight
| Height | 2310 mm |
| Width without light barrier | 5360 mm |
| Width with light barrier | 7360 mm |
| Length without light barrier | 5750 mm |
| Length with light barrier | 6800 mm |
| Weight | 12960 kg |
Description
Control unit, Siemens Sinumerik 840 D SL
CAD-CAM software
Programming on the control panel
Remote diagnostic function
Automatic clamp positioning
Network Ethernet communication
Automatic tool lubrication
UPS for control panel
Movable scrap box
Brush table
Oil Cooler
USB Driver
Command pedal
Web cam for service
Reposition on X axis
Alignment Tools for Index Station D
Manual nesting
| turret (27 stations without tool and holder): | |
| 11 x A-Station fix: | 0,8-12,7 mm |
| 11 x B-Station fix: | 12,8 - 31,7 mm |
| 2 x C-Station fix: | 31,8 - 50,8 mm |
| 1 x D-Station fix: | 50,9 - 88,9 mm |
| 3 x D-Station index: | 50,9 - 88,9 mm |
Infra-red light barriers
according to CE rules
Price FCA Türkiye
