General characteristics
| Punching power | 30 ton |
| Working area | 1250+N x 1000 mm |
| X-axis movement (+repositioning) | 1250 mm |
| Y-axis movement | 1000 mm |
| speed of X-axis | 40 m/Min |
| speed of Y-axis | 30 m/min |
| speed combined X+Y | 50 m/min |
| Stroke | 30 mm |
| Max. strokes (in 1 mm steps, 1 mm thickness) | 730 1/min |
| Max. strokes (in 25 mm steps, 1 mm thickness) | 300 1/min |
| Table height | 980 mm |
| Motor power | 4 kW |
| Oiltank | 115 l |
Dimensions and weight
| Height | 4000 mm |
| Width without light barrier | 2800 mm |
| Length without light barrier | 2800 mm |
| Weight | 4800 kg |
Description

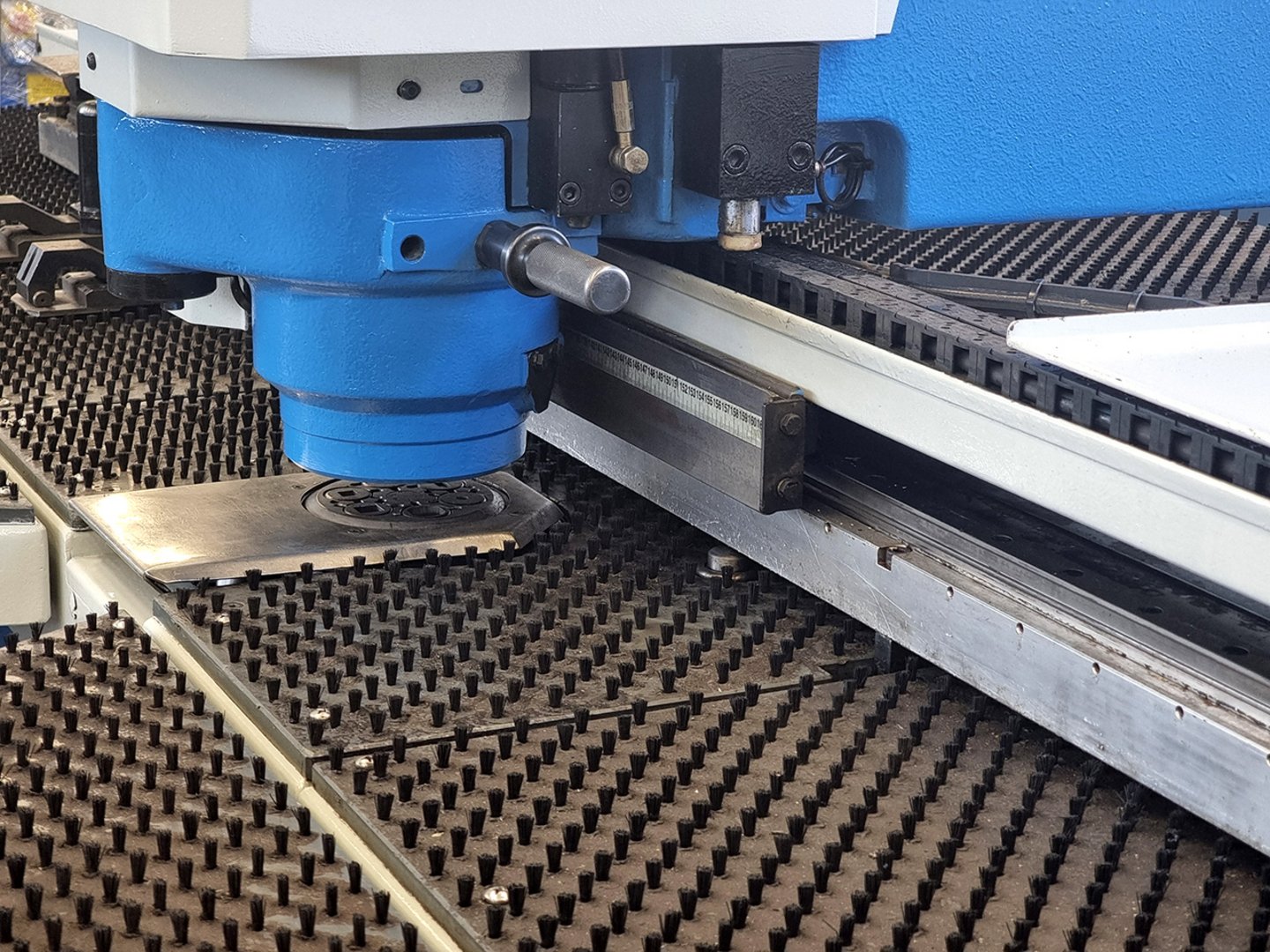

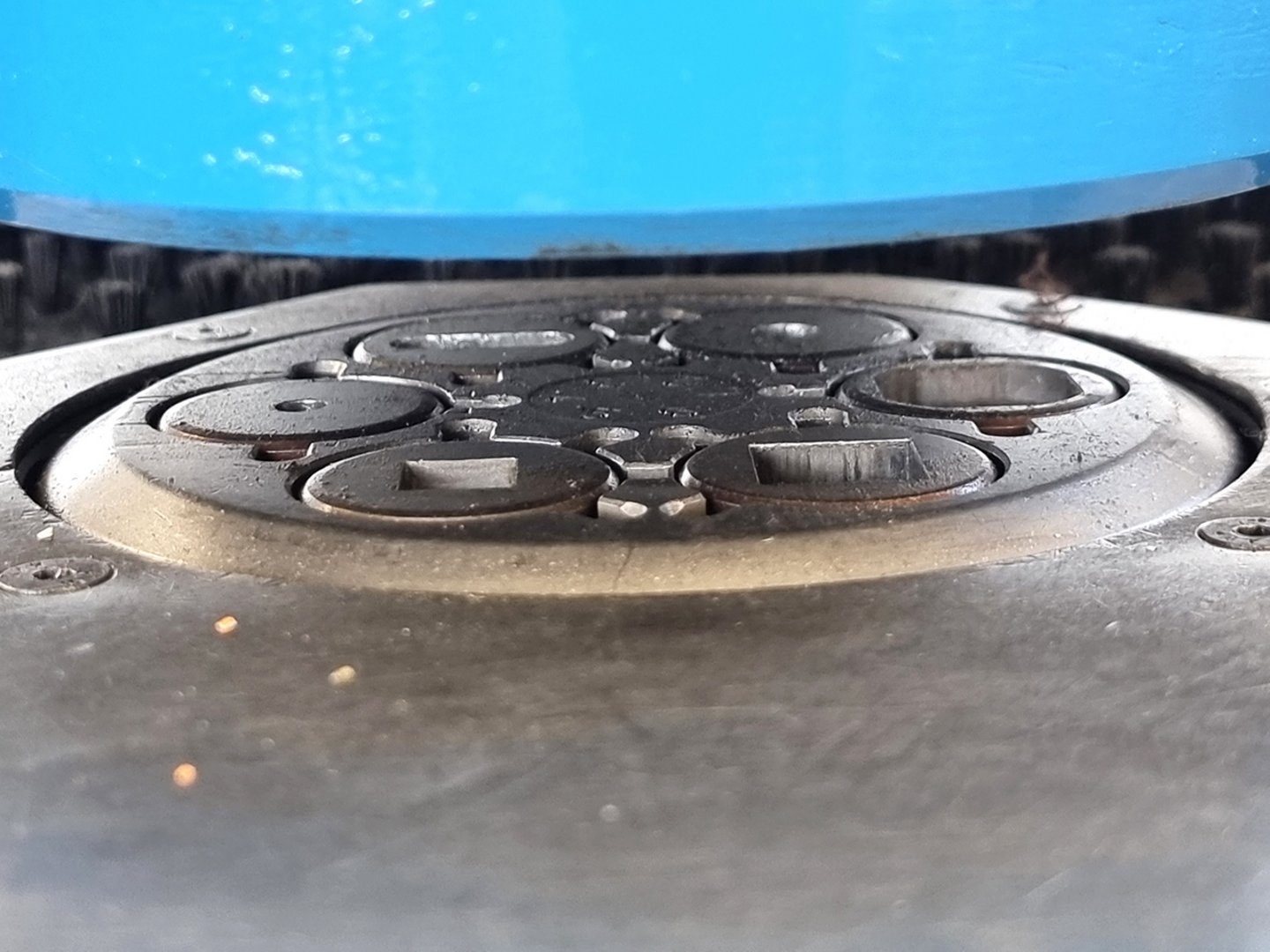

With 6-way multitool holder MTE6 (max. Dm. 24 mm)

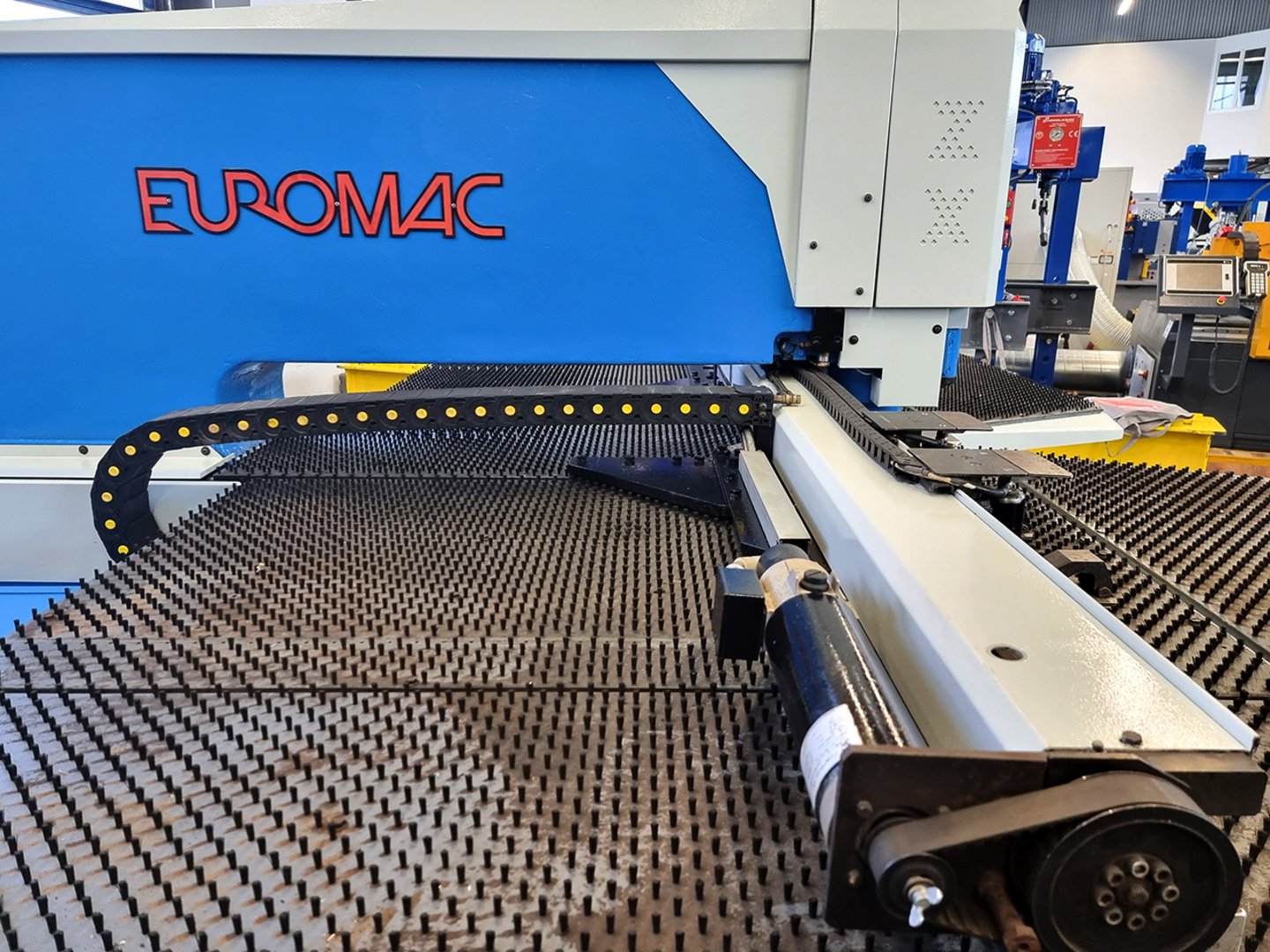

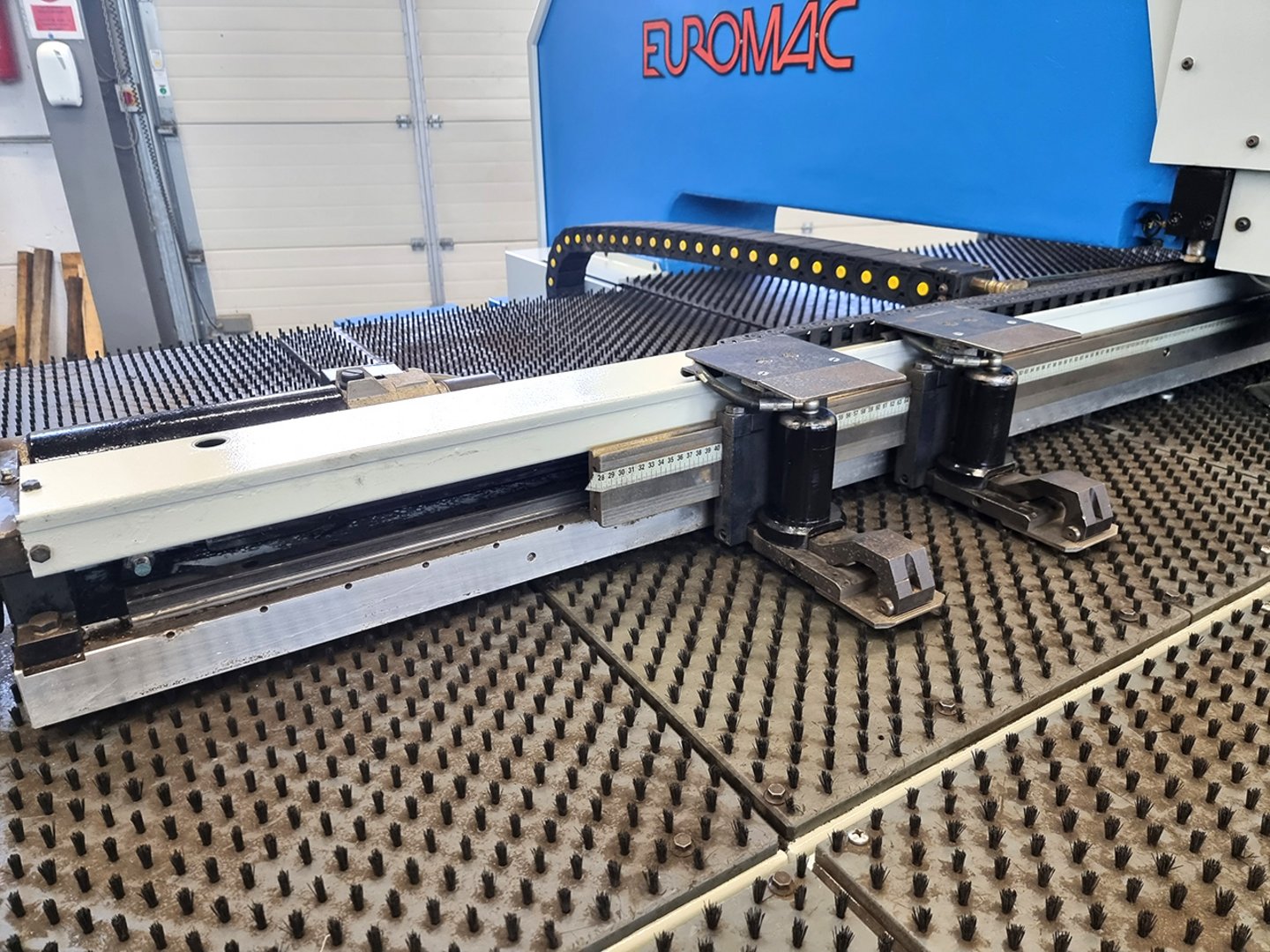

2 Clamping claws
Table with Brushes, table dimension 1970 x 2260 mm

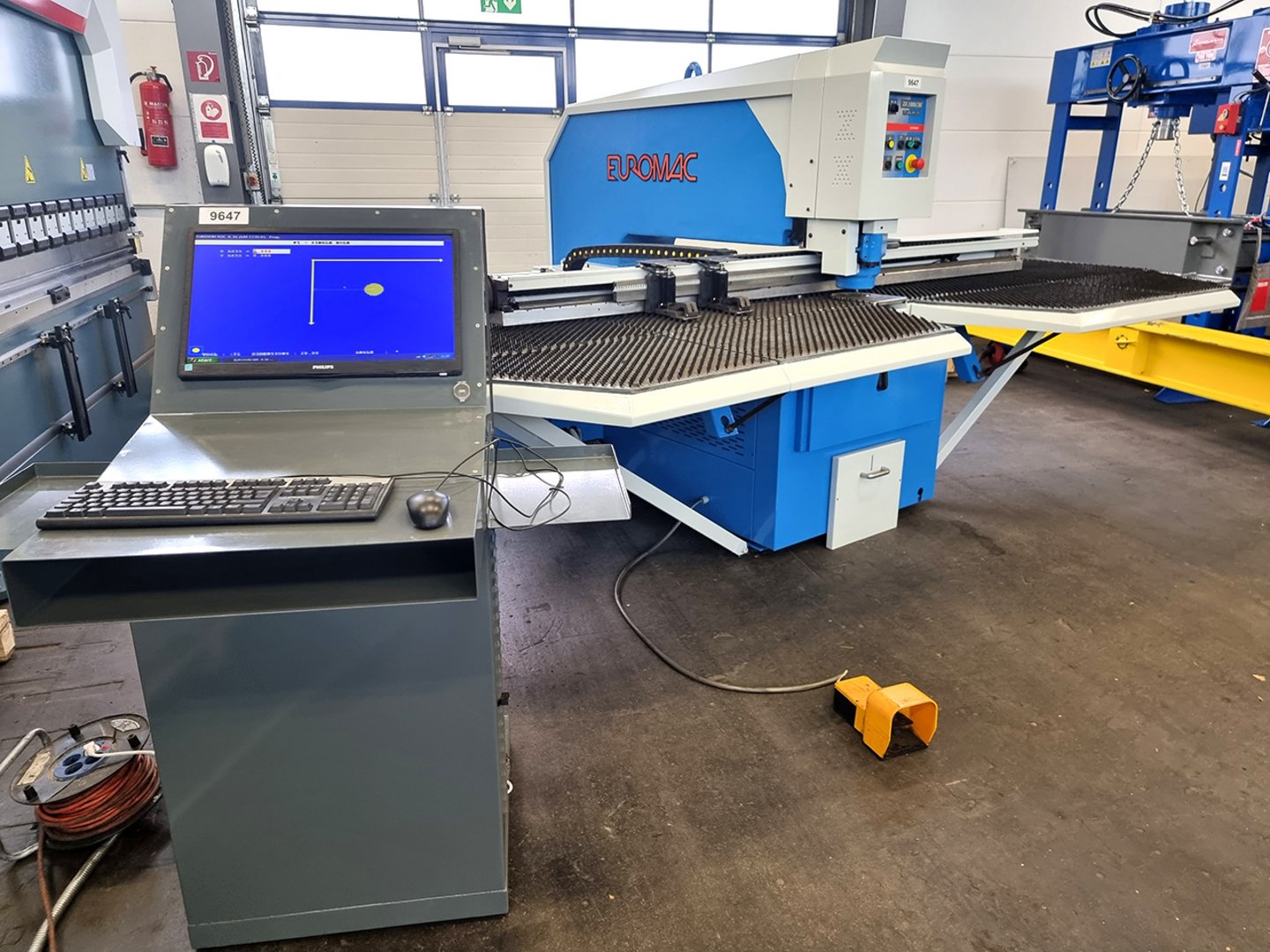

Foot pedal

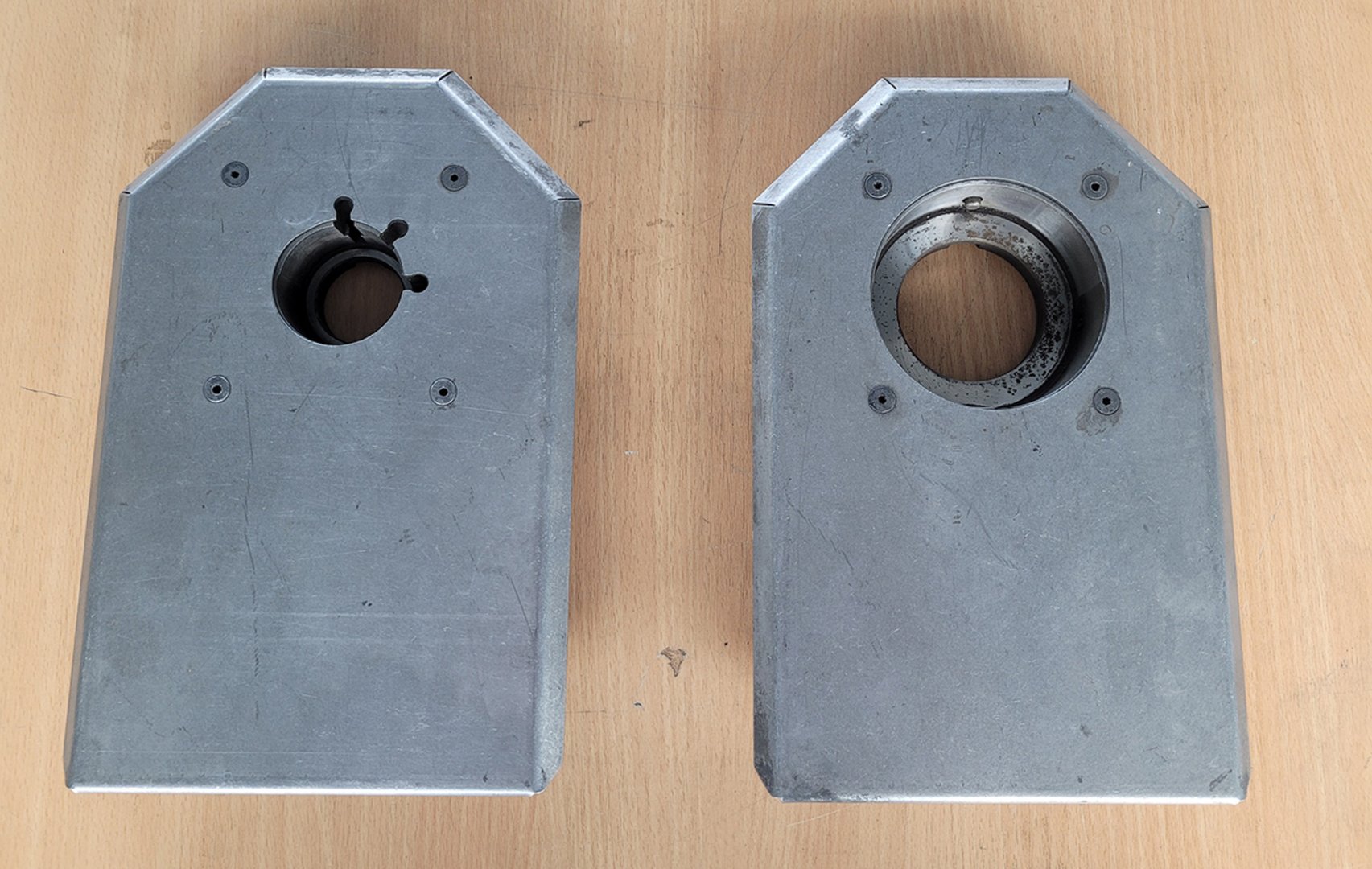

2 pcs. additional single matrix holders

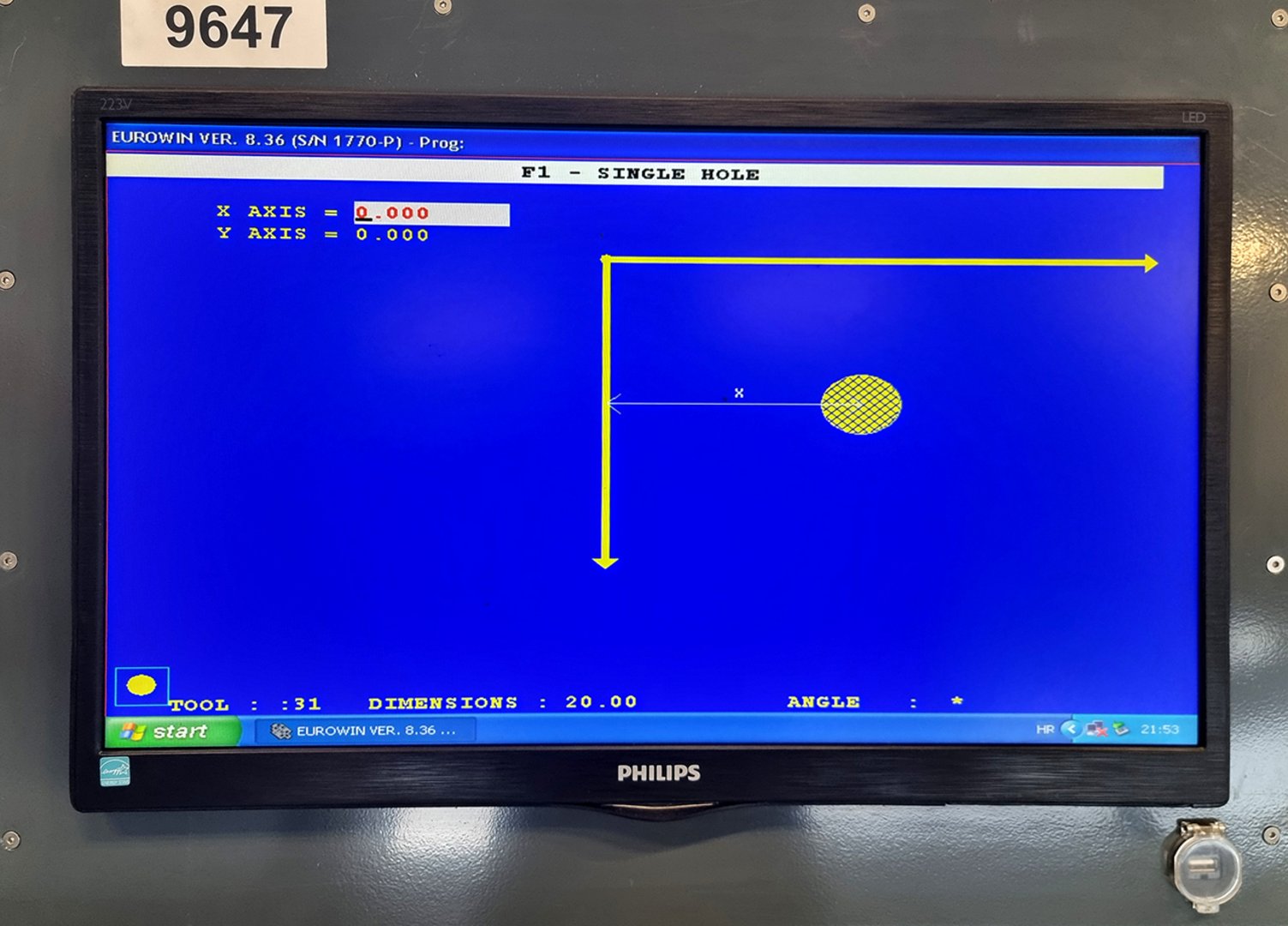

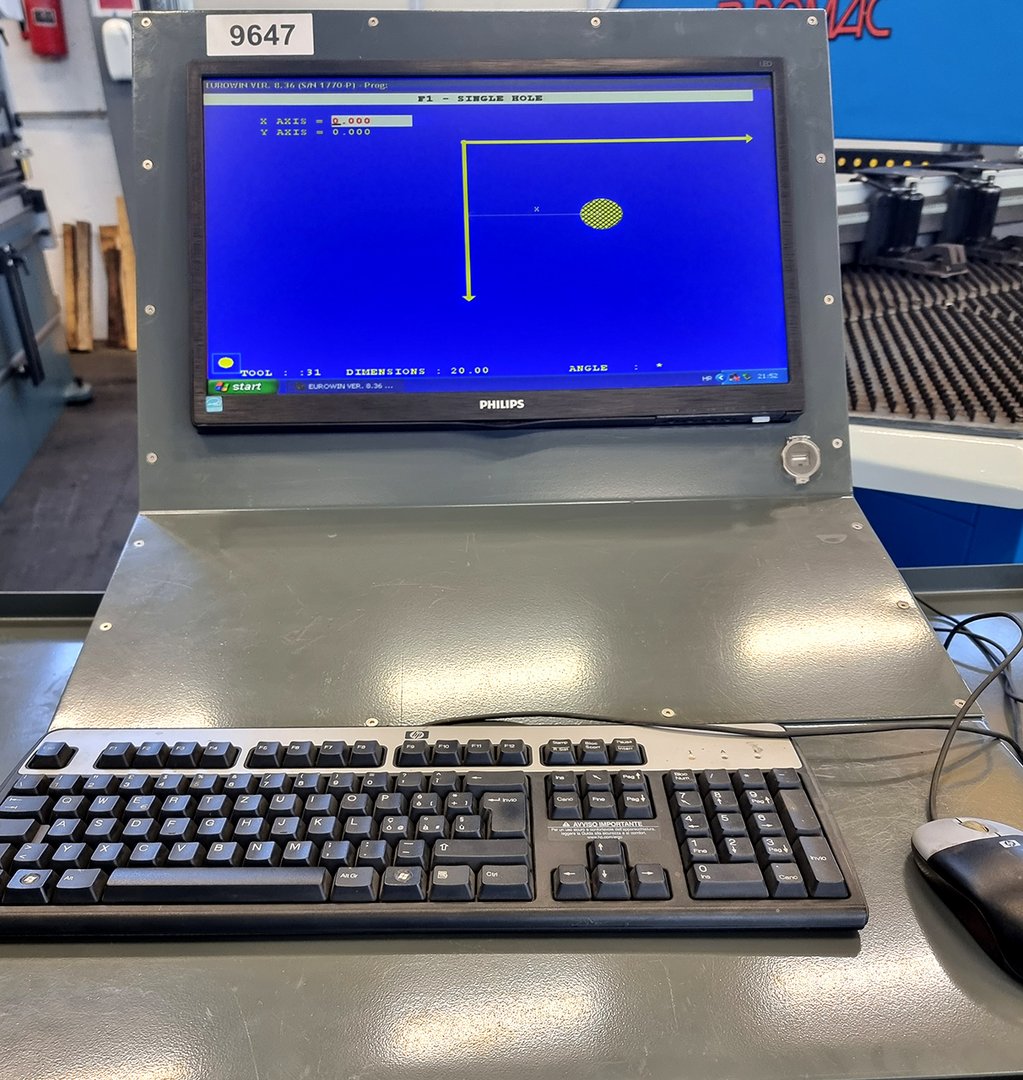

PC with Euromac Software Eurowin 8.36
Max. Punching force 300 kN
Automatic repositioning up to 10.000 mm
Max. Punching diameter for single tool 88,9 mm,
Max. Punching diameter Multitool Holder MTE6 Dm. 24 mm
Max. Opening the clamping claws 7 mm
Transport width: 2350 mm
User Manual in english and italian
CE declaration available

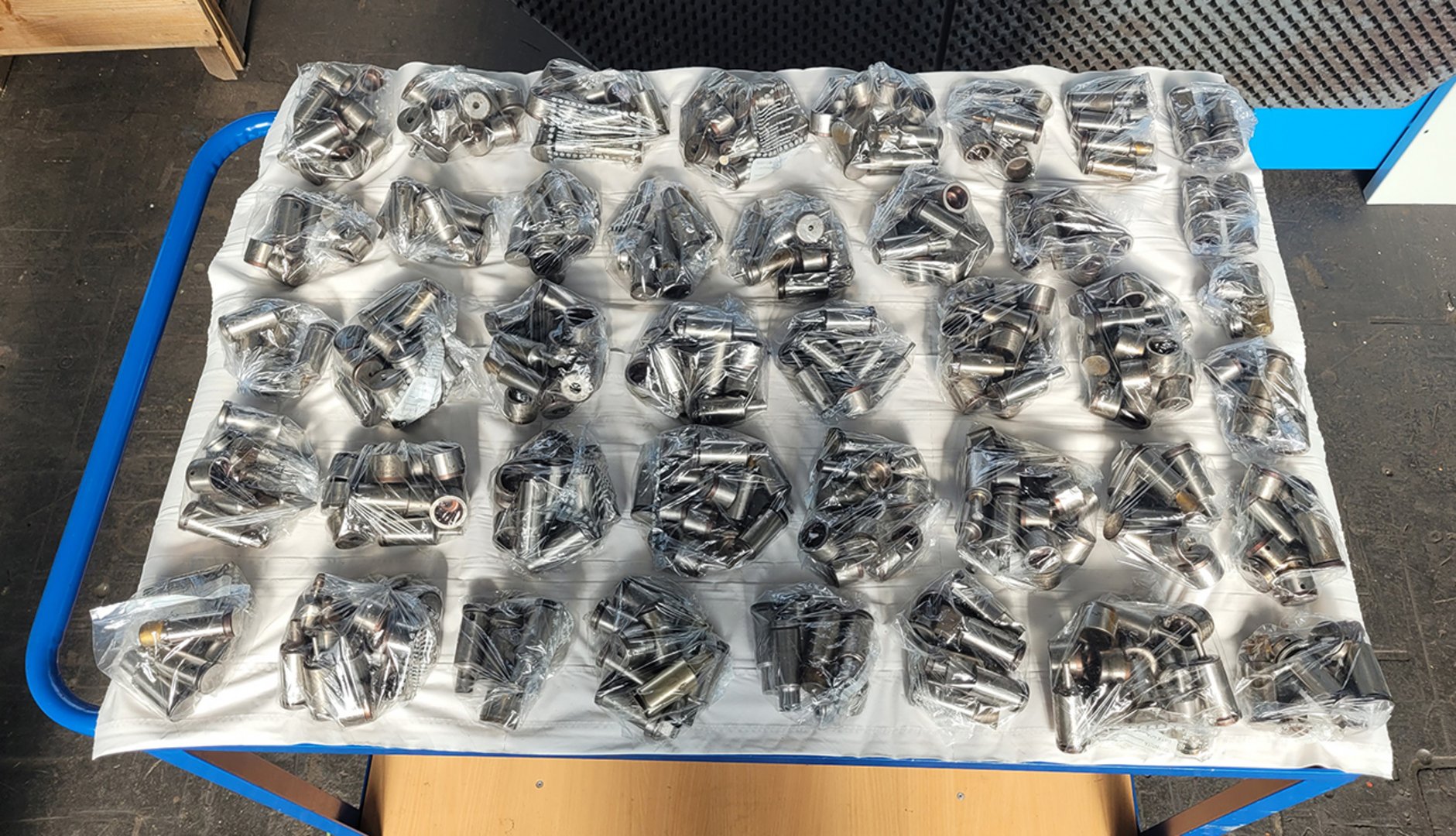

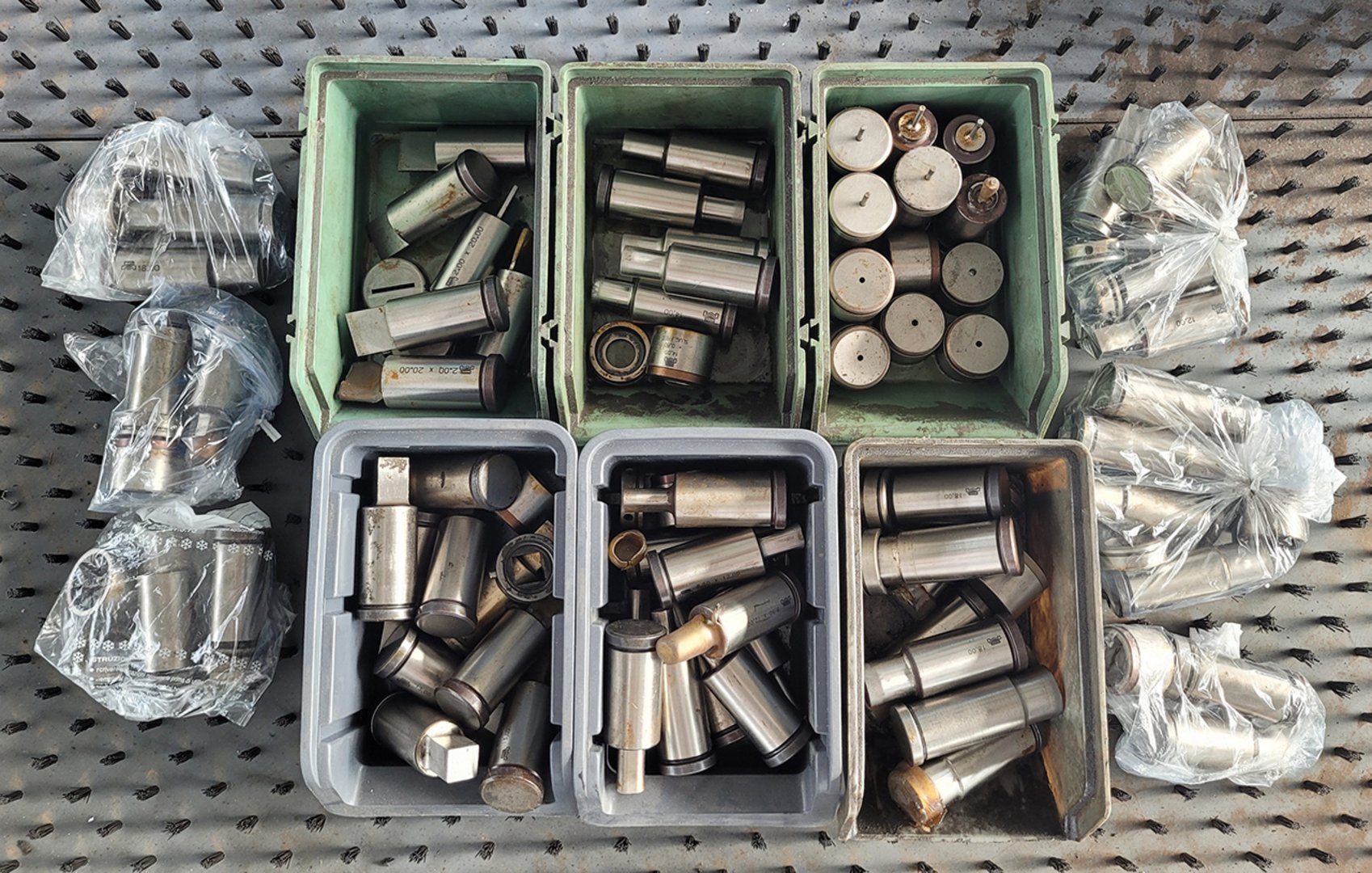

With large tool package
several pieces of each of the following dimensions:
Round: Dm. 2,5/2,8/3/3,12/3,2/3,5/3,9/4,1/4/4,5/5/5,2/5,5/6/7/7,5/8/8,5/9/9,5/10/10,5/11/11,5/12/12,5/13/13,5/14/15/16/18/19/20/21/23
Square: 10/12/13/15 mm
Rectangle: 5x2/20x2/22x4 mm
Oblong hole: 10x6,5/12x8,5/12,2x10,7/18x5 mm
Further information
Brochures
Product video

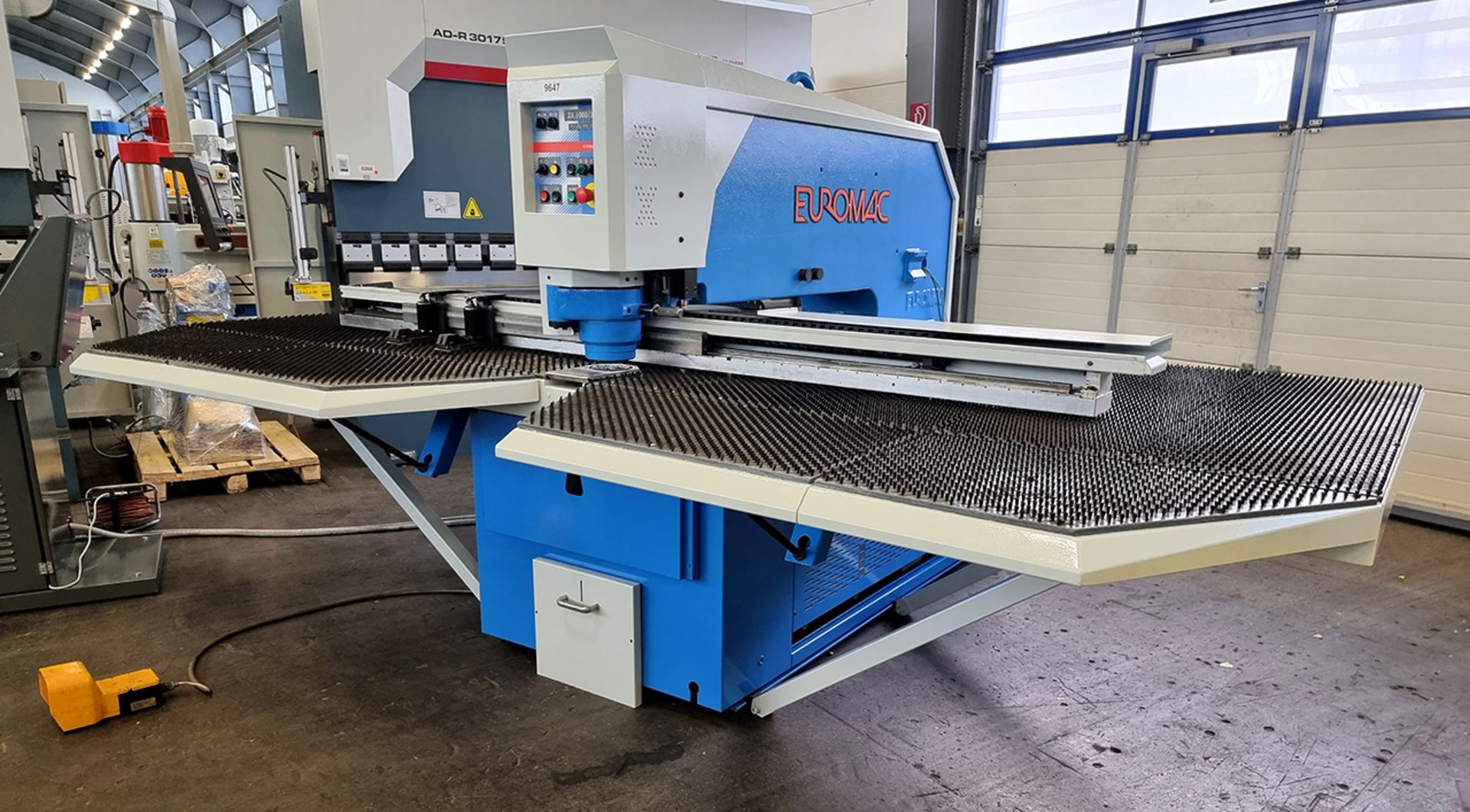

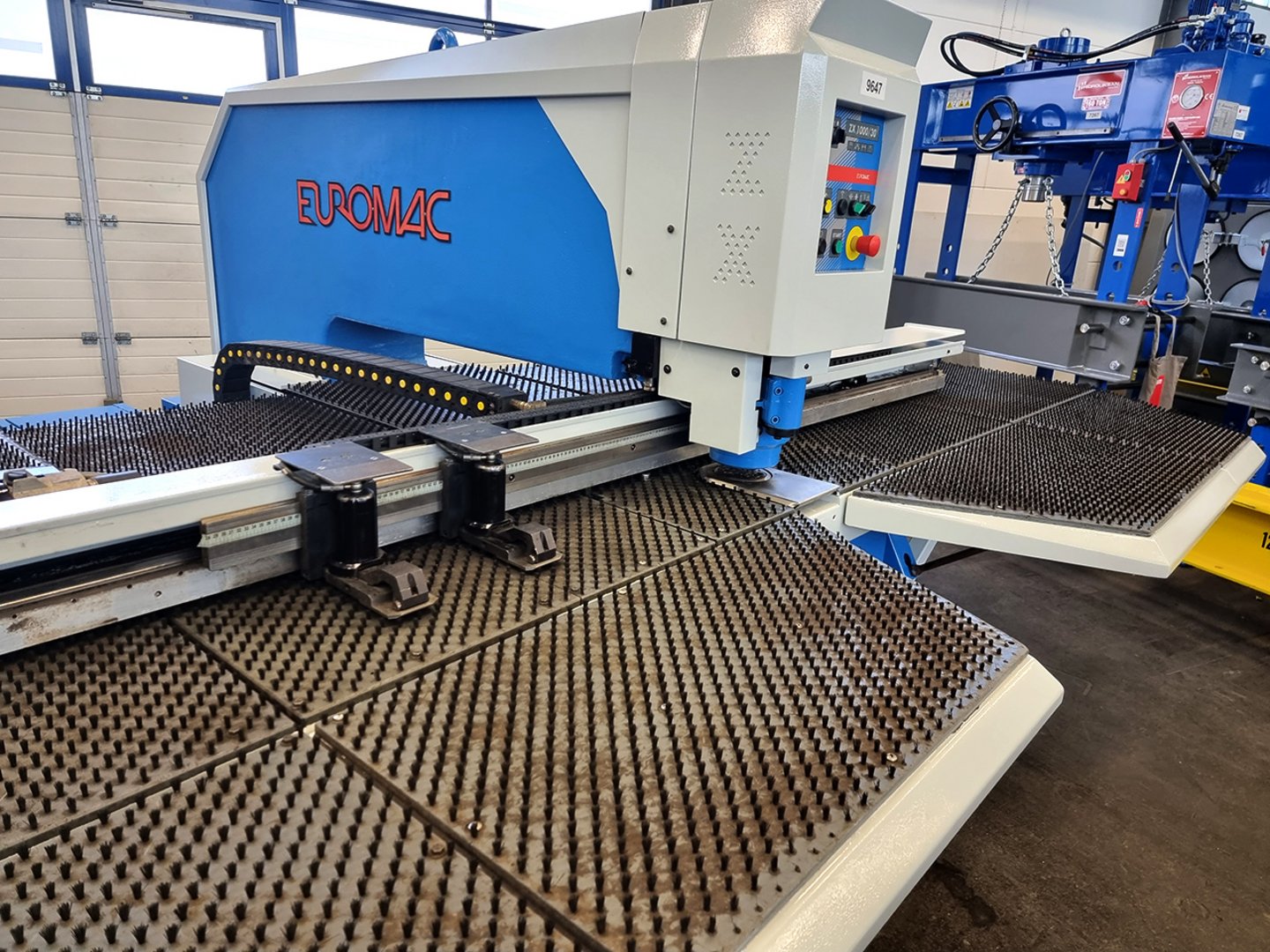

CNC punching and nibbling machine EUROMAC ZX 1000/30
