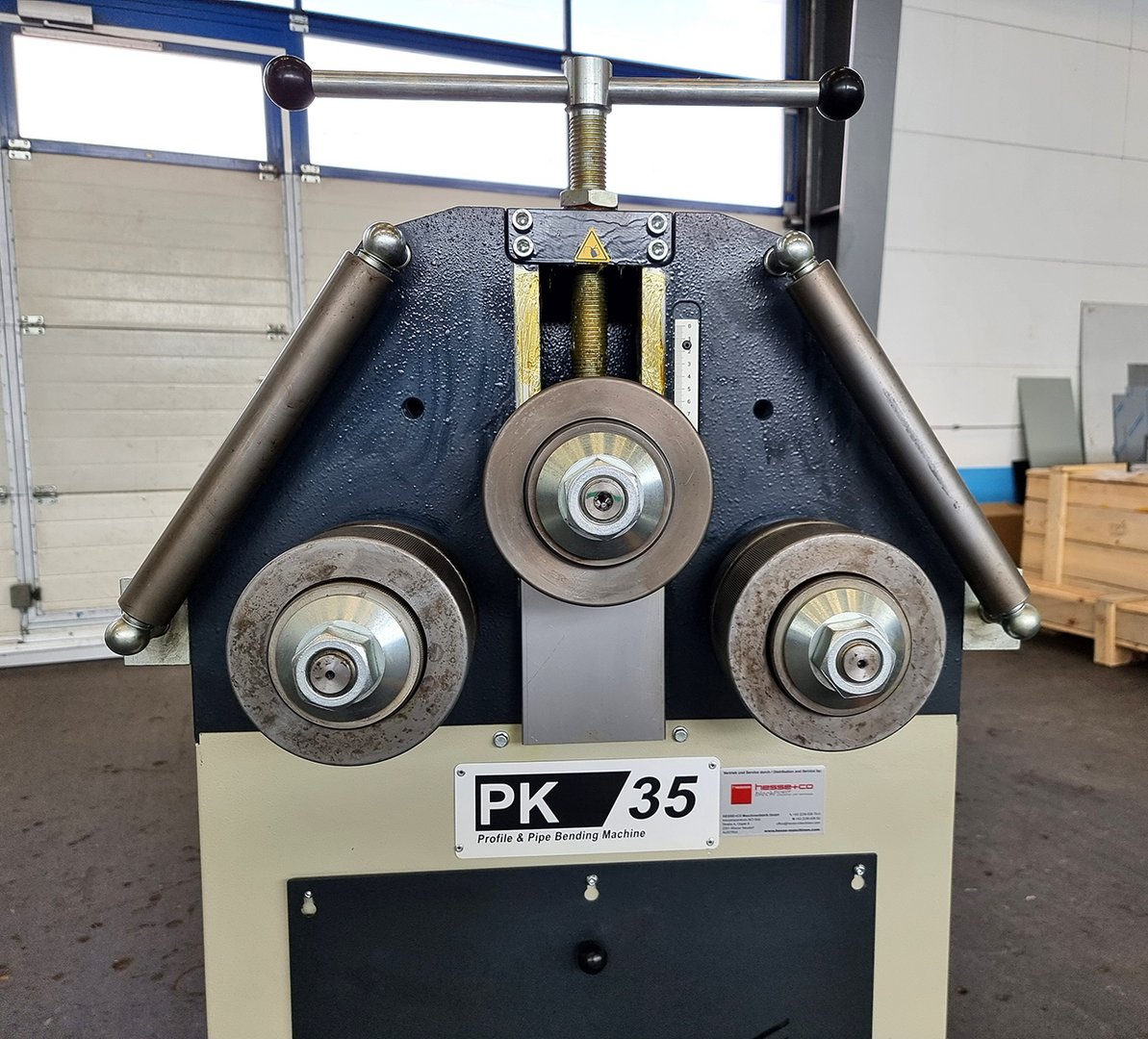

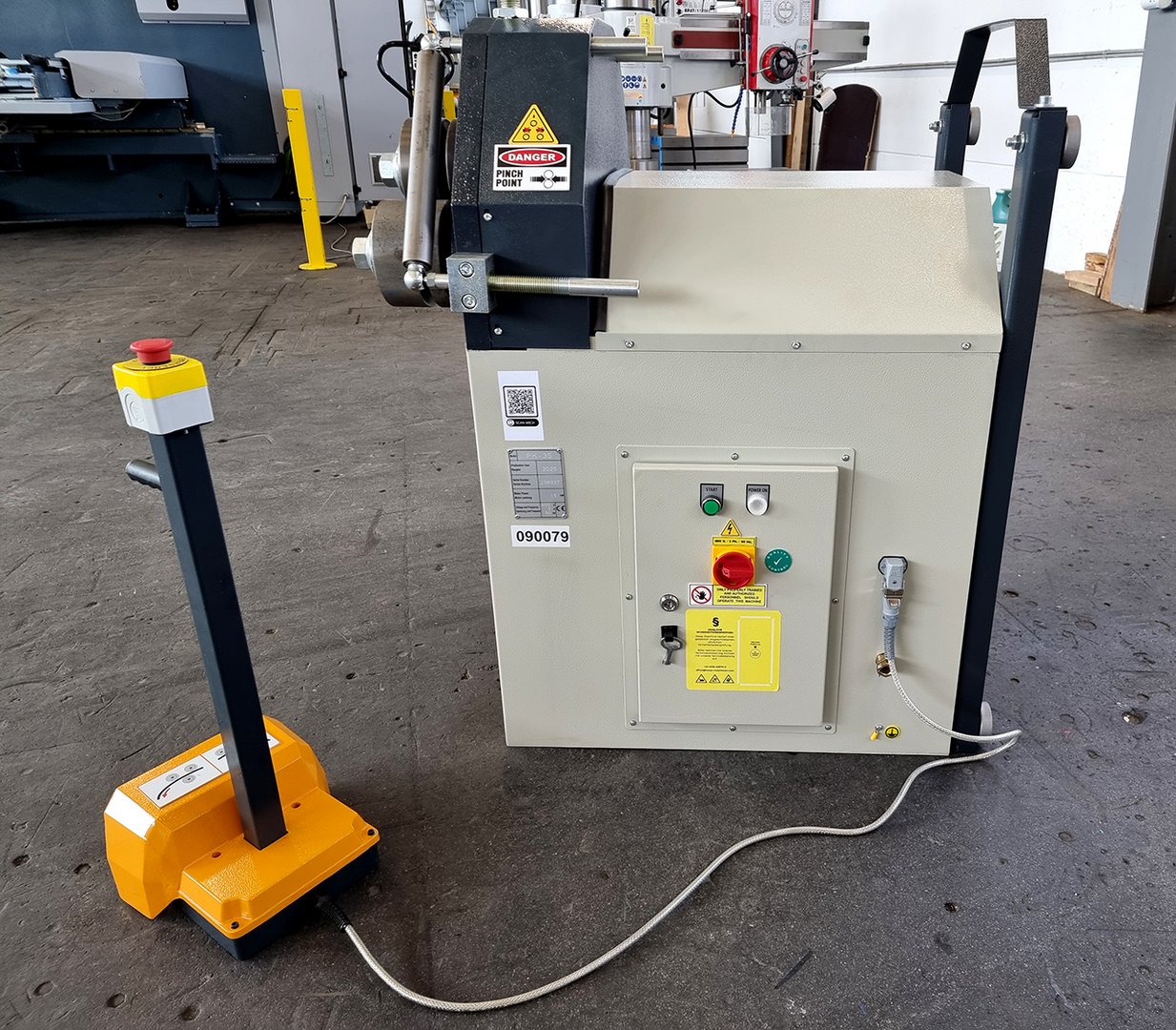

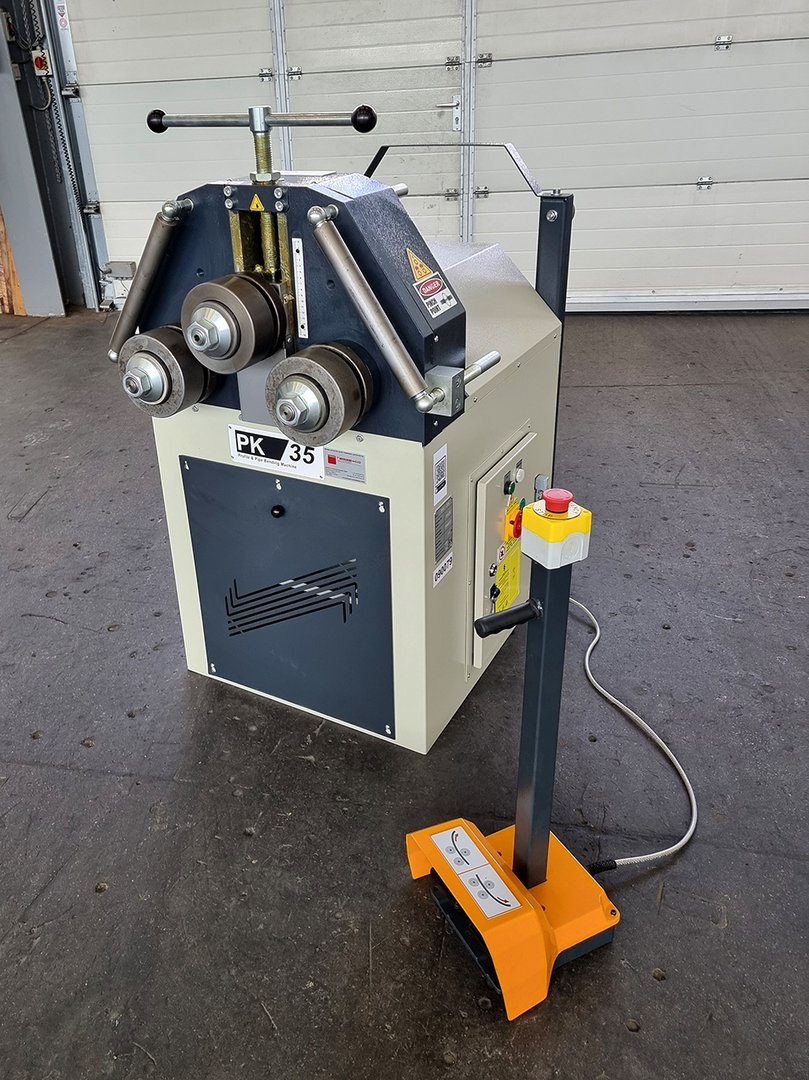

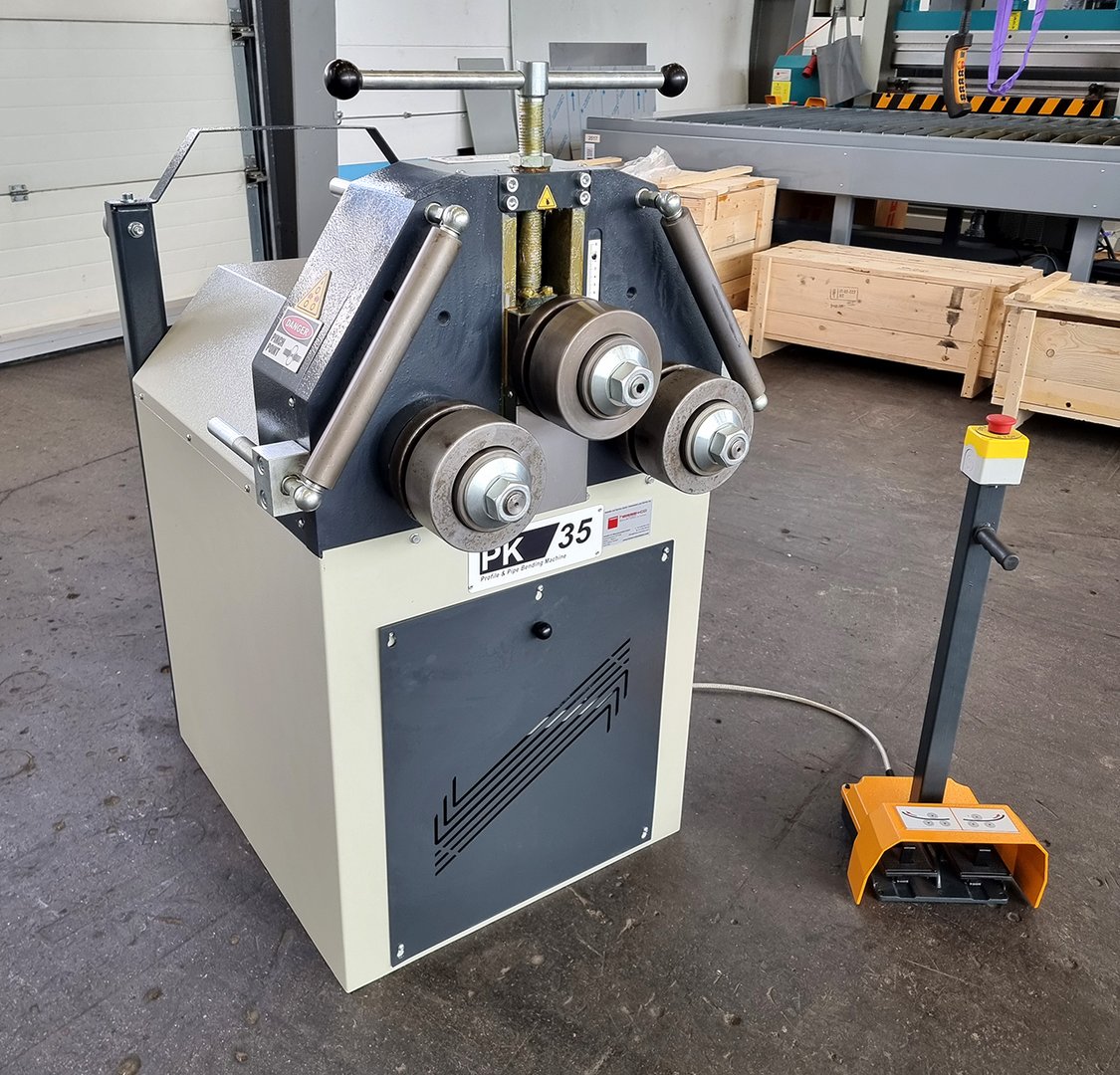

Profile bending machine with manual feed of rolls HESSE by SAHINLER PK 35
| Model | PK 35 |
| Brand | HESSE by SAHINLER |
| Condition | new |
| Year of manufacture | 2025 |
| Shaft diameter | 50 |
| Rolls diameter | 155 mm |
| Stock number | 90079 |
| Origin | Türkiye |
General characteristics
| Shaft diameter | 50 |
| Rolls diameter | 155 mm |
| Driven rolls | 2 |
| Motor power | 1.5 kW |
| Speed | 4 m/min |
| Flat steel vertical position (section / min. diameter) | 60x10 mm / 500 mm; 40x10 mm / 400 mm |
| Flat steel horizontal position (section / min. diameter) | 100x15 mm / 450 mm; 60 x 10 mm / 350 mm |
| Square bar (section / min. diameter) | 35x35 mm / 900 mm; 20x20 mm / 300 mm |
| Round bar (section / min. diameter) | Ø 35 mm / 600 mm; Ø 30 mm / 400 mm |
| Tube (section / min. diameter) | Ø 70x2 mm / 1.000 mm; Ø 30x2 mm / 500 mm; 2"x2,9 mm / 1.000 mm; 1"x2,3 mm / 350 mm |
| Form tube vertical position (Querschnitt / min. Durchmesser) | 70x30x2 mm / 1.200 mm; 50x40x3 mm / 1.200 mm |
| Form tube square (section / min. diameter) | 50x50x3 mm / 1.700 mm; 40x40x3 mm / 600 mm |
| Angle leg outside (Querschnitt / min. Durchmesser) | 50x50x5 mm / 800 mm; 40x40x5 mm / 600 mm |
| Angle leg inside (section / min. diameter) | 50x50x6 mm / 1.000 mm; 30x30x3 mm / 500 mm |
Dimensions and weight
| Length | 1050 mm |
| Width | 750 mm |
| Height | 1450 mm |
| Weight | 390 kg |
Description
2 mech. driven rolls
strong cast steel construction
shafts made of special steel, hardened and ground
top roll manual adjustable
hardened universal rolls
lateral rolls adjustable in 1 axis
horizontal and vertical operation
double foot pedal for for- and backward drive
machine and equipment according to the CE regulations
user manual in GERMAN and ENGLISH
We have more than 210 references!
Further information
Brochures
Product video
Profile bending machine with manual feed of rolls PK 35
