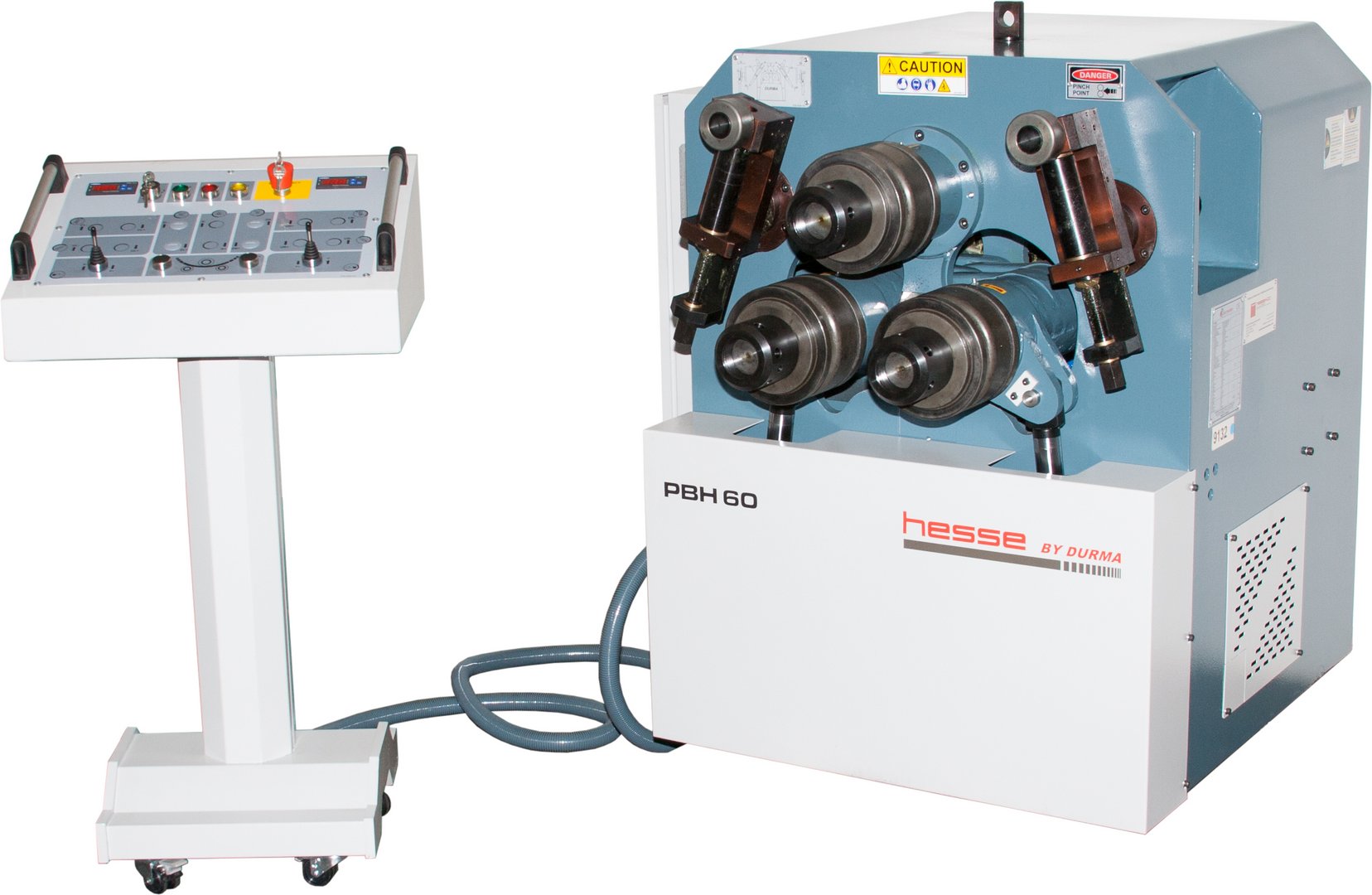

Profile bending machine with hydraulic feed of rolls HESSE by DURMA PBH 60
| Model | PBH 60 |
| Brand | HESSE by DURMA |
| Condition | used |
| Year of manufacture | 2023 |
| Shaft diameter | 60 |
| Rolls diameter | 177 mm |
| Stock number | 9670 |
| Origin | Türkiye |
General characteristics
| Shaft diameter | 60 |
| Rolls diameter | 177 mm |
| Driven rolls | 3 |
| Motor power | 3.7 kW |
| Speed | 6 m/min |
| Flat steel vertical position (section / min. diameter) | 70x10 mm / 600 mm; 30x10 mm / 250 mm |
| Flat steel horizontal position (section / min. diameter) | 90x25 mm / 500 mm; 50x5 mm / 250 mm |
| Square bar (section / min. diameter) | 40x40 mm / 500 mm; 20x20 mm / 300 mm |
| Round bar (section / min. diameter) | Ø. 40 mm / 500 mm; Ø 20 mm / 300 mm |
| Tube (section / min. diameter) | Ø 60x2 mm / 600 mm; Ø 20x1 / 250 mm |
| Form tube vertical position (Querschnitt / min. Durchmesser) | 80x40x3 mm |
| Form tube square (section / min. diameter) | 60x60x4 mm |
| Angle leg outside (Querschnitt / min. Durchmesser) | 50x5 mm / 1.000 mm; 30x4 mm / 350 mm |
| Angle leg inside (section / min. diameter) | 50x5 mm / 500 mm; 30x3 mm / 250 mm |
Dimensions and weight
| Length | 1160 mm |
| Width | 1000 mm |
| Height | 1175 mm |
| Weight | 1194 kg |
Description
demo machine / mint condition
net price
3 driven rolls
strong welded steel construction
lower rolls hydr. adjustable

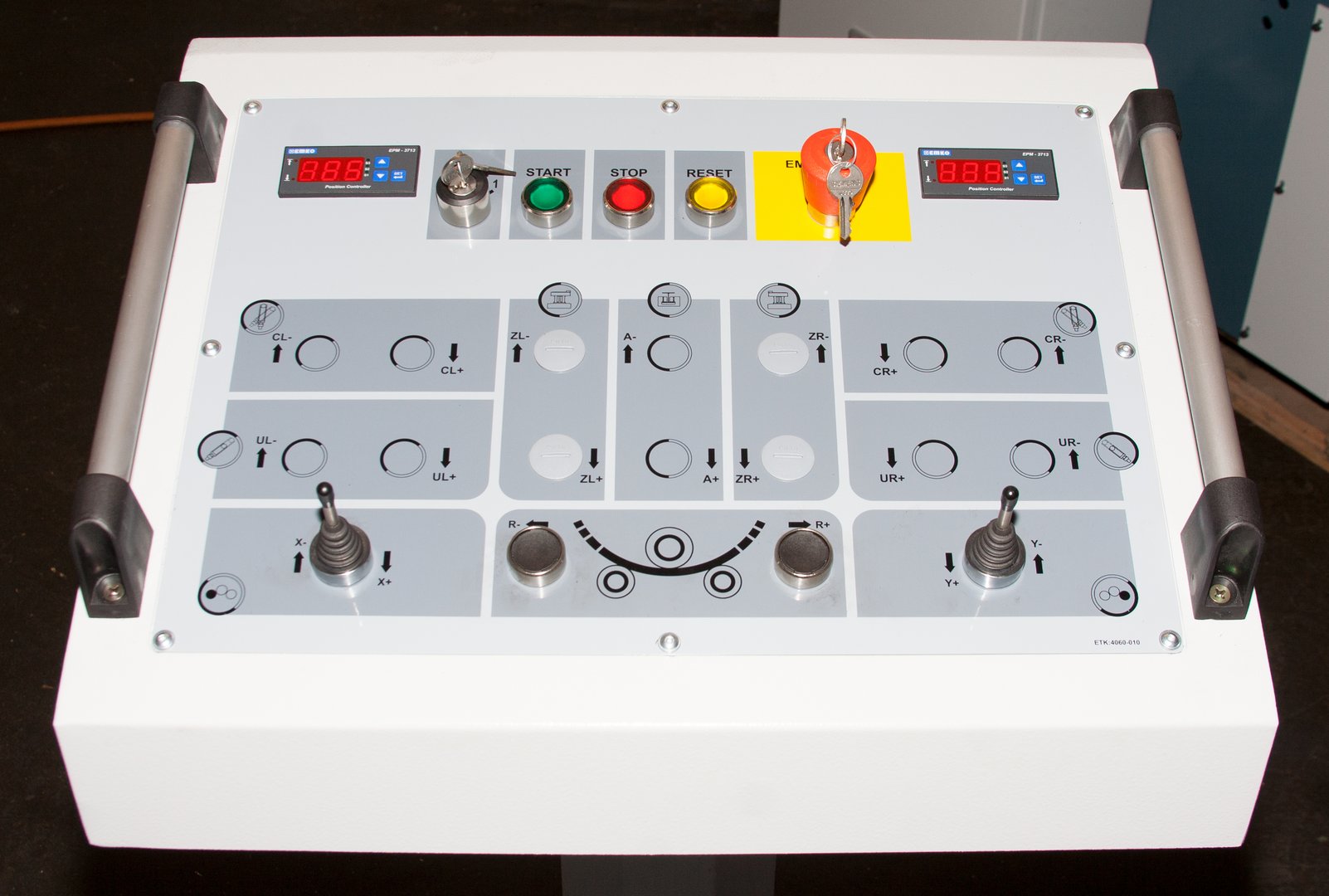

digital read-out for lower rolls positions on seperate control panel
plane and hardened universal rolls
lateral rolls adjustable in 3 axes manual/hydr.
horizontal and vertical operation
for- and backward drive
machine and equipment according to the CE regulations
user manual in GERMAN and ENGLISH
We have more than 235 references!
Further information
Brochures
Product video
Profile bending machine with hydraulic feed of rolls PBH 60
