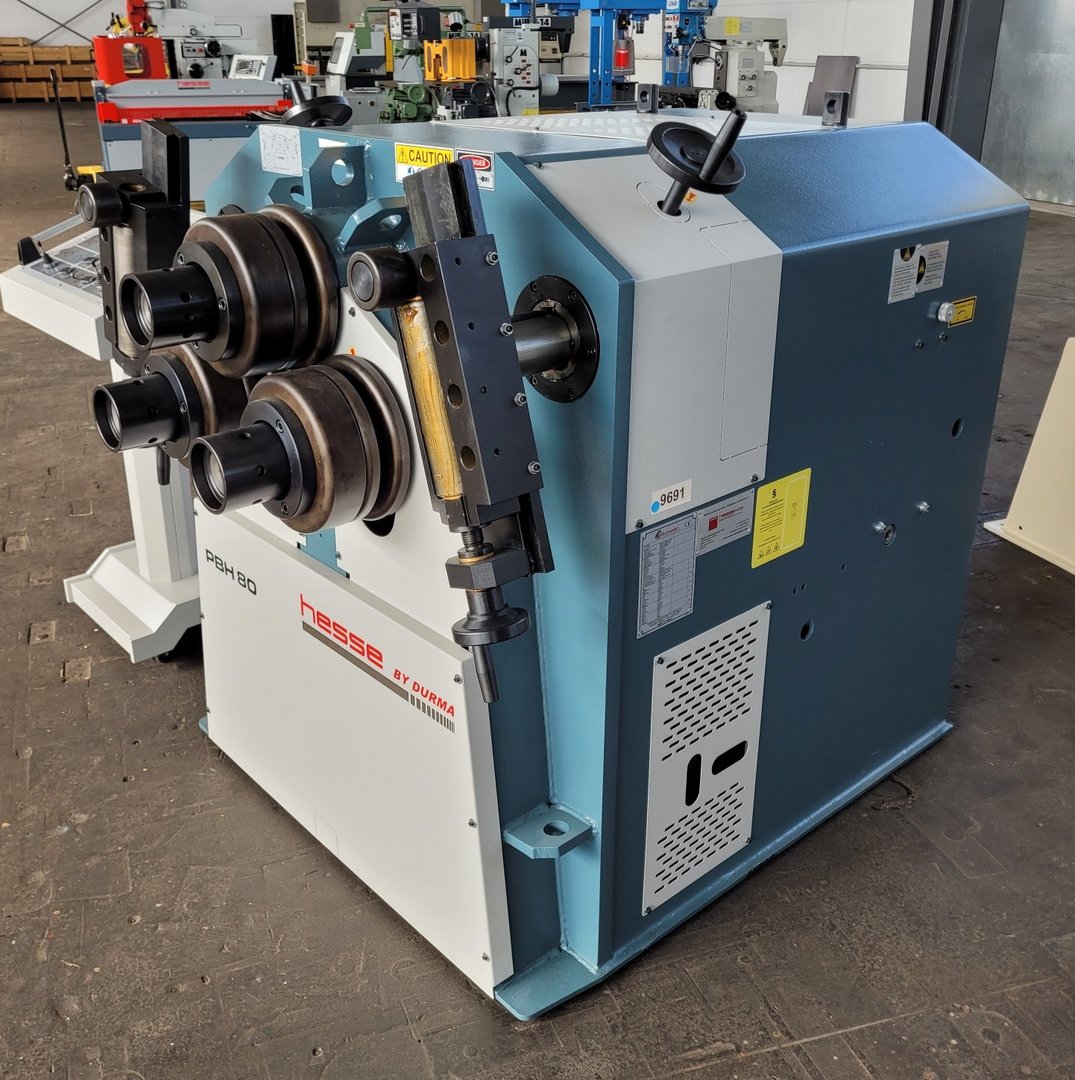

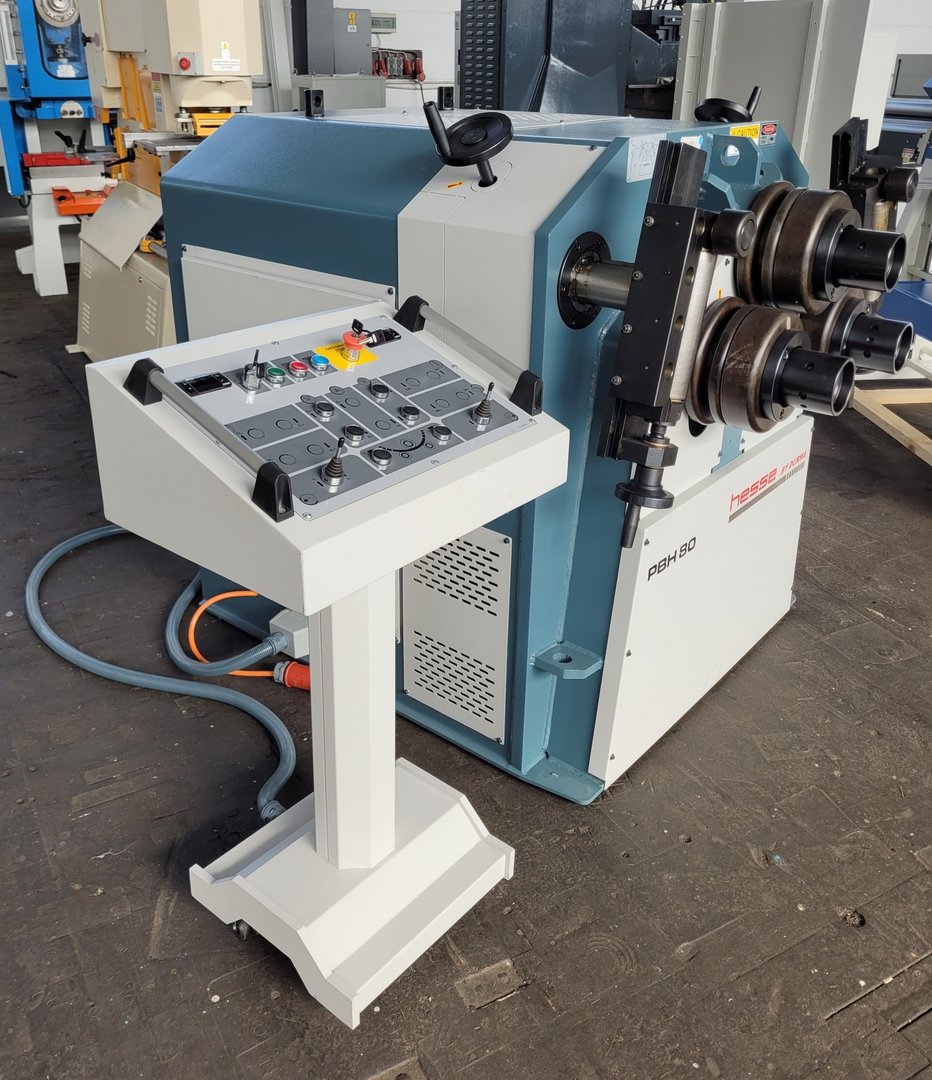

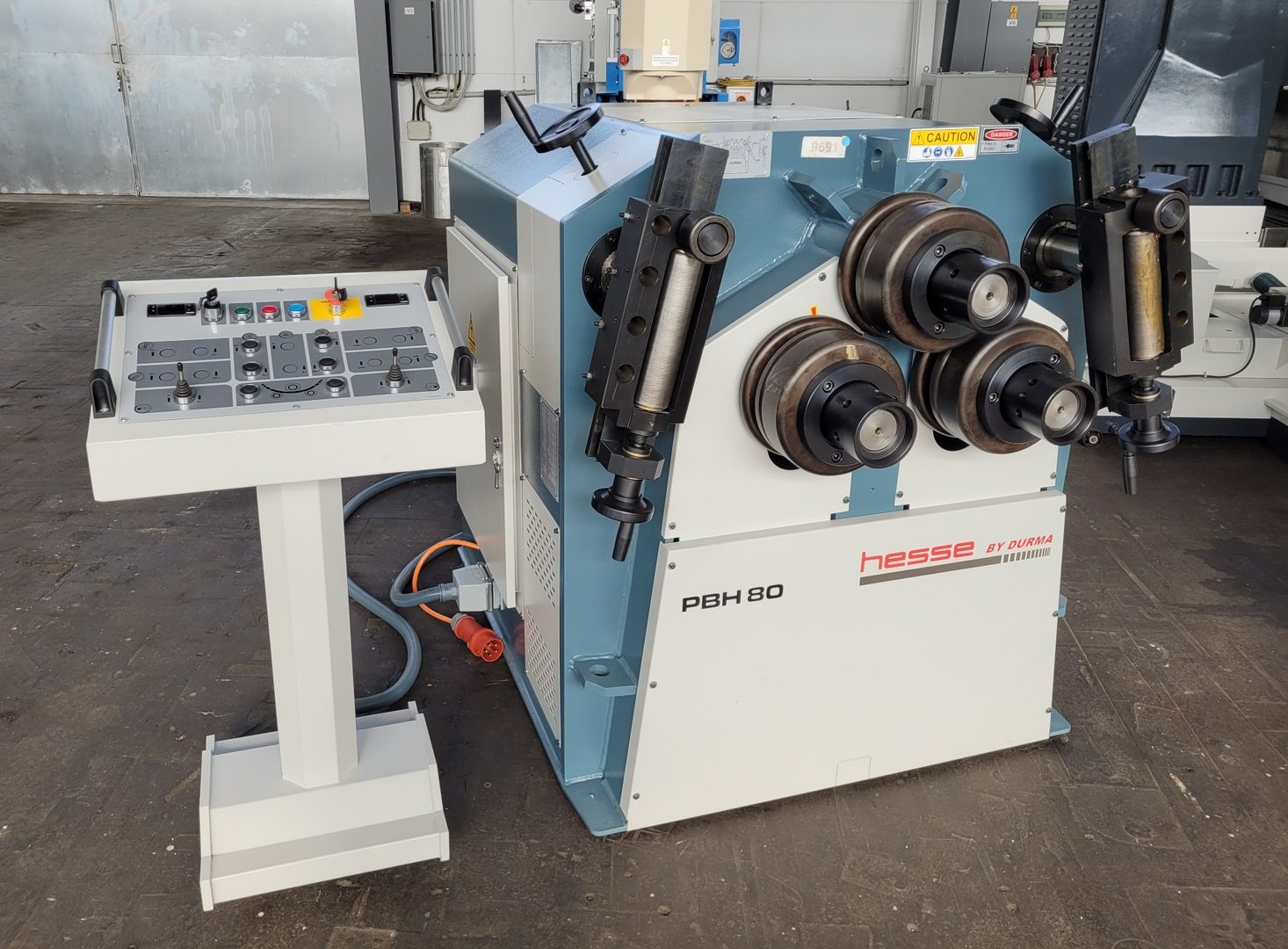

Profile bending machine with hydraulic feed of rolls HESSE by DURMA PBH 80
| Model | PBH 80 |
| Brand | HESSE by DURMA |
| Condition | used |
| Year of manufacture | 2023 |
| Shaft diameter | 85 |
| Rolls diameter | 247 mm |
| Stock number | 9691 |
| Origin | Türkiye |
General characteristics
| Shaft diameter | 85 |
| Rolls diameter | 247 mm |
| Driven rolls | 3 |
| Motor power | 7.5 kW |
| Flat steel vertical position (section / min. diameter) | 80x20 mm / 500 mm; 30x10 mm / 350 mm |
| Flat steel horizontal position (section / min. diameter) | 120x30 mm / 650 mm; 50x10 mm / 300 mm |
| Square bar (section / min. diameter) | 50x50 mm / 500 mm; 30x30 mm / 350 mm |
| Round bar (section / min. diameter) | Ø 50 mm / 500 mm; Ø 20 mm / 350 mm |
| Tube (section / min. diameter) | Ø 100x2,5 mm / 1.300 mm; Ø 20x1 / 300 mm |
| Form tube vertical position (Querschnitt / min. Durchmesser) | 80x40x4 mm |
| Form tube square (section / min. diameter) | 70x70x4 mm |
| Angle leg outside (Querschnitt / min. Durchmesser) | 80x8 mm / 1.200 mm; 30x3 mm / 450 mm |
| Angle leg inside (section / min. diameter) | 80x8 mm / 800 mm; 30x3 mm / 450 mm |
Dimensions and weight
| Length | 1580 mm |
| Width | 1200 mm |
| Height | 1410 mm |
| Weight | 2350 kg |
Description
demo machine / mint condition
net price
3 driven rolls (hydromotor and planetary gear)
strong welded steel construction
lower rolls hydr. adjustable
digital read-out for lower rolls positions
plane rolls

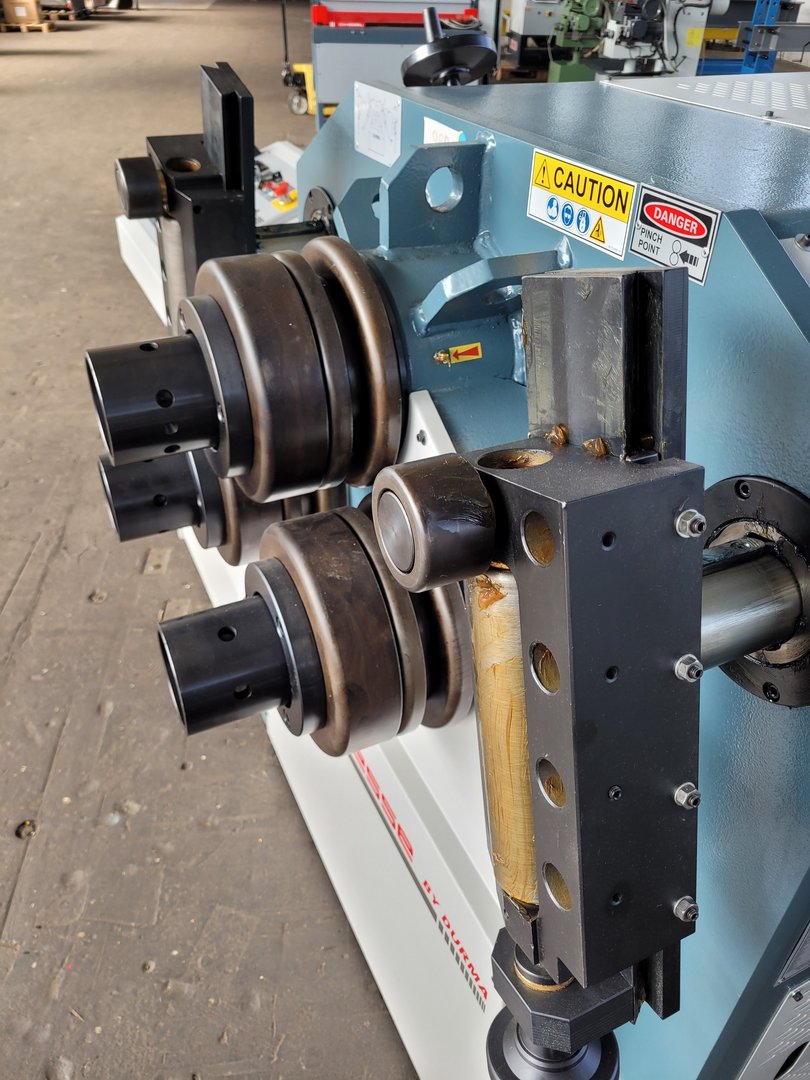

lateral rolls (forward-backward hydraulic, rest manual)
horizontal and vertical operation

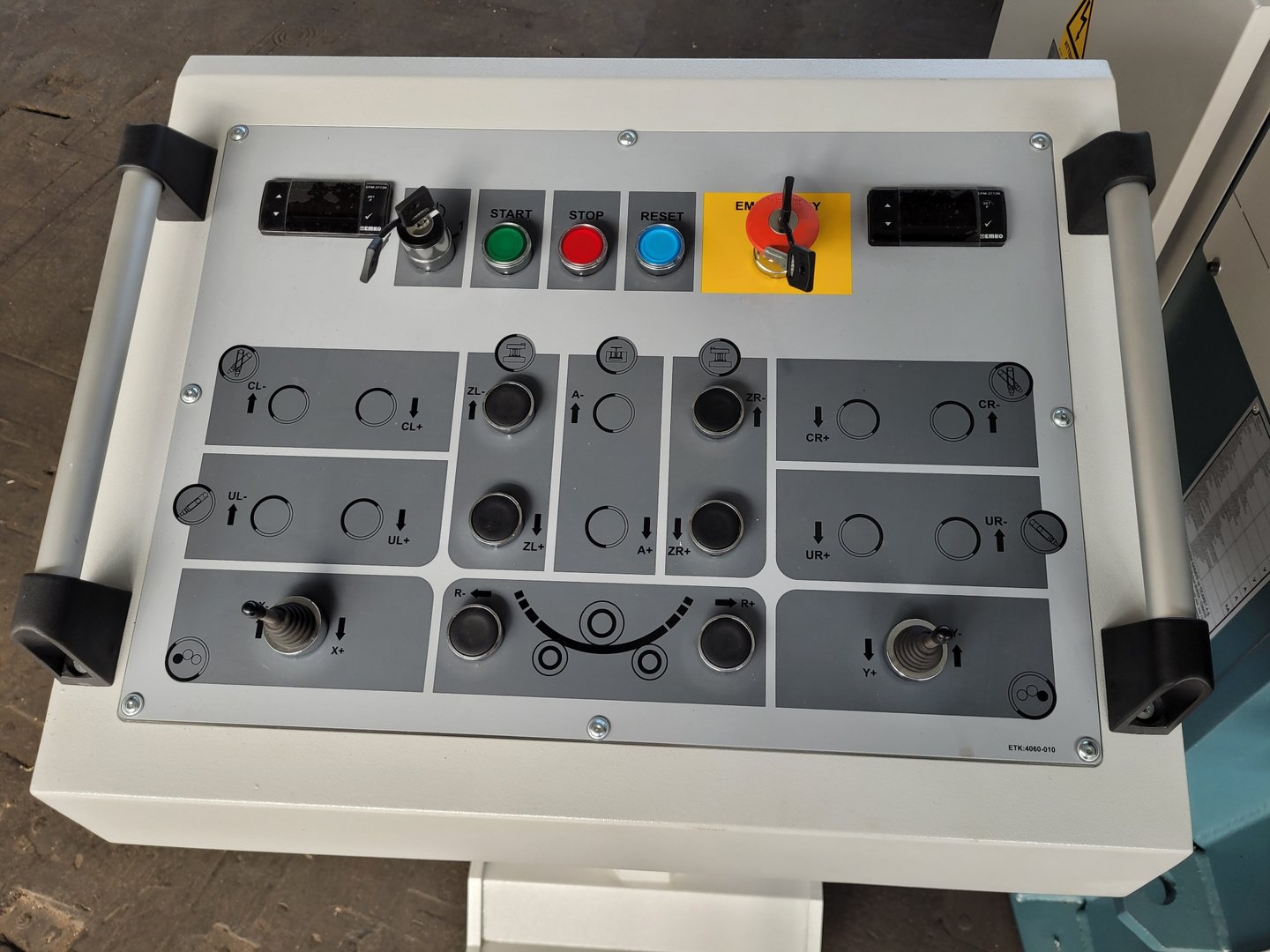

Control console for for- and backward drive
machine and equipment according to the CE regulations
incl. option: continuous speed
