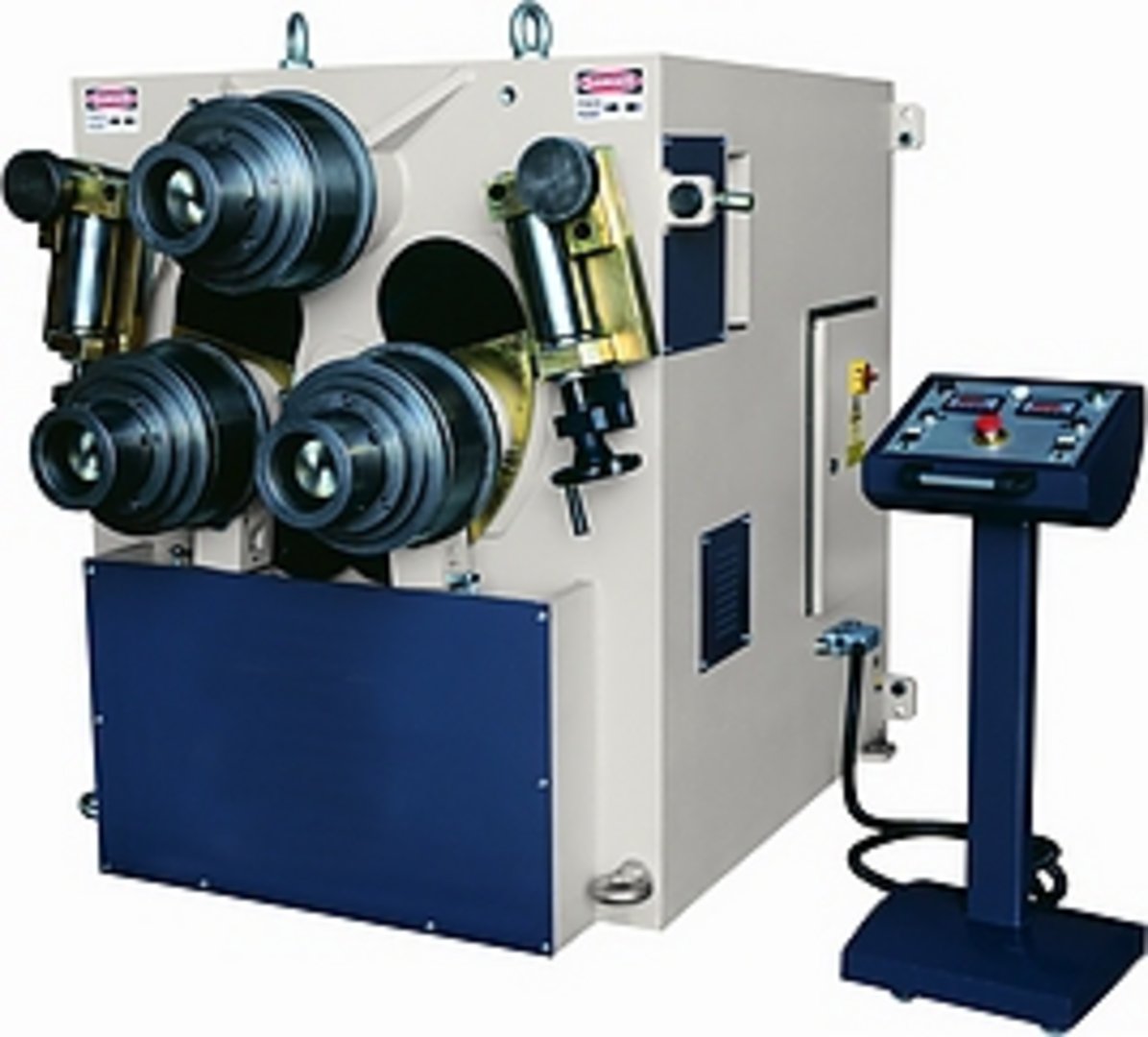

Profile bending machine with hydraulic feed of rolls HESSE by SAHINLER HPK 100
| Model | HPK 100 |
| Brand | HESSE by SAHINLER |
| Condition | new |
| Shaft diameter | 100 |
| Rolls diameter | 315 mm |
| Origin | Türkiye |
General characteristics
| Shaft diameter | 100 |
| Rolls diameter | 315 mm |
| Driven rolls | 3 |
| Motor power | 7.5 kW |
| Speed | 7 m/min |
| Flat steel vertical position (section / min. diameter) | 100x20 mm / 800 mm; 30x10 mm / 400 mm |
| Flat steel horizontal position (section / min. diameter) | 200x30 mm / 1.200 mm; 160x35 mm / 800 mm; 80x5 mm / 400 mm |
| Square bar (section / min. diameter) | 60x60 mm / 750 mm; 15x15 mm / 400 mm |
| Round bar (section / min. diameter) | Ø 75 mm / 800 mm; Ø 15 mm / 450 mm |
| Tube (section / min. diameter) | Ø 125x2,5 mm / 1.400 mm; Ø 15x1 mm / 450 mm; Ø 4"x6,02 / 1.000 mm; Ø 1/2"x2,77 / 450 mm |
| Form tube vertical position (Querschnitt / min. Durchmesser) | 100x40x4 mm / 1.300 mm; 25x15x2 mm / 450 mm |
| Form tube square (section / min. diameter) | 80x80x5 mm / 1.500 mm; 25x25x2 mm / 450 mm |
| Angle leg outside (Querschnitt / min. Durchmesser) | 100x100x12 mm / 1.000 mm; 40x40x4 mm / 700 mm |
| Angle leg inside (section / min. diameter) | 100x100x10 mm / 1.000 mm; 40x40x4 mm / 550 mm |
| UPN leg outside (section / min. diameter) | UPN 180 / 900 mm; UPN 30 / 400 mm |
| UPN leg inside (section / min. diameter) | UPN 180 / 1.000 mm; UPN 30 / 400 mm |
| IPN horizontal position (section / min. diameter) | IPN 180 / 1.000 mm; IPN 80 / 400 mm |
Dimensions and weight
| Length | 1465 mm |
| Width | 2000 mm |
| Height | 1700 mm |
| Weight | 4000 kg |
Description
3 hydr. driven rolls
strong welded steel construction
lower rolls hydr. adjustable
digital read-out for lower rolls positions on seperate control panel
lateral rolls adjustable in 3 axes
horizontal and vertical operation
for- and backward drive
machine and equipment according to the CE regulations
