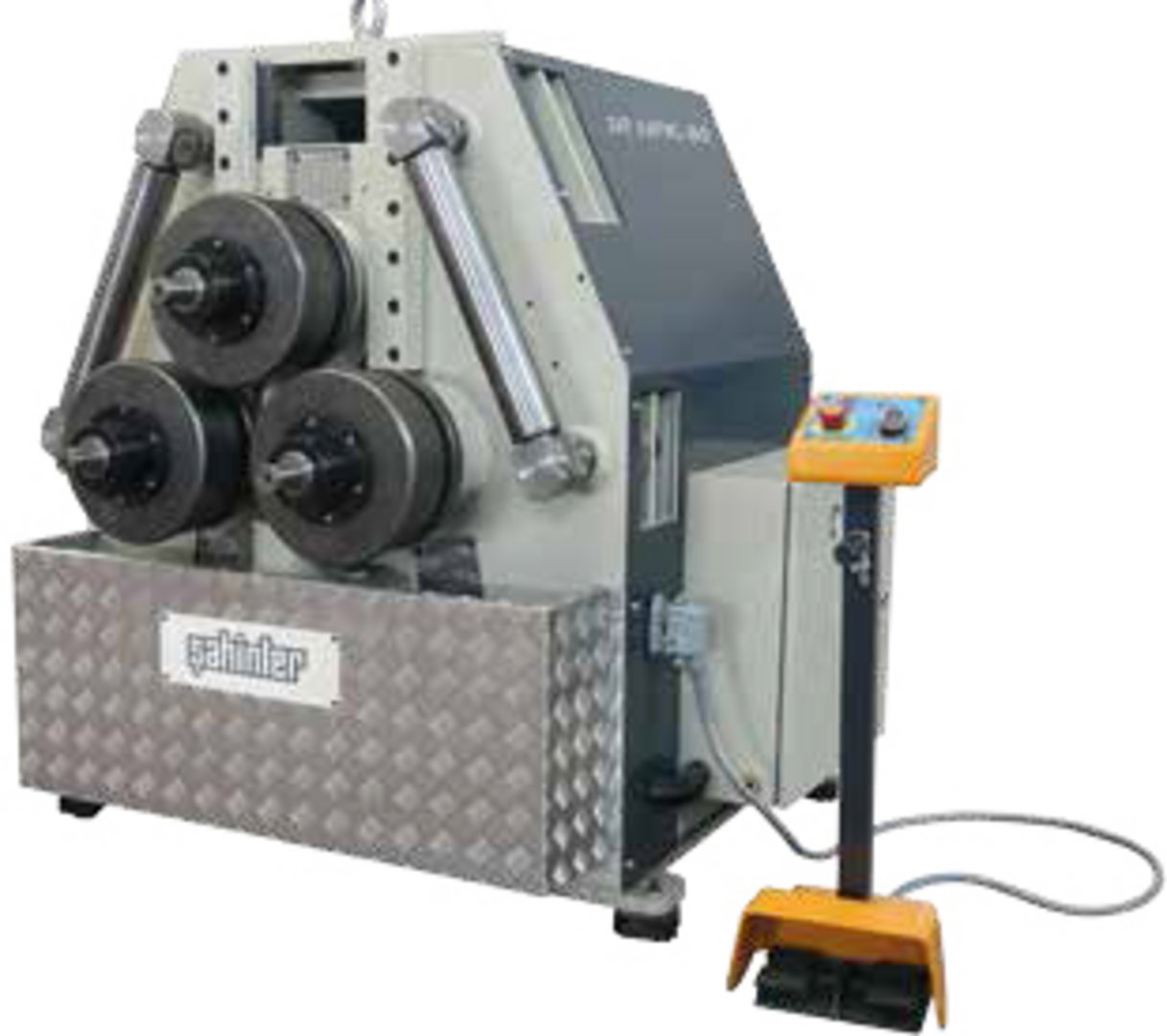

Profile bending machine with hydraulic feed of rolls HESSE by ISITAN 3R HPK 80
| Model | 3R HPK 80 |
| Brand | HESSE by ISITAN |
| Condition | new |
| Shaft diameter | 80 |
| Rolls diameter | 260 mm |
| Origin | Türkiye |
General characteristics
| Shaft diameter | 80 |
| Rolls diameter | 260 mm |
| Driven rolls | 3 |
| Motor power | 7.5 kW |
| Speed | 6 m/min |
| Flat steel vertical position (section / min. diameter) | 80x15 mm / 800 mm; 40x10 mm / 400 mm |
| Flat steel horizontal position (section / min. diameter) | 125x25 mm / 600 mm; 60x8 mm / 400 mm |
| Square bar (section / min. diameter) | 45x45 mm / 500 mm; 15x15 mm / 350 mm |
| Round bar (section / min. diameter) | Ø 50 mm / 600 mm; Ø 15 mm / 350 mm |
| Tube (section / min. diameter) | Ø 100x2,5 mm / 1.200 mm; Ø 15x1 mm / 350 mm; Ø 3"x5,48 / 800 mm; Ø 3/8"x1,65 / 400 mm |
| Form tube vertical position (Querschnitt / min. Durchmesser) | 80x25x3 mm / 800 mm; 25x15x2 mm / 400 mm |
| Form tube square (section / min. diameter) | 70x70x3 mm / 1.400 mm; 40x40x2 mm / 800 mm |
| Angle leg outside (Querschnitt / min. Durchmesser) | 80x80x8 mm / 800 mm; 40x40x4 mm / 400 mm |
| Angle leg inside (section / min. diameter) | 80x80x8 mm / 1.000 mm; 40x40x4 mm / 400 mm |
| UPN leg outside (section / min. diameter) | UPN 120 / 800 mm |
| UPN leg inside (section / min. diameter) | UPN 120 / 800 mm |
| IPN horizontal position (section / min. diameter) | IPN 120 / 800 mm |
Dimensions and weight
| Length | 1150 mm |
| Width | 1200 mm |
| Height | 1300 mm |
| Weight | 1600 kg |
Description
3 motor driven rolls
strong welded steel construction
upper roll hydr. adjustable
seperate control panel with digital readout
horizontal and vertical operation
for- and backward drive
machine and equipment according to the CE regulations
