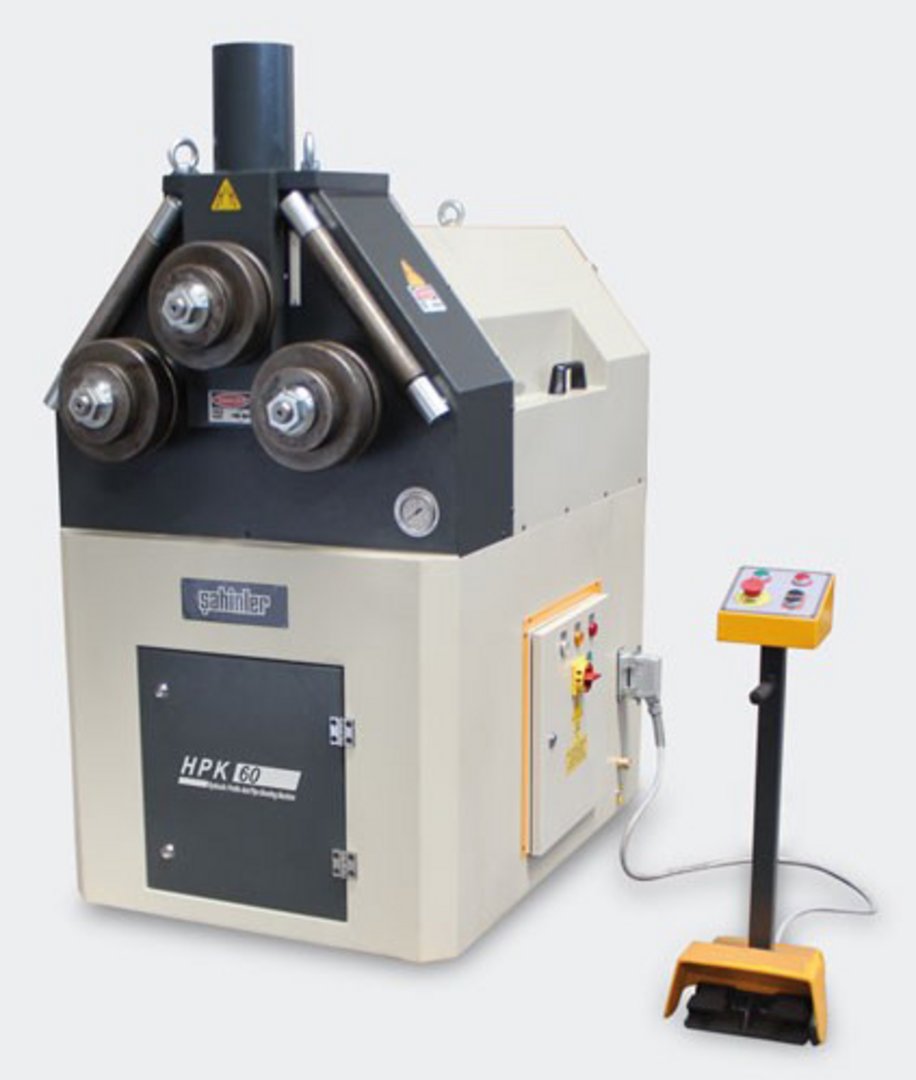

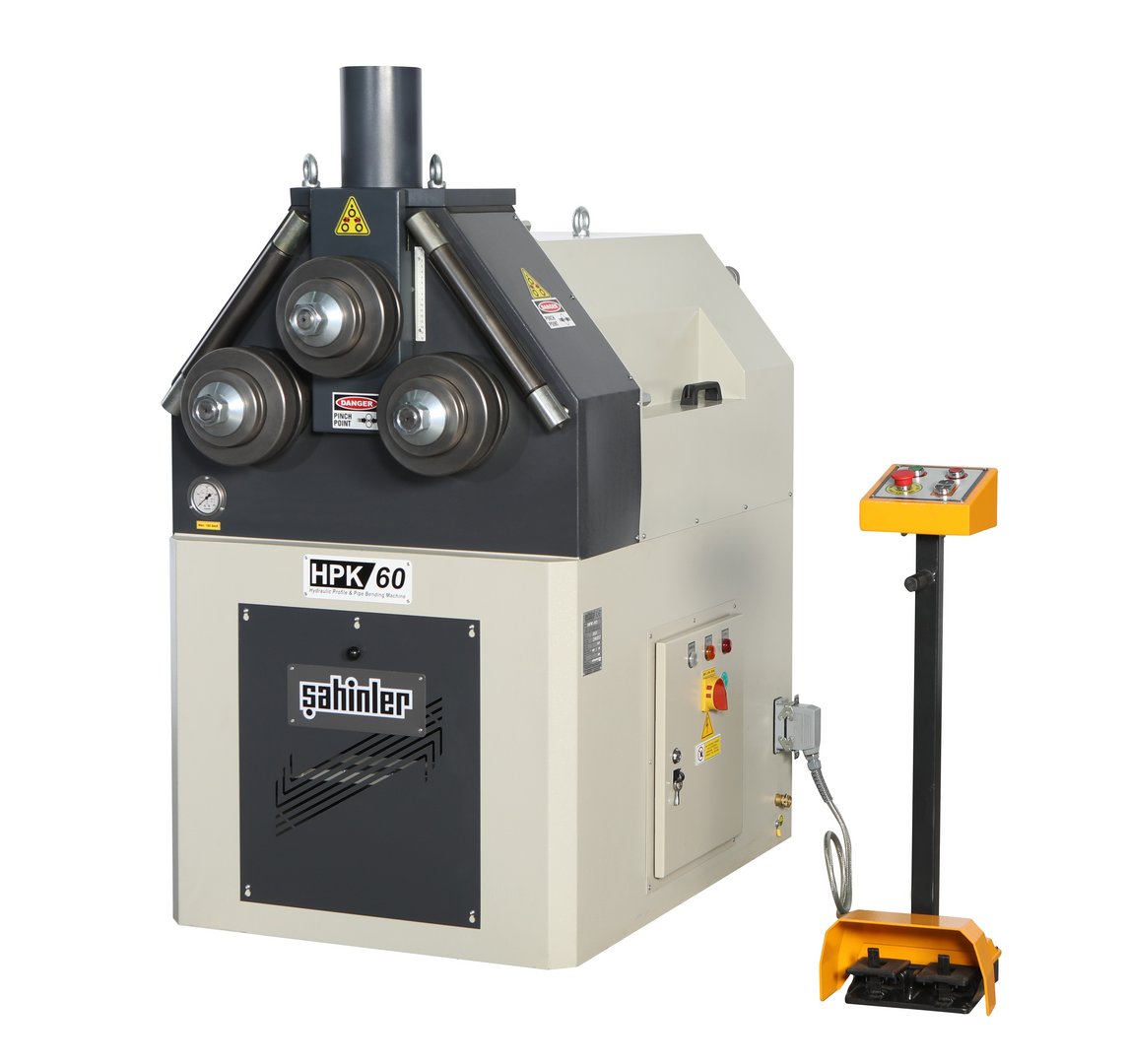

Profile bending machine with hydraulic feed of rolls HESSE by SAHINLER HPK 60
| Model | HPK 60 |
| Brand | HESSE by SAHINLER |
| Condition | new |
| Shaft diameter | 60 |
| Origin | Türkiye |
General characteristics
| Shaft diameter | 60 |
| Upper roll diameter | 215 mm |
| Lower roll diameter | 215 mm |
| Driven rolls | 3 |
| Motor power | 1.5 kW |
| Speed | 4 m/min |
| Flat steel vertical position (section / min. diameter) | 80x20 mm / 1200 mm; 40x10 mm / 400 mm |
| Flat steel horizontal position (section / min. diameter) | 120x25 mm / 600 mm; 50 x 10 mm / 400 mm |
| Square bar (section / min. diameter) | 50x50 mm / 800 mm; 20x20 mm / 400 mm |
| Round bar (section / min. diameter) | Ø 50 mm / 800 mm; Ø 20 mm / 400 mm |
| Tube (section / min. diameter) | Ø 100x2 mm / 1600 mm; Ø 60x2 mm / 500 mm; 3"x3,2 mm / 1600 mm; 1"x2,6 mm / 500 mm |
| Form tube vertical position (Querschnitt / min. Durchmesser) | 80x40x3 mm / 1400 mm; 40x20x2 mm / 500 mm |
| Form tube square (section / min. diameter) | 70x3 mm / 1600 mm; 40x2 mm / 500 mm |
| Angle leg outside (Querschnitt / min. Durchmesser) | 70x70x7 mm / 1000 mm; 40x40x5 mm / 500 mm |
| Angle leg inside (section / min. diameter) | 70x70x7 mm / 1200 mm; 40x40x5 mm / 600 mm |
Dimensions and weight
| Length | 1000 mm |
| Width | 1400 mm |
| Height | 1650 mm |
| Weight | 950 kg |
Description
3 mech. driven rolls (brake motor)
hardened shafts
top roll hydraulic adjustable
hardened universal rolls
lateral rolls adjustable in 1 axis
horizontal and vertical operation
double foot pedal for for- and backward drive
machine and equipment according to the CE regulations
user manual in GERMAN and ENGLISH
