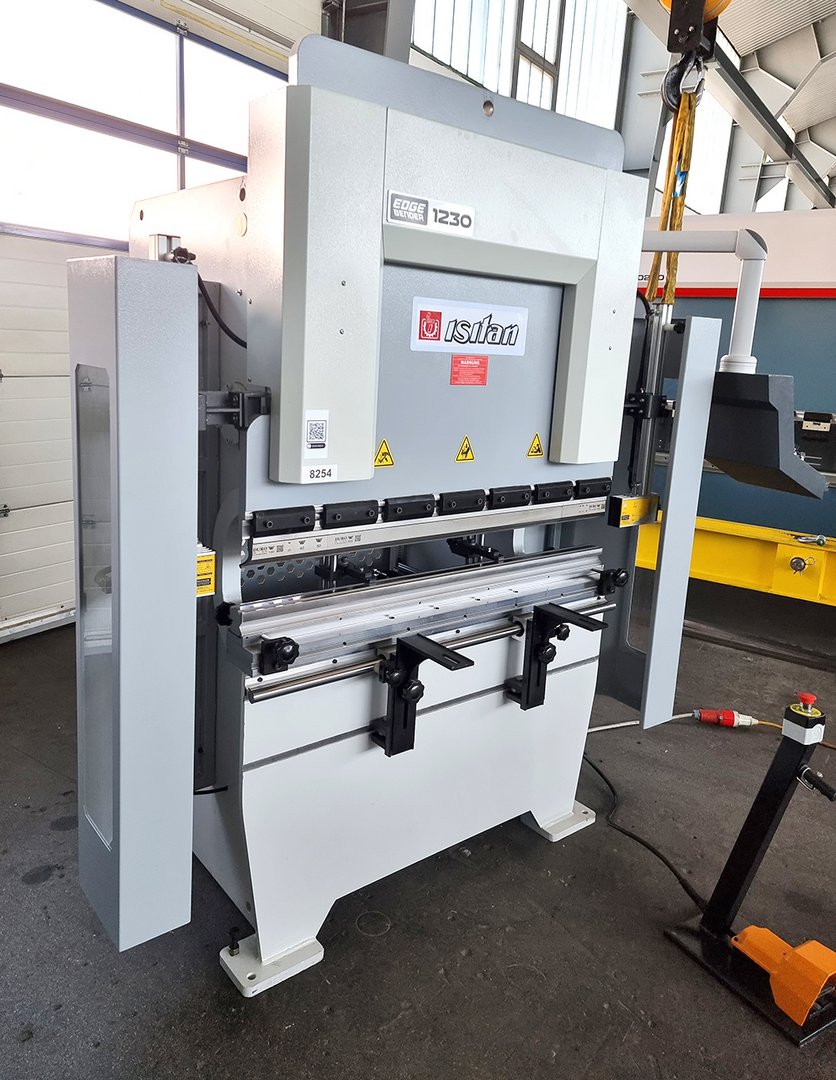

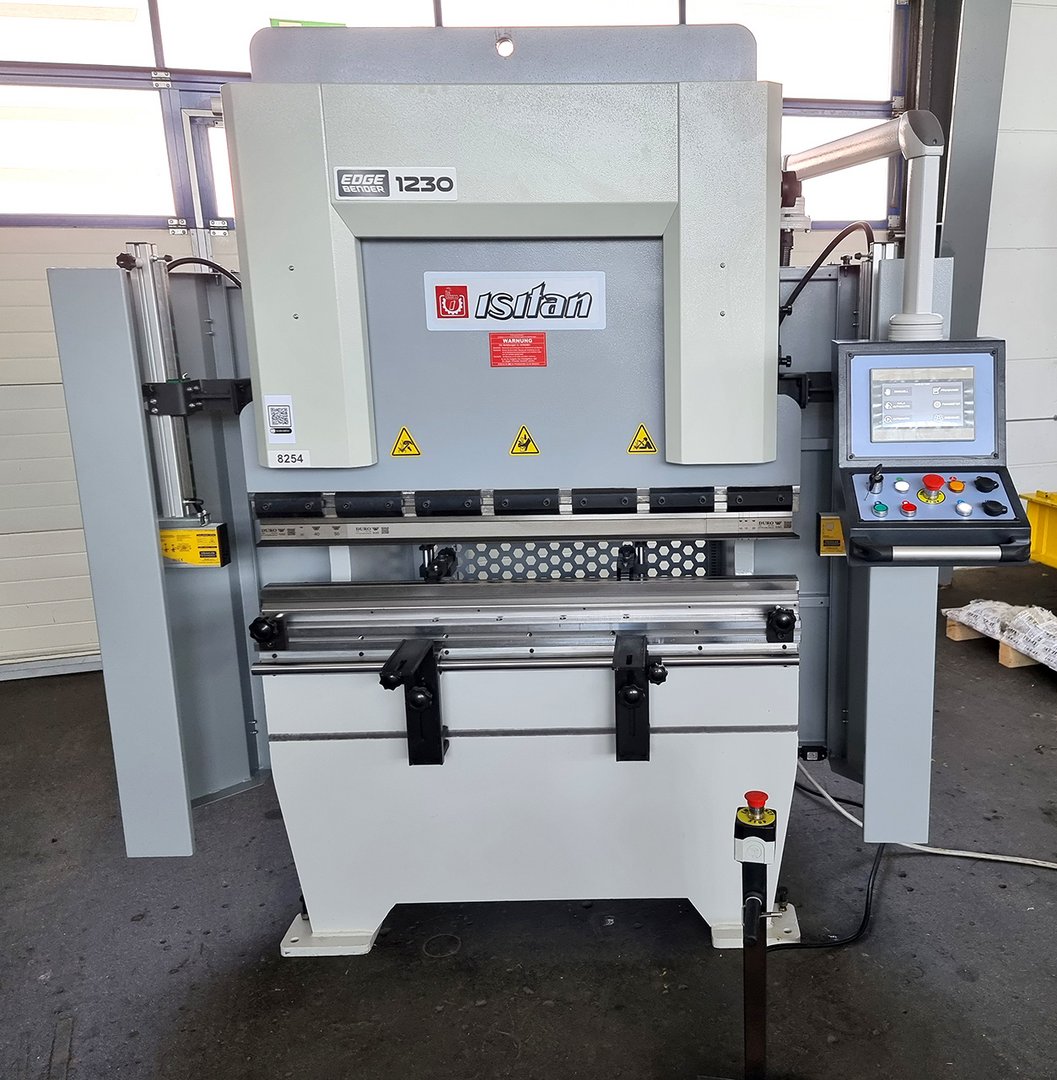

Hydraulic NC press brake HESSE by ISITAN Edgebender 1230
| Model | Edgebender 1230 |
| Brand | HESSE by ISITAN |
| Condition | used |
| Year of manufacture | 2022 |
| pressing capacity | 30 to |
| Bending length | 1250 mm |
| Stock number | 8254 |
| Origin | Türkiye |
General characteristics
| pressing capacity | 30 to |
| Bending length | 1250 mm |
| Axes | X and Y axis |
| Stroke | 150 mm |
| Inside distance between side frames | 1010 mm |
| Gap in side frame | 255 mm |
| Daylight | 265 mm |
| Power concept | hydraulic |
| rapid speed Y-axis | 210 mm/s |
| Working speed Y-axis | 10 |
| Motor power | 3 kW |
Dimensions and weight
| Length | 1760 mm |
| Width | 1375 mm |
| Height | 2135 mm |
| Weight | 1700 kg |
Description
demo machine, mint condition

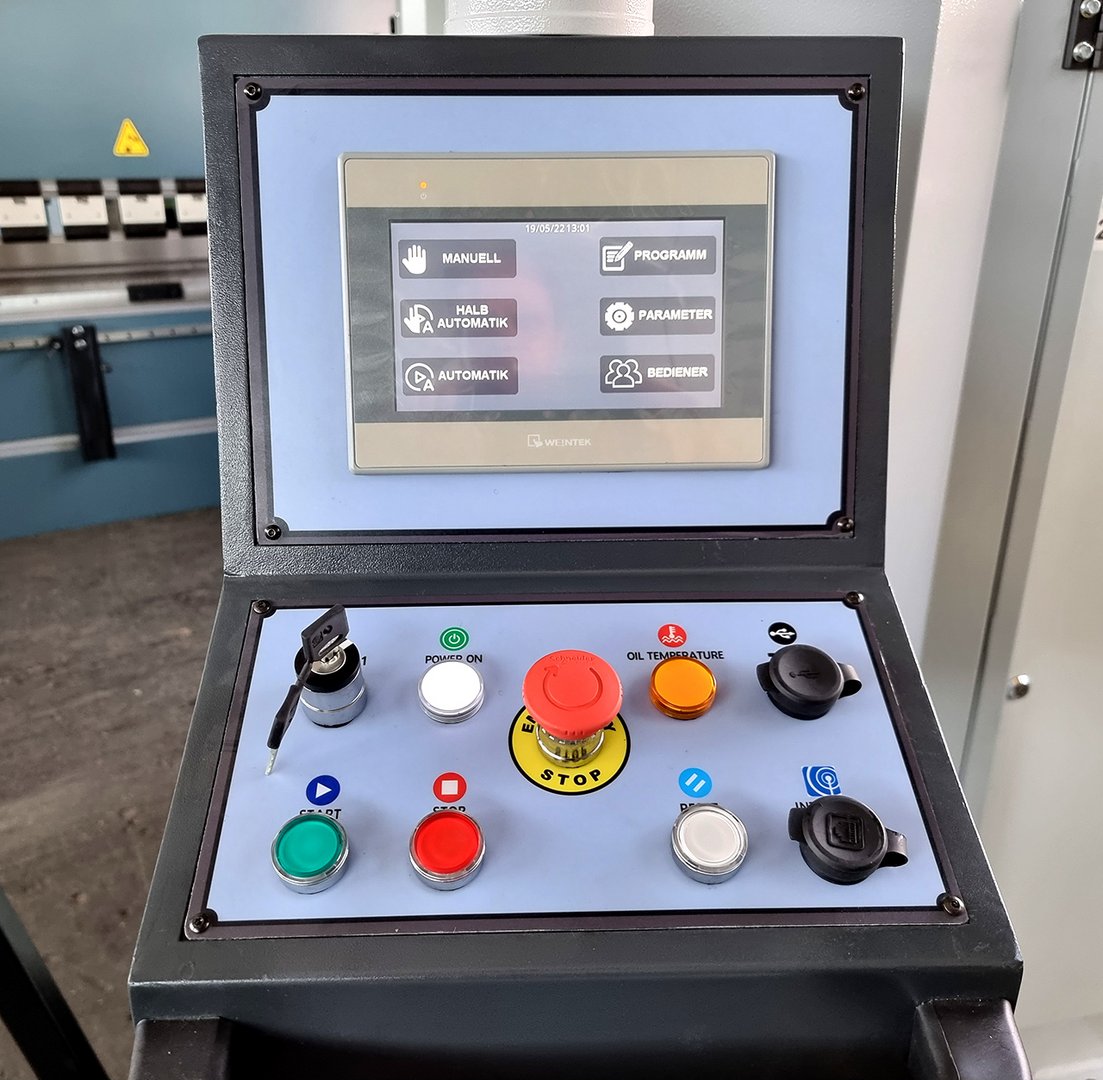

NC control for immersion depth (Y) and back gauge (X)
synchronization control by means of a torsion shaft

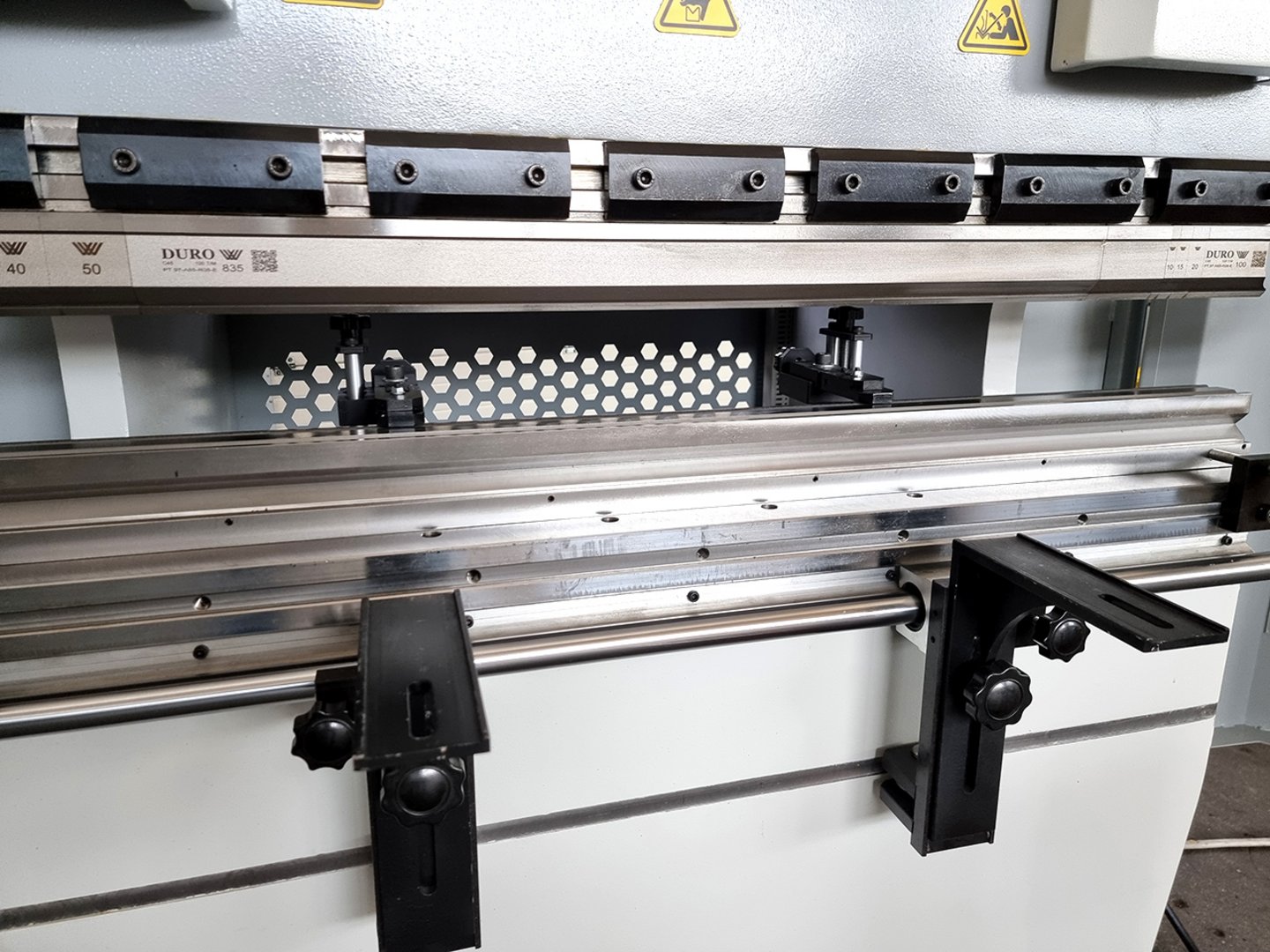

sheet support arms
light barriers
die seat and die

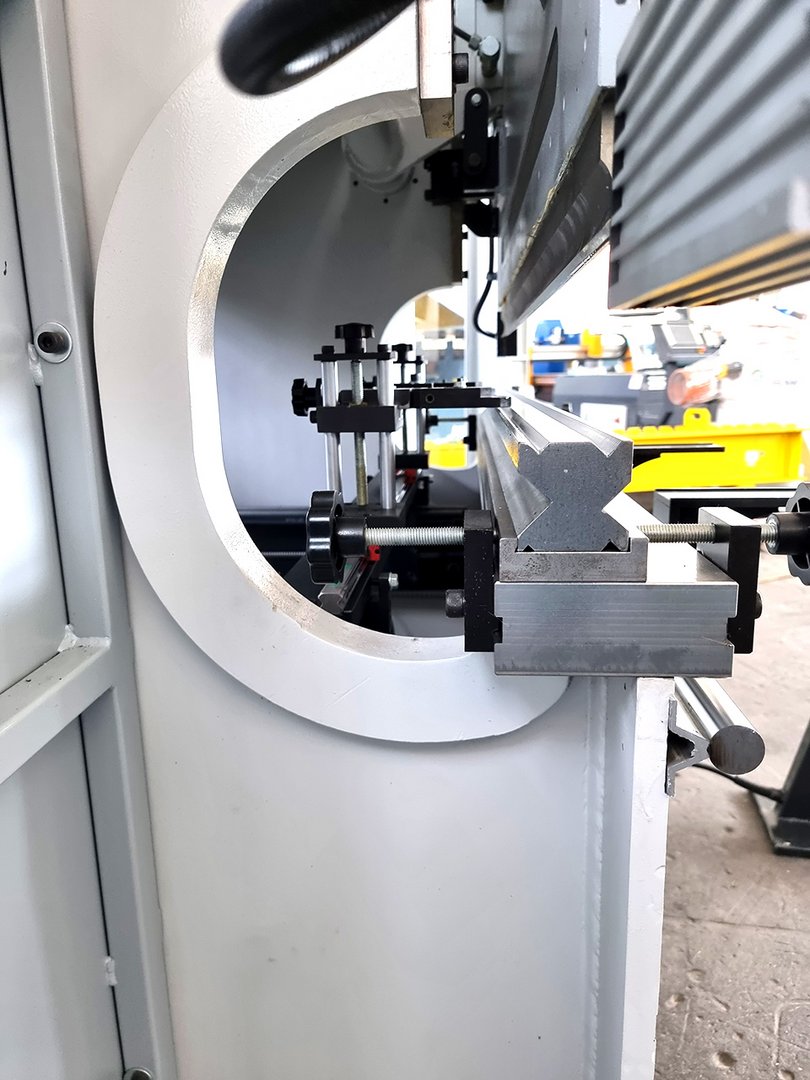

die seat with 4 V openings
split upper tool, slightly cranked, divided
pedal
user manual in GERMAN

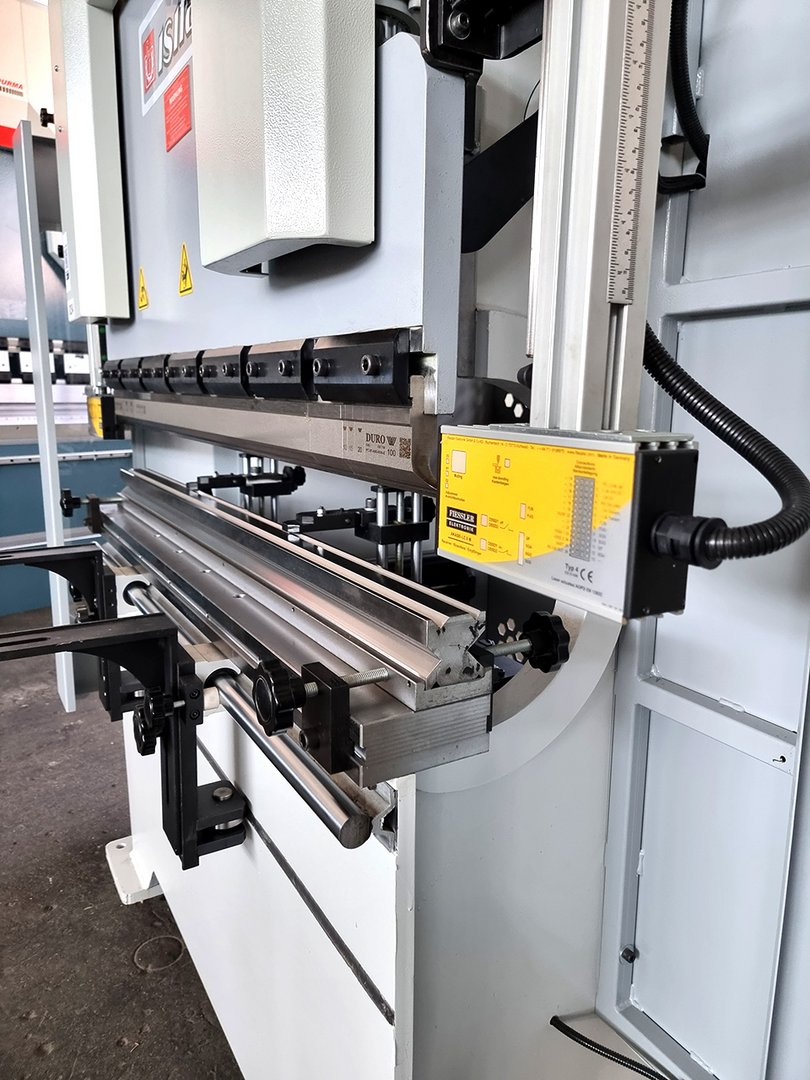

incl. laser protection device Fiessler
(sample photo)
