Hydraulic CNC press brake HESSE by DURMA PBF 40160
| Model | PBF 40160 |
| Brand | HESSE by DURMA |
| Condition | new |
| pressing capacity | 160 to |
| Bending length | 4050 mm |
| Origin | Türkiye |
General characteristics
| pressing capacity | 160 to |
| Bending length | 4050 mm |
| Axes | Y1 / Y2 und X Achse |
| Stroke | 200 mm |
| Inside distance between side frames | 3600 mm |
| Gap in side frame | 300 mm |
| Daylight | 430 mm |
| Power concept | hydraulic |
| rapid speed Y-axis | 160 mm/s |
| Working speed Y-axis | 10 |
| Retractionspeed Y-axis | 140 |
| Back gauge travel X-axis | 620 (with optional R-axis: 500 mm) mm |
| Back gauge speed X-axis | 250 |
| Table height | 858 mm |
| Table width | 104 mm |
| Motor power | 15 kW |
Dimensions and weight
| Length | 4850 mm |
| Width | 1900 mm |
| Height | 2610 mm |
| Weight | 10500 kg |
Description
3 axes (Y1, Y2, and X axis)

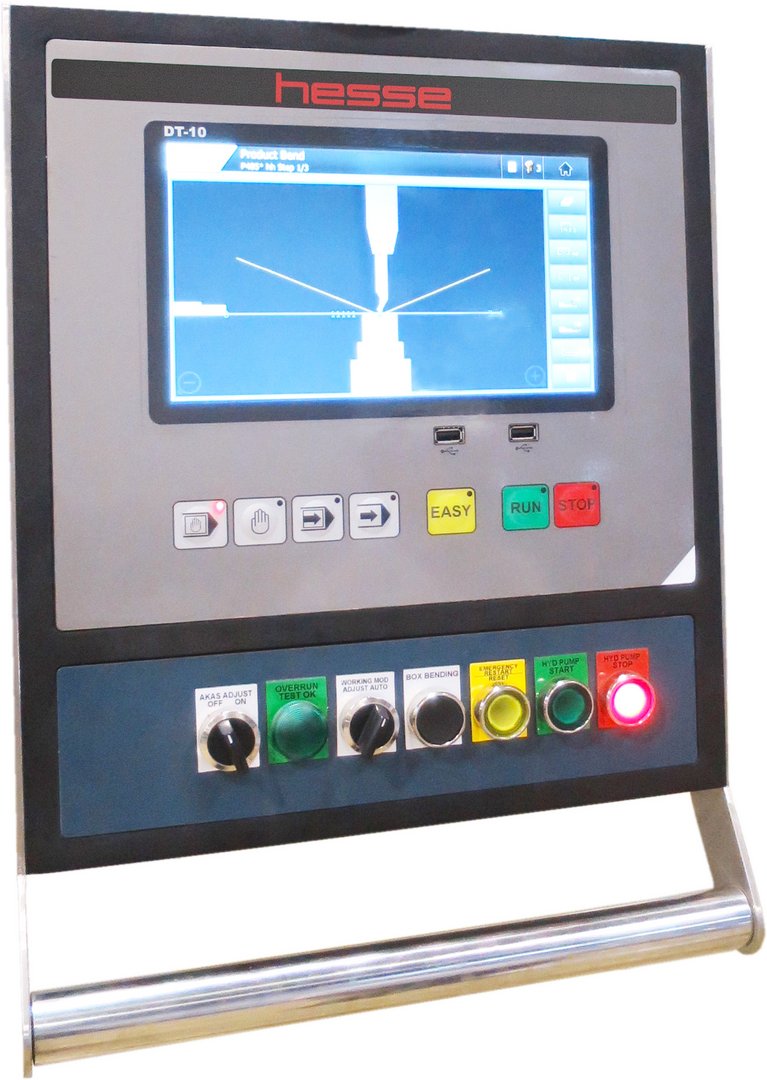

CNC control DT-10
- intuitive touch-screen control (simple drawing of the bending outline with your finger)
- user friendly programming in dialogue form
- automatic calculation of bending sequence
- automatic calculation of the blank sheet size
- graphic product and tool memory
- correction possibility
- USB interfaces for backup and programm transportation
- PC software, generating programms on the PC and transfer to the machine by USB

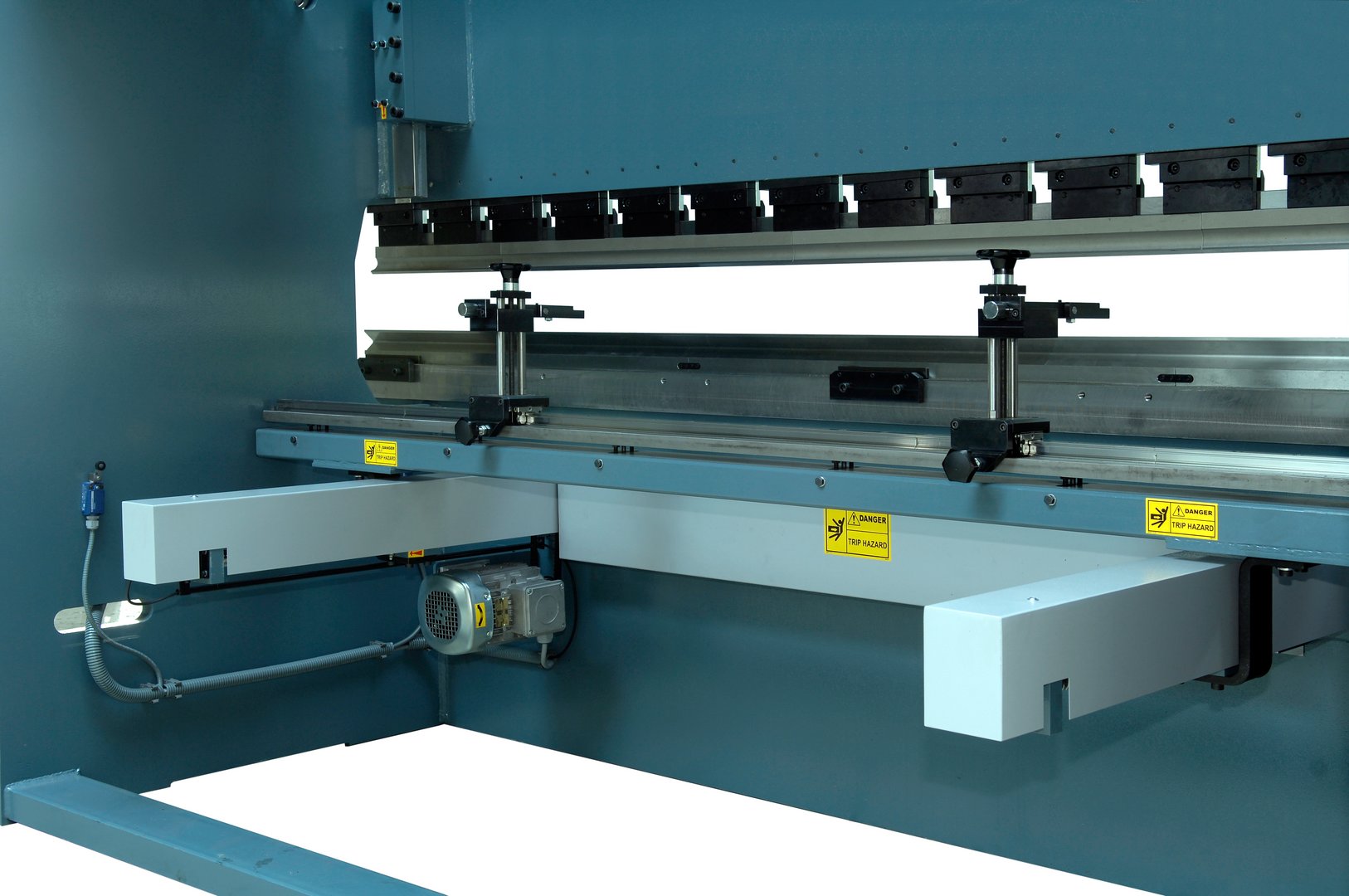

CNC controlled back gauge with linear guide and ball screw spindles
CNC crowning table
intermediate clamps for upper tool
upper tool 1010/A/75°/0,8, sectioned, bending radius hardened and ground
die holder for 60 mm dies
die type 2009/85° (V 16, 22, 35, 50 mm) sectioned, geteilt, bending radii hardened and ground
laser safety device Fiessler AKAS mounted on the upper beam
sheet support arms
protection covers on the sides and back side
according to CE rules
oilfilling
users manual in GERMAN or ENGLISH
Advantges of PBF series:
- compact structure
- low cost due to serial production of standardised models without restrictions in quality and accuracy
Option:
CNC controlled R-axis (adjustment range in X = 500 mm)
DBend, 3D CAD/CAM importing- and simulation program (step, iges and dxf file import)
we have more than 600 references!

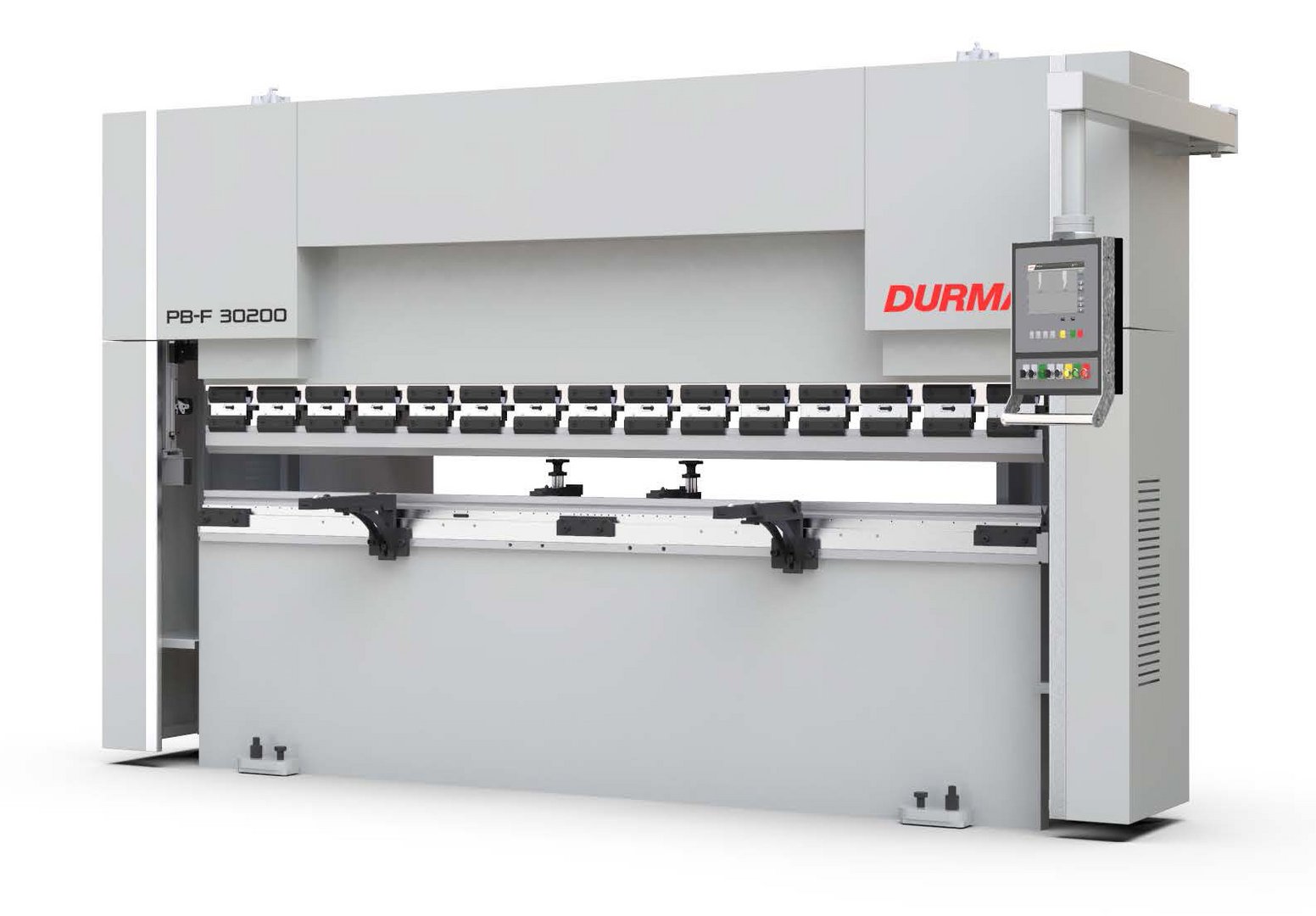

(sample photo)
Further information
Product video
Hydraulic CNC press brake PBF 40160
