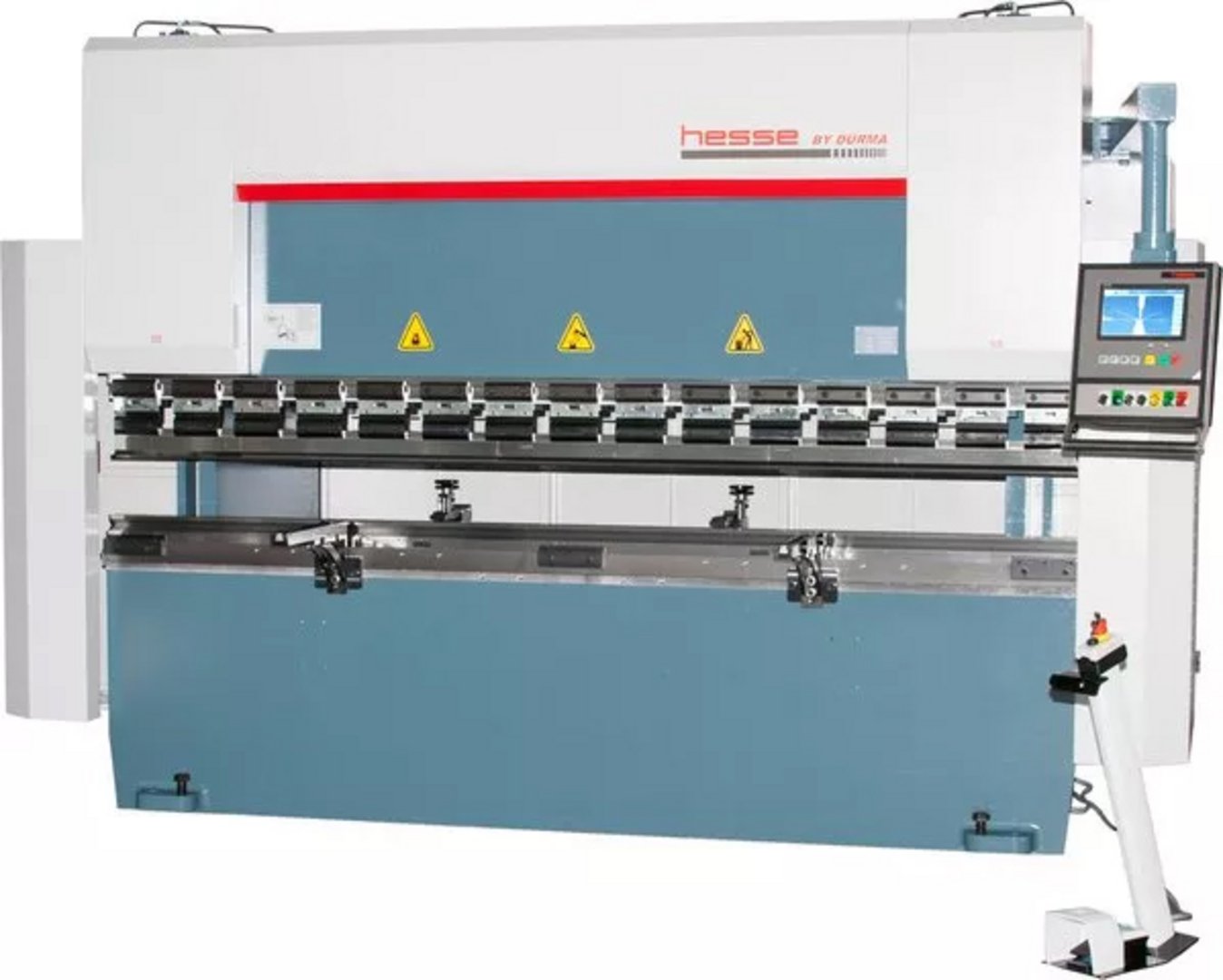

Hydraulic CNC press brake HESSE by DURMA PBF 30120
| Model | PBF 30120 |
| Brand | HESSE by DURMA |
| Condition | used |
| Year of manufacture | 2023 |
| pressing capacity | 120 to |
| Bending length | 3050 mm |
| Stock number | 8291 |
| Origin | Türkiye |
General characteristics
| pressing capacity | 120 to |
| Bending length | 3050 mm |
| Axes | 4 (Y1, Y2, X, R) |
| Stroke | 180 mm |
| Inside distance between side frames | 2550 mm |
| Gap in side frame | 250 mm |
| Daylight | 375 mm |
| Power concept | hydraulic |
| Back gauge travel X-axis | 620 (with optional R-axis: 500 mm) mm |
| Table height | 878 mm |
| Table width | 104 mm |
| Oiltank | 150 l |
| Motor power | 11 kW |
Dimensions and weight
| Length | 3750 mm |
| Width | 1230 mm |
| Height | 2400 mm |
| Weight | 5900 kg |
Description
Demo machine / mint condition
Net price (price for new machine € 66.376,00)
4 axes (Y1, Y2, X, R axis)

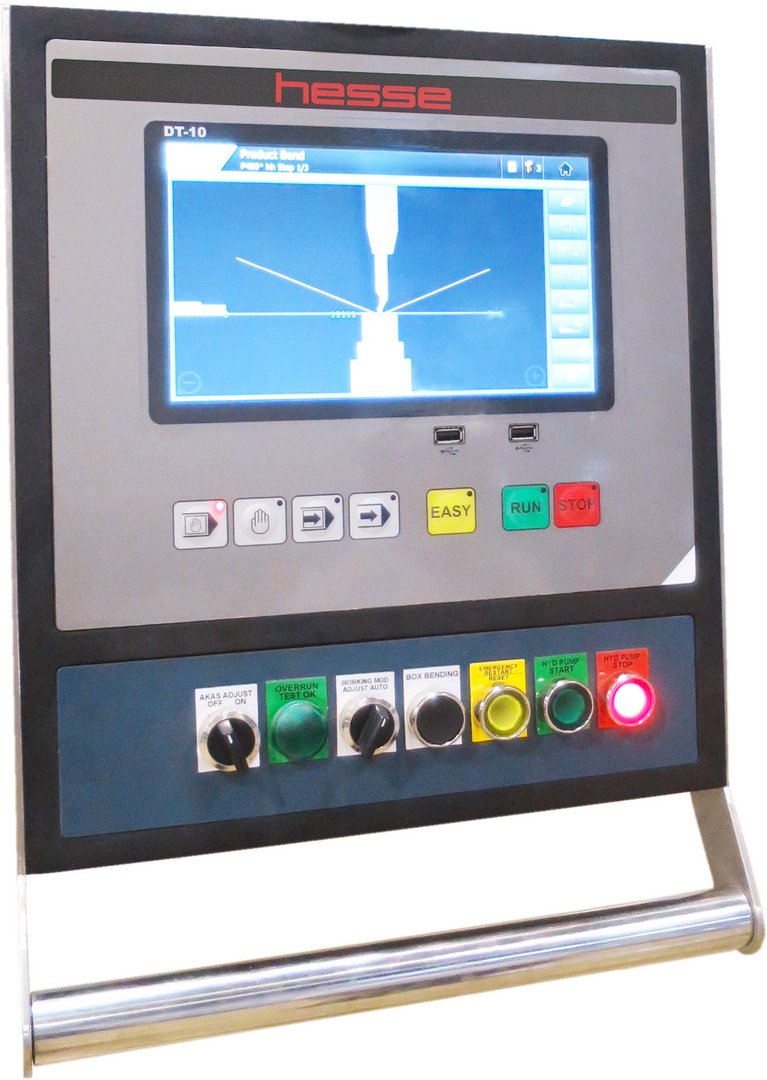

CNC control DT-10
- intuitive touch-screen control (simple drawing of the bending outline with your finger)
- user friendly programming in dialogue form
- automatic calculation of bending sequence
- automatic calculation of the blank sheet size
- graphic product and tool memory
- correction possibility
- USB interfaces for backup and programm transportation
- PC software, generating programms on the PC and transfer to the machine by USB
CNC controlled back gauge with linear guide and ball screw spindles
CNC controlled crowning table
intermediate clamps for upper tool
upper tool 1010/A/75°/0,8, sectioned, bending radius hardened and ground
die holder for 60 mm dies
die type 2009/85° (V 16, 22, 35, 50 mm) sectioned, geteilt, bending radii hardened and ground
laser safety device Fiessler AKAS mounted on the upper beam
sheet support arms
protection covers on the sides and back side
according to CE rules
oilfilling
users manual in GERMAN and ENGLISH
Advantges of PBF series:
- compact structure
- low cost due to serial production of standardised models without restrictions in quality and accuracy
Options:
| CNC controlled R-axis | incl. |
| CNC controlled crowning table | incl. |
|
DBend, 3D CAD/CAM importing- and simulation program (step, iges and dxf file import) |
€ 2.110,- |
we have more than 600 references!
