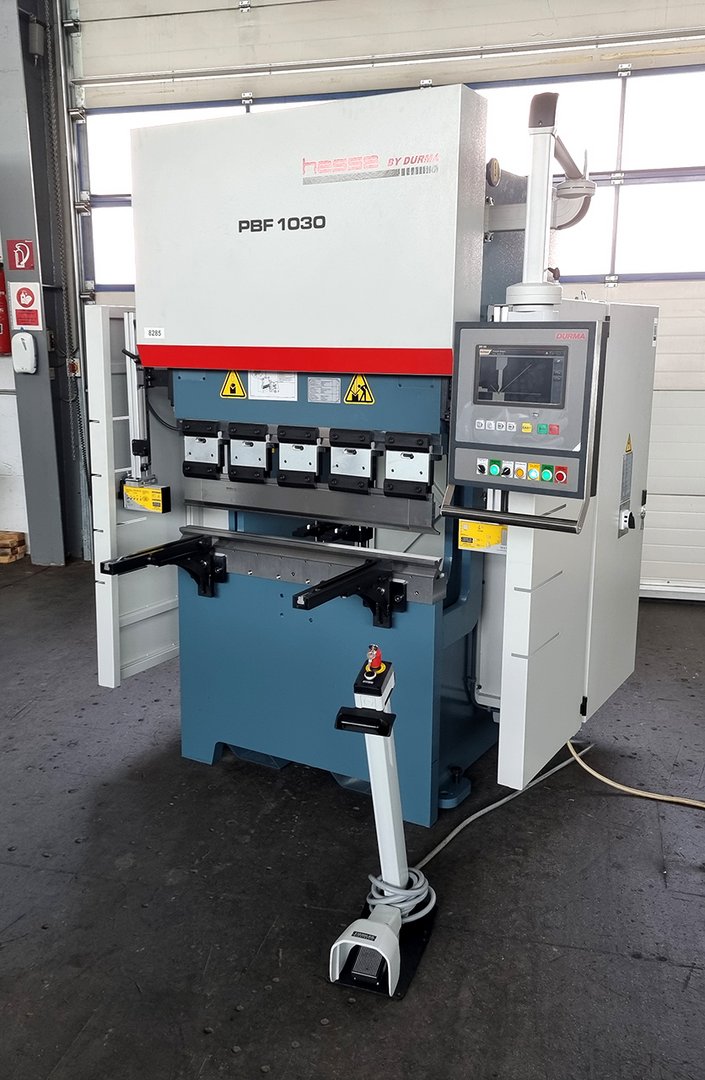

Hydraulic CNC press brake HESSE by DURMA PBF 1030
| Model | PBF 1030 |
| Brand | HESSE by DURMA |
| Condition | used |
| Year of manufacture | 2023 |
| pressing capacity | 30 to |
| Bending length | 1050 mm |
| Stock number | 8285 |
| Origin | Türkiye |
General characteristics
| pressing capacity | 30 to |
| Bending length | 1050 mm |
| Axes | 3 (Y1, Y2, X) |
| Stroke | 160 mm |
| Inside distance between side frames | 850 mm |
| Gap in side frame | 250 mm |
| Daylight | 390 mm |
| Power concept | hydraulic |
| Working speed Y-axis | 10 |
| Retractionspeed Y-axis | 130 |
| Back gauge travel X-axis | 400 mm |
| Back gauge speed X-axis | 250 |
| Table height | 835 mm |
| Table width | 104 mm |
| Oiltank | 75 l |
| Motor power | 7.5 kW |
Dimensions and weight
| Length | 2470 mm |
| Width | 1250 mm |
| Height | 2245 mm |
| Weight | 3250 kg |
Description
demo machine / mint condition
net price (price for new machine € 41.200,00)
Y1, Y2, X - 3 Axis

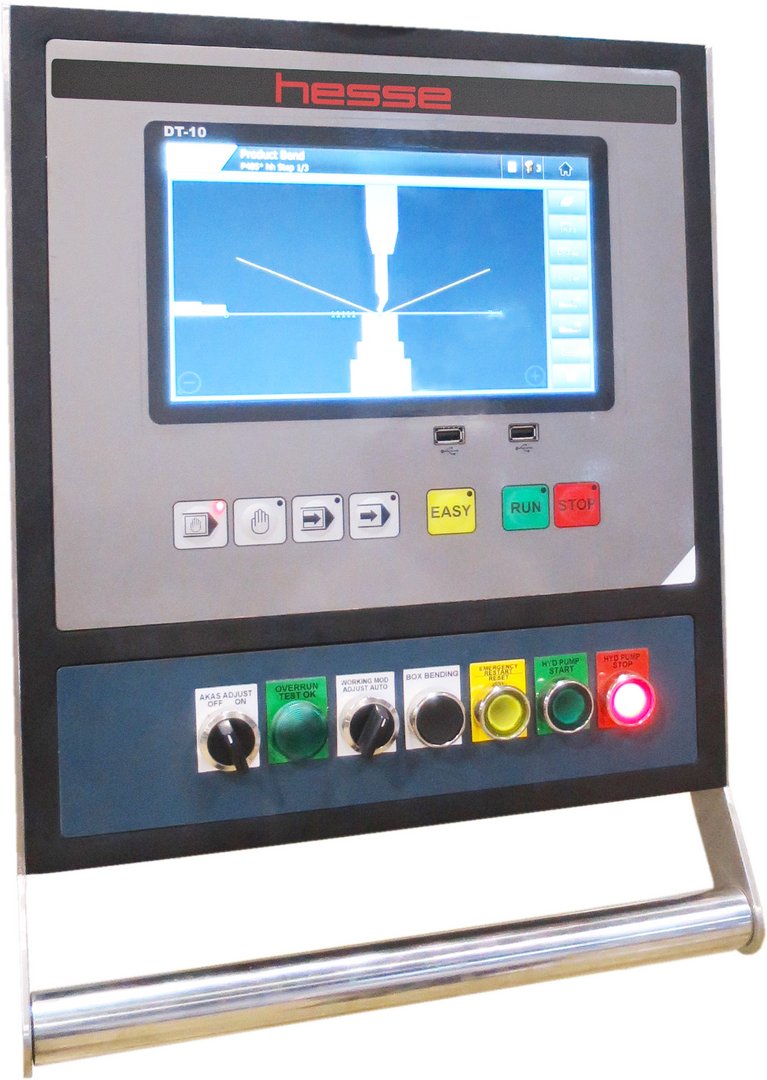

Control Unit - DT 10 Touch screen 2D graphic (Remote Control)
Back gauge: motorized & linear guide & ballscrew

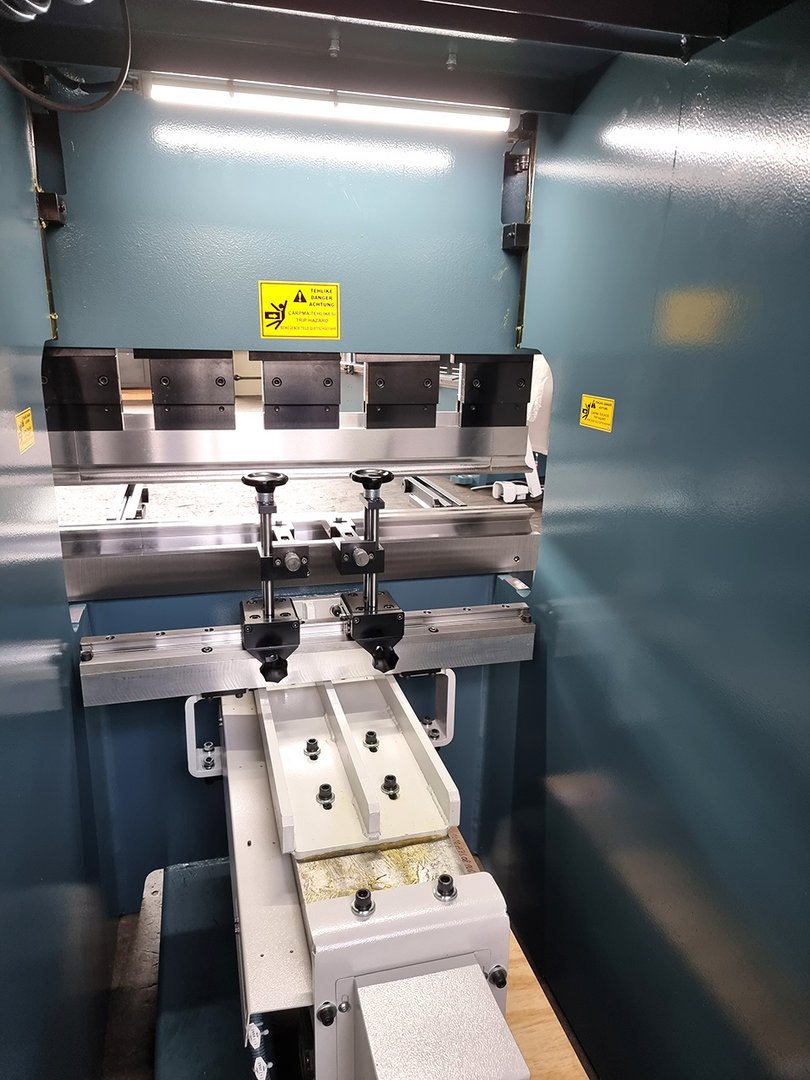

European clamping system

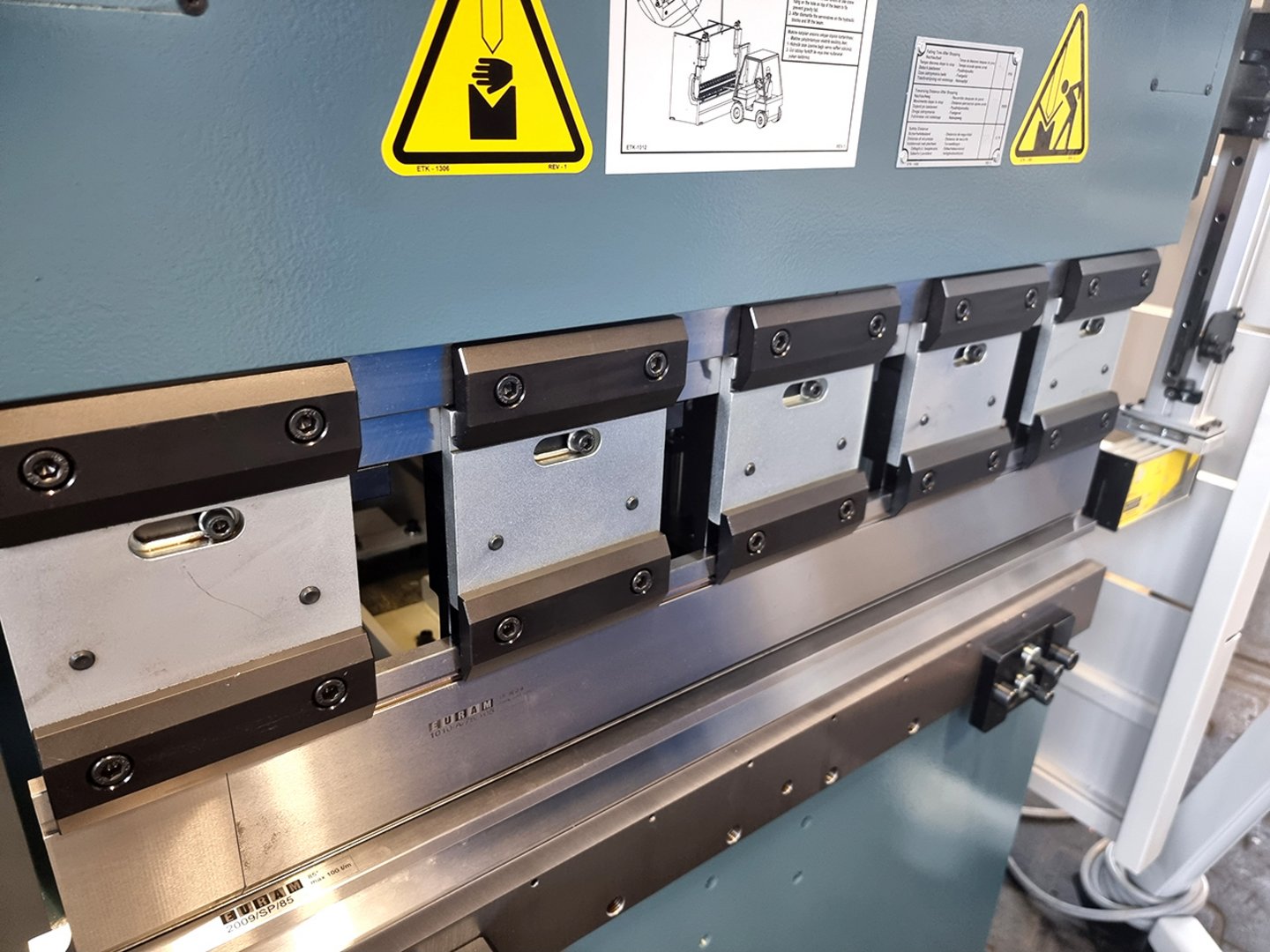

European clamping system top tool
European style bottom tool holder
Support arms with T-Slot
Safety side covers (Non CE)
World known electrical equipments
Option:
|
DBend, 3D CAD/CAM importing- and simulation program (step, iges and dxf file import) |
€ |
2.110,- |
Further information
Product video
Hydraulic CNC press brake PBF 1030
