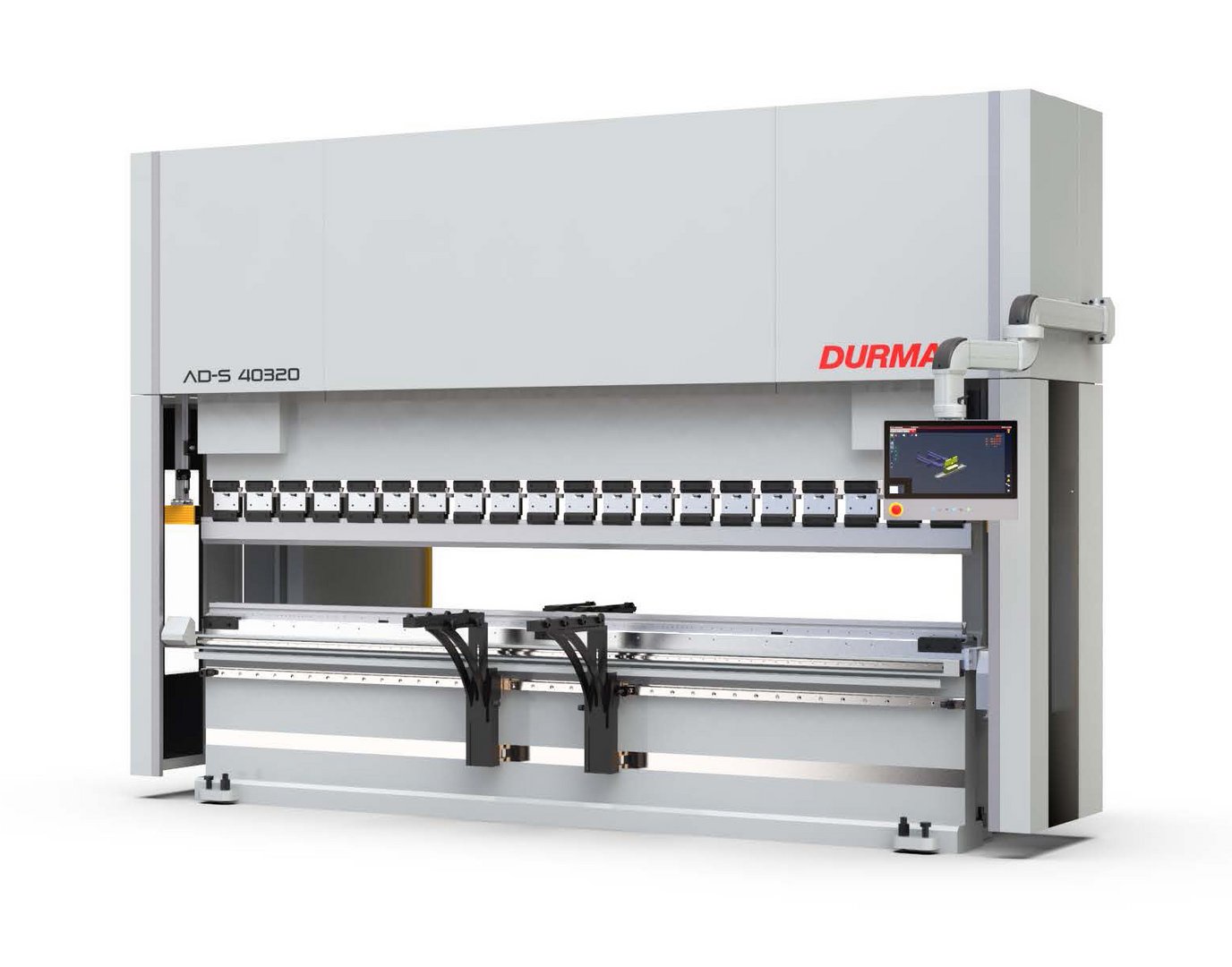

Hydraulic CNC press brake HESSE by DURMA AD-Servo 30320
| Model | AD-Servo 30320 |
| Brand | HESSE by DURMA |
| Condition | new |
| pressing capacity | 320 to |
| Bending length | 3050 mm |
| Origin | Türkiye |
General characteristics
| pressing capacity | 320 to |
| Bending length | 3050 mm |
| Axes | Y1 / Y2 / X and R axis |
| Stroke | 365 mm |
| Inside distance between side frames | 2600 mm |
| Gap in side frame | 410 mm |
| Daylight | 630 mm |
| Power concept | hydraulic |
| rapid speed Y-axis | 160 mm/s |
| Working speed Y-axis | 10 |
| Retractionspeed Y-axis | 160 |
| Back gauge travel X-axis | 650 mm |
| Back gauge speed X-axis | 500 |
| Back gauge travel R-axis | 250 mm |
| Table height | 900 mm |
| Table width | 104 mm |
| Motor power | 2 x 11 kW |
Dimensions and weight
| Length | 4300 mm |
| Width | 1820 mm |
| Height | 3330 mm |
| Weight | 16500 kg |
Description
1 servo motor and pump per cylinder
4 axes (Y1, Y2, X and R)

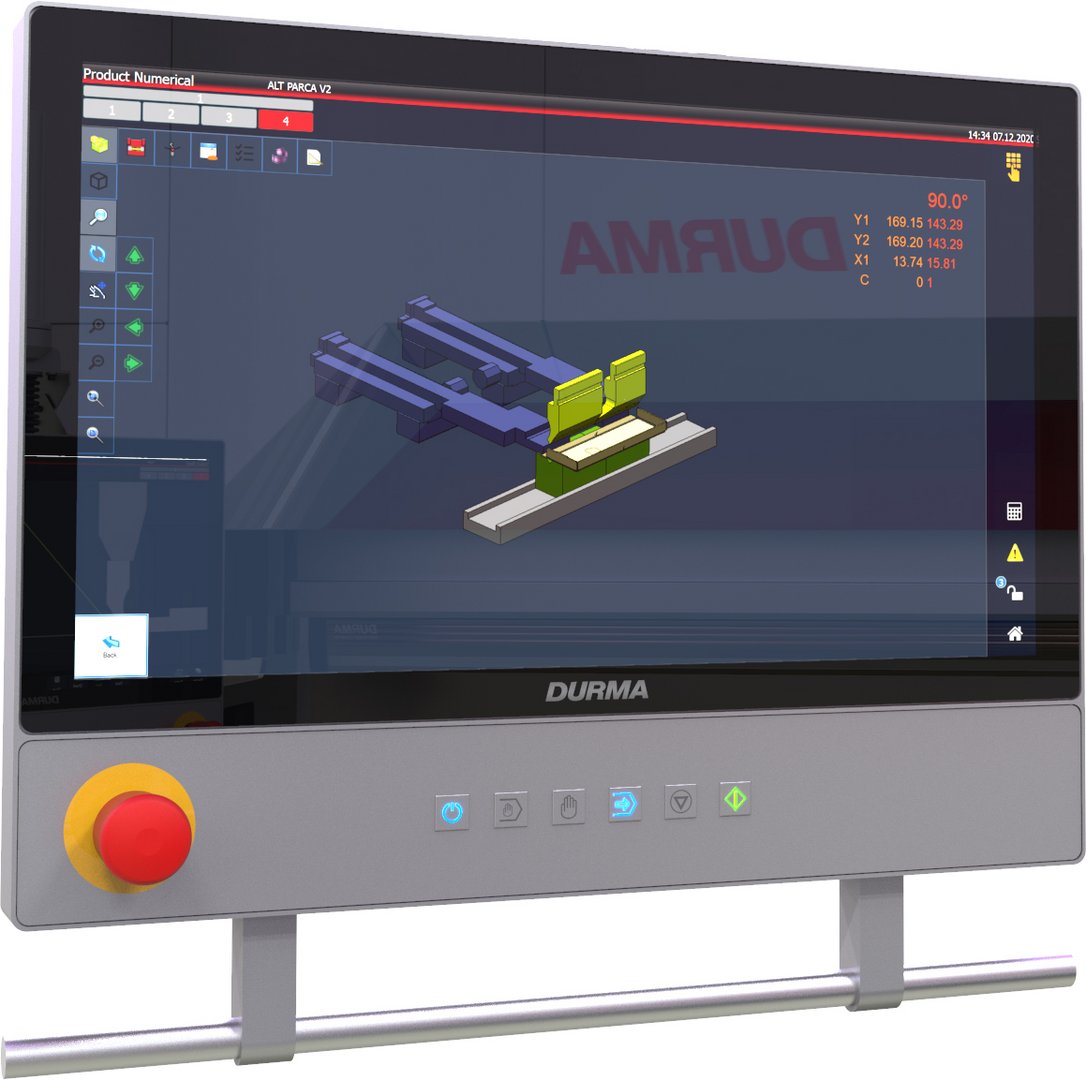

CNC control SKY 22
- intuitive touch-screen control (simple drawing of the bending outline with your finger) 21,5“ in full HD
- with 2D and 3D working screen
- direct programming of the bending angle
- user friendly programming in dialogue form optionally in 2D or 3D mode
- 2D and 3D simulation of the bending sequence
- automatic tool selection in 3D mode
- automatic calculation of the blank sheet size
- bending order calculation
- graphic product and tool memory
- correction possibility
- USB and Ethernet interfaces for import, backup and programm transportation
- OS: Windows 10
- IGES, STEP, DXF files import
servo motorized back gauge on linear guides and ball screws
back gauge finger blocks on double linear guides
CNC crowning table
upper tool 1010 / A / 75 °, devided and cranked
4-V die block 60x60 2009 (V = 16,22,35 and 50 mm)
laser safety device Fiessler AKAS mounted on the upper beam
linear guided sheet support arms
according to CE rules
oilfilling
users manual in English or German
Advantages of this concept:
- hydraulic works only while upper beam movement
- low energy consumption
- low noise level
- high speed
optional equipment:
| Z1/Z2-axes | ||
| CNC Control Delem DA-66 S | ||
| CNC control DELEM DA-69S 3D incl. PC software Profile-S with 3D file import option | ||
| Quick release clamping for upper tool |
