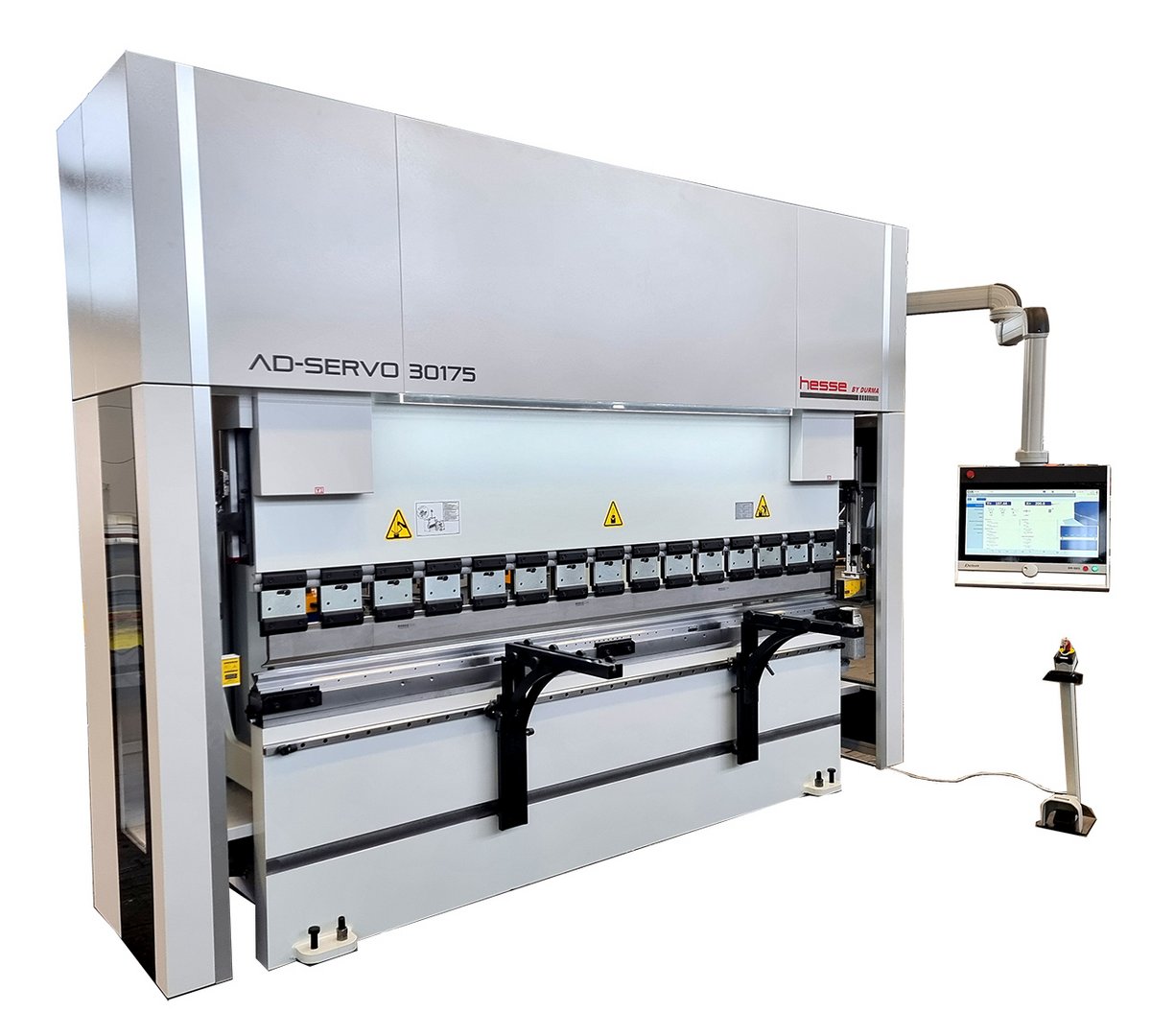

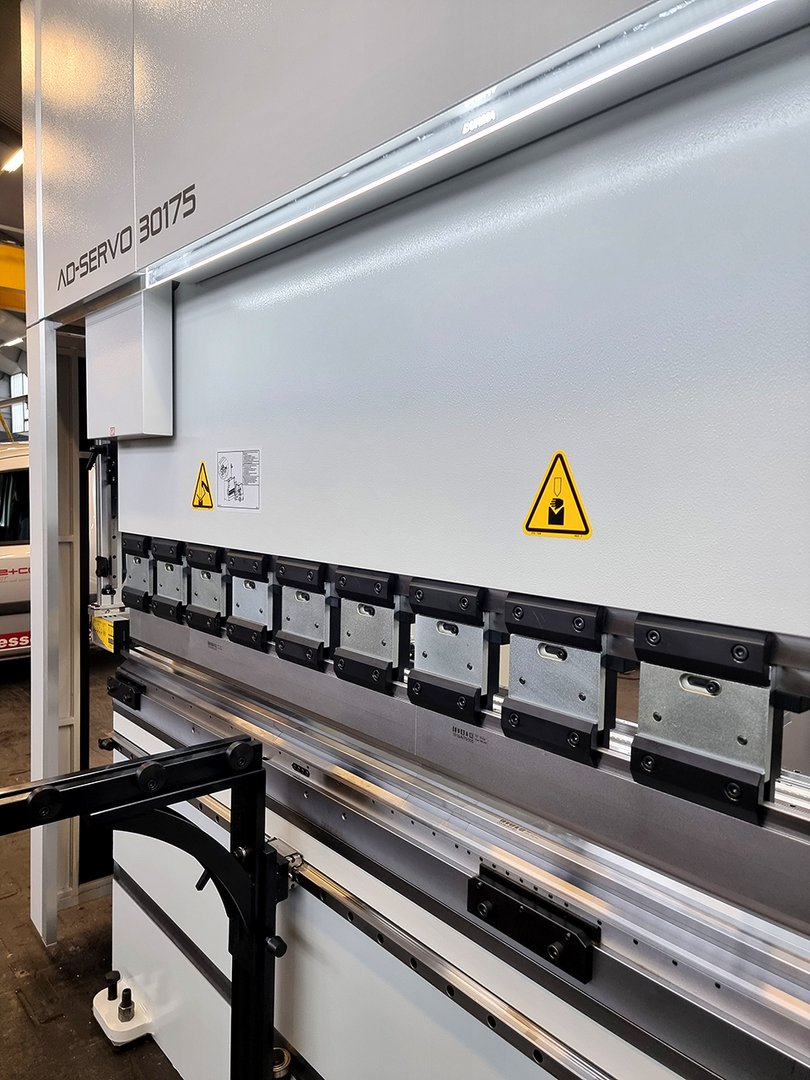

Hydraulic CNC press brake HESSE by DURMA AD-Servo 30175 - Special campaign
| Model | AD-Servo 30175 - Special campaign |
| Brand | HESSE by DURMA |
| Condition | new |
| Year of manufacture | 2025 |
| pressing capacity | 175 to |
| Bending length | 3050 mm |
| Stock number | 80085 |
| Origin | Türkiye |
General characteristics
| pressing capacity | 175 to |
| Bending length | 3050 mm |
| Axes | Y1 / Y2 / X / R / Z1 and Z2 axis |
| Stroke | 265 mm |
| Inside distance between side frames | 2600 mm |

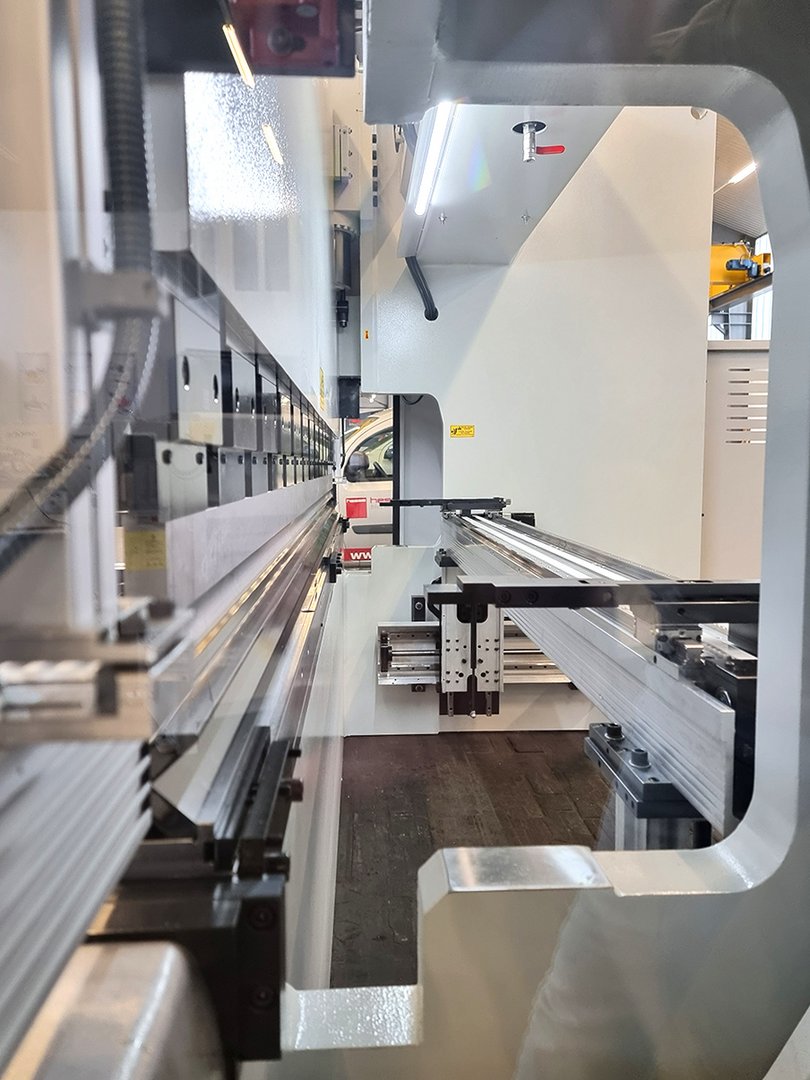

| Gap in side frame | 410 mm |
| Daylight | 530 mm |
| Power concept | hydraulic |
| rapid speed Y-axis | 200 mm/s |
| Working speed Y-axis | 10 |
| Retractionspeed Y-axis | 200 |
| Back gauge travel X-axis | 650 mm |
| Back gauge speed X-axis | 500 |
| Back gauge travel R-axis | 250 mm |
| Table height | 900 mm |
| Table width | 104 mm |
| Motor power | 2x4 kW |
Dimensions and weight
| Length | 4250 mm |
| Width | 1700 mm |
| Height | 2750 mm |
| Weight | 10900 kg |
Description
Special campaign: free Z1/Z2-axes worth € 4.553,-
1 servo motor and pump per cylinder
Standard accessories:
6 axes (Y1, Y2, X, R, Z1 and Z2)

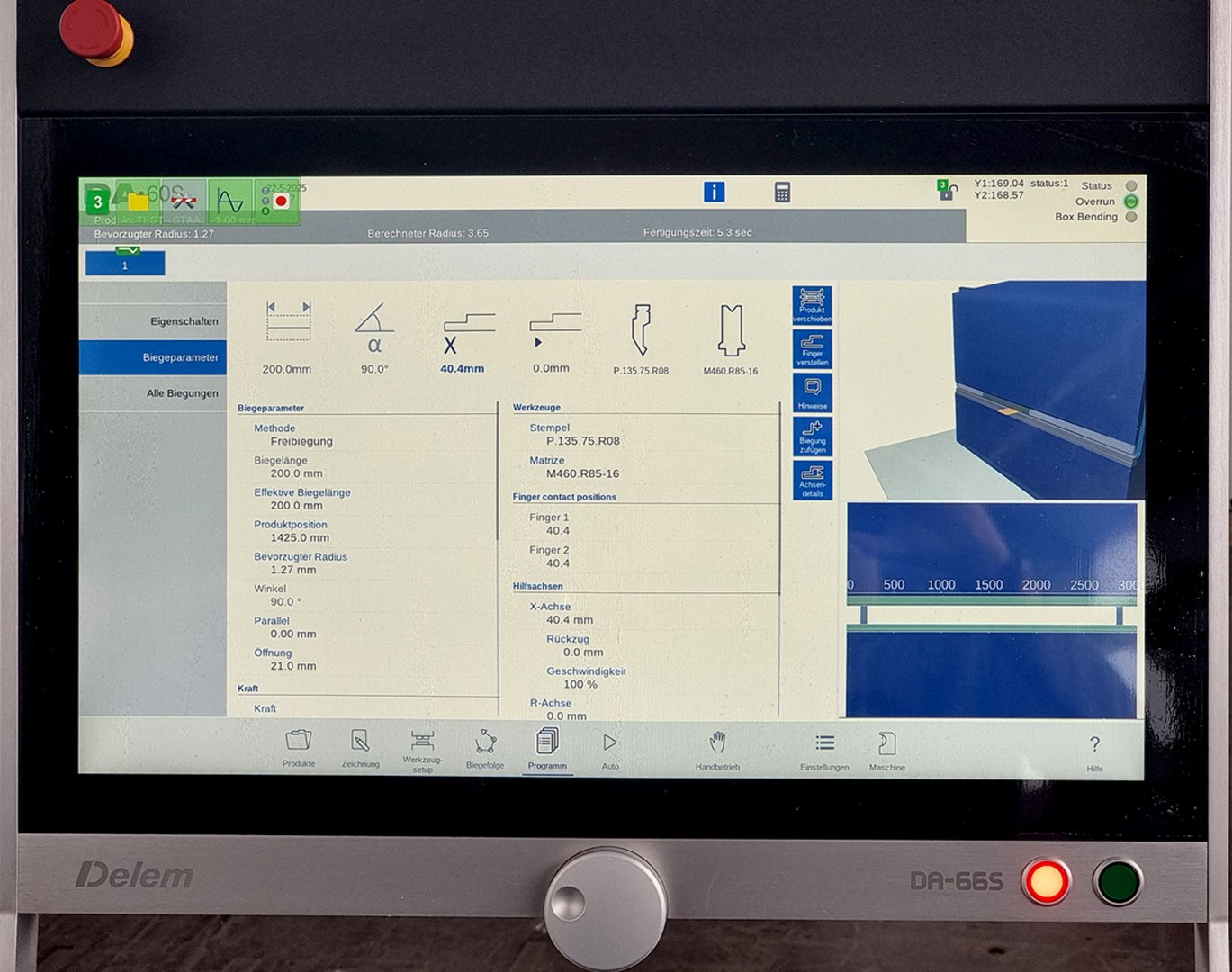

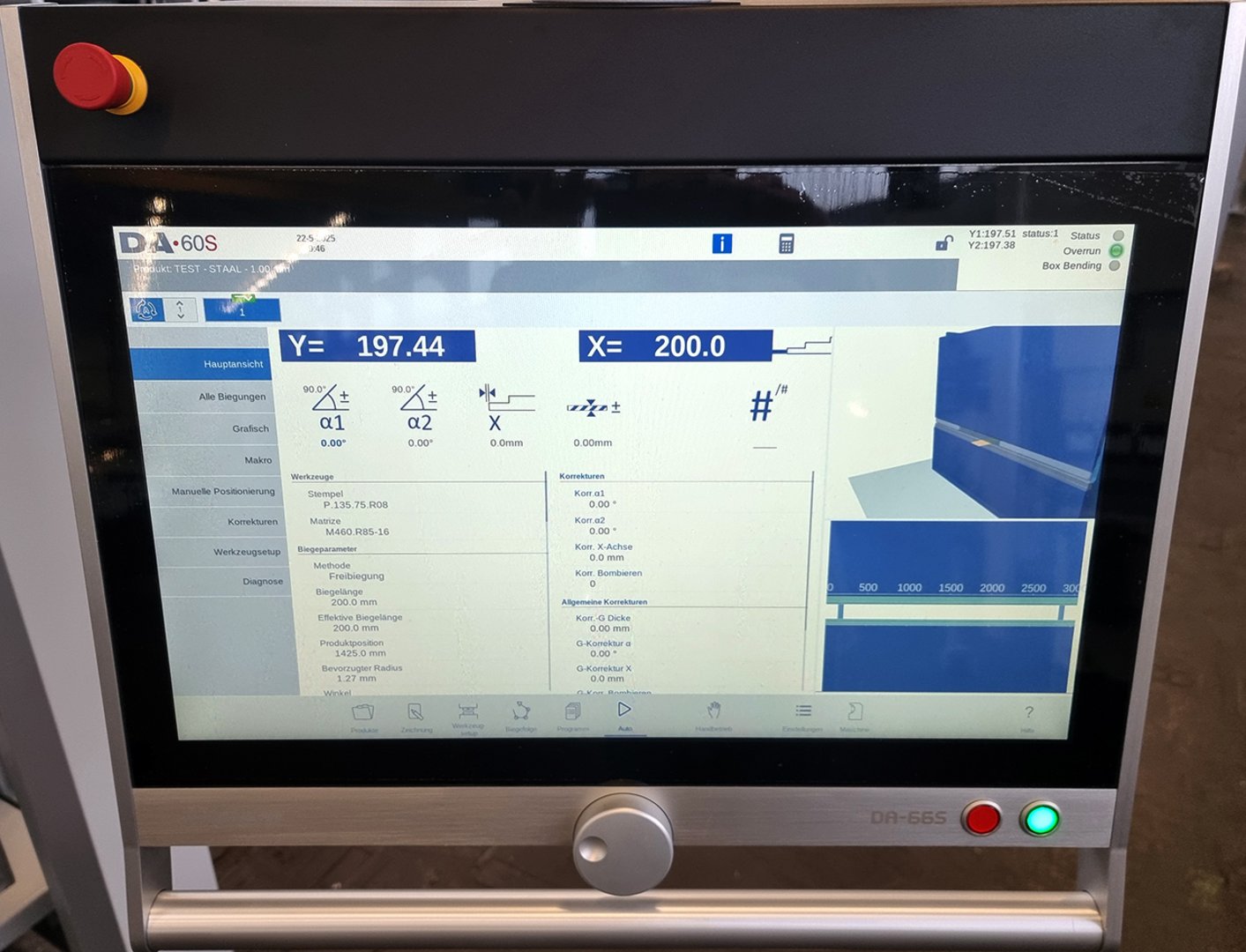

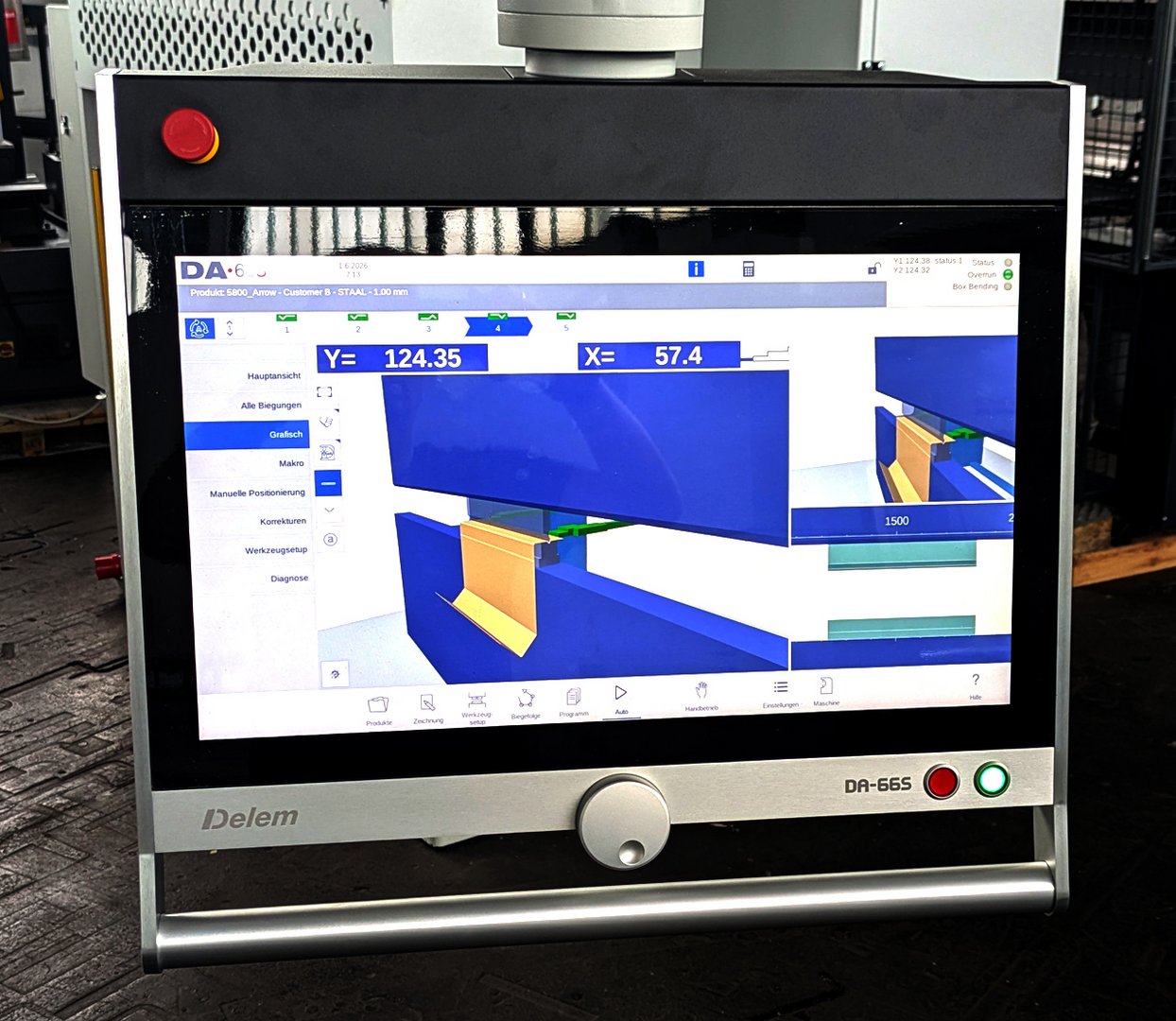

Color graphics control Delem DA 66 S
- 2D graphical touch screen programming mode
- 3D machine representation, in simulation and production
- 24" high resolution color TFT
- Delem Modusys compatibility (module scalability and adaptivity)
- USB, peripheral interfacing
- User specific application support within the control's multitasking environment
- Sensor bending & correction interface
- Profile-S2D offline software

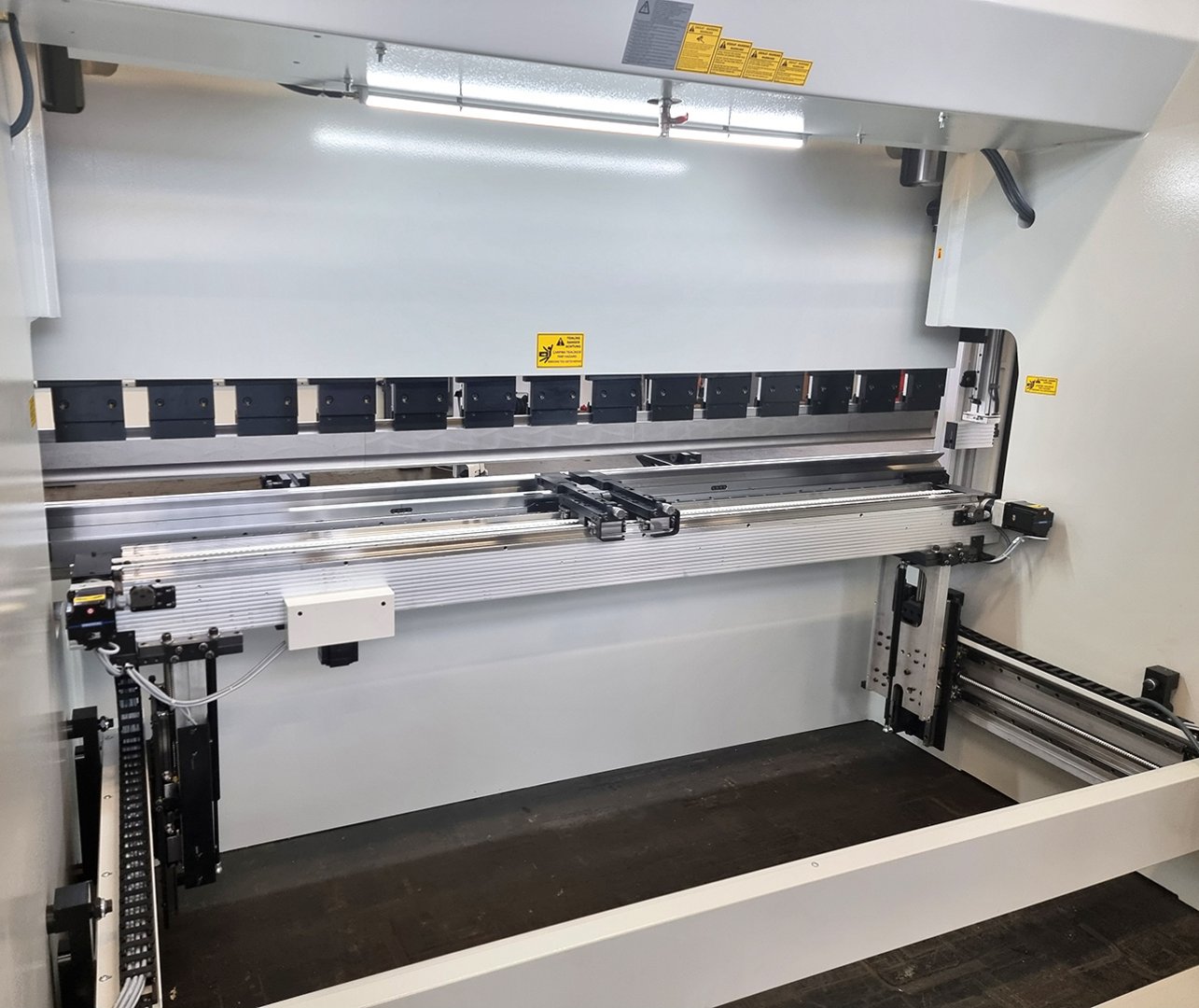

servo motorized back gauge on linear guides and ball screws
back gauge finger blocks on double linear guides
CNC crowning table

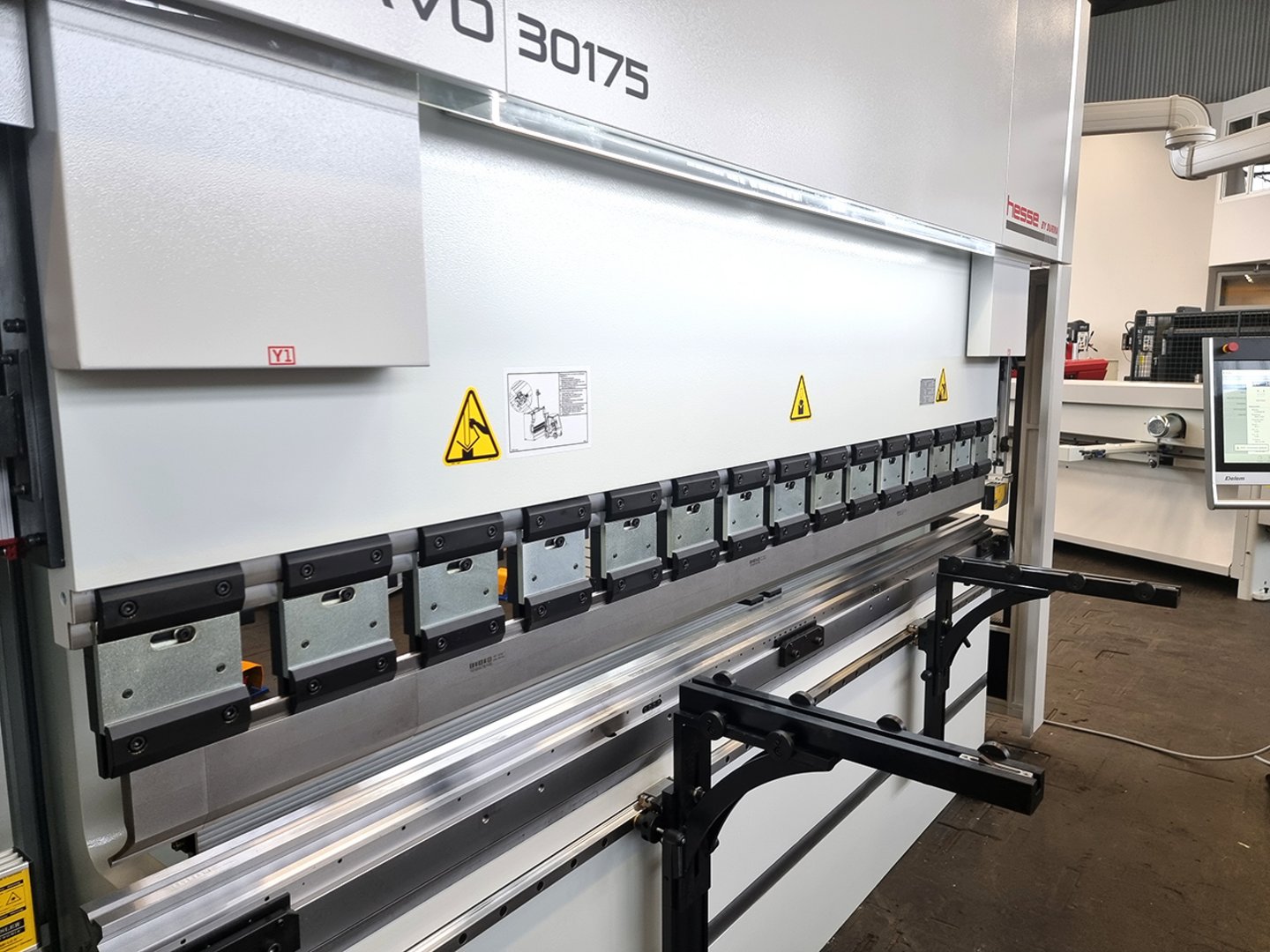

upper tool 1010 / A / 75 °, devided and cranked
4-V die block 60x60 2009 (V = 16,22,35 and 50 mm)
laser safety device Fiessler AKAS mounted on the upper beam
linear guided sheet support arms
according to CE rules
oilfilling
users manual in English or German
Advantages of this concept:
- hydraulic works only while upper beam movement
- low energy consumption
- low noise level
- high speed
optional equipment (time of delivery with these options 16 weeks):
| CNC control DELEM DA-69S 3D incl. PC software Profile-S with 3D file import option | |||
| Further options as pneumatic or hydraulic tool clamping on request. |
