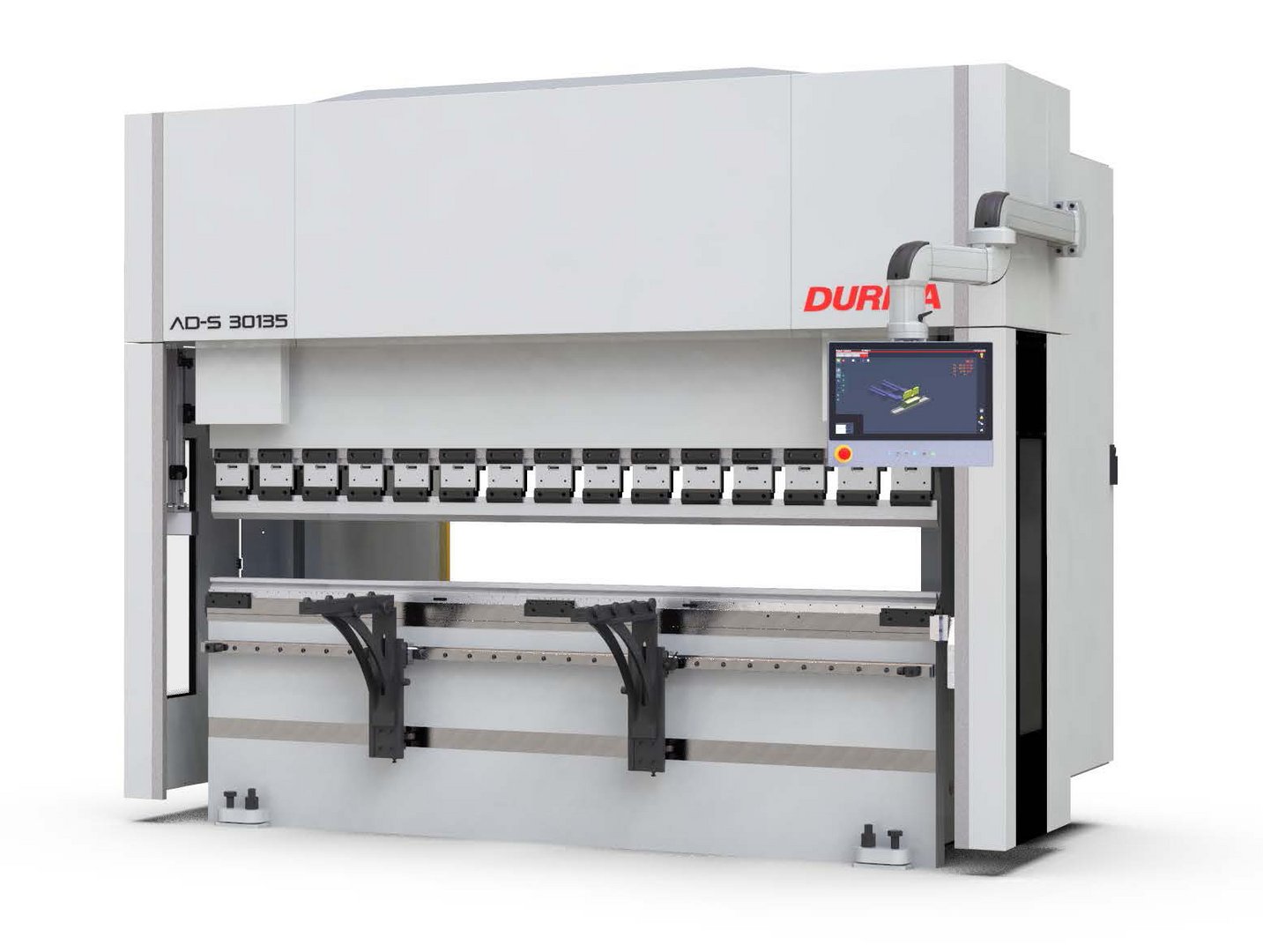

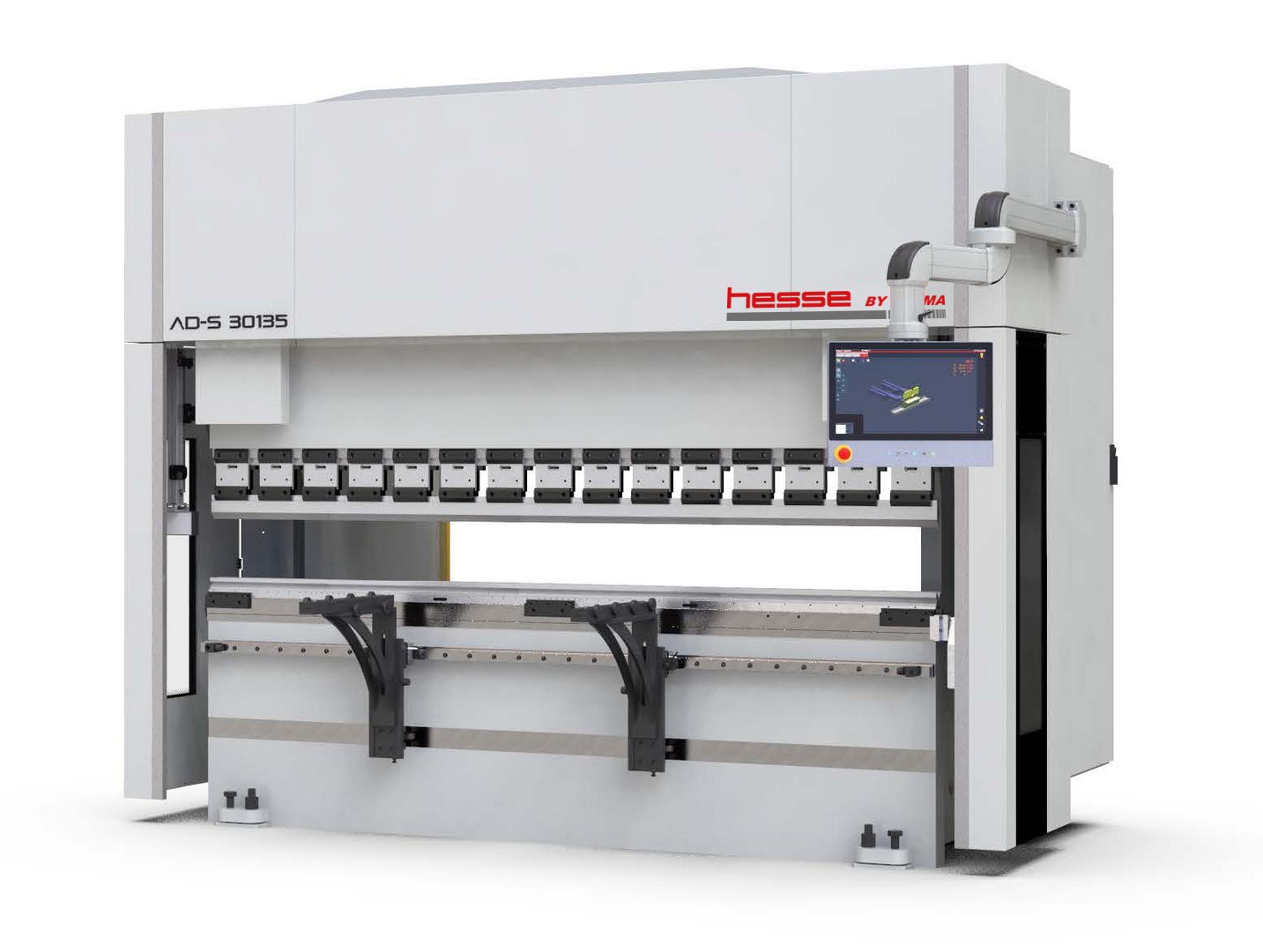

Hydraulic CNC press brake HESSE by DURMA AD-S 30135
| Model | AD-S 30135 |
| Brand | HESSE by DURMA |
| Condition | new |
| pressing capacity | 135 to |
| Bending length | 3050 mm |
| Origin | Türkiye |
General characteristics
| pressing capacity | 135 to |
| Bending length | 3050 mm |
| Axes | Y1 / Y2 / X axis |
| Stroke | 265 mm |
| Inside distance between side frames | 2600 mm |
| Gap in side frame | 450 mm |
| Daylight | 530 mm |
| Power concept | hydraulic |
| rapid speed Y-axis | 160 mm/s |
| Working speed Y-axis | 10 |
| Retractionspeed Y-axis | 120 |
| Back gauge travel X-axis | 500 mm |
| Back gauge speed X-axis | 500 |
| Back gauge speed R-axis | 350 mm/s |
| Back gauge travel R-axis | 250 mm |
| Table height | 900 mm |
| Oiltank | 150 l |
| Motor power | 15 kW |
Dimensions and weight
| Length | 4250 mm |
| Width | 1700 mm |
| Height | 2850 mm |
| Weight | 9580 kg |
Description
Standard accessories:
3 axes (Y1, Y2, X)

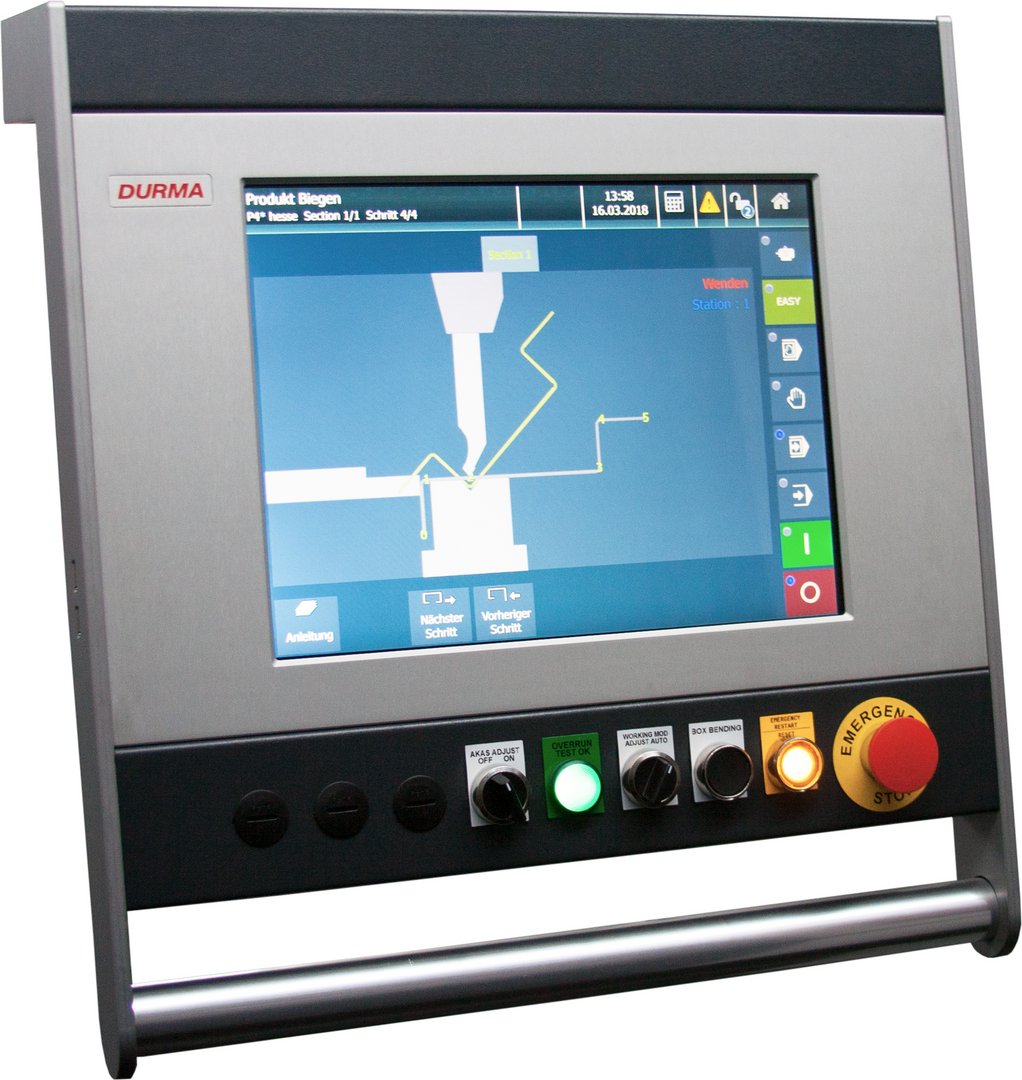

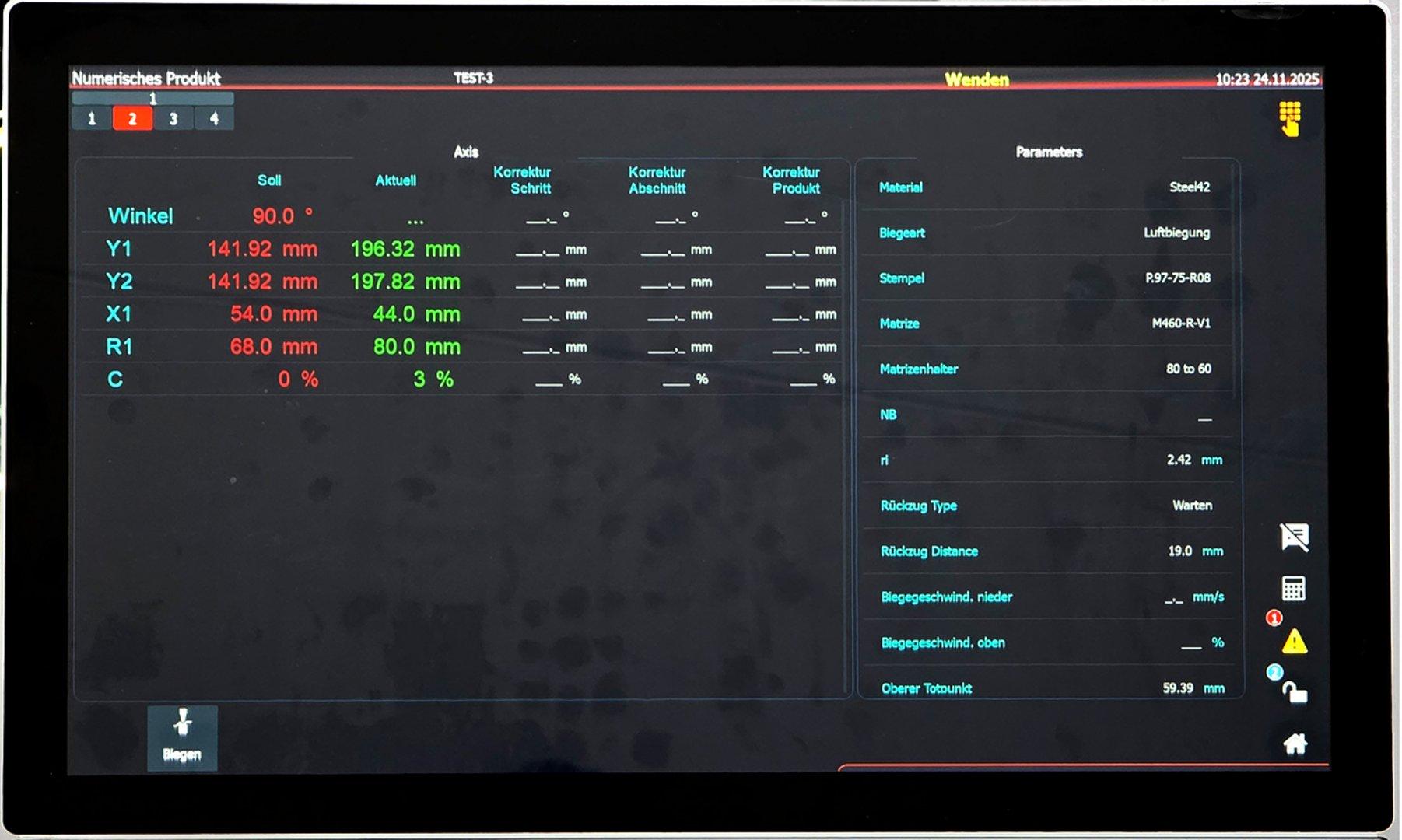

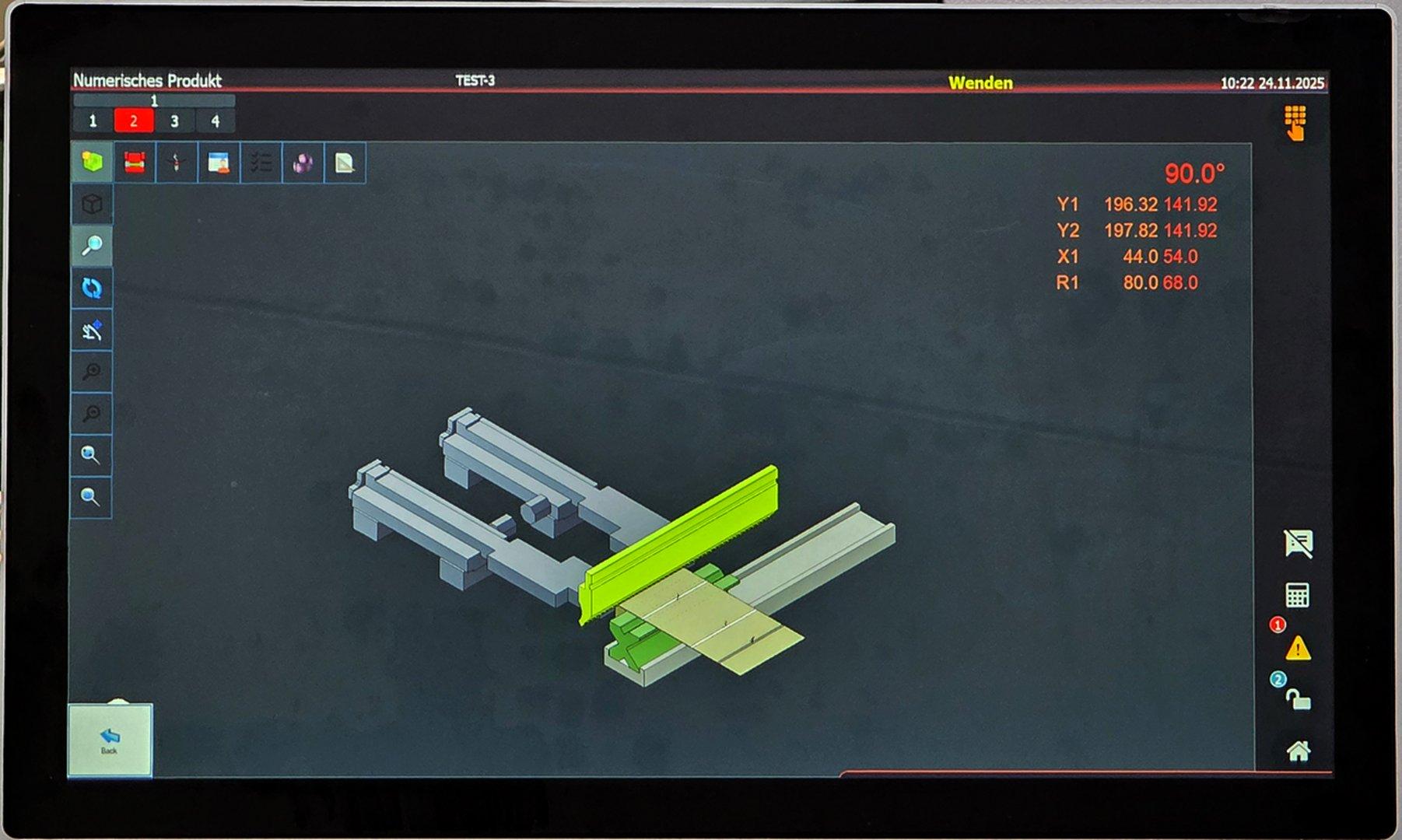

CNC control DT-15
- 2D grafic display 15"
- intuitive touch-screen control (simple drawing of the bending outline with your finger)
- user friendly programming in dialogue form
- automatic calculation of the bending sequence
- automatic calculation of the blank sheet size
- graphic product and tool memory
- correction possibility
- USB interfaces for backup and programm transportation
- PC software, generating programms on the PC and transfer to the machine by USB

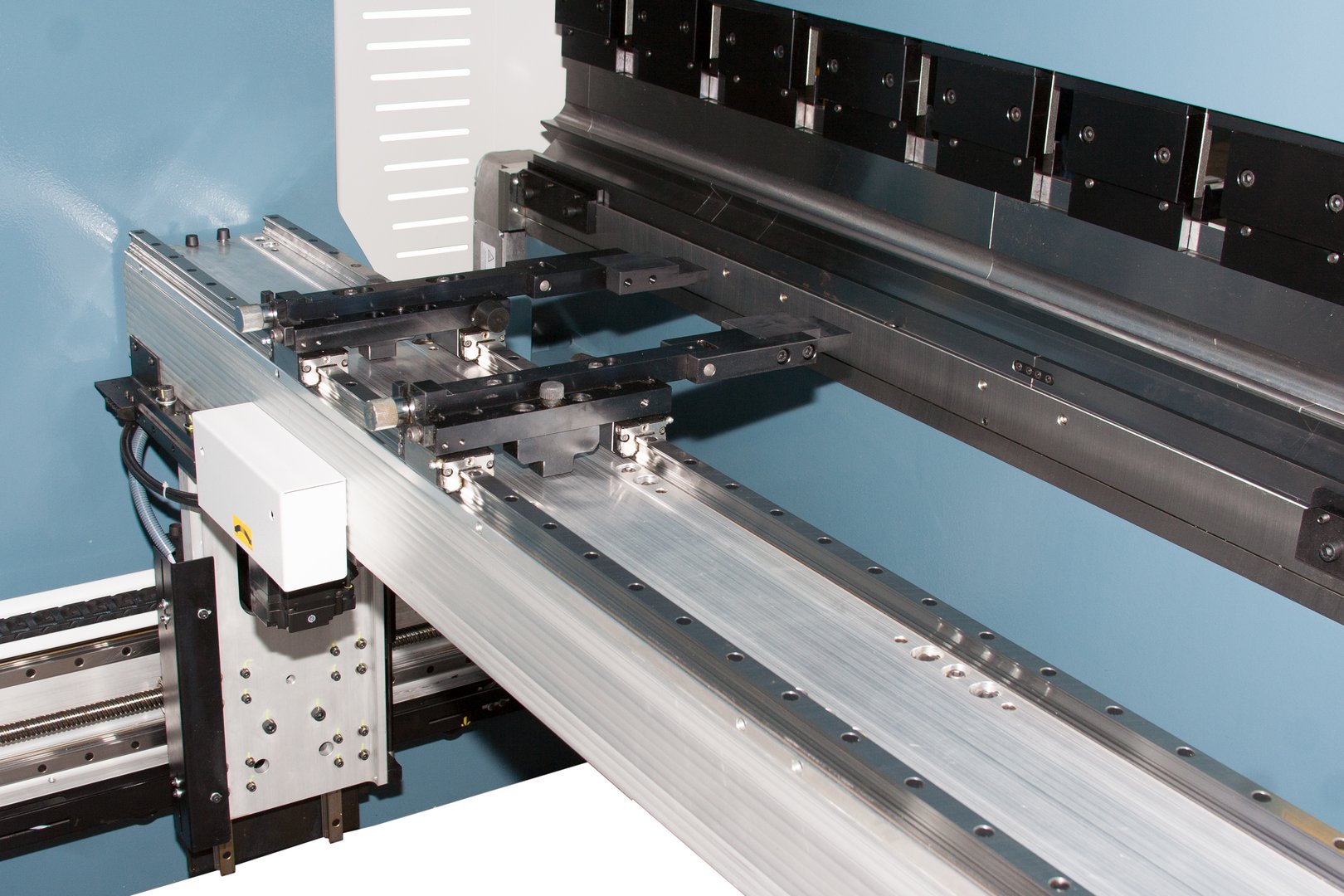

servo motorized back gauge on linear guides and ball screws
back gauge finger blocks on double linear guides
CNC crowning table
upper tool 1010 / A / 75 °, devided and cranked
4-V die block 60x60 2009 (V = 16,22,35 and 50 mm)
laser safety device Fiessler AKAS mounted on the upper beam
linear guided sheet support arms
according to CE rules
oilfilling
users manual in English or German
Advantages of AD-S compaired to PBF:
- more stroke, installation height and throat
- higher approach and retraction speed of the top beam
- higher backgauge speed
- backgauge finger on double instead of single linear guide
- more options available such as: additional backgauge axes (e.g. Z1/Z2, Delta X, up to 6 axes), bending aids, laser angle measuring system, tandem design, other CNC controls ...
Optional equipment:
|
Further information
Product video
Hydraulic CNC press brake AD-S 30135
