Electric CNC press brake HESSE by DURMA AD-EB 2580
| Model | AD-EB 2580 |
| Brand | HESSE by DURMA |
| Condition | new |
| pressing capacity | 80 to |
| Bending length | 2550 mm |
| Origin | Türkiye |
General characteristics
| pressing capacity | 80 to |
| Bending length | 2550 mm |
| Axes | 4 |
| Stroke | 320 mm |
| Inside distance between side frames | 2840 mm |
| Daylight | 500 mm |
| Power concept | servomotorized belt drive |
| rapid speed Y-axis | 105 mm/s |
| Working speed Y-axis | 10 |
| Retractionspeed Y-axis | 105 |
| Back gauge travel X-axis | 650 mm |
| Back gauge travel R-axis | 250 mm |
Dimensions and weight
| Length | 3700 mm |
| Width | 2200 mm |
| Height | 2550 mm |
| Weight | 6400 kg |
Description

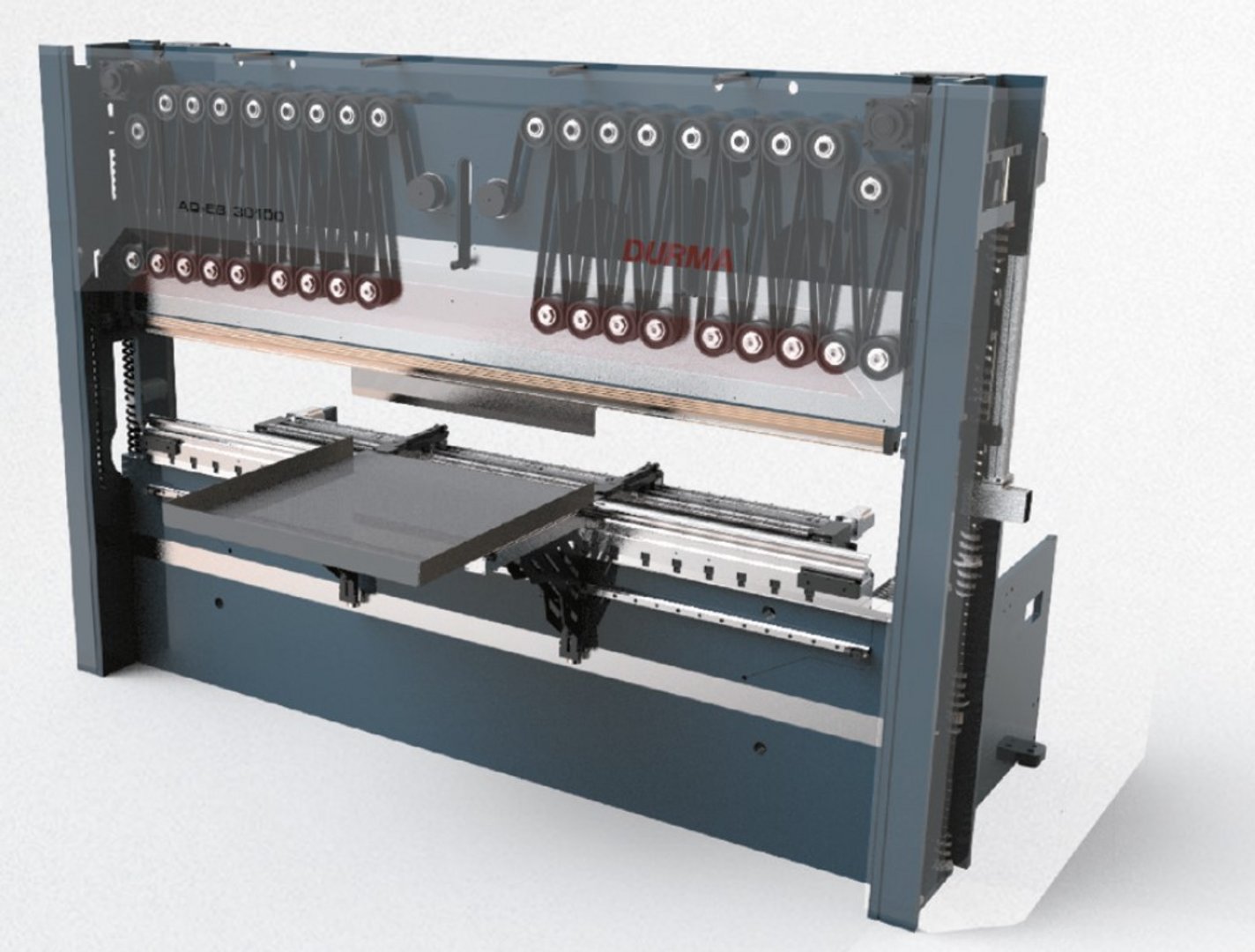

Electromotor drive with multiple switched flat belt system
4 axes (Y1, Y2, X, R)
CNC control DELEM DA-66S
- 2D touchscreen display 17“
- 3D visualisation in simulation and production
- intuitive touch-screen control (simple drawing of the bending outline with your finger)
- simple and convenient data transfer
- multi-simulation option
- user friendly programming in dialogue form
- graphic simulation of the bending sequence
servo motorized back gauge on linear guides and ball screws
back gauge finger blocks on double linear guides
upper tool 1010 / A / 75 °, devided and cranked
4-V die block 60x60 2009 (V = 16,22,35 and 50 mm)
safety device BLVT light guard
linear guided sheet support arms
according to CE rules
users manual in English or German
Advantages of this concept:
- no reduction of working width by side side columns, distance between columns is bigger as bending width
- up to 30 % higher productivity as classic hydraulic press brakes,
by nearly instantaneously reaction on foot pedal signal
- marginally frame deflection
- now crowning necessary by spreading the force along the bending length
- high repetition and bending accuracy along the bending lengt
- low energy consumption
- no hydraulic components
Options:
|
CNC control DELEM DA-69S 3D incl. PC software Profile-S with 3D file import option |
|
|
