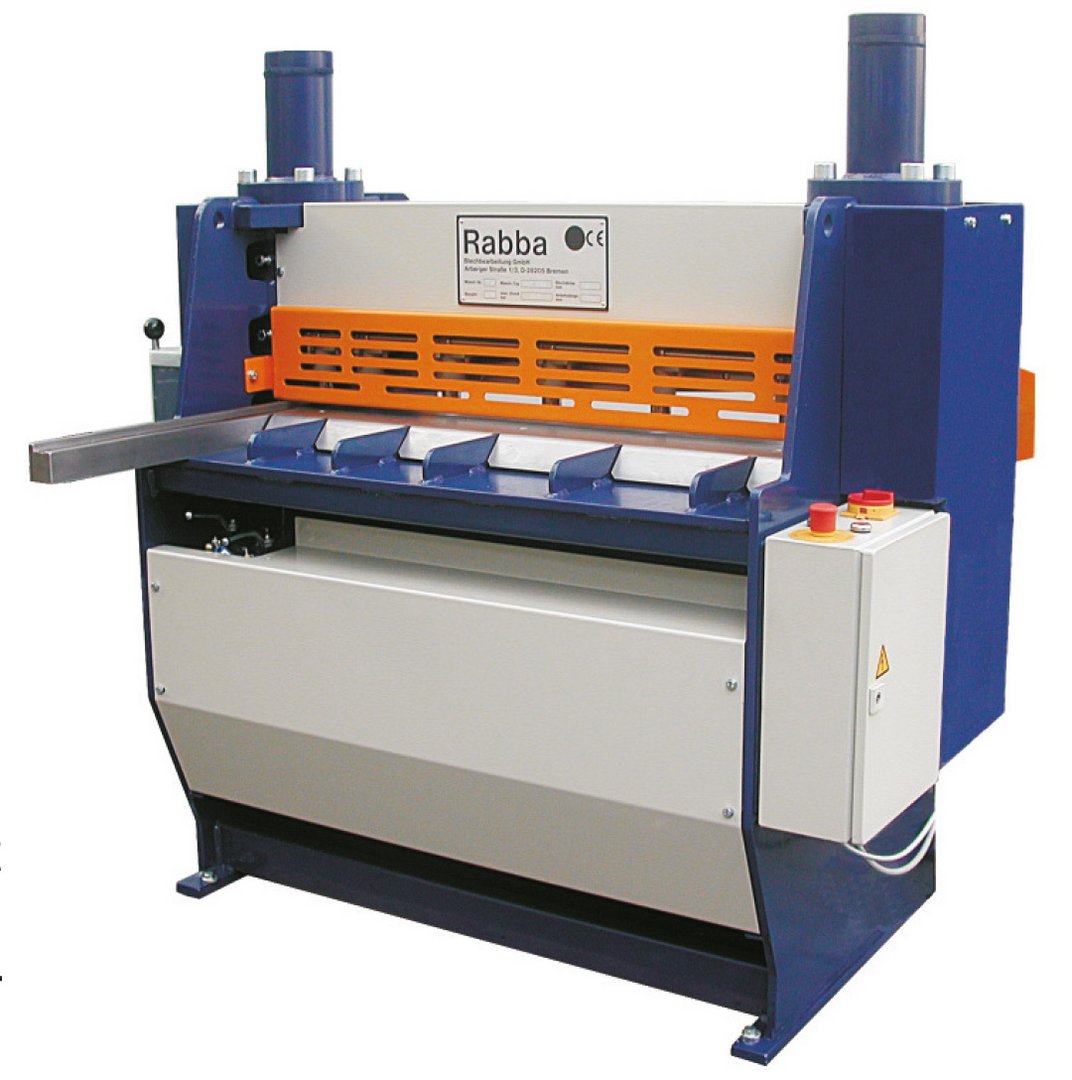

Hydraulic plate shear RABBA HS 10/1000
| Model | HS 10/1000 |
| Brand | RABBA |
| Condition | new |
| Max. thickness - mild steel | 10 mm |
| Cutting length | 1030 mm |
General characteristics
| Cutting length | 1030 mm |
| Max. thickness - mild steel | 10 mm |
| Max. thickness - stainless steel | 6 mm |
| Strokes | 10 1/min |
| Cutting angle | 3 ° |
| Number of downholders | 7 pcs. |
| Back gauge | 5000 mm |
| Motor power | 11 kW |
| Oiltank | 100 l |
| Table height | 900 mm |
Dimensions and weight
| Length | 1550 mm |
| Width | 1150 mm |
| Height | 1600 mm |
| Weight | 1900 kg |
Description
hydr. drive unit, completely integrated in the machine body
overload safety, hydraulic and electrical
adjusting of the cutting angle
adjusting of the cutting gap
blank holder pressure, adjustable
support arm with angle stop and scale up to 600 mm
4 rotating knives for VA steel
movable pedal switch with solenoid valves
manual adjustable and foldable back gauge
exchangeable machine table support
section area lighting
