Hydraulic plate shear HESSE by DURMA SBT 3006
| Model | SBT 3006 |
| Brand | HESSE by DURMA |
| Condition | used |
| Year of manufacture | 2023 |
| Max. thickness - mild steel | 6 mm |
| Cutting length | 3100 mm |
| Stock number | 9678 |
| Origin | Türkiye |
General characteristics
| Cutting length | 3100 mm |
| Max. thickness - mild steel | 6 mm |
| Max. thickness - stainless steel | 4 mm |
| Gap in side frame | 50 mm |
| Strokes | 15 1/min |
| Cutting angle | 1 ° |
| Number of downholders | 16 pcs. |
| Pressure of downholder | 14 to |
| Back gauge | 1000 mm |
| Back gauge speed | 200 mm/s |
| Motor power | 15 kW |
| Oiltank | 200 l |
| Support arms | 2 pcs. |
| Table height | 865 mm |
| Table width | 500 mm |
| Table length | 3515 mm |
Dimensions and weight
| Length | 4110 mm |
| Width | 2200 mm |
| Total width with support arm und protection fence | 3700 mm |
| Height | 2100 mm |
| Weight | 7300 kg |
Description
Swing cut construction

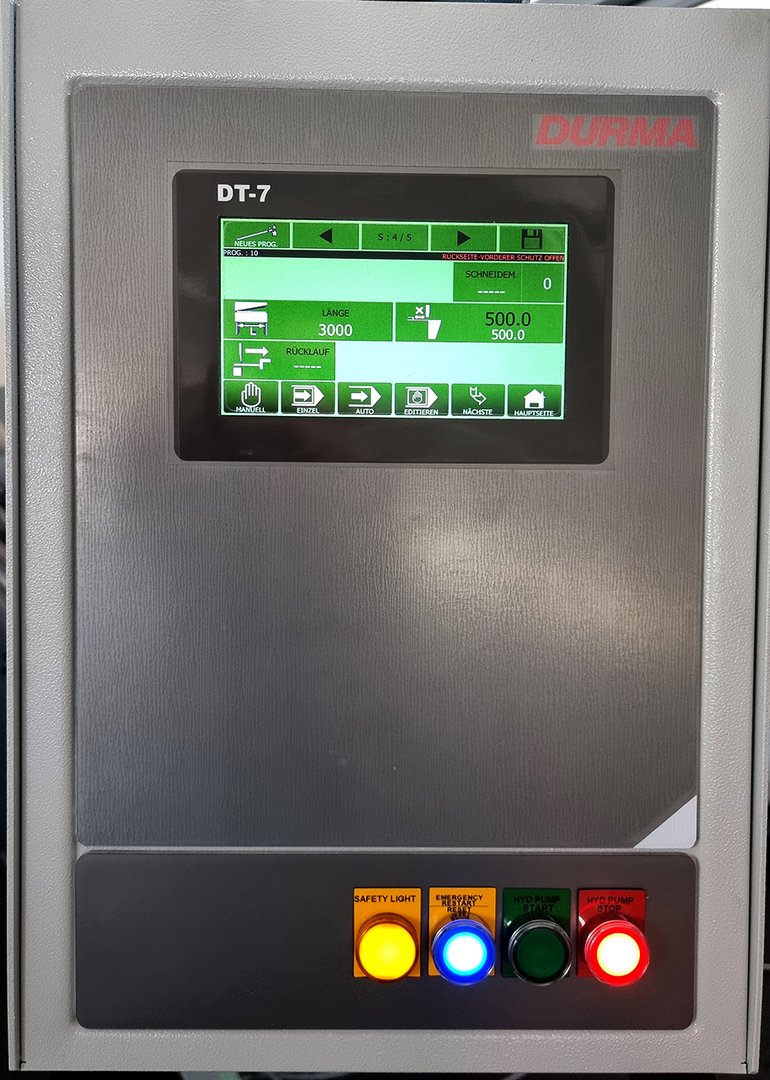

NC-preselection system D-touch 7 with touch screen for back gauge, cutting length, quantity, USB port
Motorized back gauge 1000 mm on ball screws, folding upwards
Clear control panel mounted on moveable arm

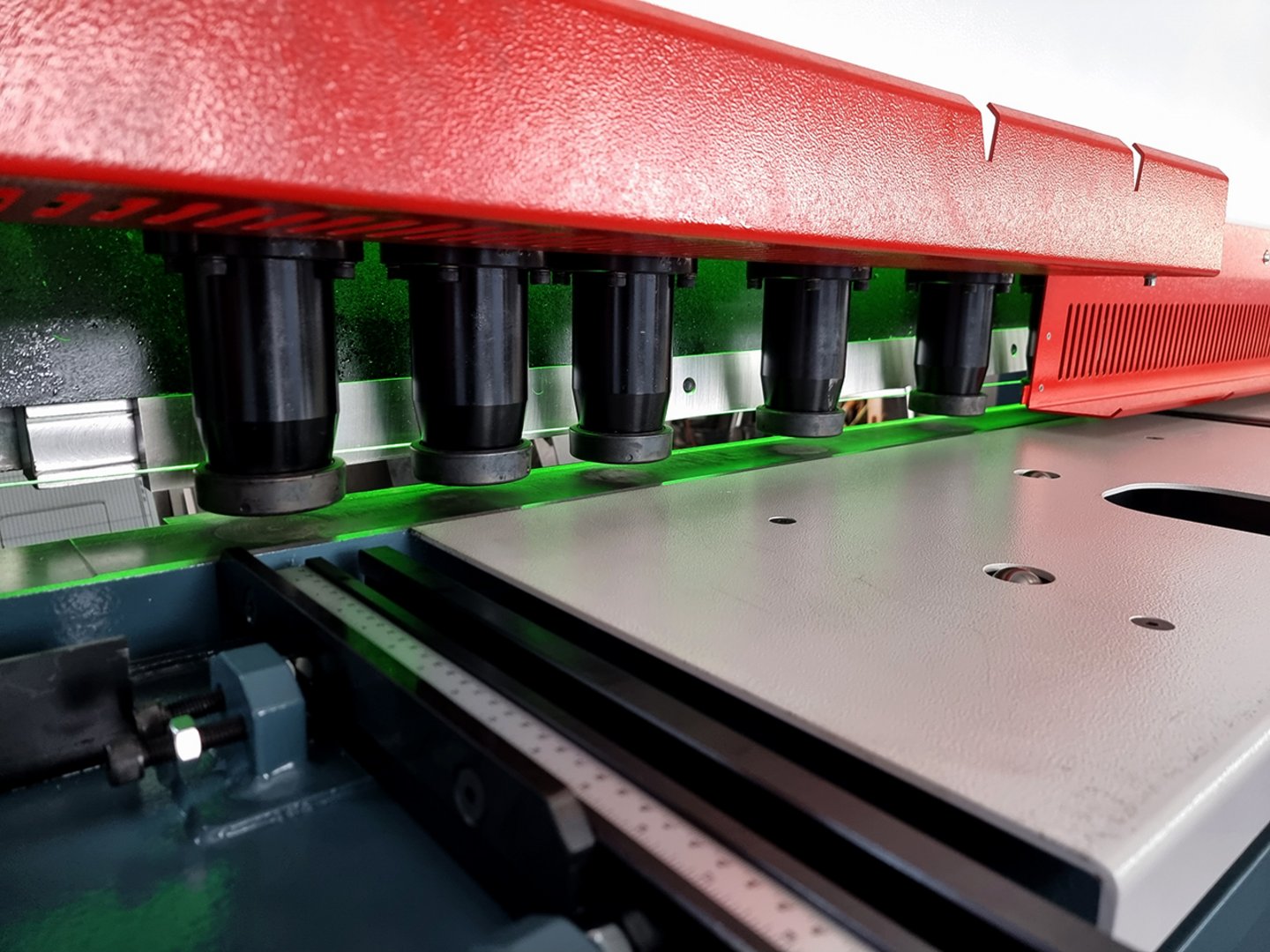

Hydraulic hold down pistons are arranged close to the cutting edge
Foot switch

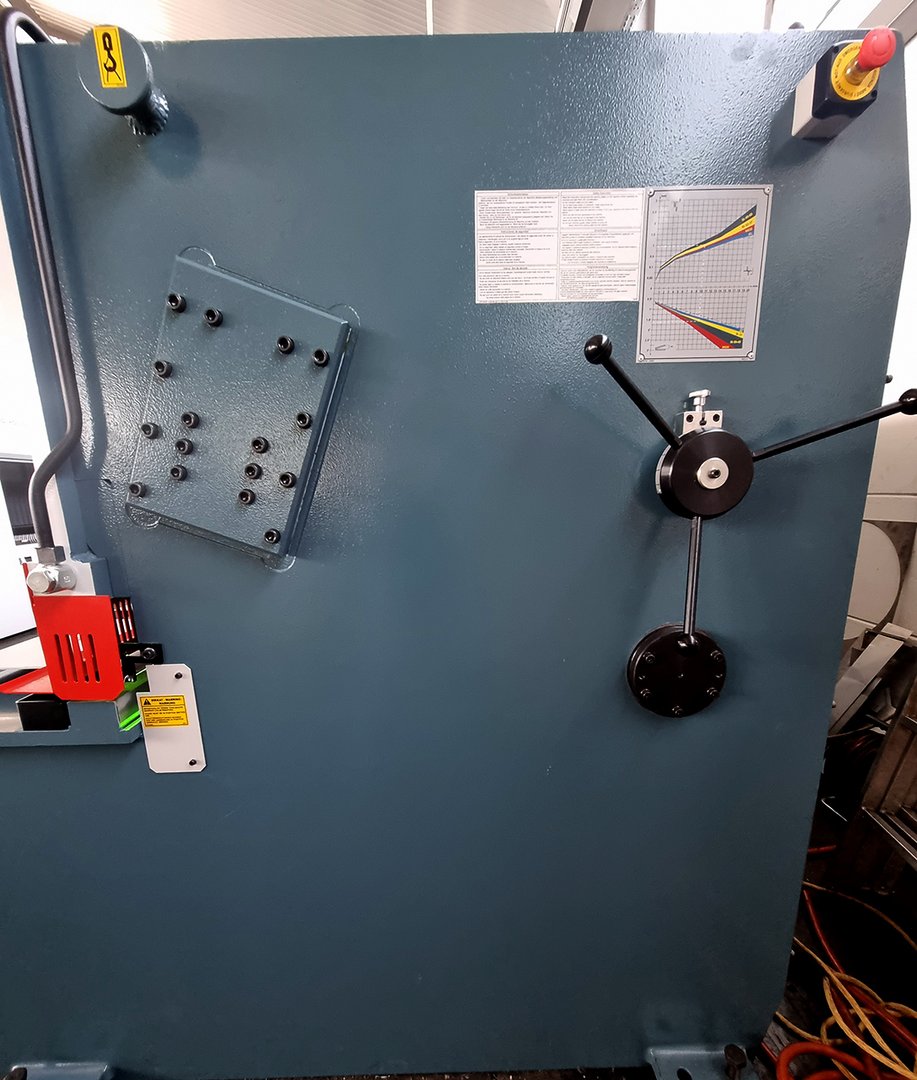

Central, manual blade gap adjustment
Cutting line illumination
Broad table with balls
Piece counter
Single and continous stoke
Fold up finger guard 1.000 mm
1 squaring arm 1. 500 mm with scale, T-slot and tilting cam
2 supporting arms 1.000 mm with T-slot
Simple replacement and grinding of the blades
Variable adjustable cutting length for economic processing
Lower blade fourfold turnable
Upper blade double turnable
Oilfilling
Light barrier on the back of the machine
Qualified customer support
User manual in GERMAN and ENGLISH
according to CE rules
We have more than 850 references!
Further information
Brochures
Product video
Hydraulic plate shear SBT 3006
