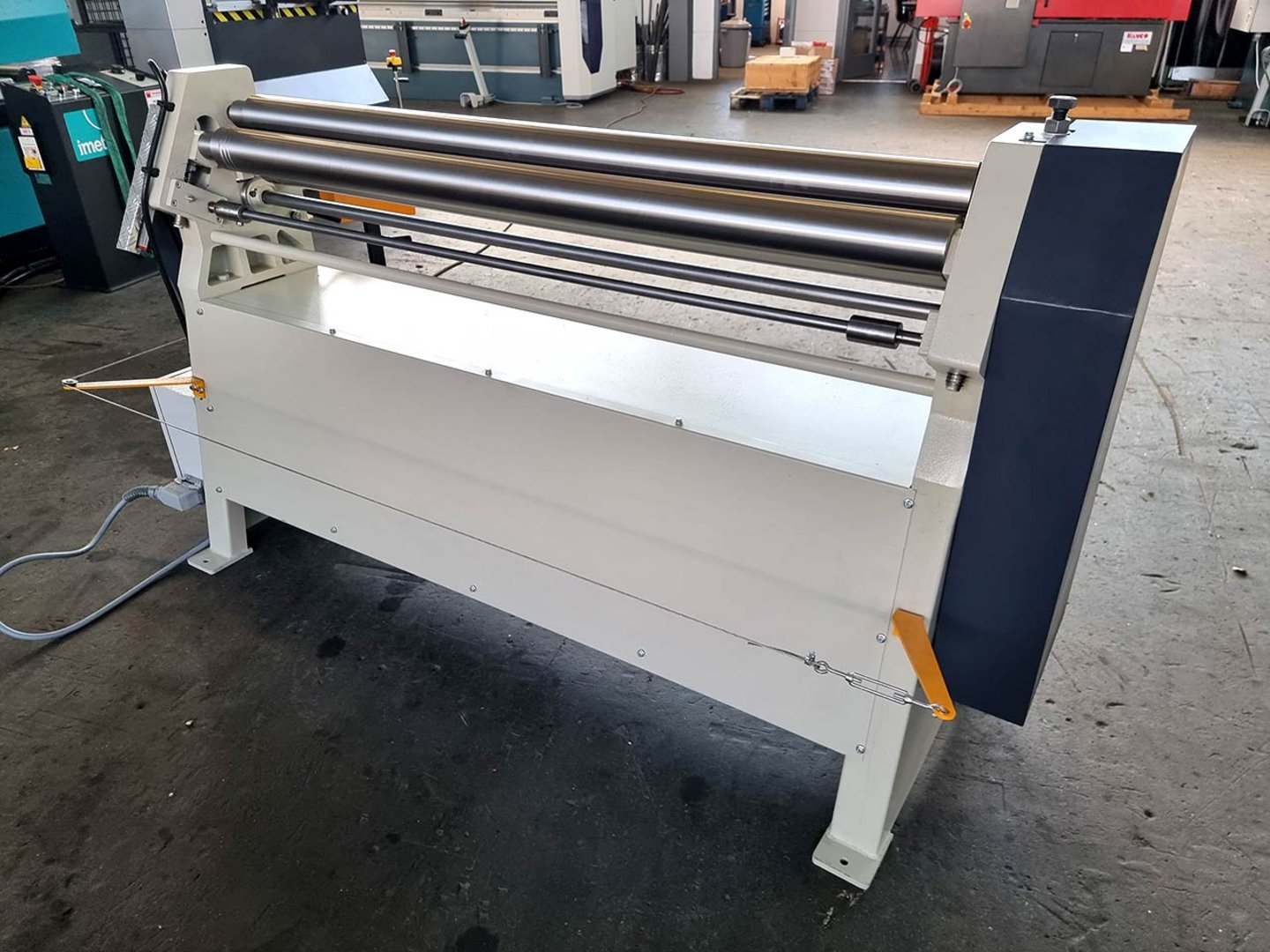

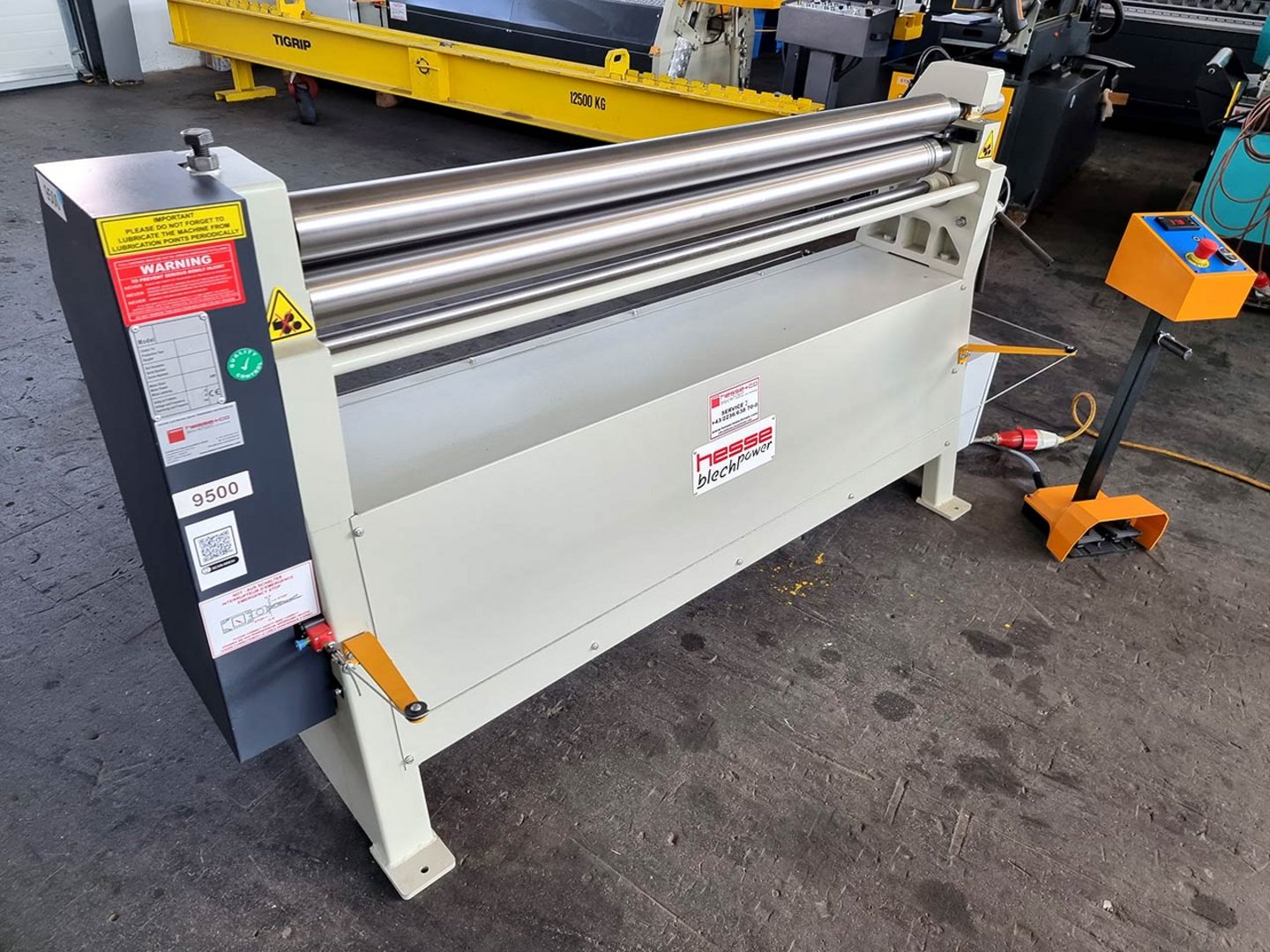

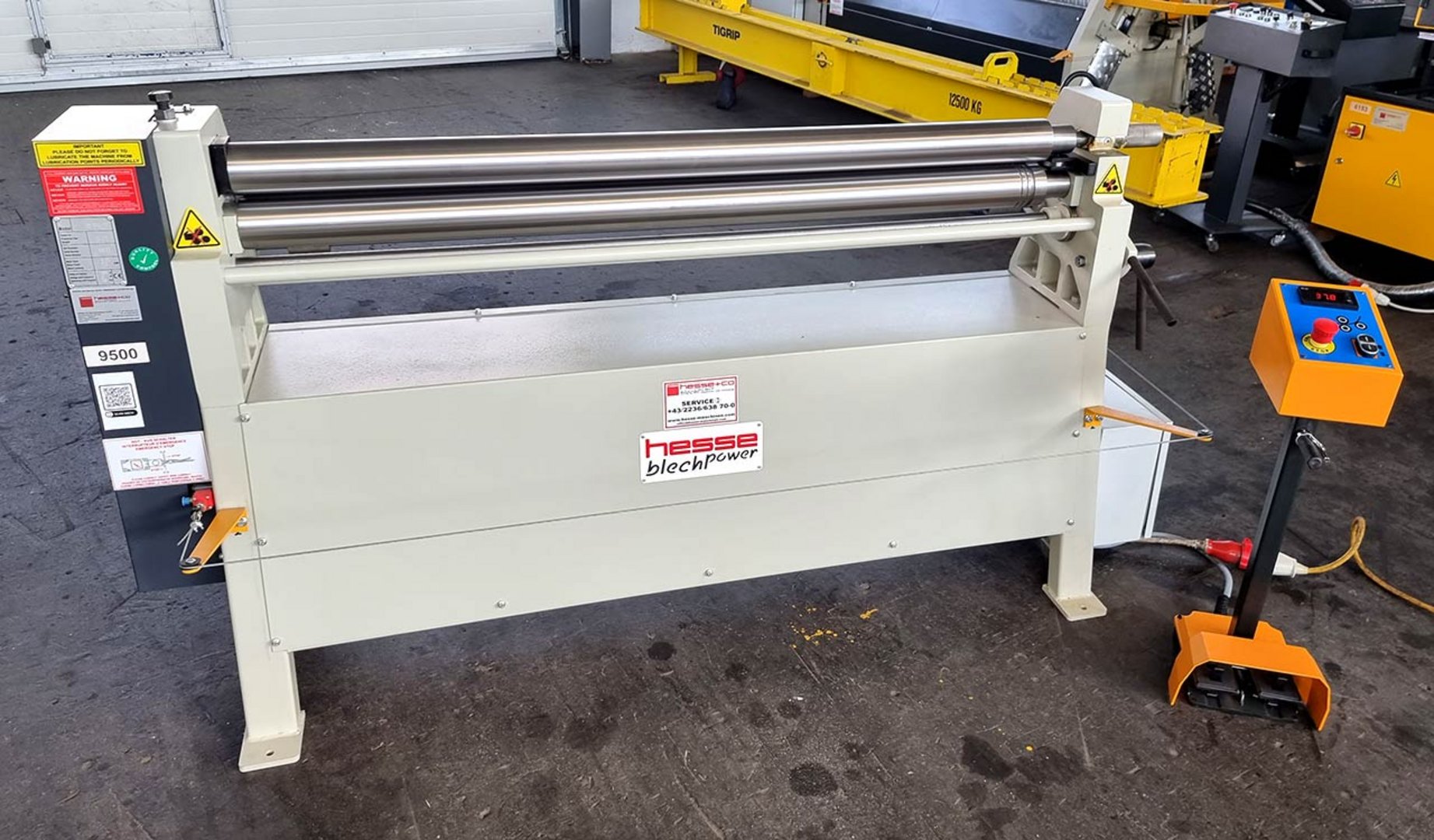

Motorized 3-roll plate bending machine HESSE by ISITAN RM 1550 x 90
| Model | RM 1550 x 90 |
| Brand | HESSE by ISITAN |
| Condition | new |
| Bending length | 1550 mm |
| Upper roll diameter | 90 mm |
| Origin | Türkiye |
General characteristics
| Bending length | 1550 mm |
| Max. bending capacity - mild steel | 2 |
| Upper roll diameter | 90 mm |
| Bending speed | 6 m/min |
| Motor power | 1.5 kW |
Dimensions and weight
| Length | 2130 mm |
| Width | 700 mm |
| Height | 1200 mm |
| Weight | 545 kg |
Description
3 rolls
asymmetric rolls - prebending
2 rolls driven by brakemotor
lateral roll adjustable by handwheel
longitudinal grooves in lower and lateral roll
tiltable upper roll
right / left rotation with double foot switch
conical rolling device
user manual in GERMAN or ENGLISH
Options:
powered back roll EUR 1.000,-
digital readout EUR 1.100,-
