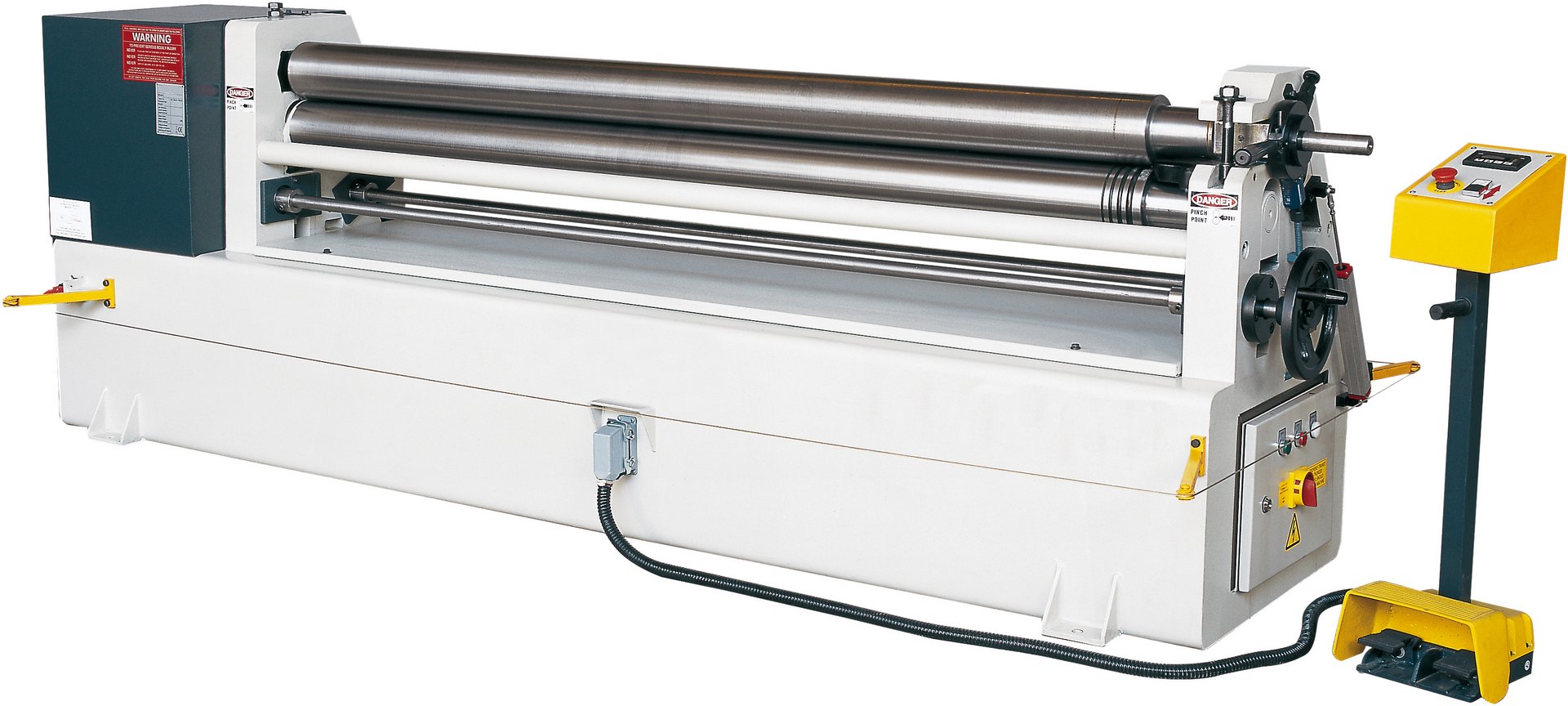

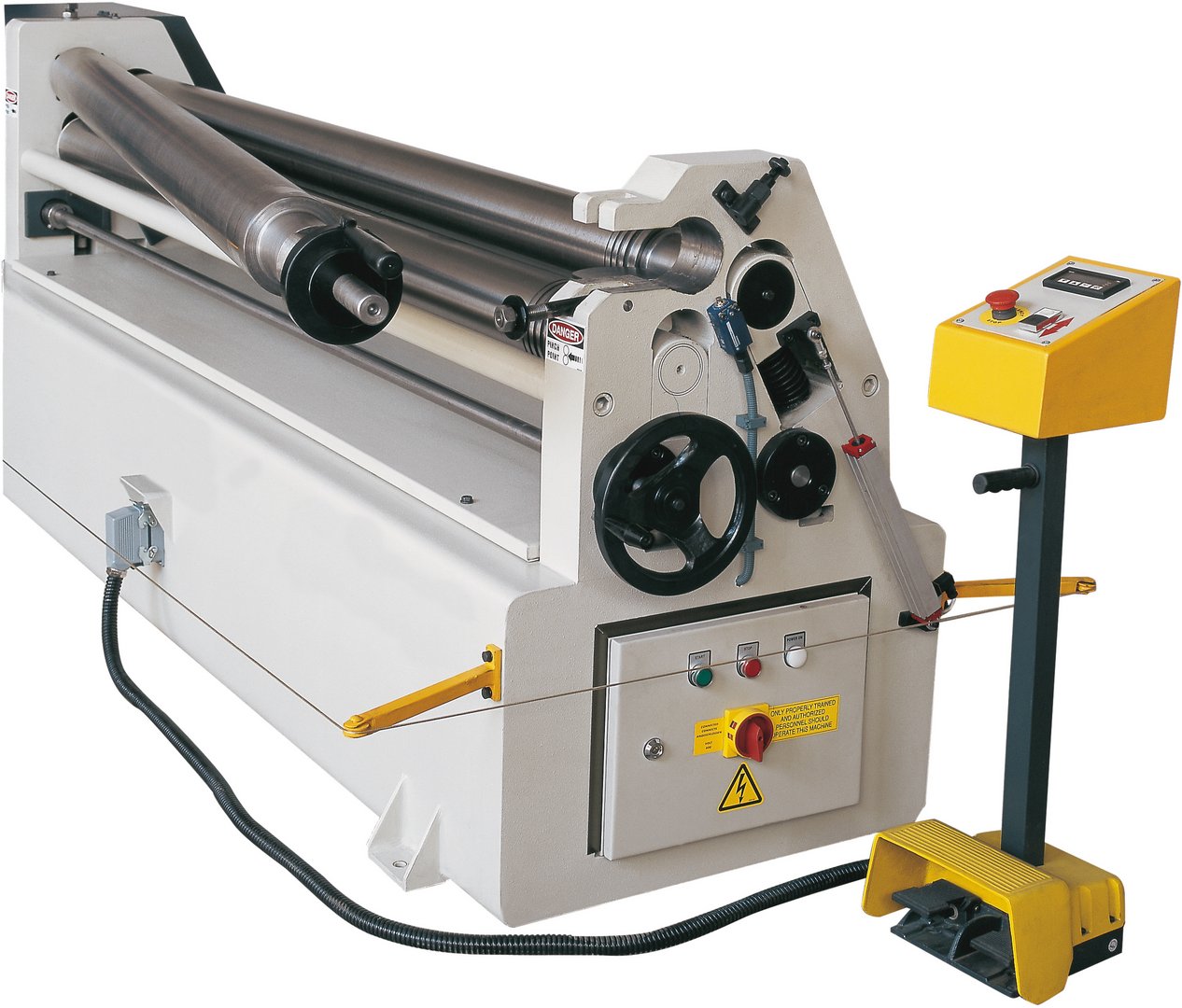

Motorized 3-roll plate bending machine HESSE by ISITAN IRM 1050 x 110
| Model | IRM 1050 x 110 |
| Brand | HESSE by ISITAN |
| Condition | new |
| Bending length | 1050 mm |
| Upper roll diameter | 110 mm |
| Origin | Türkiye |
General characteristics
| Bending length | 1050 mm |
| Max. bending capacity - mild steel | 4 |
| Upper roll diameter | 110 mm |
| Motor power | 2.2 kW |
Dimensions and weight
| Length | 1100 mm |
| Width | 750 mm |
| Height | 1000 mm |
| Weight | 990 kg |
Description
3 rolls
asymmetric rolls - prebending
2 rolls driven by brakemotor
manual Back Roll
forward tiltable upper roll
forward and reverse revs
conical bending by tilt of backroll
movable control panel
users manual in ENGLISH or GERMAN
Options:
hardened Rolls € 1.120,-
Motorised Back Roll (Power Rear Roll) € 1.200,-
Digital Read-Out € 1.200,-
