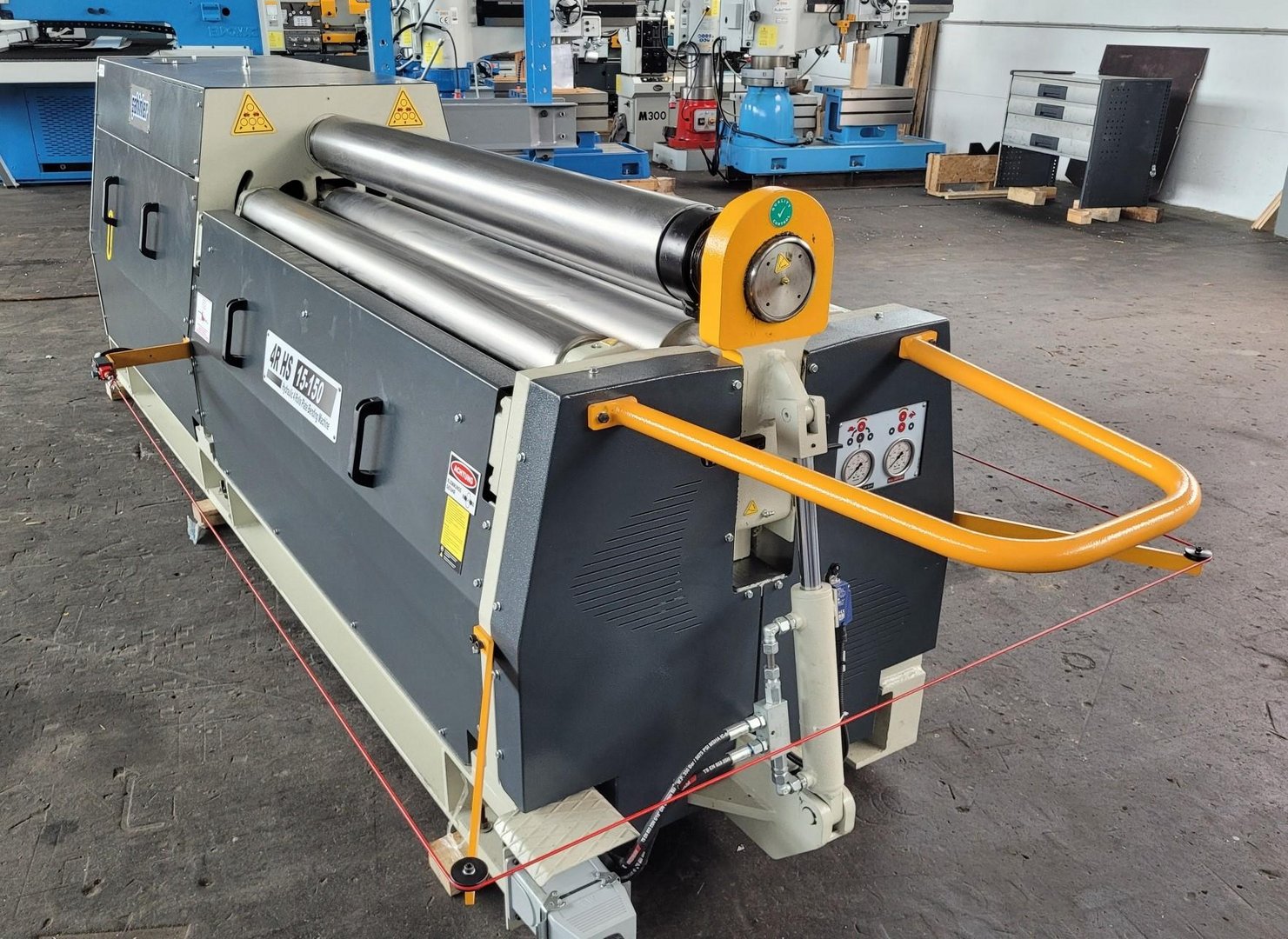

Hydraulic 4-roll plate bending machine HESSE by SAHINLER 4R HS 25-245
| Model | 4R HS 25-245 |
| Brand | HESSE by SAHINLER |
| Condition | new |
| Bending length | 2550 mm |
| Upper roll diameter | 245 mm |
| Origin | Türkiye |
General characteristics
| Bending length | 2550 mm |
| Max. bending capacity - mild steel | 10 |
| Max. plate thickness without prebending at D=5x upper roll diam. - mild steel | 10 mm |
| Max. plate thickness without prebending at D=1,5x upper roll diam. - mild steel | 8 mm |
| Max. plate thickness with prebending at D=5x upper roll diam. - mild steel | 8 mm |
| Max. plate thickness with prebending at D=1,5x upper roll diam. - mild steel | 6 mm |
| Upper roll diameter | 245 mm |
| Lower roll diameter | 245 mm |
| Lateral roll diameter | 180 mm |
| Bending speed | 1,5-6 m/min |
| Motor power | 7.5 kW |
Dimensions and weight
| Length | 4800 mm |
| Width | 1600 mm |
| Height | 1470 mm |
| Weight | 6170 kg |
Description
4 rolls
Top rolll driven by hydromotor and planetary gearbox, bottom roll driven by gear and cardan system
Pinch roll and latereal rolls move with hydraulic cylinders
Digital read-out for lower and side rolls position
Hardened rolls
Conical bending device
Hydraulic load relieving of upper roll

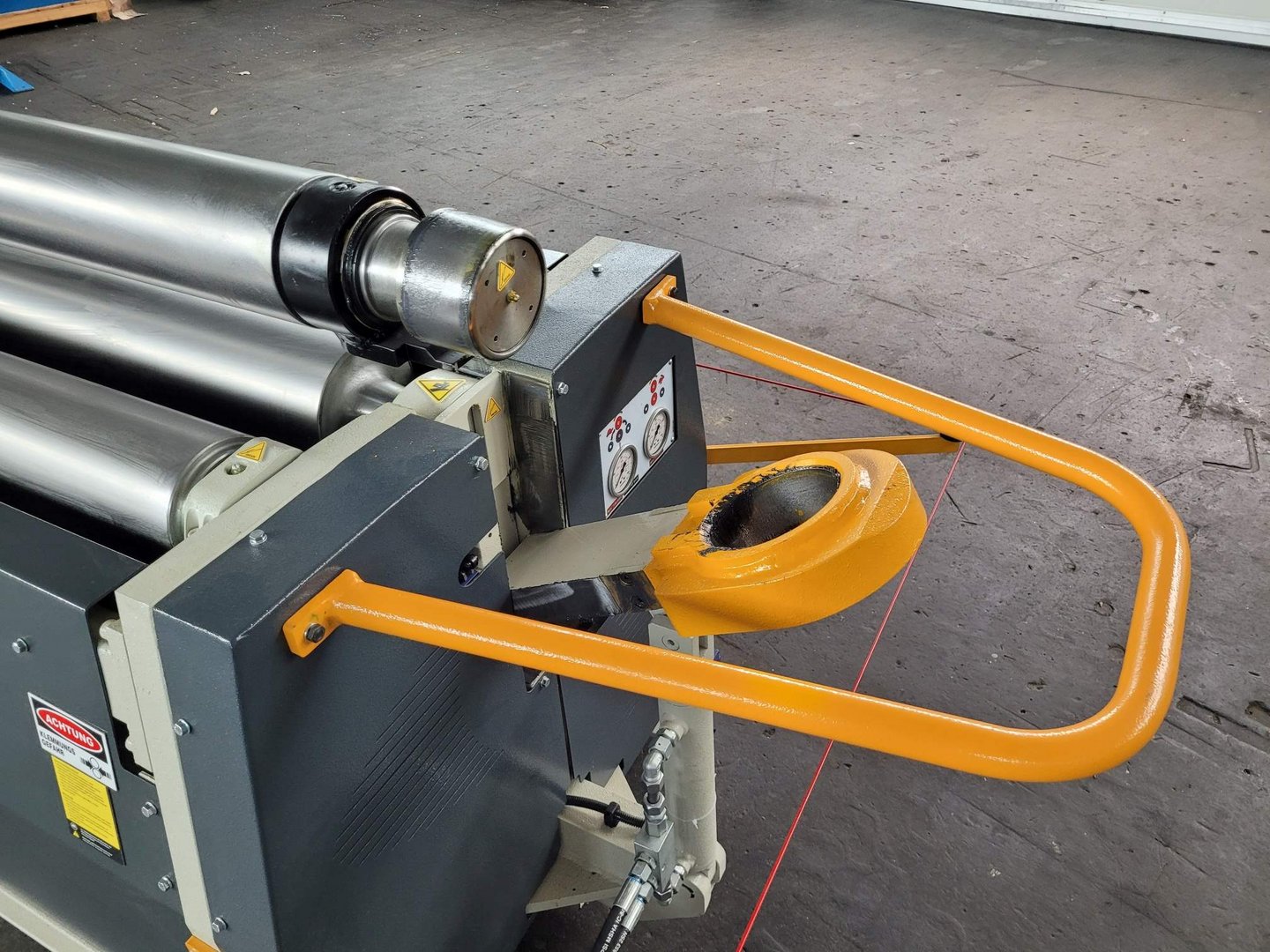

Hydraulic drop-end bearing
2 working speeds
Protection against overload

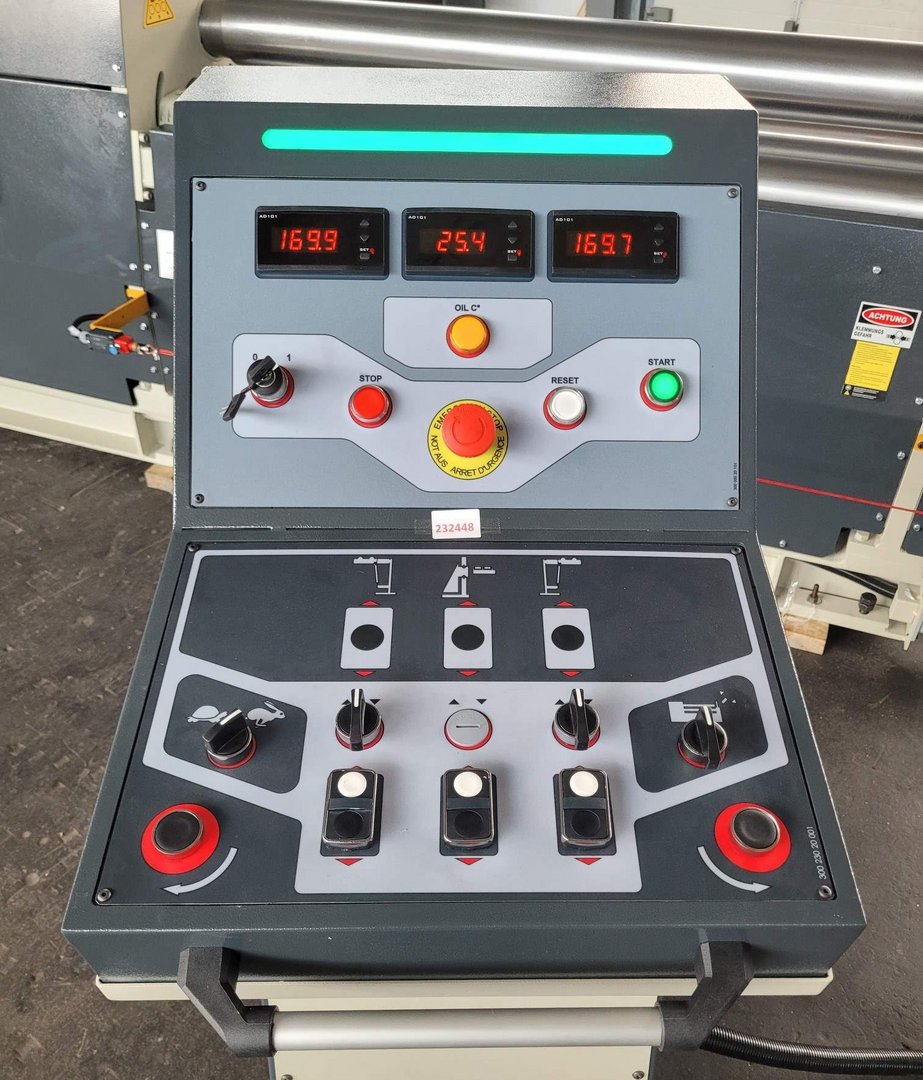

Moveable control pane
According to CE rules
Optional equipment:
Infinitely adustable speed of rolls
Hydraulic side support
Hydraulic top support
Important issues at conical bending:
The max. sheet metal thickness is equivalent to 50 % of nominal capacity
The cone length can be max. 30 % ore must be more than 60 % of roll length
Hardened rolls are recommended
