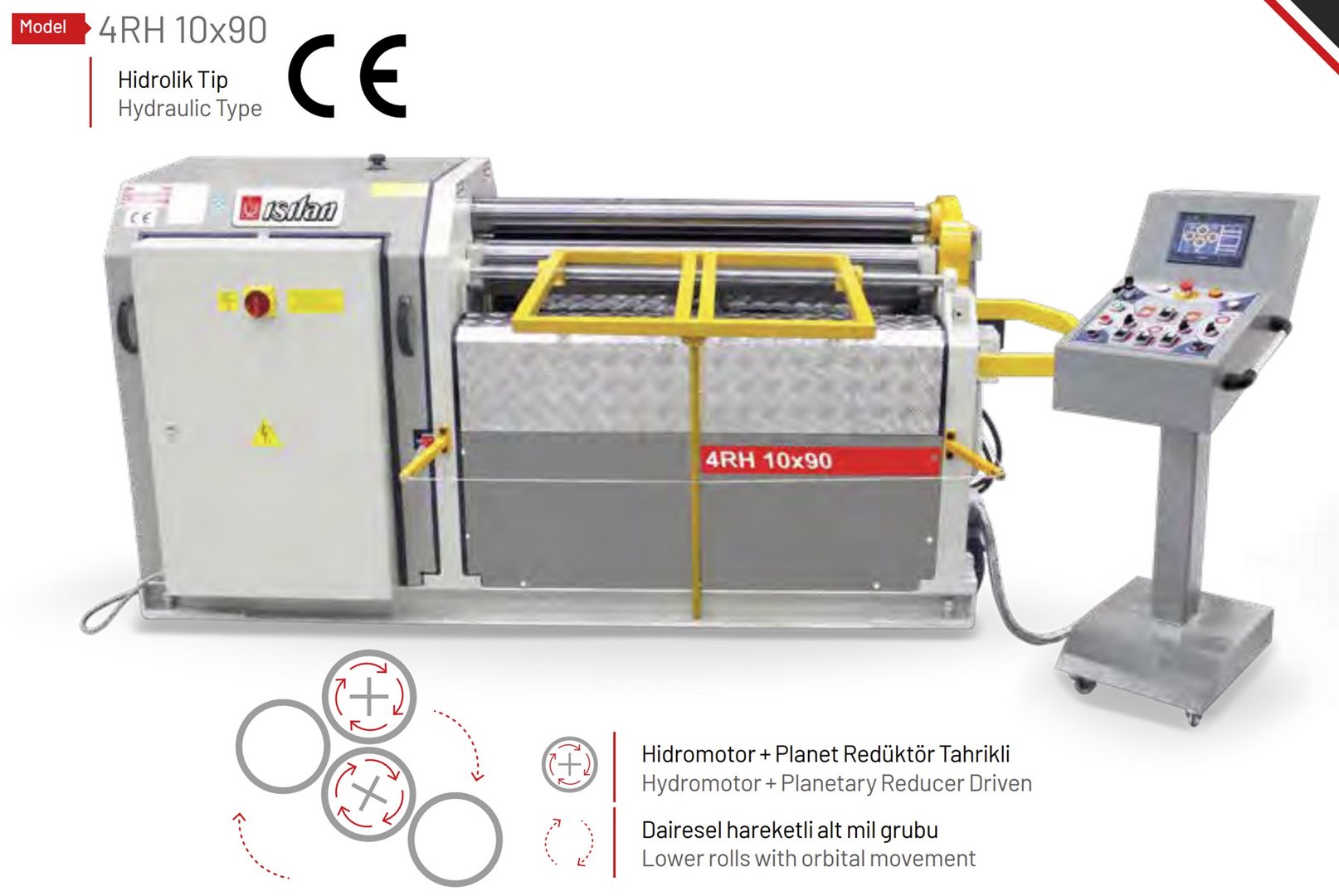

Hydraulic 4-roll plate bending machine HESSE by ISITAN 4RH 10x90
| Model | 4RH 10x90 |
| Brand | HESSE by ISITAN |
| Condition | new |
| Bending length | 1050 mm |
| Upper roll diameter | 90 mm |
| Origin | Türkiye |
General characteristics
| Bending length | 1050 mm |
| Max. bending capacity - mild steel | 2.5 |
| Max. plate thickness without prebending - mild steel | 2.5 mm |
| Max. plate thickness with prebending - mild steel | 2 mm |
| Upper roll diameter | 90 mm |
| Bending speed | 4 m/min |
| Motor power | 2.2 kW |
Dimensions and weight
| Length | 2250 mm |
| Width | 1000 mm |
| Height | 1500 mm |
| Weight | 900 kg |
Description
For round and eleptic shapes for mass production (cycle up to only 20 sec possible)
4 rolls
NC control with touchscreen
Top roll driven by hydromotor and plantary gearbox
Hydraulic drop end
Mobile control panel
Hardened rolls
Operating manual in English or German
Option:
Feeding table price on request
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
