General characteristics
| Working area | 1500x3000 mm |
| Plasma source | Hypertherm Powermax 125 |
| Max. thickness - mild steel | 25 mm |
| Max. piercing thickness - mild steel | 25 mm |
| Max. tickness for separating cut | 57 mm |
| Recommended thickness (unalloyed steel): | 25 mm |
| Current | 125 A |
| Current / power-on time | 125 A |
| Rapid speed | 24 m/min |
| Repeat accuracy | 1/10 mm |
| Max. weight on table | 400 kg/m² |
Dimensions and weight
| Length | 3560 mm |
| Width | 1960 mm |
| Height | 1500 mm |
| Weight | 650 kg |
Description

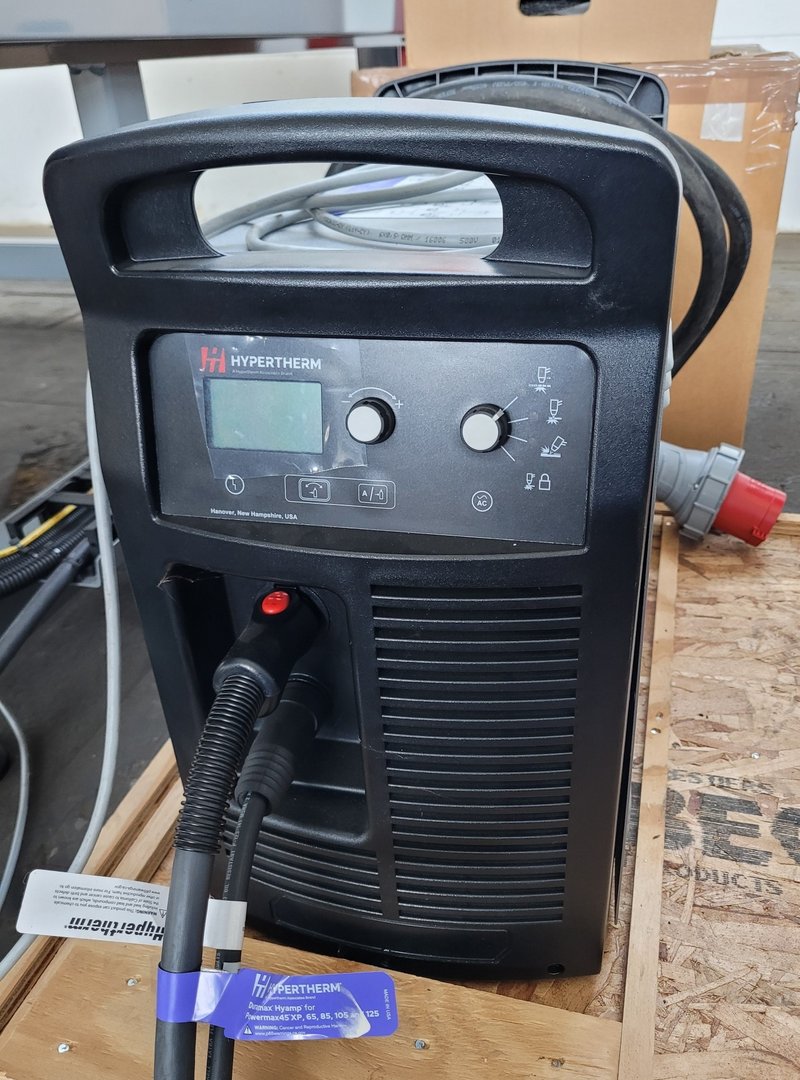

compressed air powered plasma source HYPERTHERM Powermax 125
CNC-workbench software (external PC not included)
adjustable rollers

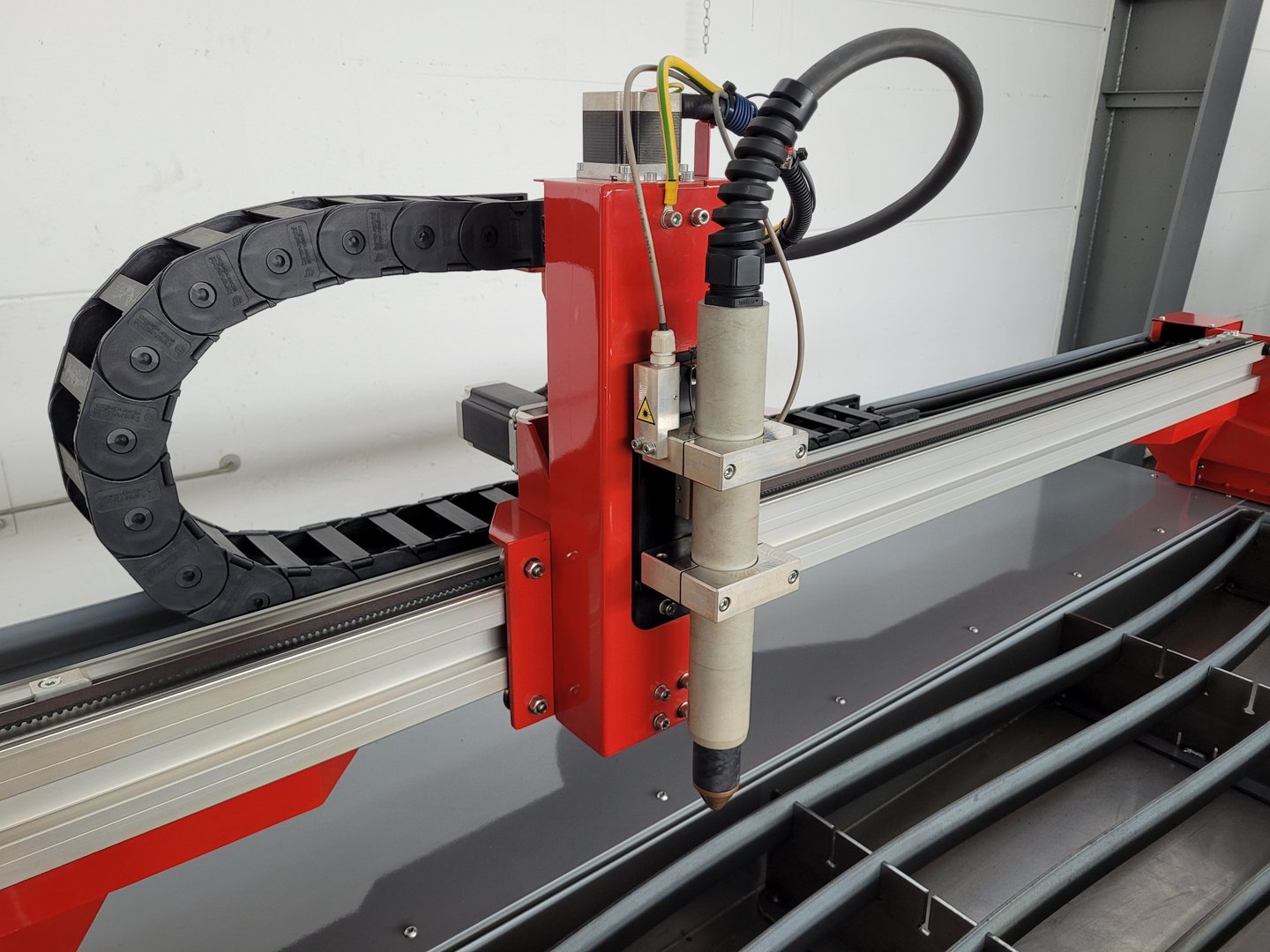

precision profile rail guide (HiWin)
zero backlash HTD drive belt
driven by step motors
solid frame construction
seperate renewable support grate
water trough to catch flying sparks

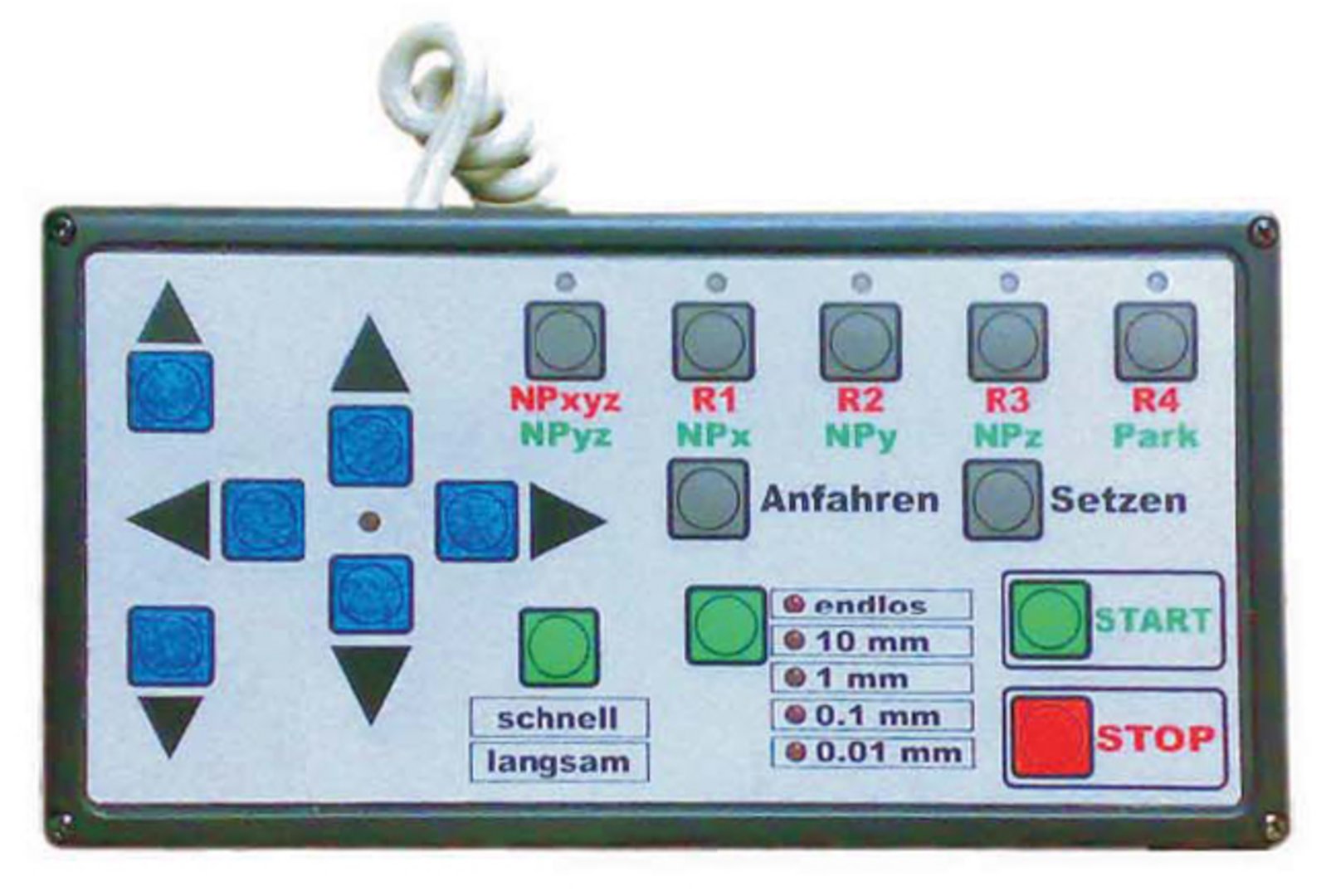

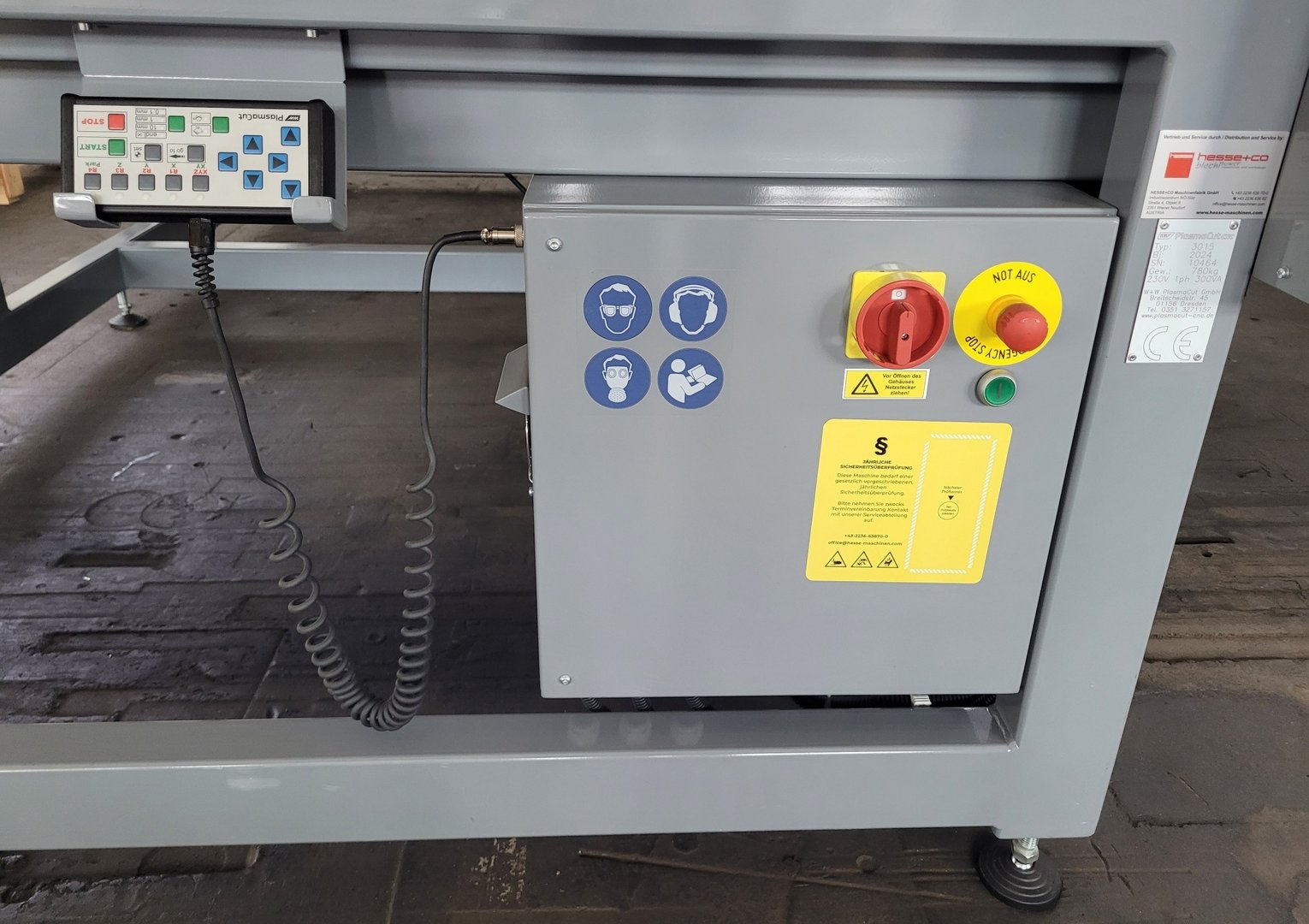

hand operation unit for comfortable processing and set up on the workpiece
users manual in GERMAN
according to CE rules
Incl. following options:
Height adjustment by arc voltage
Set-up laser
Suction bridge (prepared for suction diam. 160 mm)
Further information
Brochures
Product video

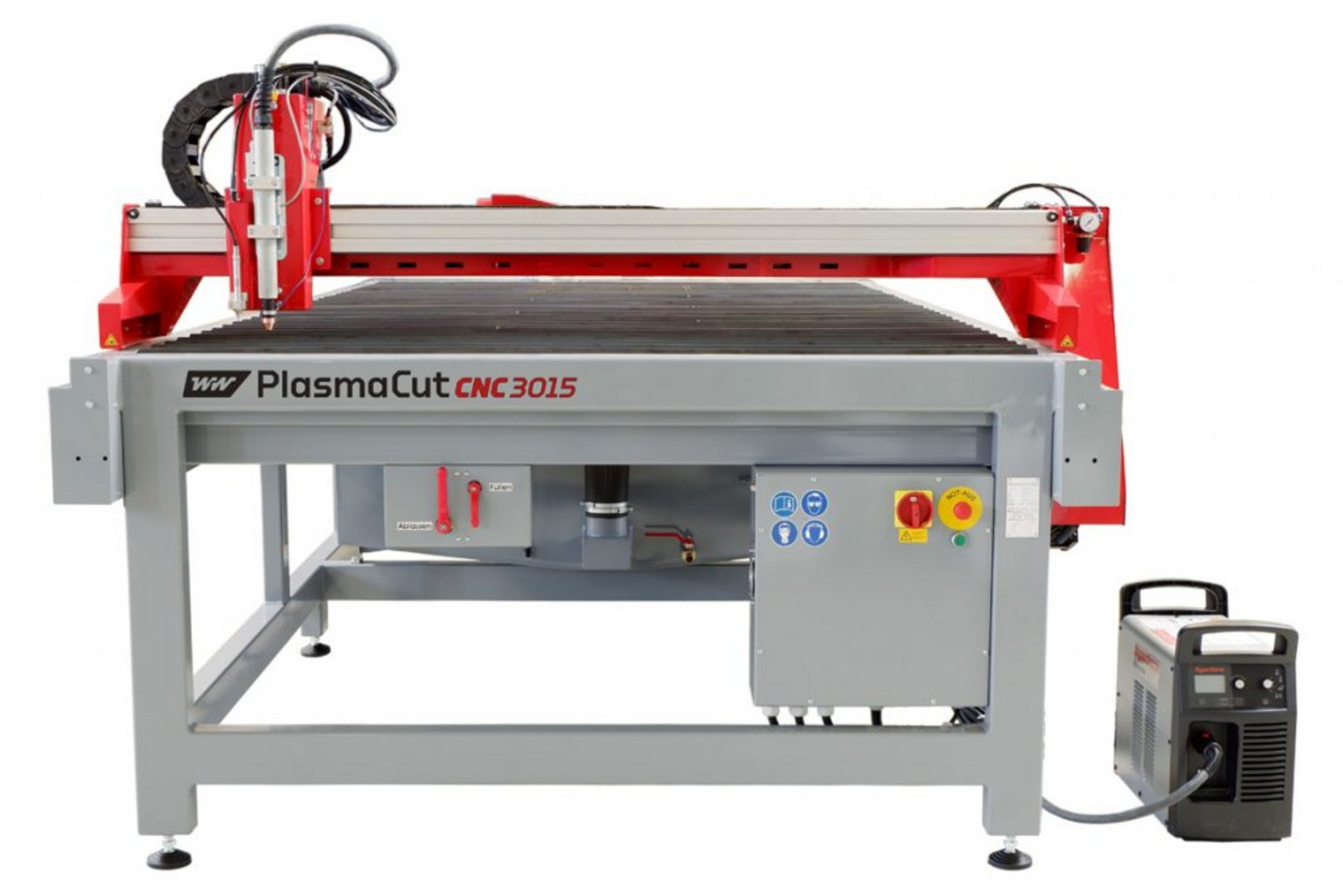

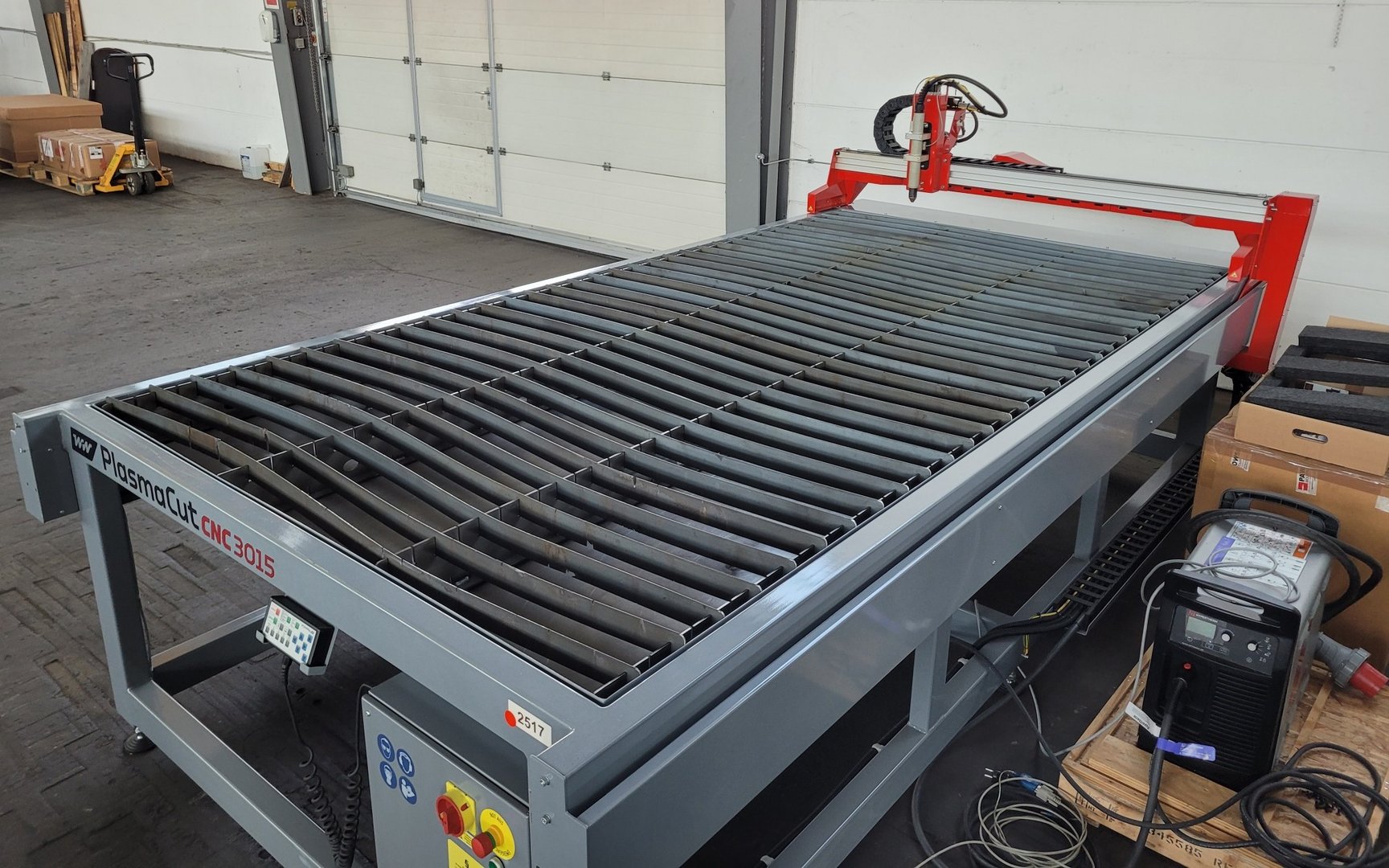

CNC plasma cutting machine 3015 - PMX 125
