General characteristics
| Working area | 3.000 x 1.500 mm |
| Plasma source | HYPERTHERM Powermax 105 |
| Max. thickness - mild steel | 22 mm |
| Max. thickness - stainless steel | 20 mm |
| Max. thickness - aluminium | 12 mm |
| Current / power-on time | 80% ED, 94 A 100% ED A |
| Bridge height (Z) | 120 mm |
| Moving speed | 40 m/min |
| Servomotors rack and pinion rack | 70 kg/cm |
Dimensions and weight

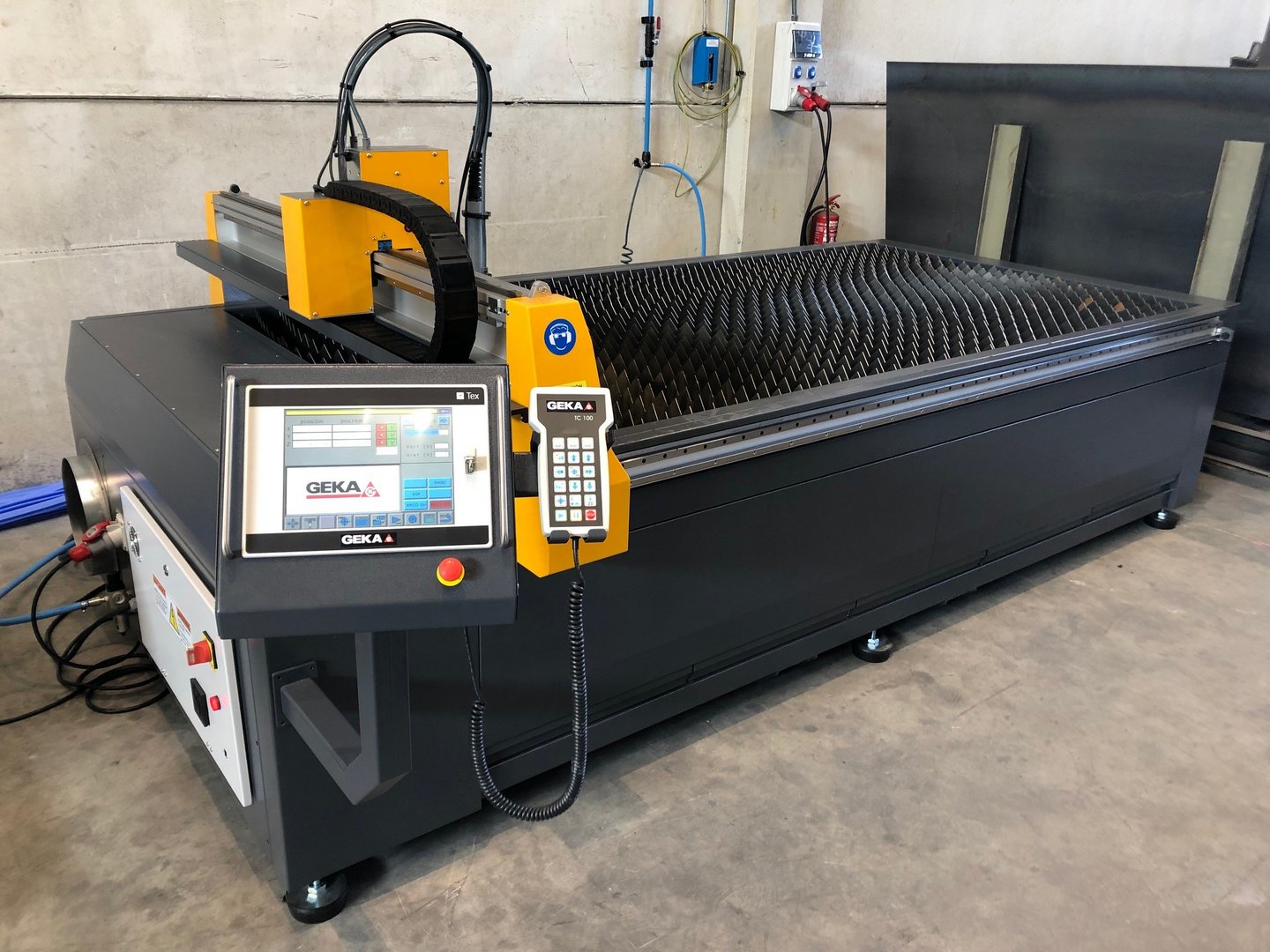

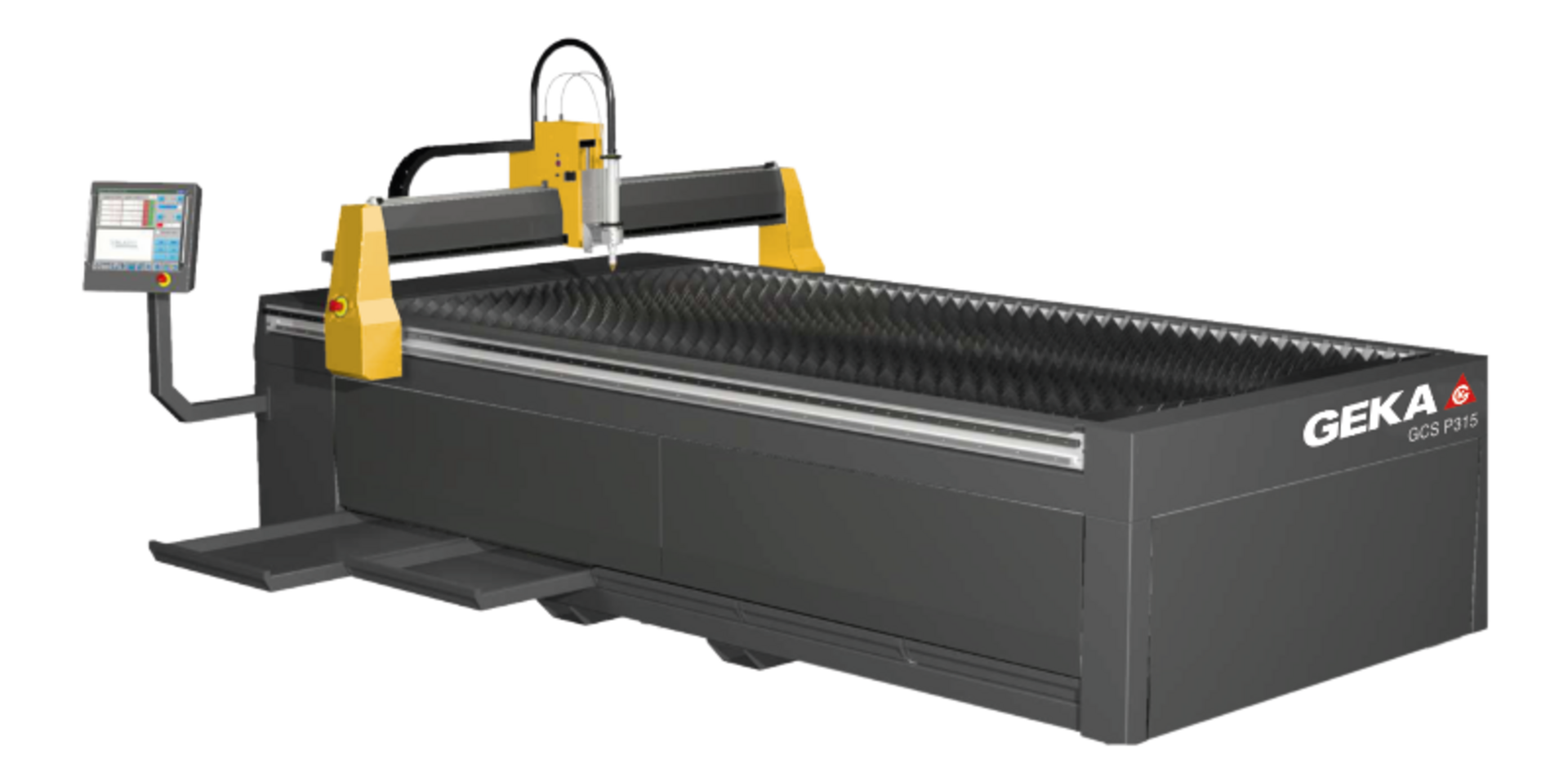

Description
Plasmasource HYPERTHERM Powermax 105 (air)
CNC control TexComputer with Touchscreen
CAD/CAM software GProCut incl. manual and automatic nesting,
with macros with standardshapes, file import by USB or WIFI
Z-axis with TCH (torch height control)
torch-collission-protection (stopp at collission)
Selflubricating guidlines
rack and pinion transmission
table with sectioned chambers (suction as option)
Laserpointer for X-Y zero point verification, resolution 0,01 mm
mobile operating panel
operating manual in ENGLISH or GERMAN
According to "CE" regulations
alternative plasma sources:
| HYPERTHERM | PMX 45 | PMX 65 | PMX 85 | PMX 125 |
| Plasmatype | compressed air | compressed air | compressed air | compressed air |
| steel | 12 mm | 15 mm | 18 mm | 25 mm |
| stainless steel | 12 mm | 12 mm | 16 mm | 20 mm |
| aluminium | 12 mm | 12 mm | 12 mm | 12 mm |
| duty cycle | 50 % | 50 % | 60 % | 100 % |
| PRICE | € 53.000,- | € 54.600,- | € 56.400,- | € 64.100,- |
Options:
| suction unit with filter | € | 16.150,- |
| Hypertherm Pronest LT Software | € | 2.410,- |
| pneumatic engraving unit | € | 2.480,- |
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
