General characteristics
| Bending length | 350 - 2800 mm |
| Max. sheet length | 3050 mm |
| Max. sheet width | 1524 mm |
| Min. bendable width | 150 mm |
| Max. bending height | 254 mm |
| Max. bending depth | 50 mm |
| Max. sheet rotation area | 3300 mm |
| Bending force | 500 to |
| Pressure force | 1000 to |
| Sheet thickness (420 N/mm²) | 3.2 mm |
| Sheet thickness (600 N/mm²) | 2.2 mm |
| Sheet thickness (260 N/mm²) | 4 mm |
| Min. sheet thickness - mild steel | 0.5 mm |
| Max. bending angle | 135 ° |
Description
Bending with maximum speed, safety, fully automatic tool change and minimal adjustment time. The user-friendly bending center is ready to be the solution partner with its easy-to-use interface and software that facilitates material programming.
easy handling
ergonomic and safe working area
energy saving system
standard bending and tensioning arrangements
CAD-CAM software
control unit Siemens Sinumerik 840 D SL Windows 7 operating system, 2D simulation
remote access feature
network, Ethernet connection
programming via the control unit
ATS - Automatic Tool Change
standard manipulator clamps
bending group crowning system
clamping group crowning system
brushed work table
USB drive
climate in the control box
according to CE rules
Further information
Brochures
Product video

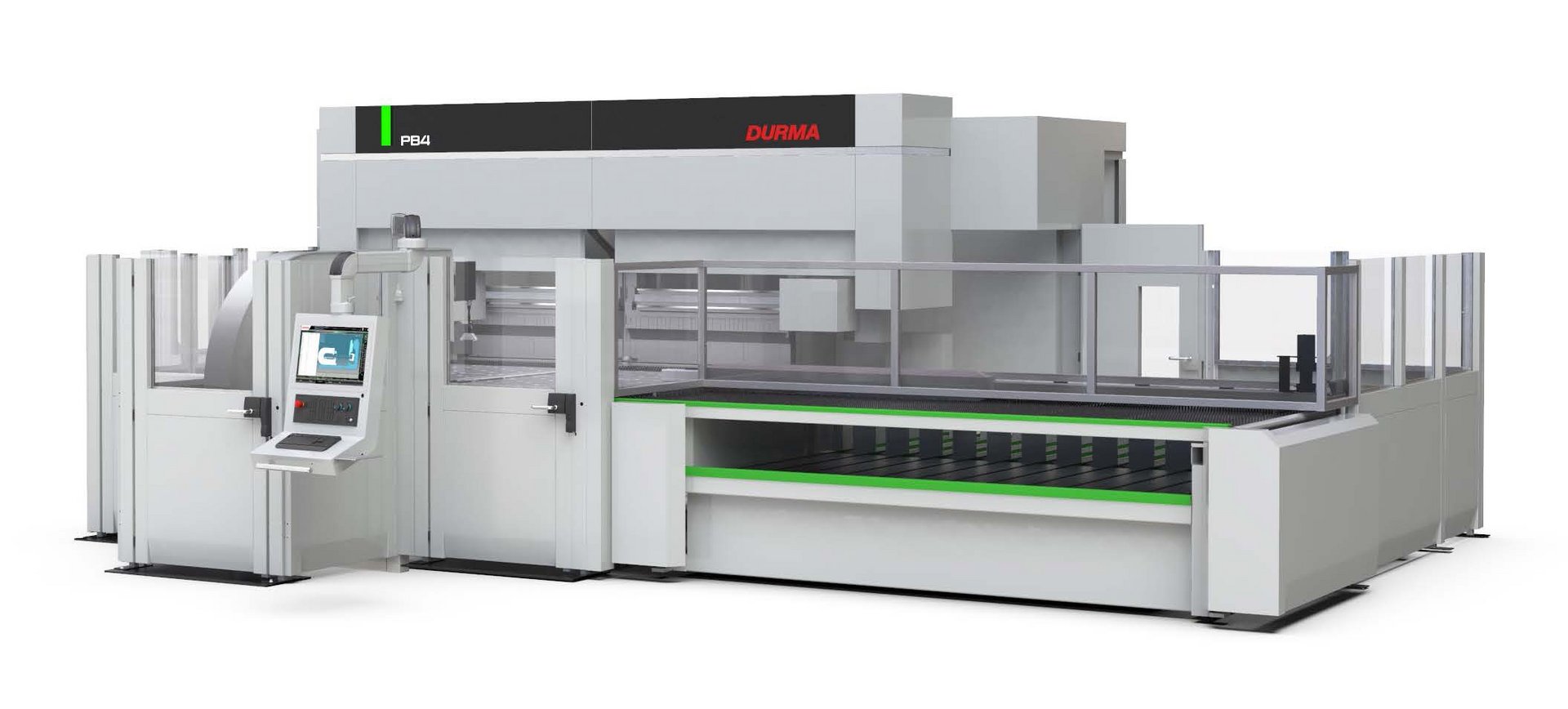

Panel bender Blue Bend PB 4
