General characteristics
| Grinding wheel dimensions | 350/338 x 125 x 165 mm |
| Table | 550 x 180 mm |
Dimensions and weight
| Length | 1700 mm |
| Width | 1000 mm |
| Height | 1400 mm |
| Weight | 740 kg |
Description

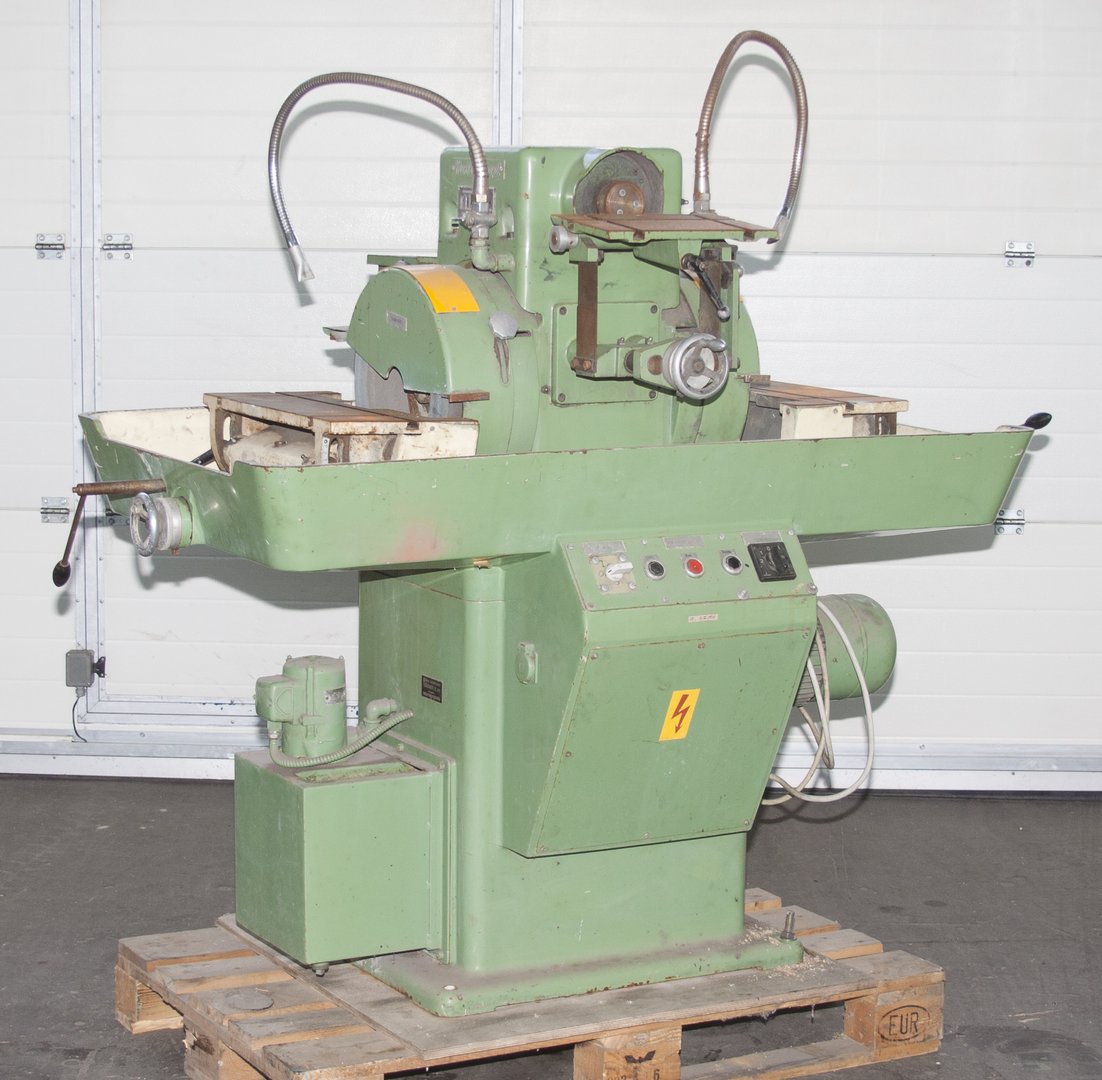

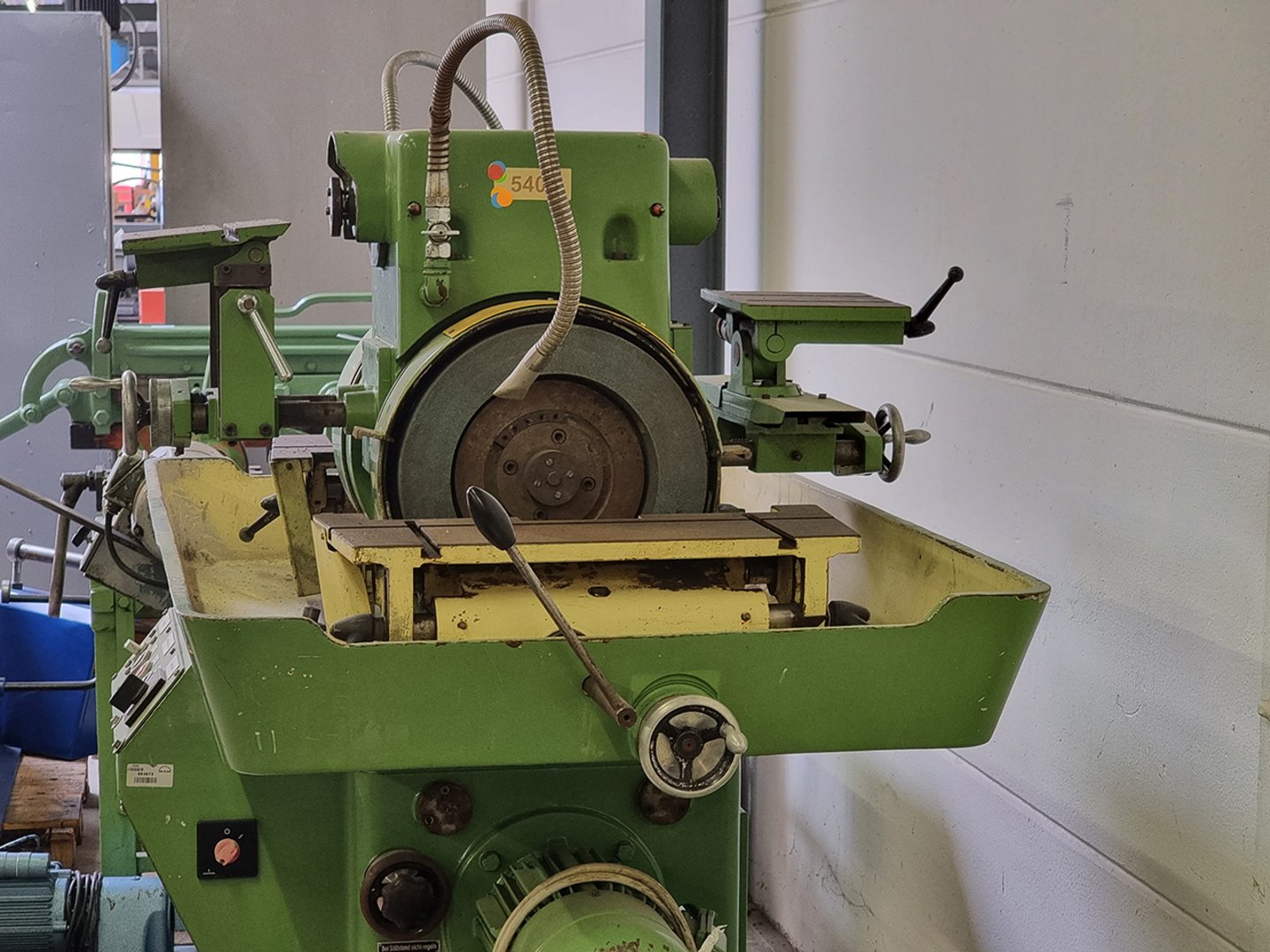

4 working stations by 2 seperated motors
coolant equiptment

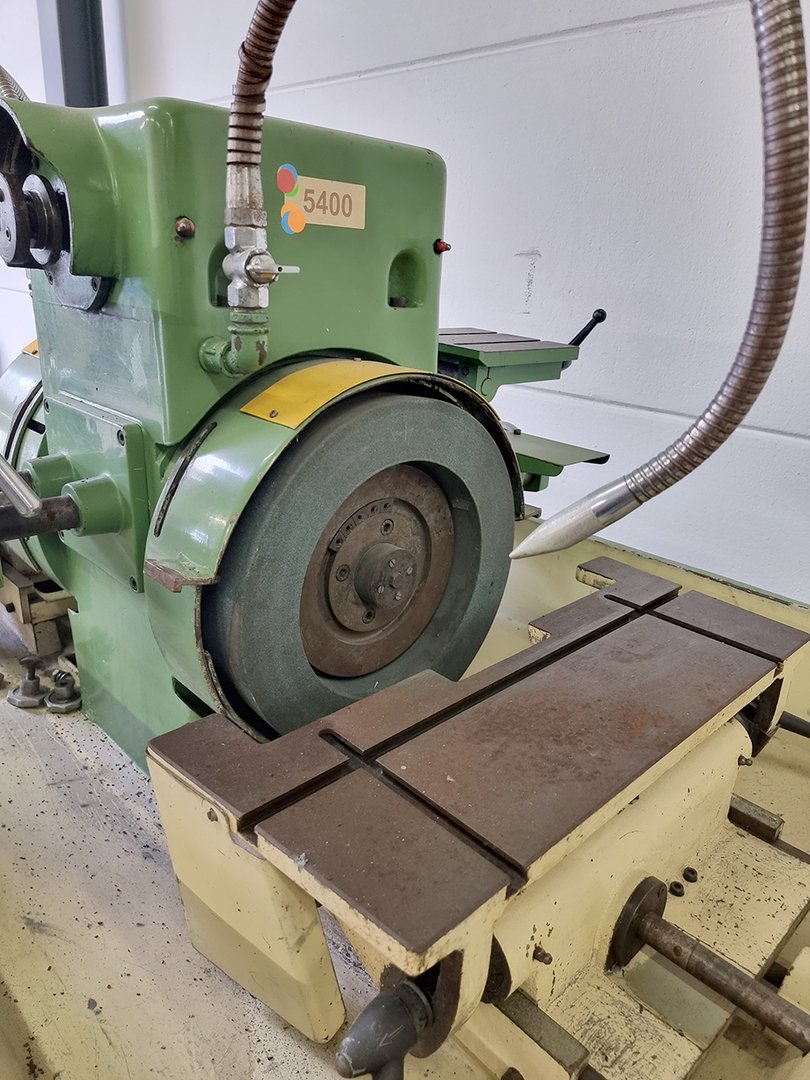

main grinding station with variable drive 16 - 25 m/s left/right run and 2 extra wheels
lapping station with 2 speeds and left/right run (without wheels)

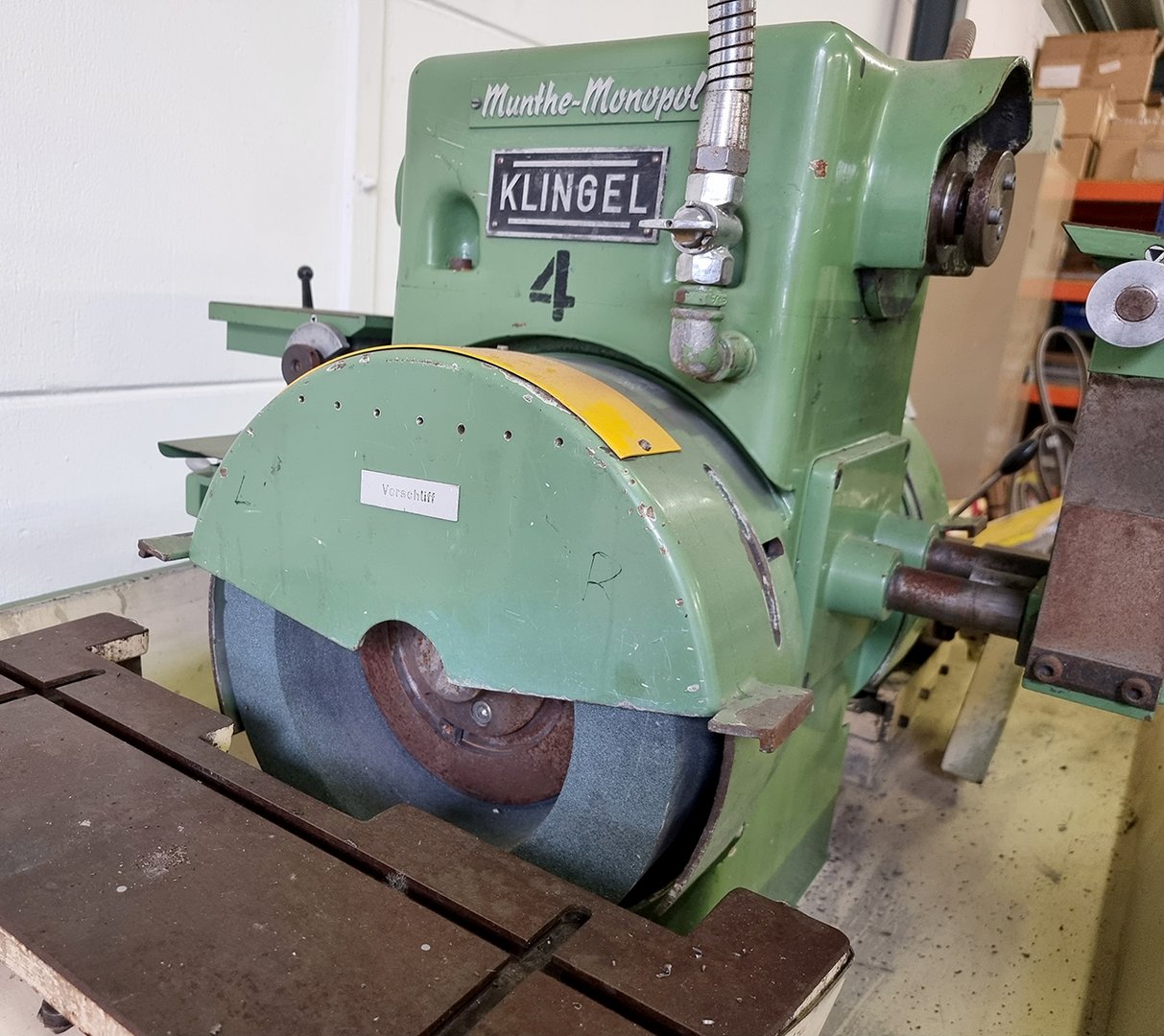

man grinding wheel with 2 grinding wheels and each with 1 table 550 x 180 mm with t-slots infeed-, tilting and pendulum funktion
lapping station with table 200 x 210 mm with t-slots infeed-, rotating-, pivoting, tilting and height adjustable
lapping station with table 300 x 185 mm with t-slots infeed-, tilting and pendulum funktion
no users manual
Does not comply with the present industrial safety regulation
