General characteristics
| Grinding belt dimensions | 100 x 2.000 mm |
| Tube diameter | 20 - 76,1 |
| Hand lever adjustment | 1 |
| Handwheel adjustment | 1 |
| Motor power | 3 kW |
Dimensions and weight
| Weight | 220 kg |
Description

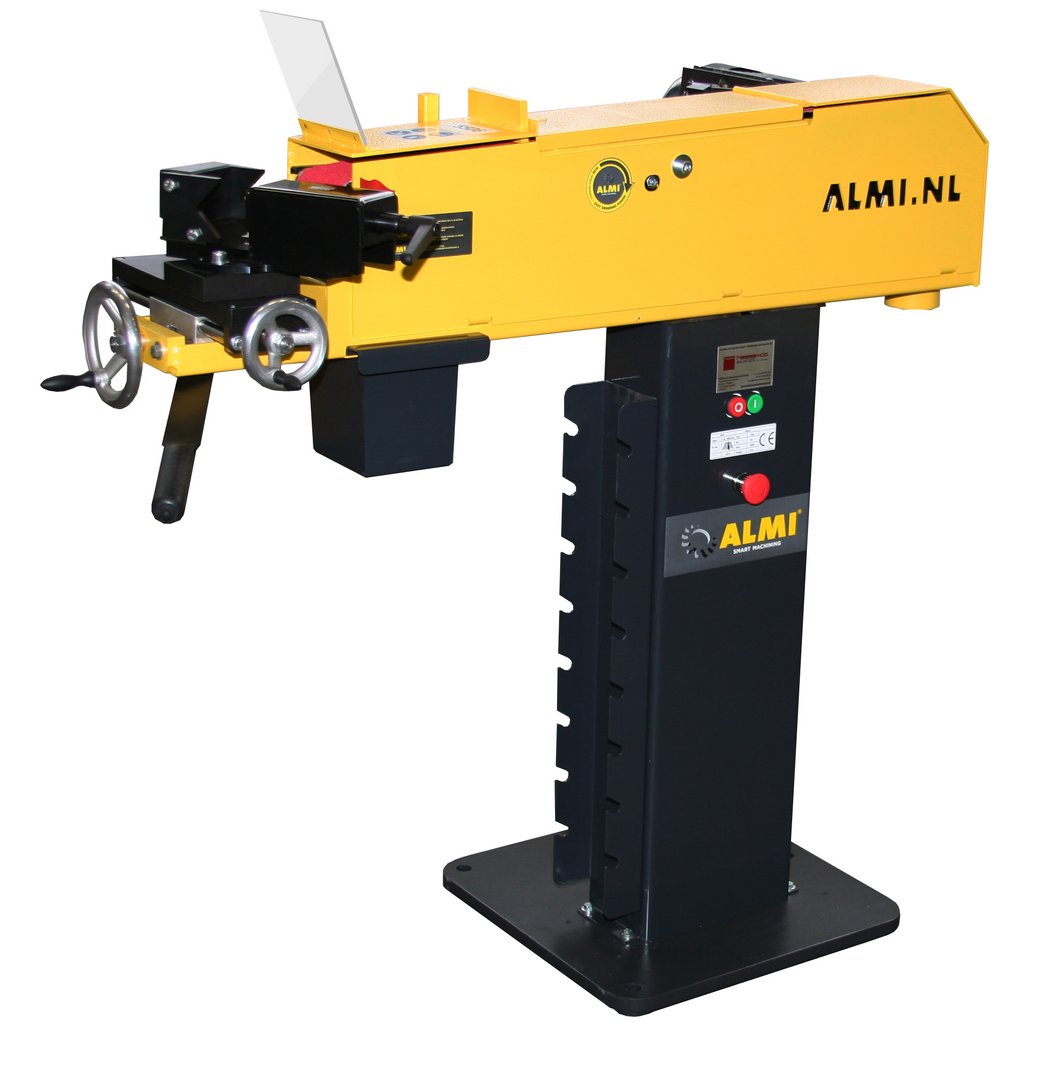

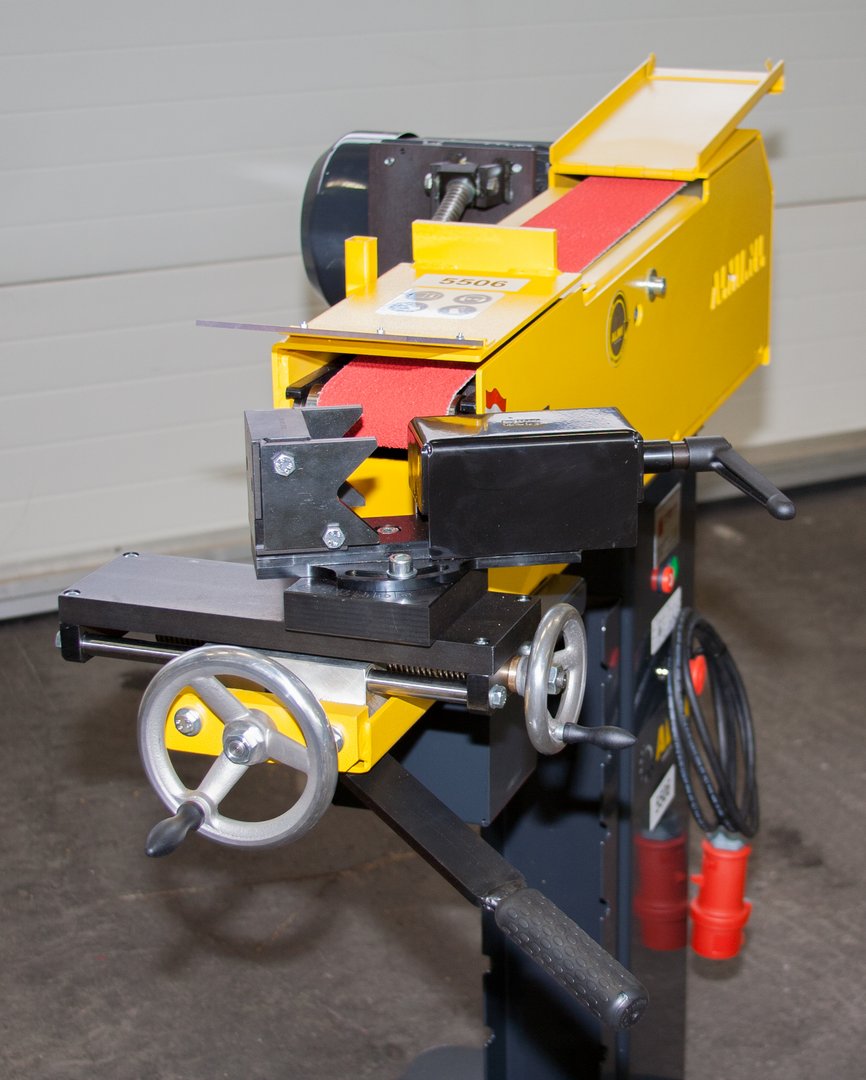

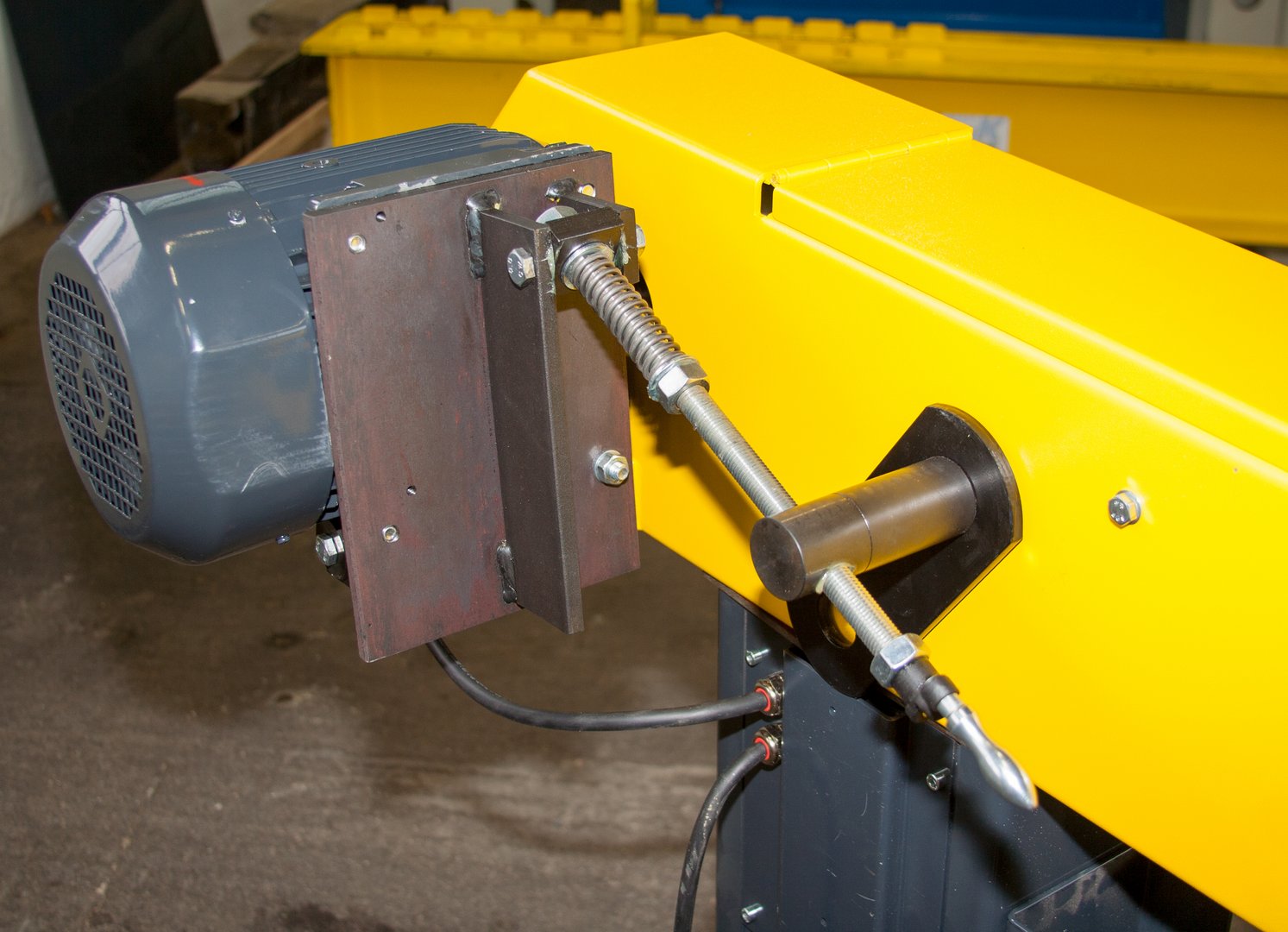

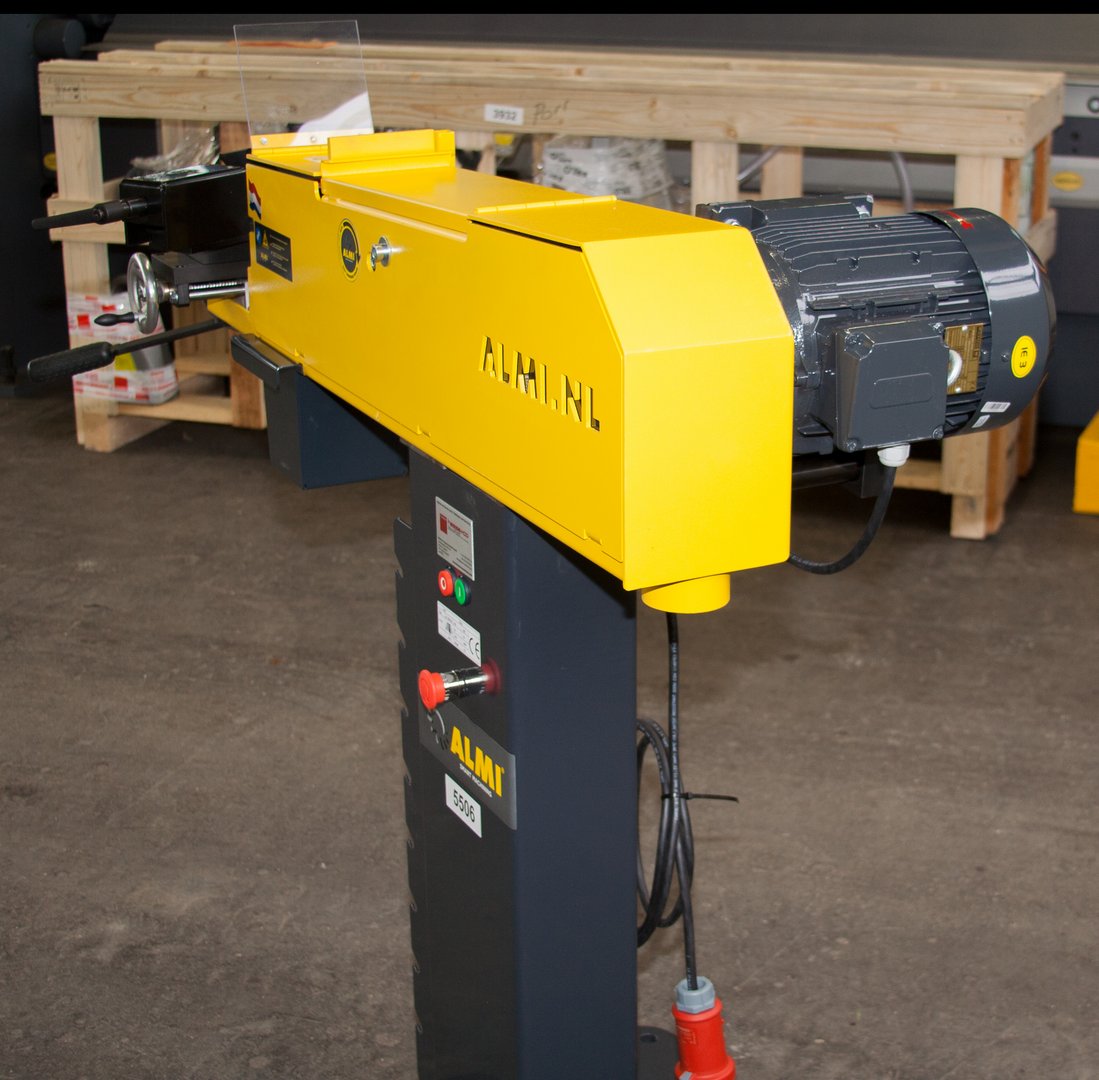

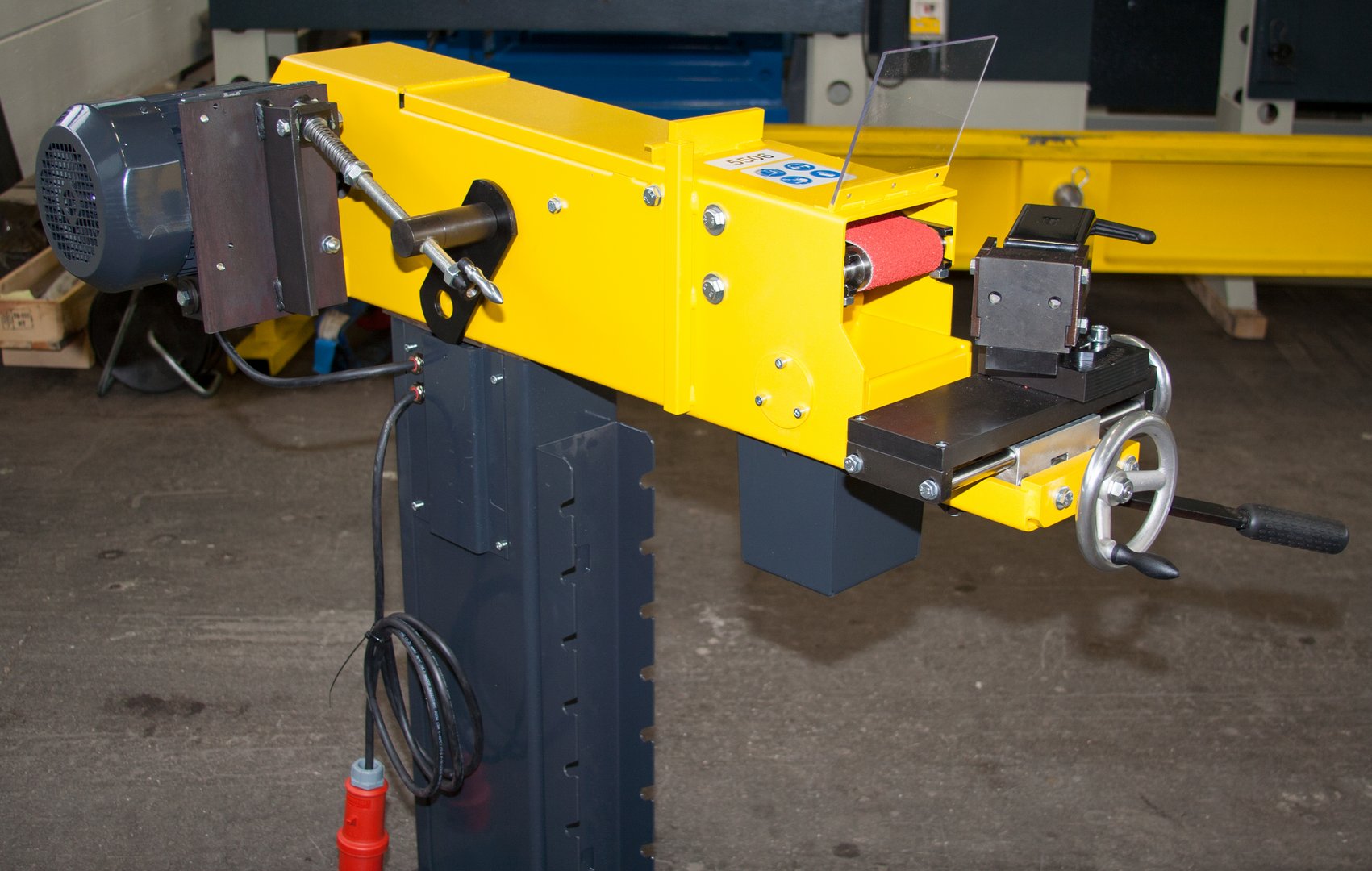

The AL100U-02 can be operated with two hand-wheels or a lever. The machine is equipped with both options. The AL100 U-02 can grind material from Ø 20 mm to Ø 76 mm. The compound slide and carriage with rotatable clamp are continually adjustable, which means the machine can grind all pipe sections at every required angle between 30° and 90°. The ALMI AL100U-02 can be used to grind square, rectangular and round pipes with a range of wall thicknesses and is suitable for all customary types of materials. ALMI’s belt tensioning system makes tensioning the grinding belt even easier. The belt is tensioned using the hexagonal spanner supplied with the machine. The grinding belt can be tensioned quickly and the grinding rollers can be changed in seconds. All pipe grinders are equipped with a deburring table.
Incl. 5 pcs. grinding belts, 1 pce. grinding roll Ø. 42,4 mm
Further information
Brochures
Product video
Pipe grinders AL100U-02
